  3. Direction D66SP
ESX Direction D66SP 6-Channel DSP
SKU:  D66SP
EAN:  4251476405622

Direction D66SP

SKU:  D66SP
EAN:  4251476405622

Technical Highlights

  • DSP chip with 32 bit and 294 MHz, Full HD Audio 96 kHz.
  • Signal converter A/D 32 bit, D/A 32 bit, HP/LP/BP 6-48 dB.
  • Signal-to-noise ratio 106 dB analog, 111 dB digital, runtime correction.
  • More technical details
€299,00
€299,00 €299,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €24,91 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

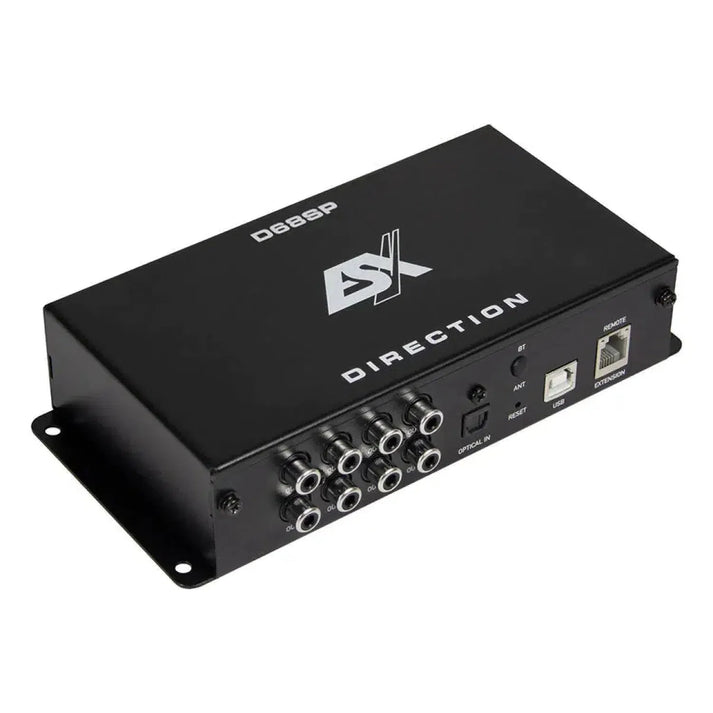

ESX-Direction D66SP-6-Kanal DSP-masori-kaufen
€299,00
€299,00 €299,00

Direction D66SP by ESX

The ESX Direction D66SP is a 6-Channel DSP with a DSP chip from Analog Devices at 32 Bit and 294 MHz, as well as Full HD Audio at 96 kHz. Signal converters from AKM Velvet Sound at 32 Bit for A/D and 32 Bit for D/A are integrated. HP, LP, and BP filters with 6–48 dB, phase shift, and delay correction from 0 to 20 ms in 0.01 ms steps are available. Up to 248 Output EQs and 120 Input EQs with PEQ, HSLF, and LSLF, adjustment range ±12 dB in 0.5 dB steps, plus input mixer, Subwoofer controller, Preset Auto Switch, and Priority Input Mode. Input sensitivity low level 1–6 V RMS, high level 1–15 or 15–45 V RMS; signal-to-noise ratio A-weighted analog 106 dB and digital 111 dB; total harmonic distortion analog less than 0.0015 percent and digital less than 0.0009 percent. The digital 6-channel signal processor has 6 x RCA outputs with 6 V RMS as well as 6 x RCA inputs, 6 x high-level inputs, USB Type B, RJ45, and a power input with REM OUT and MODE switch input. Dimensions 105 x 40 x 185 mm. Optional accessories: BT-D Bluetooth module and RC-DQ LCD remote control.

Features
  • 6-Channel DSP
  • Digital 6-Channel signal processor with 6-channel output
  • DSP chip from Analog Devices, 32 Bit, 294 MHz
  • Full HD Audio 96 kHz
  • AKM Velvet Sound A/D 32 Bit and D/A 32 Bit
  • HP, LP, BP @ 6–48 dB
  • Phase shift
  • Delay correction 0–20 ms, 0.01 ms steps
  • Up to 248 Output EQs
  • Up to 120 Input EQs
  • PEQ, HSLF, LSLF
  • ±12 dB, 0.5 dB steps
  • Input mixer
  • Subwoofer controller
  • Preset Auto Switch
  • Priority Input Mode
  • Optional accessories: BT-D Bluetooth module, RC-DQ LCD remote control
Technical Specifications
  • Input sensitivity low level: 1–6 V RMS
  • Input sensitivity high level: 1–15 V RMS or 15–45 V RMS
  • Signal-to-noise ratio A-weighted analog: 106 dB
  • Signal-to-noise ratio A-weighted digital: 111 dB
  • Total harmonic distortion analog: less than 0.0015 percent
  • Total harmonic distortion digital: less than 0.0009 percent
  • Inputs: 6 x RCA input, balanced
  • Inputs: 6 x high-level input via Molex Plug
  • Interface: 1 x USB Type B for PC software
  • Interface: 1 x RJ45 for remote control and extension
  • Power input including REM OUT and MODE switch input
  • Outputs: 6 x RCA at 6 V RMS
  • Dimensions: 105 x 40 x 185 mm

Your benefits at Masori

ESX Direction D66SP Datasheet

Open datasheet

Frequently Asked Questions about Direction D66SP

What audio formats does the Direction D66SP support?

The Direction D66SP from ESX supports Full HD audio at 96 kHz, powered by the 32-bit DSP chip from Analog Devices™ and the AKM Velvet Sound™ A/D and D/A signal converters. This combination allows for detailed management of up to 248 output EQs and 120 input EQs, providing you with precise sound processing for various audio formats. More complex audio projects benefit from the advanced equalizer functions (PEQ/HSLF/LSLF) with adjustments in 0.5 dB steps. The input sensitivity for different sources can also be configured from 1 to 45 V/RMS to ensure maximum compatibility.

How does the time correction work in the Direction D66SP?

The time correction of the Direction D66SP is a powerful tool for optimizing sound. It allows for delay adjustments from 0 to 20 ms in precise 0.01 ms steps. This enables you to compensate for time differences between different speakers that may arise from varying installation distances. This precise adjustment is essential for achieving an optimal spatial sound image in your vehicle. With the accurate control of phase shift and comprehensive adaptability, you will experience a significant improvement in soundstage and listening position.

What input and output interfaces does the Direction D66SP offer?

The Direction D66SP offers various input and output interfaces that allow for flexible integration into your audio system. It features 6 RCA inputs and balanced high-level inputs, including 6 high-level inputs via Molex connectors. The output also includes 6 RCA outputs, each with 6 V RMS. For connectivity with PC software, a USB Type B port is available, while an RJ45 port allows for remote control connection. Additionally, there is a power input for REM OUT and MODE switch options.

What role does the DSP chip play in the Direction D66SP?

The DSP chip from Analog Devices™ integrated in the Direction D66SP plays a central role in sound processing. With its 32-bit, 294 MHz signal processing, it enables high-resolution audio processing and precise signal handling. The chip facilitates Full HD audio processing at 96 kHz and allows for complex EQ adjustments on both input and output sides. These technological advancements drastically improve sound quality and allow for seamless integration of different sound sources.

What parameters of the Direction D66SP influence sound quality?

The sound quality of the Direction D66SP is significantly influenced by several technical parameters. The signal converter from AKM Velvet Sound™ with 32-bit A/D and D/A conversion offers unparalleled audio resolution and precise sound details. The parametric equalizers with up to 248 output EQs and 120 input EQs allow for subtle and precise adjustments. With phase shifting and delay correction, an optimal soundstage is created. A high signal-to-noise ratio of 106 dB for analog and 111 dB for digital inputs provides a clear, interference-free audio signal.

How is the Direction D66SP installed in the vehicle?

The installation of the Direction D66SP is done using the available interfaces and requires careful attention to the dimensions of 105 x 40 x 185 mm. These dimensions allow for comfortable placement in most vehicle systems, whether in the glove compartment or under the seat. The various input connections for high-level and RCA signals offer flexible installation options. It is advisable to correctly configure the power connection and REM OUT to fully utilize the functions. Proper setup of the remote control and software supports full control capability.

What conversion options does the Direction D66SP offer?

The Direction D66SP offers extensive conversion options through AKM Velvet Sound™ technologies. Both the A/D and D/A converters operate with a 32-bit architecture, ensuring high accuracy and precise audio playback. This technology ensures that both analog and digital signals are processed with minimal distortion. The total harmonic distortion is below 0.0015% for analog inputs and below 0.0009% for digital inputs, indicating extremely low distortion and thus excellent sound fidelity.

What adjustments can be made with the EQs of the Direction D66SP?

The Direction D66SP offers a variety of customization options through the EQs (Equalizers). With up to 248 output EQs and 120 input EQs, you can tailor the sound of your audio source. These EQs support parametric, high-pass, and low-pass filtering adjustments (PEQ/HSLF/LSLF) with possible changes in 0.5 dB steps. This precise adjustability allows you to shape the frequency response to compensate for any room acoustics issues or to realize personal sound preferences. This flexible sound design is a key advantage of the Direction D66SP.

What input sensitivity can I expect from the Direction D66SP?

The Direction D66SP offers an impressive range of input sensitivity to be compatible with a variety of devices. The low-level input allows a sensitivity of 1 to 6 V/RMS, while the high-level input varies between 15 and 45 V/RMS. This flexibility ensures that the DSP works seamlessly with different audio sources, from simple car radio receivers to more complex amplifier systems. Since the input signal amplitude can vary, this wide range allows for optimal integration of the device into your system and minimizes any signal distortion.

What optional accessories are available for the Direction D66SP?

Various optional accessories are available for the Direction D66SP from ESX to expand its functionalities. The BT-D module enables easy integration of Bluetooth® capabilities, allowing you to stream music wirelessly from mobile devices. Additionally, there is the RC-DQ LCD remote control, which provides intuitive control of the DSP functions directly from the driver's seat. These extensions not only facilitate the daily handling of the DSP but also offer additional personalized usage options that highlight the AKM Velvet Sound™ technologies.
