  3. DSX5.2E

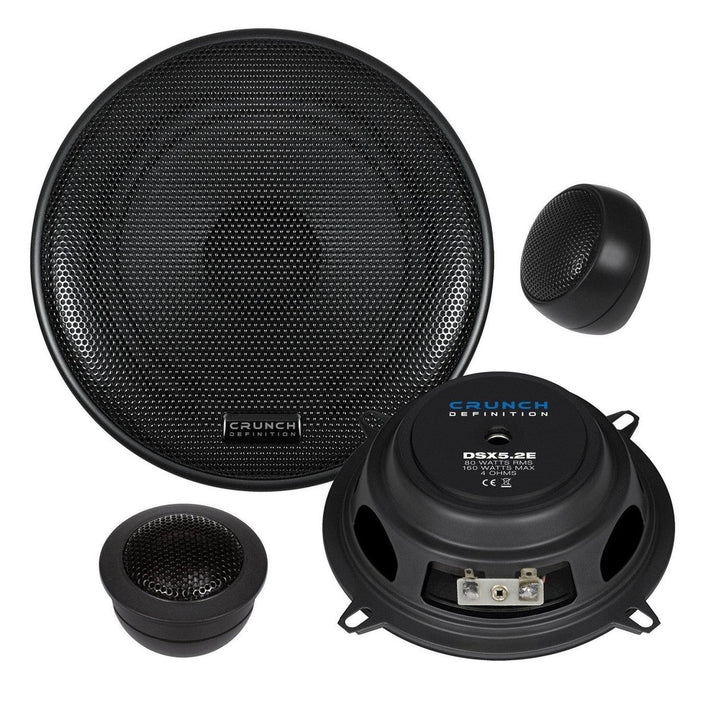

Crunch DSX5.2E 5" (13cm) Speaker Set
SKU:  DSX5.2E
EAN:  4251476404632
80 Watt

DSX5.2E

SKU:  DSX5.2E
EAN:  4251476404632

Technical Highlights

  • Power: 80 watts RMS, 160 watts MAX, Impedance: 4 Ω.
  • Frequency range: 69 22000 Hz, 130 mm woofers (2x).
  • 25 mm neodymium tweeter, polypropylene cone, mounting depth 42 mm.
  • More technical details
00 d
00 h
00 m
00 s
€69,17
-27% €95,00 €69,17
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 5, - Jun 8,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €5,76 with Klarna .
Expert Image

Rob

Expert Image

Max

Avoid a bad purchase? We check your setup!

Rob & Max check your project: So you are guaranteed to get the maximum performance for your budget.

Response on weekdays within 24 hours

Your benefits at Masori
Crunch-DSX5.2E-5" (13cm) Lautsprecherset-masori-kaufen
€69,17
€95,00 €69,17

More power than DSX5.2E here!

Show all
  • A round black honeycomb mesh grille for the Deaf Bonce GDB-65 features faint EDB letters across its center.

    GDB-65

    €9,00
    €9,00 €9,00
    Delivery
    Delivered automatically as soon as available from the supplier.
  • Deaf Bonce-Apocalypse AP-X69A-6"x9" Koaxial-Lautsprecher-masori-kaufen
    200 Watt

    Apocalypse AP-X69A

    €140,40
    €150,00 €140,40
    Delivery
    Jun 8, - Jun 12,
  • Ai-Sonic-S2-C6.2-6.5" (16,5cm) Lautsprecherset-masori-kaufen
    90 Watt

    S2-C6.2

    €199,00
    €199,00 €199,00
    Delivery
    Jun 9, - Jun 14,
  • DD Audio-GR-MR Grill 5-8 Zoll-Lautsprechergitter-masori-kaufen

    GR-MR Grill 5-8 inch

    From €10,00
    €10,00 From €10,00
    In stock
    Jun 5, - Jun 6,
  • DD Audio-DC6.5a-6.5" (16,5cm) Lautsprecherset-masori-kaufen
    75 Watt

    DC6.5a

    €199,00
    €199,00 €199,00
    Delivery
    Jun 19, - Jun 24,
DSC01014_2

This could also look like this for you!

A speaker is only as good as its construction. While mass-produced products often sound flat, brands like DD Audio focus on precision and Deaf Bonce on uncompromising dynamics. We have filtered out the systems that technically get more out of your budget and open up a new league in sound quality for you.

Discover now

DSX5.2E by Crunch Description

The DSX5.2E from Crunch is a 5-inch (13 cm) Speaker Set with a sturdy steel construction in flat design. The system features an internal magnetic drive as well as polypropylene membranes and 25 mm voice coils. The power handling is 80 Watts RMS and 160 Watts MAX at an impedance of 4 Ω. The set includes two 130 mm mid-bass drivers and two 25 mm fabric neodymium Tweeters with swivel function. The installation depth is 42 mm with a cutout size of 115 mm. The package also includes robust Speaker Grilles and compact 12 dB cable crossovers.

Features
  • 5-inch (13 cm) Speaker Set
  • Sturdy steel baskets in flat design
  • Internal magnetic drive
  • Polypropylene membranes
  • 25 mm voice coils
  • Robust Speaker Grilles
  • Swivel Tweeters
  • Compact cable crossovers
Technical Specifications
  • 2 x 130 mm mid-bass drivers
  • 2 x 25 mm fabric neodymium Tweeters
  • 4 x 12 dB cable crossovers
  • Power handling: 80 Watts RMS
  • Power handling: 160 Watts MAX
  • Impedance: 4 Ω
  • Frequency range: 69 - 22000 Hz
  • Cutout size: 115 mm
  • Installation depth: 42 mm

Crunch DSX5.2E Datasheet

Open datasheet

Frequently Asked Questions about DSX5.2E

What sound quality does the DSX5.2E Speaker Set offer?

The DSX5.2E Speaker Set from Crunch impresses with exceptional sound quality. The polypropylene membranes combined with the 25 mm voice coils produce clear sound experiences across the entire frequency range from 69 to 22000 Hz. The high power handling of 160 Watts MAX also provides enough headroom to ensure clean audio signals even at higher volumes. The swiveling tweeters allow for precise positioning, which ensures excellent high-frequency reproduction. This makes the DSX5.2E suitable for music lovers who appreciate detailed highs as well as for those who enjoy powerful bass.

What technical features are particularly noteworthy in the DSX5.2E Speaker Set?

The DSX5.2E Speaker Set from Crunch is characterized primarily by its solid technical specifications. The stable steel construction in flat design provides a robust frame, while the internal magnetic drive ensures efficient performance. The polypropylene membranes are ideal for clear sound output, supported by the 25 mm voice coils. With a maximum power handling of 160 Watts, the system impresses with flexibility in application. Additionally, the robust Speaker Grille and compact design with a mounting depth of 42 mm combine both protection and easy installation.

How do the polypropylene membranes affect the sound reproduction of the DSX5.2E?

Polypropylene membranes in the DSX5.2E Speaker Set from Crunch play a crucial role in sound reproduction. These membranes are known for their stiffness and lightweight construction, which leads to minimized distortion and clearer sound reproduction. They particularly support the reproduction of low frequencies, allowing the midrange driver to work powerfully and precisely. The choice of material also ensures good moisture resistance, which increases the longevity of the speakers and makes sounds appear precise and detailed, whether at high or low volumes.

What advantages do the swiveling tweeters in the DSX5.2E Speaker Set offer?

The swiveling tweeters of the DSX5.2E Speaker Set from Crunch offer remarkable advantages in terms of flexibility and sound dispersion. This feature allows the tweeters to be individually directed towards the listening area, optimizing the radiation characteristics and thus enhancing the listening experience. As a result, high frequencies can be perceived with increased precision, which is particularly valuable in acoustically challenging environments. For music lovers who want to customize their sound, these swiveling elements provide an excellent way to create personalized sound profiles and extract the best performance from the speakers.

How easy is the installation of the DSX5.2E Speaker Set in vehicles?

The installation of the DSX5.2E Speaker Set from Crunch in vehicles is simplified by various technical features. A key factor is the installation depth of only 42 mm, which allows for mounting even in tight spaces. The compact cable crossover helps to utilize space effectively. The installation opening of 115 mm makes the set flexible for a variety of applications. These features make the set particularly attractive for car enthusiasts looking for a powerful yet space-saving solution. It is compatible with several common car brands and models, seamlessly integrating into existing systems.

What impact does the steel construction have on the durability of the DSX5.2E?

The stable steel construction of the DSX5.2E Speaker Set from Crunch plays a crucial role in terms of the product's durability and robustness. Steel constructions are known for their high resistance to mechanical stress and environmental influences, making them ideal for use in vehicles where vibrations and temperature fluctuations can occur. This design helps ensure that the speakers provide consistent sound quality over a long period and protects the internal components from damage. This guarantees consistently high performance and a long lifespan for the speaker set.

How is the load capacity of the DSX5.2E to be assessed?

The load capacity of the DSX5.2E Speaker Set from Crunch is rated at a maximum of 160 watts (MAX) and 80 watts (RMS). These values indicate the speakers' ability to handle both continuous loads and peak performance. The specification of 80 watts RMS shows that they can operate with continuous audio signal input without loss of quality, while the 160 watts MAX indicates short-term peak power handling. These load values are ideal for users who want to enhance their audio experiences without risking overloading the speakers.

What role do the 25 mm voice coils play in the DSX5.2E Speaker Set?

The 25 mm voice coils of the DSX5.2E Speaker Set from Crunch are crucial for sound quality and thermal handling of the speakers. Larger voice coils have a higher load capacity and allow for more efficient heat dissipation, resulting in better and more stable performance. This larger sizing helps minimize distortion and ensures more precise sound reproduction. This results in clear and powerful audio signals that maintain consistent sound quality even at high volumes. This makes them ideal for users who value detailed and dynamic sounds, especially with demanding music.

How does the mounting hole of the DSX5.2E affect installation in different vehicles?

The mounting hole of the DSX5.2E Speaker Set from Crunch measures 115 mm, making it a versatile option for integration into various vehicle types. This specific size allows for relatively hassle-free adaptation to existing speaker openings without requiring additional modifications to the vehicle. The standard dimensions not only facilitate installation but also the potential replacement of older or defective speakers in common car models. This provides users with a versatile installation solution that significantly reduces both time and effort during setup.

What frequency range does the DSX5.2E Speaker Set cover?

The DSX5.2E Speaker Set from Crunch covers a comprehensive frequency range from 69 Hz to 22000 Hz. This bandwidth allows for the reproduction of a wide spectrum of audio signals, from deep bass to clear highs. This is crucial for reproducing both music pieces with complex sound structures and simple sound patterns with high precision and clarity. With this frequency coverage, the DSX5.2E is capable of catering to a variety of music styles and sound preferences, making it an excellent choice for audiophiles with diverse listening tastes.
