Club 64CSQ

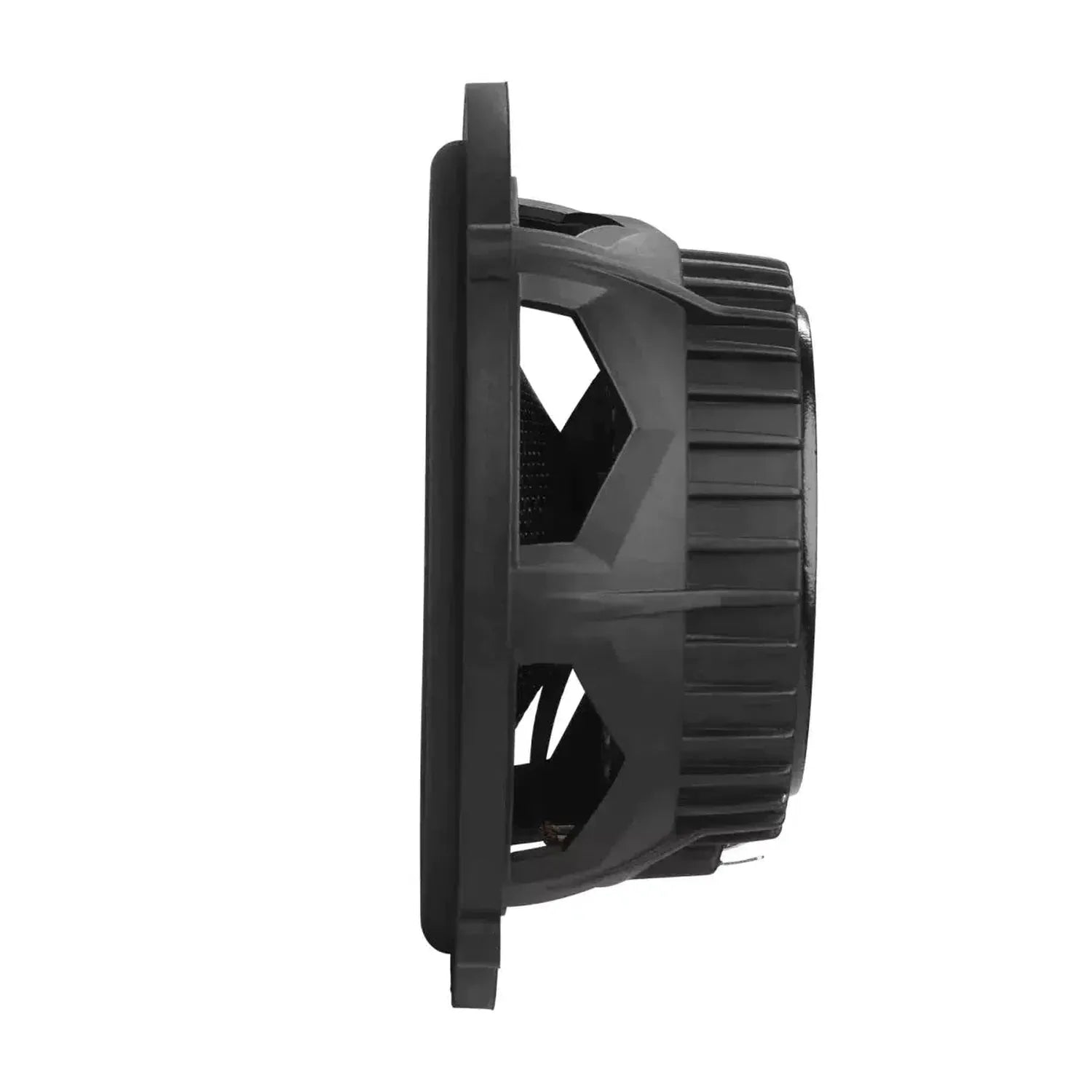

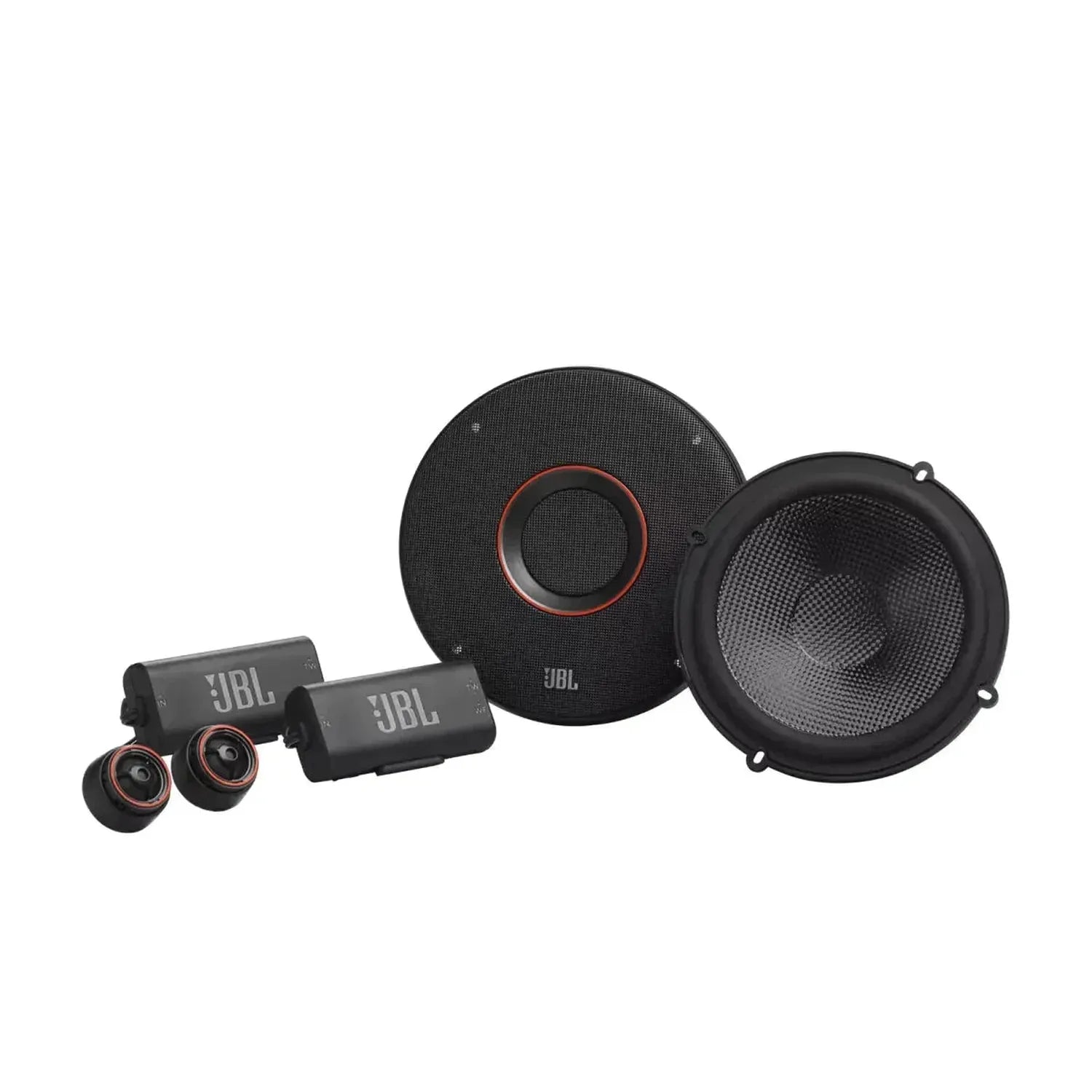

The CLUB 64CSQ from JBL represents a new era of sound quality in vehicles. As a 6.5" (16.5cm) front system set, it offers outstanding performance and fits with its compact design into a variety of vehicle models. Equipped with carbon fiber reinforced woofers and edge-driven silk dome tweeters, this set delivers unparalleled sound quality and durability. The whole is complemented by innovative features such as the Starfish™ tweeter mounting adapter and the I-Mount tweeter mounting kit, which allow for easy and flexible installation. You can expect impressive performance and unmatched sound from this set, elevating your musical experiences to a whole new level.

properties

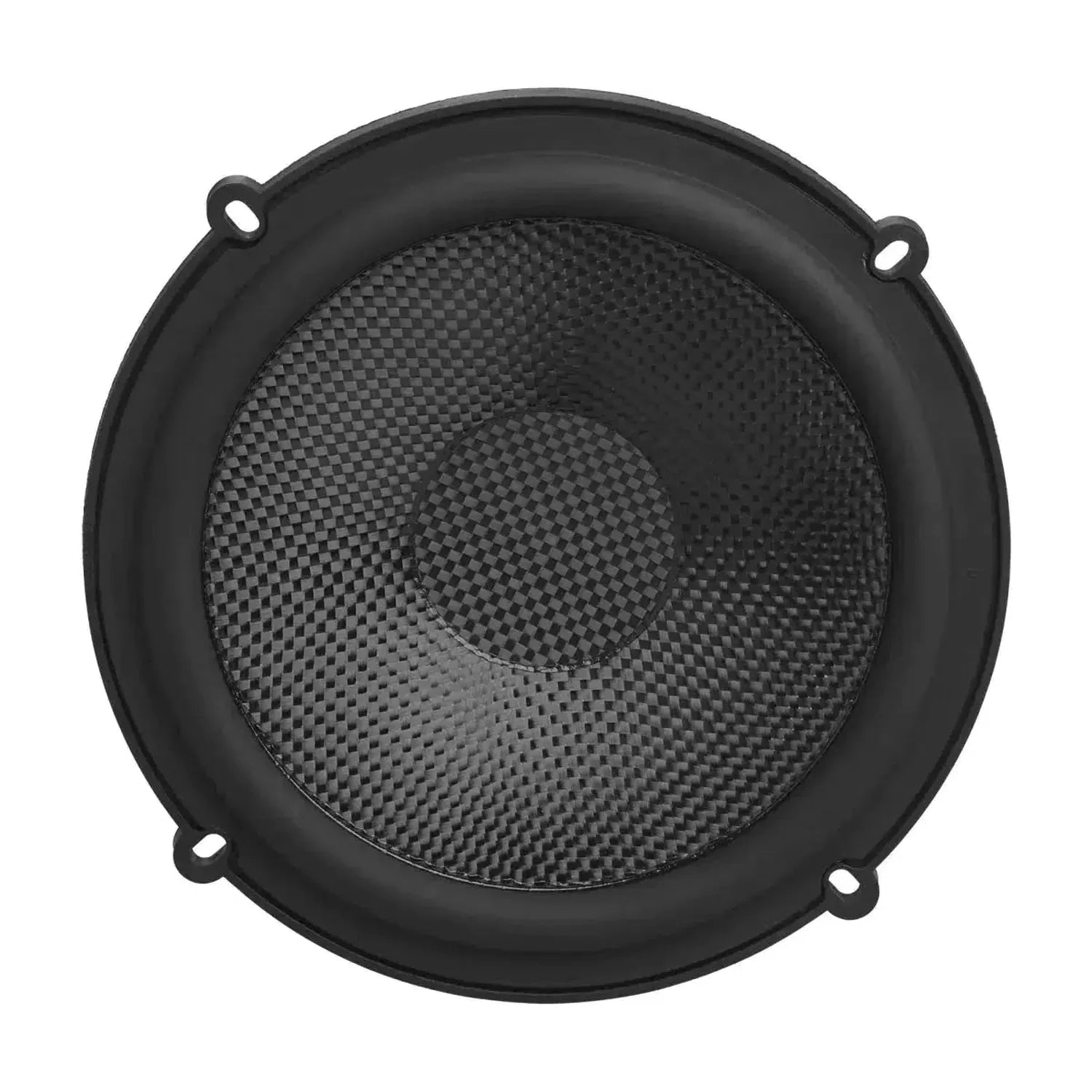

• Carbon fiber subwoofer with Plus One™ architecture for ultimate sound quality
• The patented (US Patent No. 7,548,631) Plus One™ membranes provide a larger overall surface area than other speakers of the same size, resulting in louder bass. The high-quality carbon fiber material of the woofer ensures precision and a clear musical character.

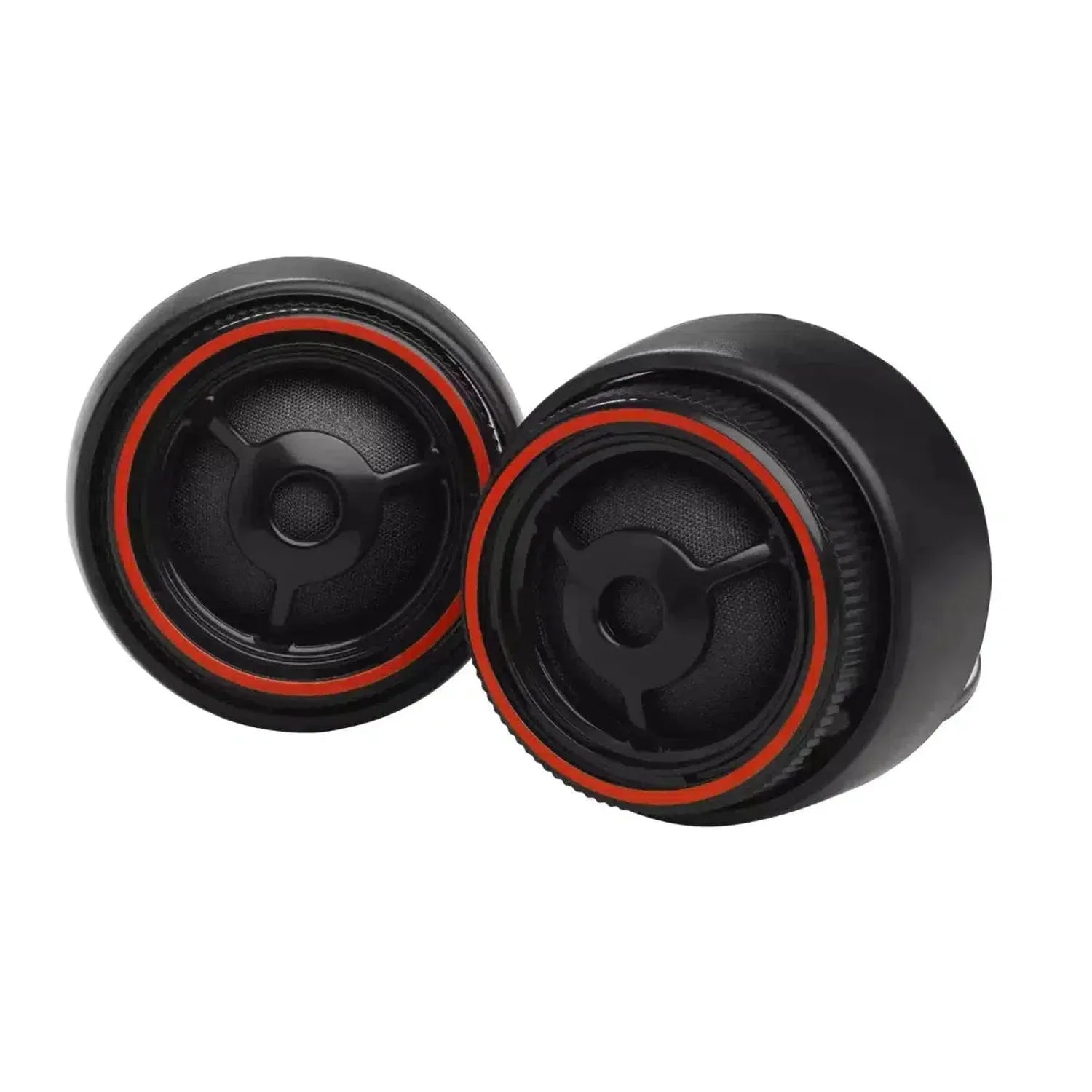

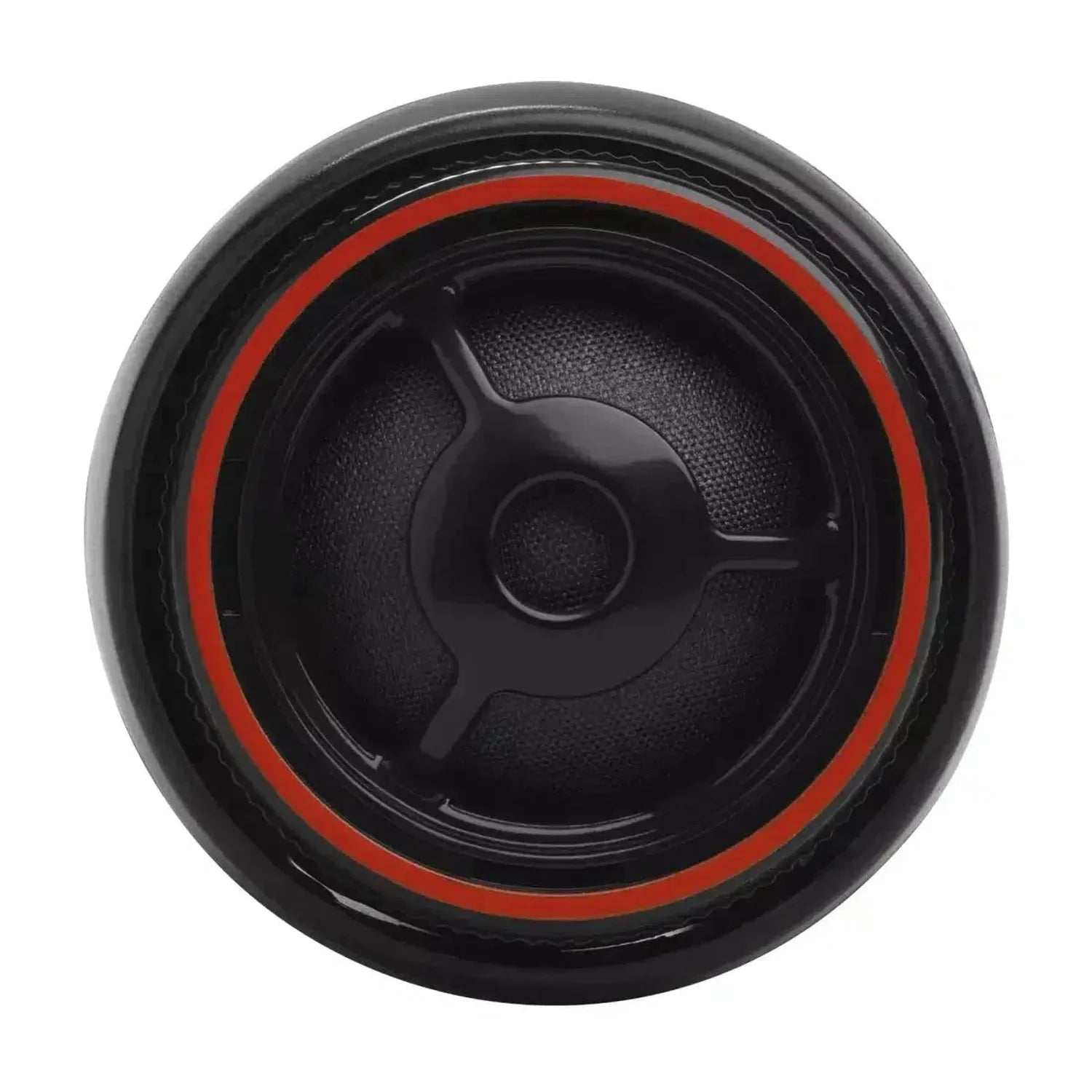

• Cantilever-controlled silk dome tweeter
• The Club SQ speakers feature an edge-driven silk dome tweeter that delivers a wider and more even high-frequency range that never becomes harsh regardless of the output level, unlike the commonly used W domes.

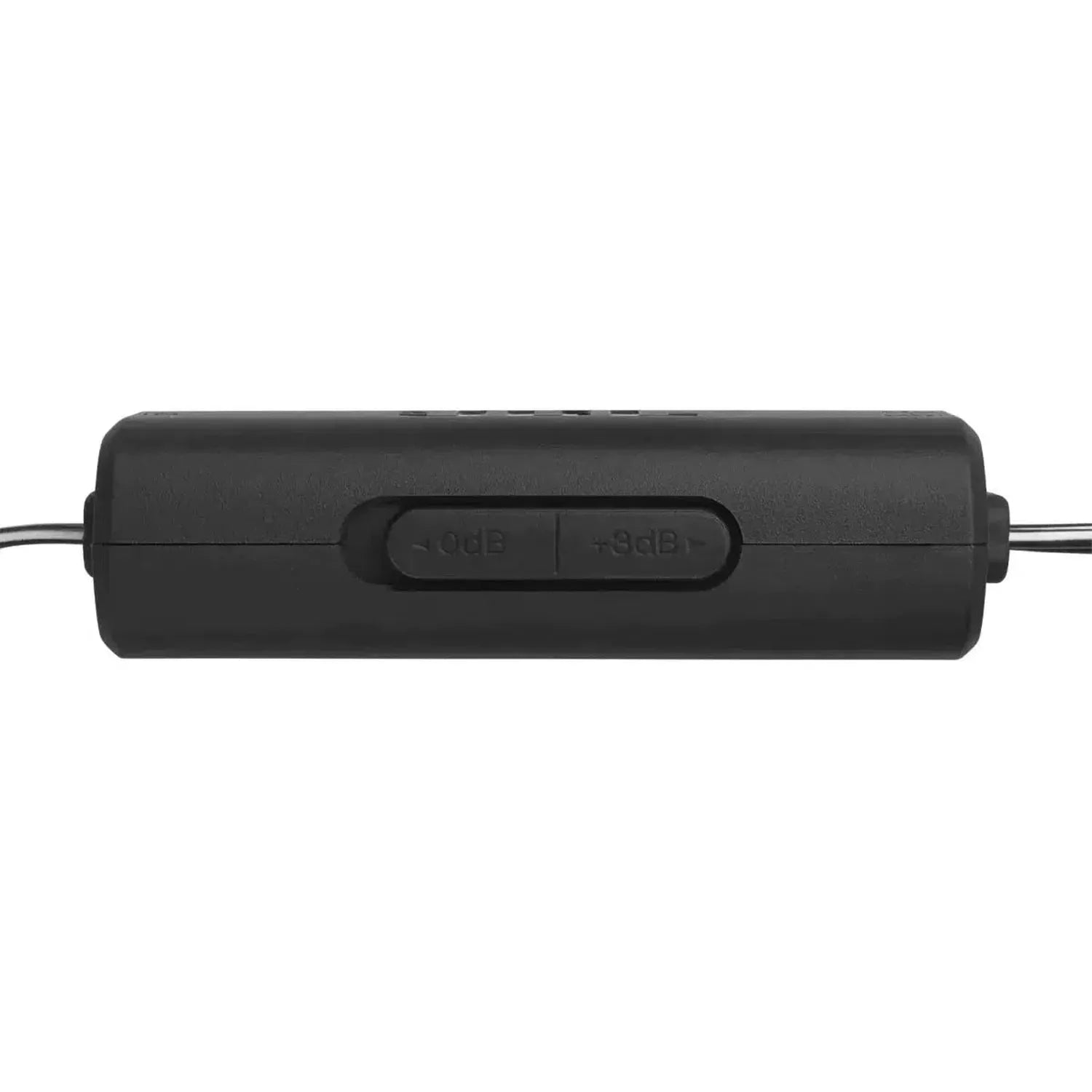

• Adjustable tweeter output level
• The Club SQ speakers offer a tweeter output level control of 0dB or +3dB to optimize the linearity of the system depending on the placement.

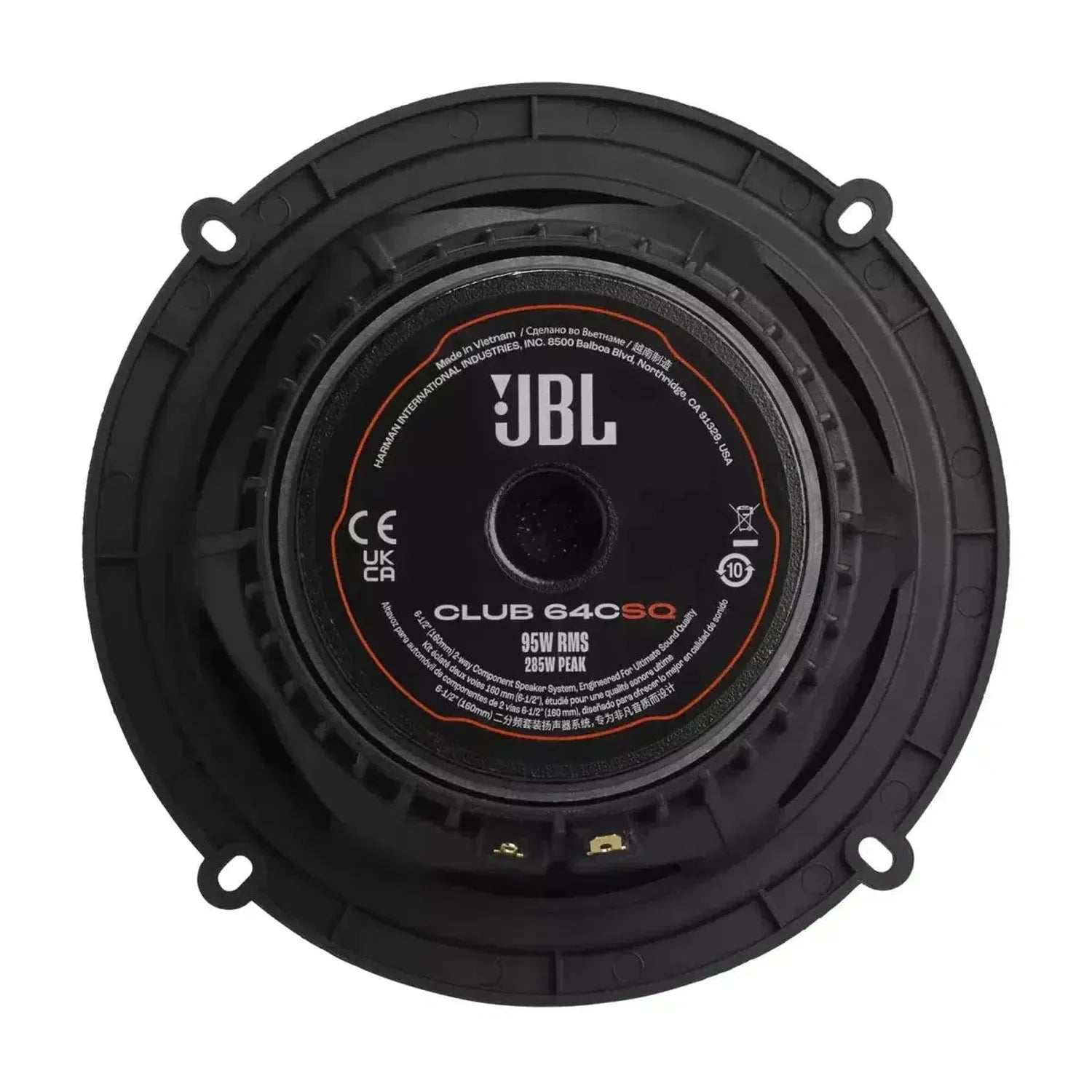

• Incredible Y40 ferrite magnet for higher sensitivity
• The Club SQ speakers use the Y40 ferrite magnet, which allows for higher sensitivity compared to the usual Y30 ferrite magnet.

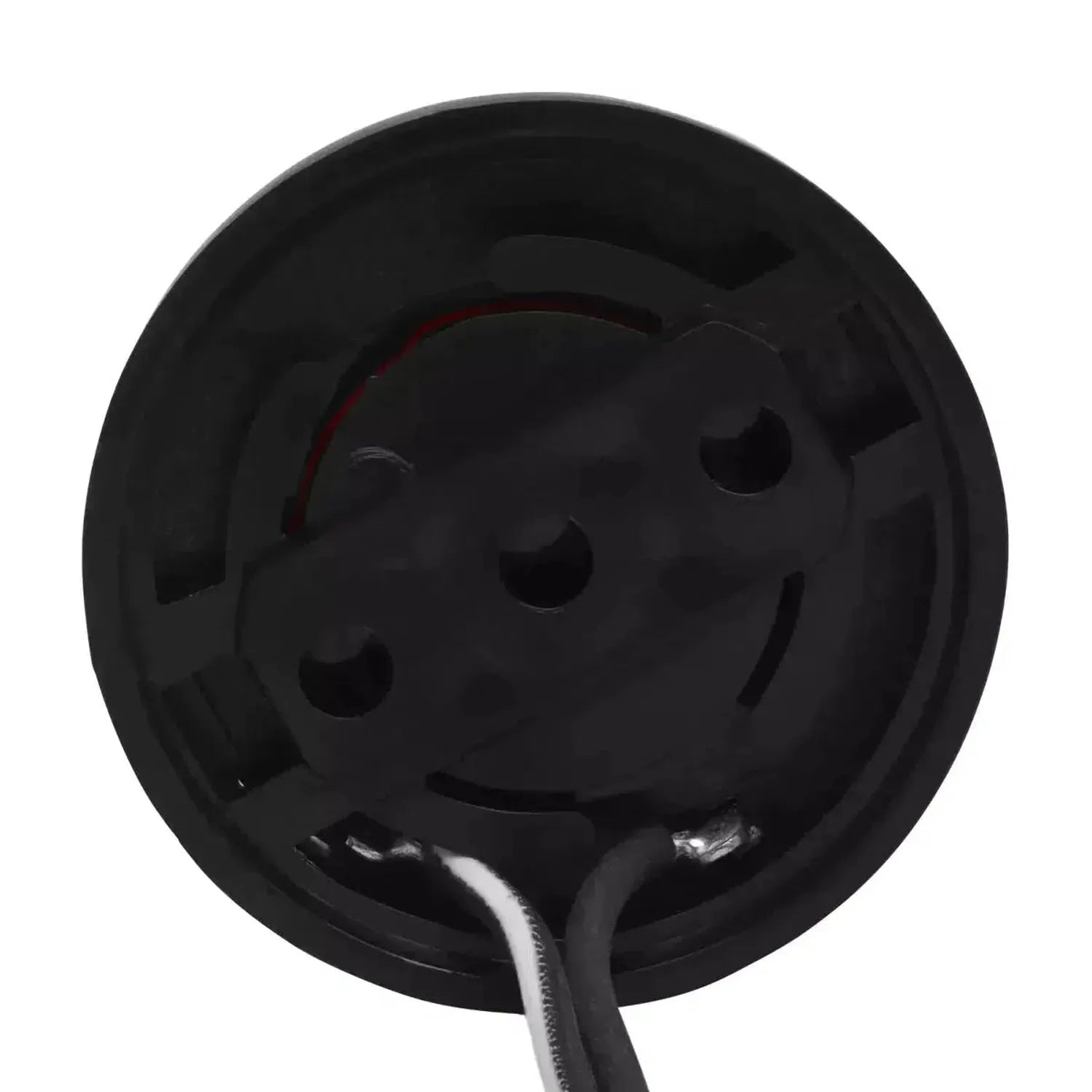

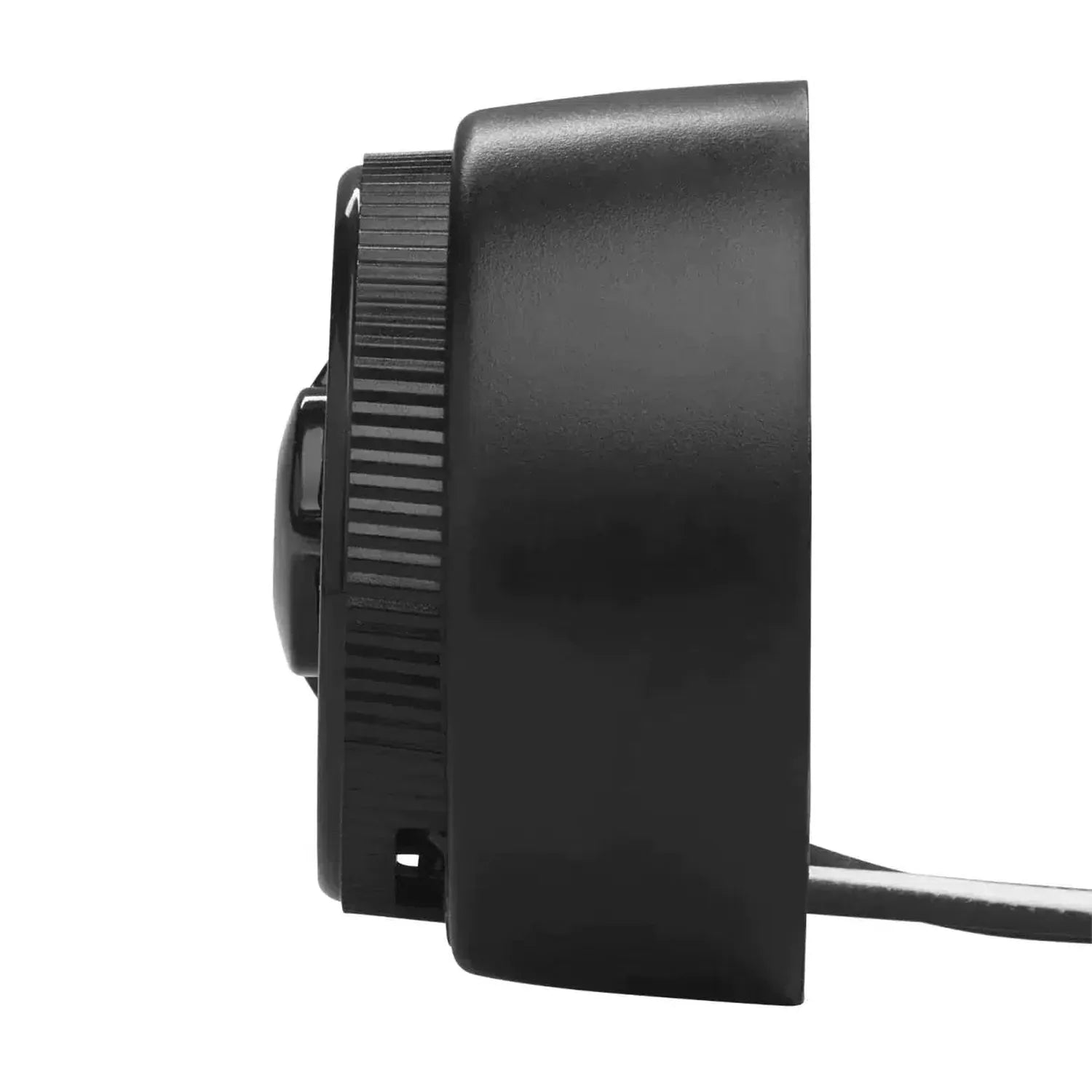

• Starfish™ tweeter mounting adapter
• The Club 64CSQ speaker system comes with the Starfish™ tweeter mounting adapter. The Starfish tweeter mounting adapter allows for easy installation of the tweeter behind the factory grille and in locations such as the A-pillar. It also features six breakaway mounting tabs to allow for various mounting configurations. The tweeter can be mounted both on the surface and flush. The tweeter can be easily maintained without having to remove the entire assembly.
• I-Mount-Tweeter-Mounting Kit
• The I-Mount™ (Patent No. 5,859,917) tweeter mounting system allows for easy and versatile installation of tweeters in any component system. It includes a flush shell and mounting hardware for surface mounting. With a 1-3/4" cutout and a mounting depth of 1", installation is a breeze. This allows the tweeter to be flush-mounted and tilted up to +40 degrees. The included lock nuts ensure that everything stays in place, and the tweeter can be replaced without having to remove the entire assembly.

General Specifications

• Power consumption 95 W RMS, 285 W peak

Audio Specifications

• Sensitivity (@ 2.83V) 93dB
• Frequency response 48Hz - 21kHz
• Nominal impedance 3.0 Ohm

What is in the box?

• 2x speakers

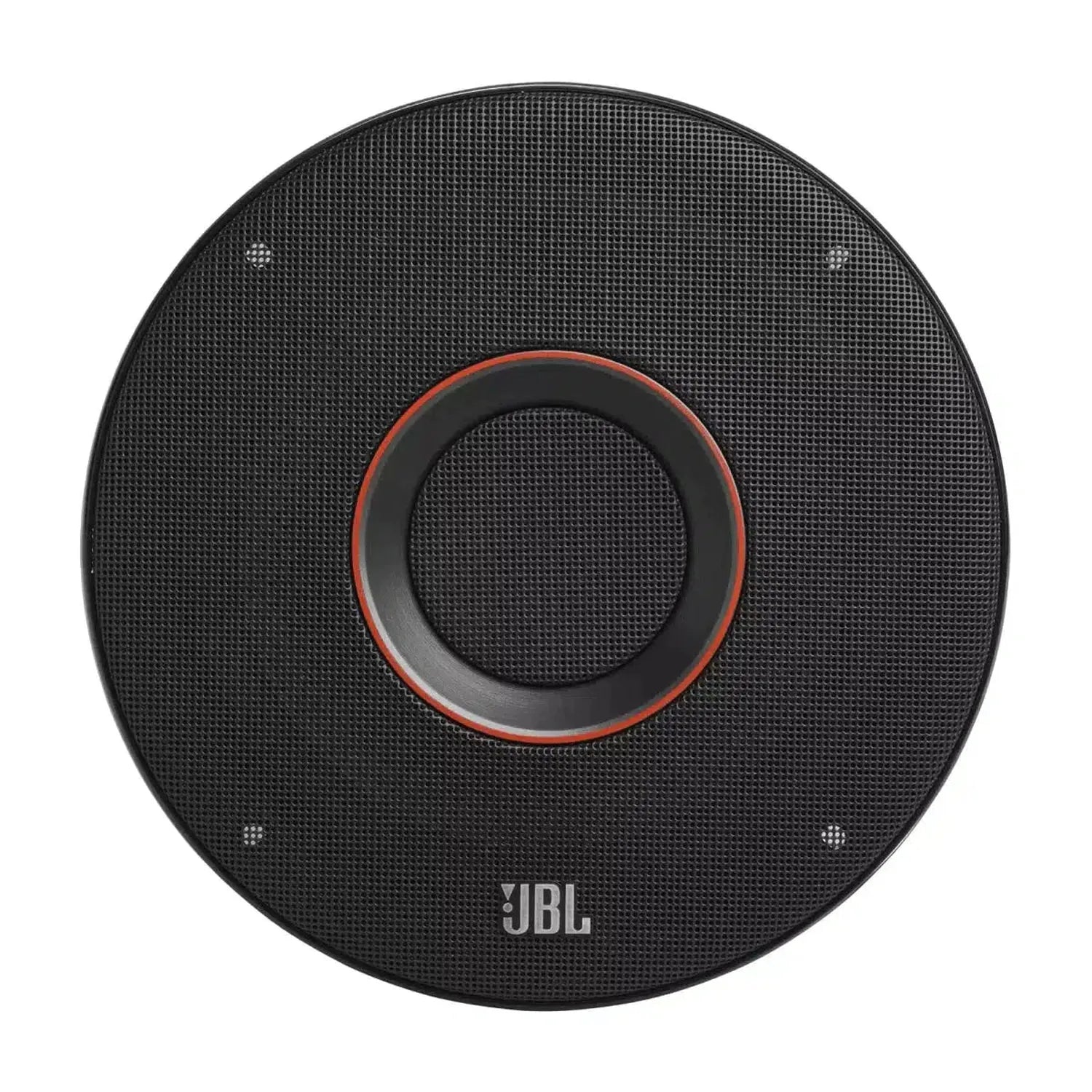

• 2x Covers
• 2x multi-hole adapter rings made of plastic
• 1x foam seal

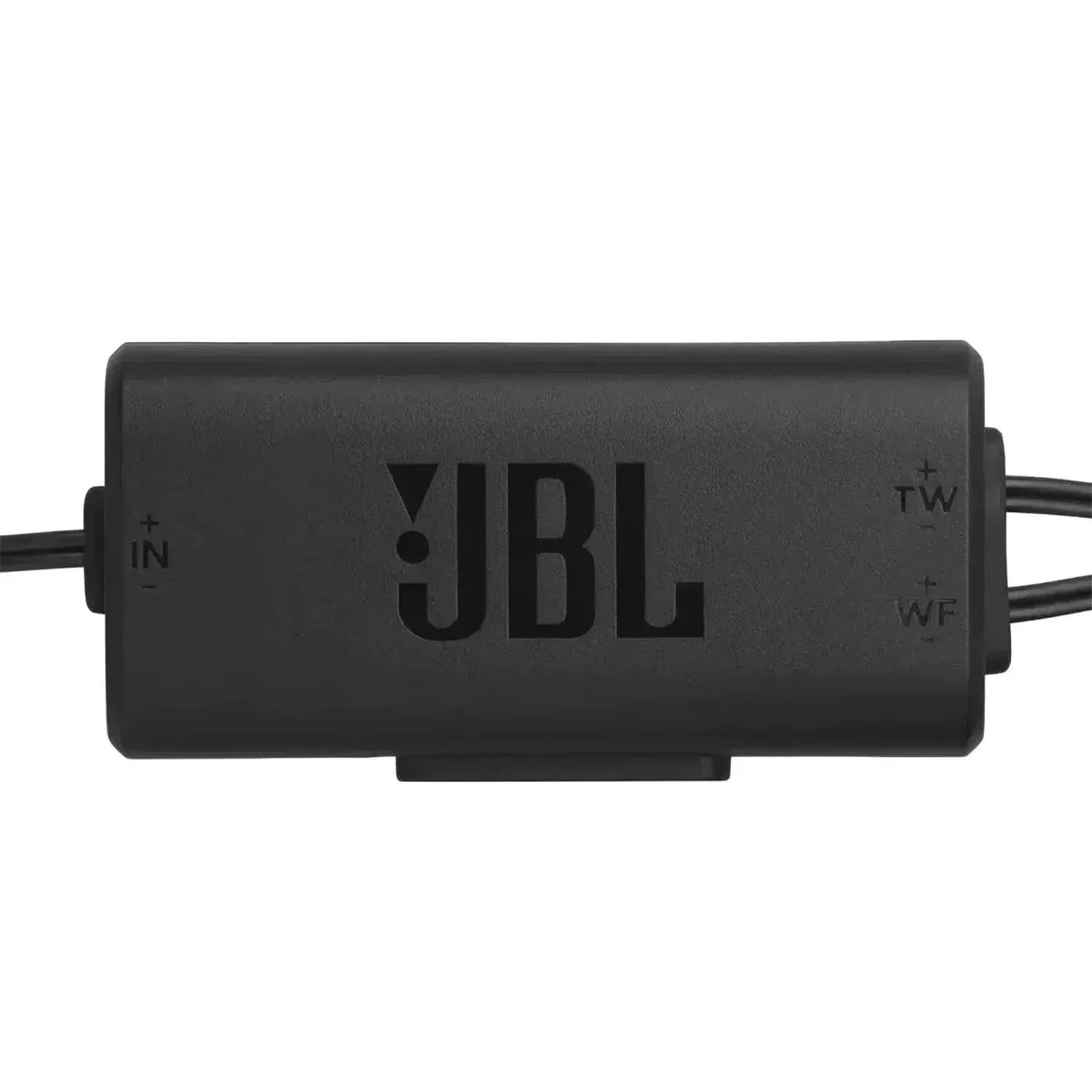

• 2x crossovers
• 2x tweeter
• 2x mounting brackets
• 2x mounting brackets with thread
• 2x mounting brackets
• 2x Starfish Tweeter Mounts
• 2x plastic lock nuts
• 22x screws
• 8x Speed-Clips
• 2x spacers
• 2x washers
• 2x JBL logo stickers
