Club 3412T

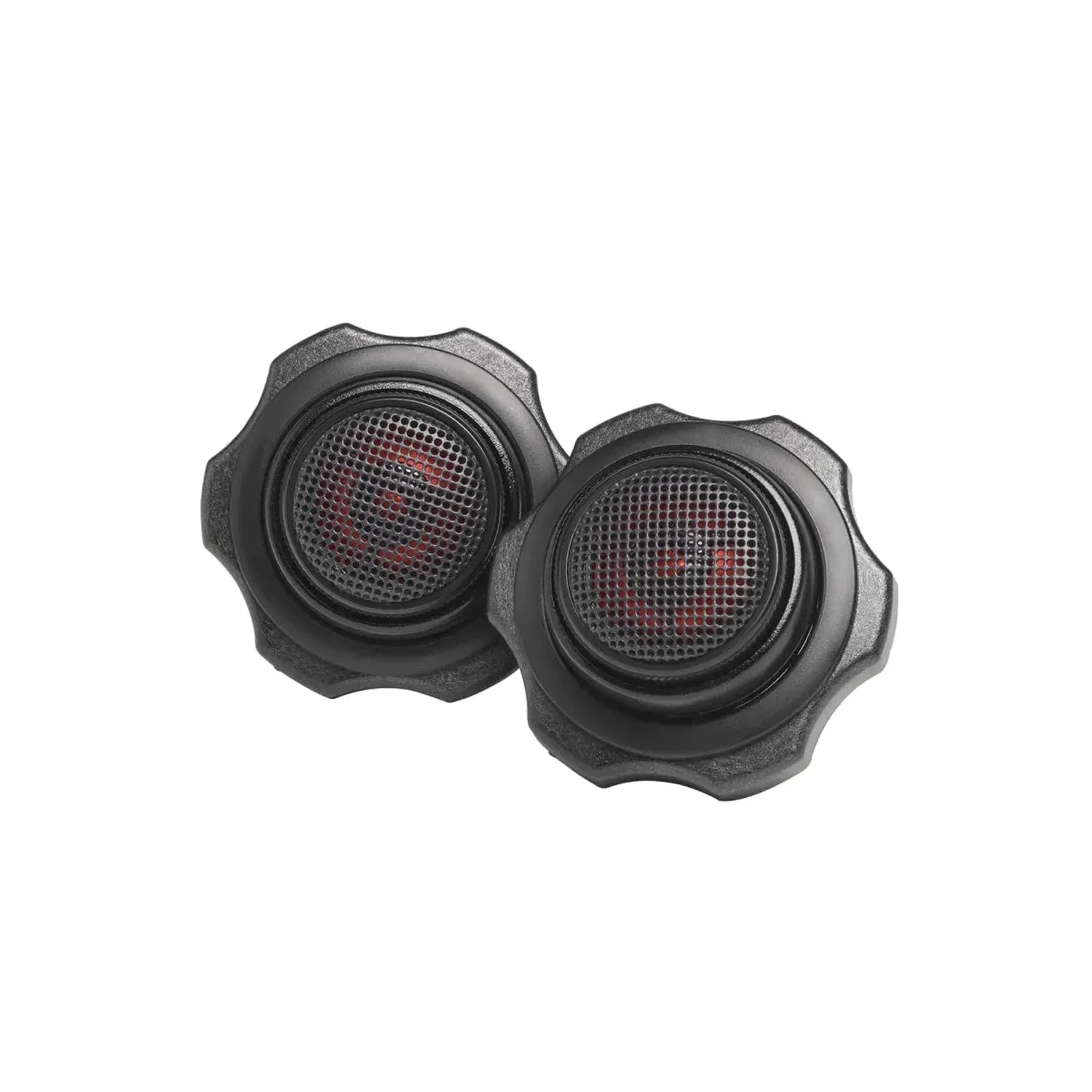

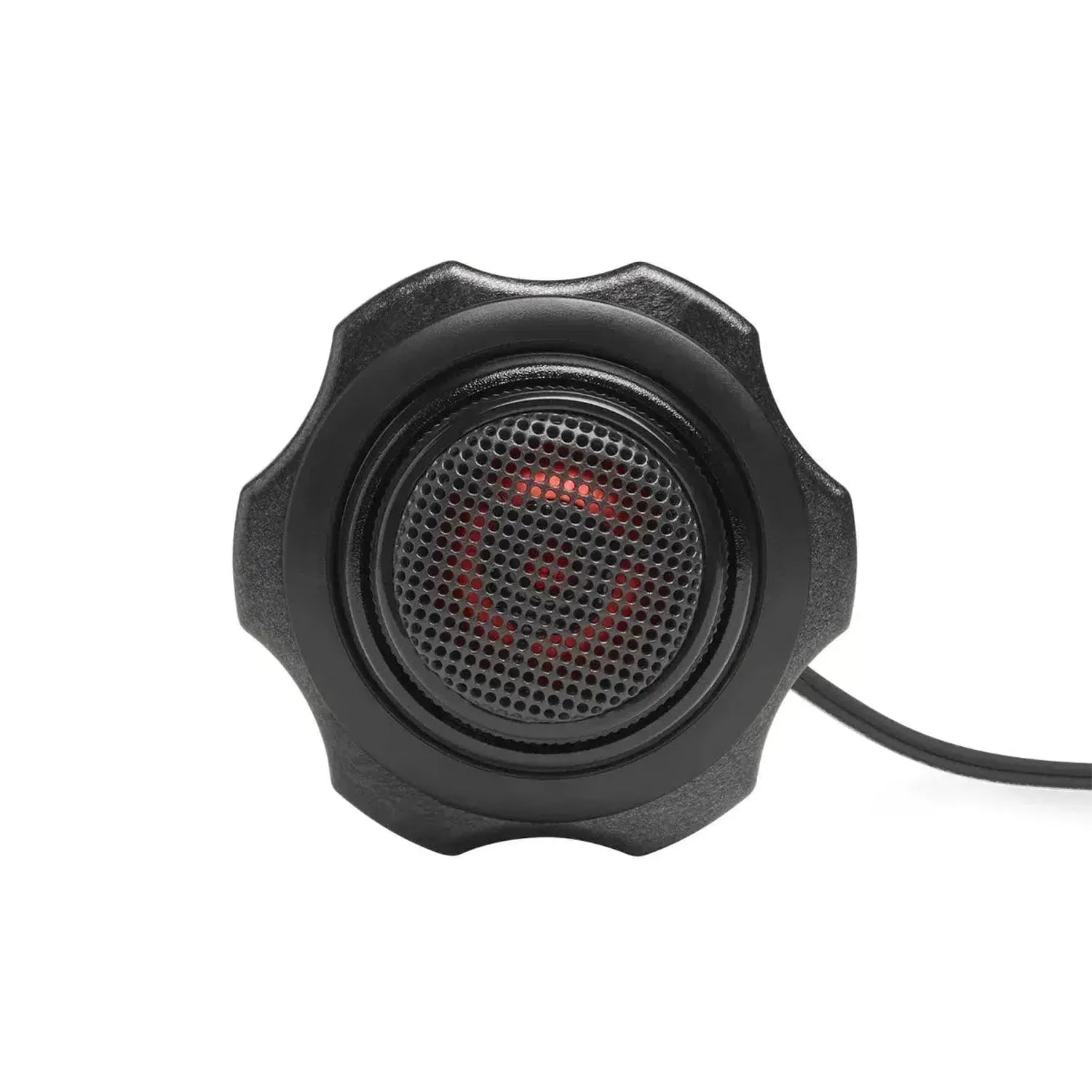

The CLUB 3412T from JBL is a dome tweeter that boasts a variety of technological refinements. This tweeter promises top-notch JBL professional sound, enhanced by a robust polypropylene diaphragm, a Plus One™ design for rich bass, and a long lifespan. The high-quality sound is rounded off by a wide and even high-frequency range. For easy installation, the Starfish™ tweeter mounting adapter and the I-Mount tweeter mounting system are also included. The CLUB 3412T offers versatile application possibilities thanks to various standard sizes - it is the ideal extension for existing factory speakers.

properties

• I-Mount High-frequency driver mounting kit

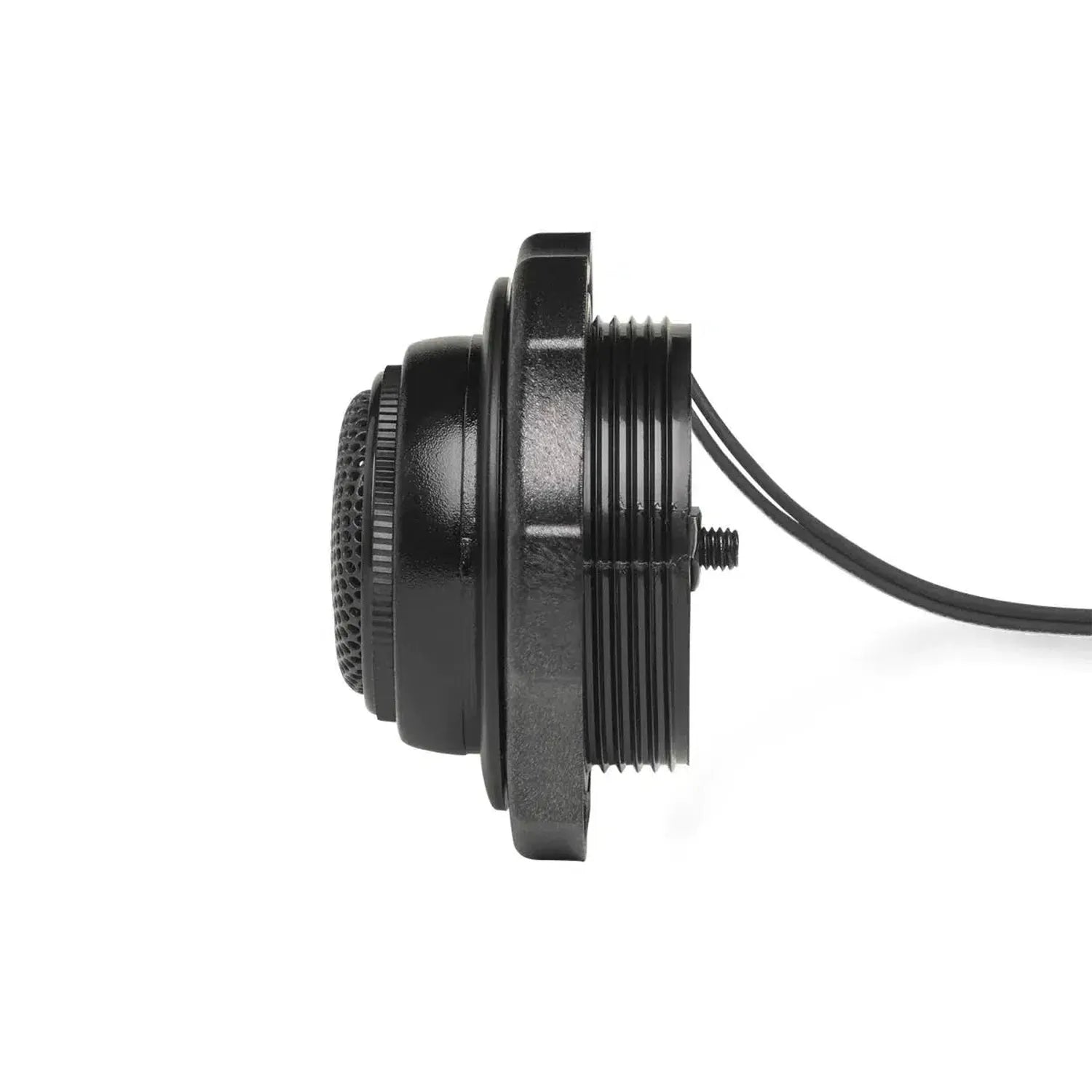

• The I-Mount™ (Patent No. 5,859,917) tweeter mounting system allows for easy and versatile installation of tweeters in any component system. It includes a flush shell and mounting hardware for surface mounting. With a 1-3/4" cutout and a mounting depth of 1", installation is a breeze. This allows the tweeter to be flush-mounted and tilted up to +40 degrees. The included lock nuts ensure that everything stays in place, and the tweeter can be replaced without having to remove the entire assembly.

General Specifications

• Load capacity 50 W RMS, 150 W peak
• Sensitivity (@ 2.83V) 92dB
• Frequency response 3kHz - 20kHz
• Nominal impedance 3.0 Ohm

What is included in the delivery?

• 2 x tweeters
• 2 x flush-mounted cups
• 2 x adapter for flush mounting with thread
• 2 x surface-mounted brackets
• 2 x starfish tweeter mounts
• 2 x plastic lock nuts
• 6 x screws
• 2 x inline switch pigtail
• 2 x spacers
• 2 x washers
