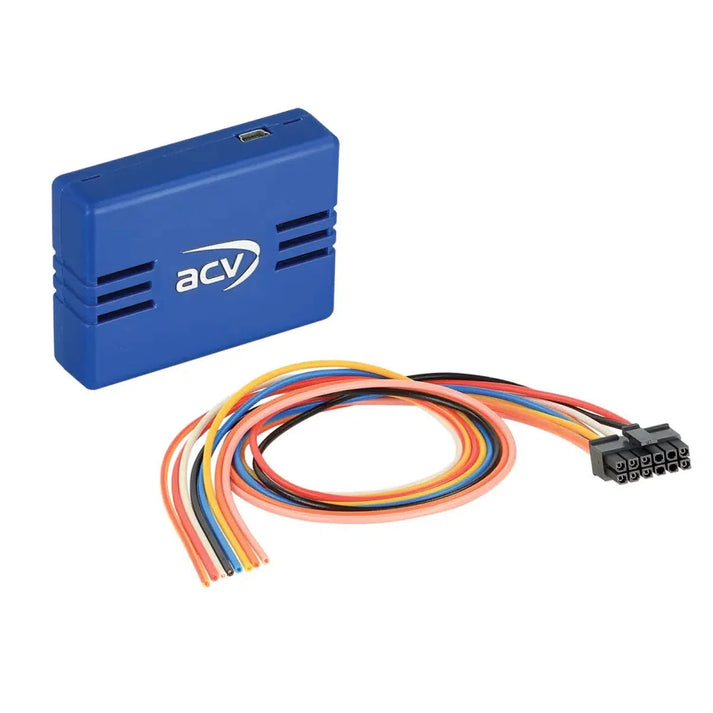

ACV CAN Adapter Universal 01

CAN bus adapter

79,99€

/piece

(/ )

VAT included. Excl. VAT incl. shipping costs excl. shipping costs

Available, in 1-4 days with you

Complete delivery conditions

The quantity exceeds the available stock.

Seen cheaper?

"We keep up - guaranteed!" Take advantage of the low price guarantee! If you find an item cheaper on a website within the EU, we will match the competitor's price and add an item from our range of accessories.

This website is protected by hCaptcha and the terms and conditions and privacy policy of hCaptcha apply.

Your advantages with Masori

0% financing on all products

3-year Masori guarantee

Free EU shipping from 50€

Advice from Carhifi experts

90 days price reduction protection

Low price guarantee

Seen this item cheaper elsewhere? Write us an email at [email protected] and you will get the same price, plus a free accessory and benefit from Masori Lifetime Support! Warranty conditions.

TrustedShops buyer protection

Shipping all over the world

Description

    The CAN Adapter Universal 01 is a powerful adapter that helps you to use your vehicle's CAN network for diagnostic purposes. With this adapter, you can access the CAN network quickly, easily and reliably in order to take the right diagnostic and corrective measures. Use the CAN adapter Universal 01 to improve your vehicle diagnostics and to find and rectify faults efficiently.

    If you want to replace your vehicle's OEM radio, which is controlled via the CAN bus, with an aftermarket radio, you will need a specific CAN bus adapter.

    Both specific and universal CAN bus adapters are able to convert relevant digital data from the respective vehicle-specific data bus into analog signals.

    Depending on the adapter, various signals or comfort functions such as ignition plus, lighting, reverse gear signal or speed signal are read out and made available in analog form for various retrofit solutions.

    Compare the adapter plugs shown with those in your vehicle and make sure that they match visually and technically.

    Please also check whether one of the specified original factory radios was installed in your vehicle.

    Before you finally install the retrofit radio, we recommend that you check the functions of your vehicle as well as the vehicle settings to ensure that everything is working properly.

Note



CAN bus


  • Connection: Article 42cx10
  • Inputs:
  • red: +12V continuous current terminal 30
  • black: Ground GND terminal 31
  • Outputs:
  • pink: +12V ignition terminal 15 1.5A max.
  • orange: +12V lighting terminal 58 0.1A max.
  • white: +12V reverse gear 1.5A max.
  • yellow/green yellow/red: speed pulse
  • Specifications > can be found under the vehicle-specific wiring harness numbers
  • Suitable for the following vehicles


Alfa Romeo


  • Alfa Romeo 147 (973) 09/2006 - 04/2010
  • Alfa Romeo 159 (939) 09/2005 - 03/2008
  • Alfa Romeo 159 (939) 03/2008 - 11/2011
  • Alfa Romeo Brera (939) 01/2006 - 10/2010
  • Alfa Romeo Giulietta (940) 05/2010 - 10/2013
  • Alfa Romeo GT (937GT) 02/2004 - 10/2010
  • Alfa Romeo MiTo (955) 09/2008 - 10/2013
  • Alfa Romeo Spider (939) 01/2007 - 10/2010

Audi


  • Audi A1 (8X) 07/2010 - 11/2014
  • Audi A1 (8X) 11/2014 - 04/2018
  • Audi A2 (8Z) 11/1999 - 07/2005
  • Audi A3 (8L) 08/2000 - 06/2003
  • Audi A3 (8P) 07/2003 - 05/2005
  • Audi A3 (8P) 10/2004 - 04/2013
  • Audi A4 (B6/B7) 11/2000 - 02/2009
  • Audi A5 (8T/8F) 06/2007 - 10/2011
  • Audi A6 (C5/B4) 05/2001 - 03/2006
  • Audi A8 (D3/4E) 07/2002 - 10/2007
  • Audi A8 (D3/4E) 10/2007 - 12/2009
  • Audi Q5 (8R) 09/2008 - 05/2012
  • Audi Q5 (8R) 09/2012 - 01/2017
  • Audi Q7 (4L) 09/2005 - 04/2009
  • Audi Q5 (8R) 09/2008 - 05/2012
  • Audi Q5 (8R) 09/2012 - 01/2017
  • Audi Q7 (4L) 09/2005 - 04/2009
  • Audi Q5 (8R) 09/2008 - 05/2012
  • Audi Q5 (8R) 09/2012 - 01/2017
  • Audi Q7 (4L) 09/2005 - 04/2009
  • Audi Q7 (4L) 06/2009 - 03/2015
  • Audi R8 (42) 04/2007 - 05/2015
  • Audi TT (8N) 09/1998 - 07/2006
  • Audi TT (8J) 04/2006 - 03/2014
  • BMW
  • BMW 1 Series (E81/82/87/88) 03/2004 - 10/2013
  • BMW 3 Series (E90/91/92) 03/2005 - 09/2013

Citroen**


  • Citroën C1 (P) 03/2012 - 6/2014
  • Citroën C2 (J) 12/2004 - 12/2009
  • Citroën C3 (F) 10/2005 - 01/2010
  • Citroën C3 (S) 01/2010 - 01/2017
  • Citroën C4 (L) 11/2004 - 08/2010
  • Citroën C5 (D) 10/2004 - 04/2008
  • Citroën C8 (E) 01/2008 - 07/2012
  • Citroën C8 (E) 07/2012 - 06/2014
  • Citroën Berlingo (7) 06/2008 - 06/2018
  • Citroën DS3 (S) 03/2010 - 07/2014
  • Citroën DS4 (N) 05/2011 - 10/2015
  • Citroen Jumpy (X) 02/2007 - 05/2016

Chrysler*


  • Chrysler C200 2011 - 2014
  • Chrysler C300 2004 - 2010
  • Chrysler Aspen 2006 - 2008
  • Chrysler PT Cruiser 2006 - 2010
  • Chrysler Sebring 2006 - 2010
  • Chrysler Town & Country 2008 - 2016

Doge*


  • Dodge Avenger 2007 - 2014
  • Dodge Caliber 2007 - 2011
  • Dodge Challenger 2008 - 2014
  • Dodge Charger 2006 - 2010
  • Dodge Charger 2013
  • Dodge Dakota 2006 - 2011
  • Dodge Durango 2008 - 2009
  • Dodge Durango 2011 - 2013
  • Dodge Grand Caravan 2009 - 2016
  • Dodge Journey 2009 - 2010
  • Dodge Journey 2013
  • Dodge Magnum 2005 - 2008
  • Dodge Nitro 2007 - 2011

Fiat


  • Fiat 500 (ZAF 312) 10/2007 - 07/2015
  • Fiat Ducato (ZAF 250) 06/2011 - 05/2014
  • Fiat Grande (ZAF 199) 10/2005 - 09/2009
  • Fiat Scudo (ZAF 270) 02/2007 - 07/2016*
  • Fiat Stilo (ZAF 192) 08/2001 - 09/2004
  • Fiat Stilo (ZAF 192) 01/2003 - 04/2006
  • Fiat Stilo (ZAF 192) 04/2006 - 01/2008

Ford


  • Ford C-Max (DM2) 11/2003 - 05/2007
  • Ford C-Max (DM2) 05/2007 - 09/2010
  • Ford Focus (DA3) 11/2004 - 11/2010
  • Ford Galaxy (WA6) 03/2006 - 05/2015
  • Ford Galaxy II (WA6) 03/2006 - 04/2010
  • Ford Galaxy II (WA6)05/2010 - 05/2015
  • Ford Kuga (DM2) 06/2008 - 12/2012
  • Ford Mondeo III (B4Y/B5Y/BWY) 06/2003 - 04/2005
  • Ford Mondeo III (B4Y/B5Y/BWY)05/2005 - 06/2007
  • Ford Mondeo IV (BA7) 06/2007 - 10/2010
  • Ford Mondeo IV (BA7) 11/2010 - 08/2014
  • Ford S-Max (WA6) 06/2006 - 04/2010
  • Ford S-Max (WA6) 05/2010 - 05/2015
  • Ford Transit V363 (FAC/FAD) 06/2019 - 08/2020
  • Ford Transit Custom (FAC/FAD) 01/2018 - 2022
  • Ford Transit Connect (PJ2) 06/2018 - 2022

Jeep


  • Jeep Cherokee 2014 - 2015***
  • Jeep Commander 2006 - 2010*
  • Jeep Compass 2007 - 2016*
  • Jeep Grand Cherokee 2005 - 2013*
  • Jeep Grand Cherokee 2014 - 2015***
  • Jeep Liberty 2008 - 2012*
  • Jeep Patriot 2007 - 2017*/***
  • Jeep Wrangler 2007 - 2017*/***

Maserati


  • Maserati GranTourismo (AM145) 09/2007 - 03/2013****
  • Maserati GranTourismo (AM145) 03/2013 - 09/2017****
  • Maserati GranTourismo (AM145) 07/2017 - 11/2019****
  • Maserati Quatroporte (AM139) 03/2004 - 09/2008
  • Maserati Quatroporte (AM139) 09/2008 - 04/2013

Mercedes


  • Mercedes A-Class (C169/W169) 10/2004 - 04/2008
  • Mercedes A-Class (C169/W169) 06/2008 - 06/2012
  • Mercedes B-Class (T245) 07/2005 - 04/2008
  • Mercedes B-Class (T245) 04/2008 - 09/2011
  • Mercedes C-Class (CL203/S203/W203) 03/2000 - 01/2005
  • Mercedes C-Class (CL203/S203/W203) 02/2004 - 09/2007
  • Mercedes C-Class (C204/S204/W204) 08/2007 - 01/2011
  • Mercedes C-Class (C204/S204/W204) 03/2011 - 10/2015
  • Mercedes Citan 420 (W420) 10/2021 - 2023
  • Mercedes CL-Class (C215) 06/1999 - 08/2006
  • Mercedes CLC (CL203) 06/2008 - 02/2011
  • Mercedes CLK-Class (W208) 07/1999 - 03/2003
  • Mercedes CLK-Class (W209) 03/2002 - 05/2005
  • Mercedes CLK-Class (W209) 04/2005 - 01/2010
  • Mercedes CLS-Class (W219) 10/2004 - 06/2008
  • Mercedes CLS-Class (C219) 04/2008 - 09//2010
  • Mercedes E-Class (S210/W210) 06/1999 - 02/2002
  • Mercedes E-Class (S211/W211) 03/2002 - 02/2008
  • Mercedes E-Class (S211/W211) 03/2008 - 01/2009
  • Mercedes E-Class (A212/C212/S212/W204) 02/2009 - 03/2013
  • Mercedes G-Class (W463) 04/2007 - 06/2008
  • Mercedes G-Class (W164) 09/2008 - 06/2012
  • Mercedes GL-Class (X164) 09/2006 - 05/2009
  • Mercedes GL-Class (X164) 05/2009 - 07/2012
  • Mercedes M-Class (W164) 07/2005 - 04/2008
  • Mercedes M-Class (W164) 10/2008 - 07/2011
  • Mercedes ML (W164) 07/2005 - 04/2008
  • Mercedes ML (W164) 10/2008 - 07/2011
  • Mercedes R-Class (W251) 09/2005 - 05/2007
  • Mercedes R-Class (W251) 05/2007 - 05/2010
  • Mercedes R-Class (W251) 10/2010 - 10/2012
  • Mercedes S-Class (W220) 11/1998 - 09/2005
  • Mercedes SL-Class (R230) 08/2001 - 02/2006
  • Mercedes SL-Class (R230) 03/2006 - 02/2008
  • Mercedes SL-Class (R230) 04/2008 - 12/2011
  • Mercedes SLK-Class (R171) 03/2004 - 03/2008
  • Mercedes S-Class (W220) 11/1998 - 09/2005
  • Mercedes SL-Class (R230) 08/2001 - 02/2006
  • Mercedes SL-Class (R230) 03/2006 - 02/2008
  • Mercedes SL-Class (R230) 04/2008 - 12/2011
  • Mercedes SLK-Class (R171) 03/2004 - 03/2008
  • Mercedes S-Class (W220) 11/1998 - 09/2005
  • Mercedes SL-Class (R230) 08/2001 - 02/2006
  • Mercedes SL-Class (R230) 03/2006 - 02/2008
  • Mercedes SL-Class (R230) 04/2008 - 12/2011
  • Mercedes SLK-Class (R171) 03/2004 - 03/2008
  • Mercedes SLK-Class (R171) 04/2008 -03/2011
  • Mercedes SLR (C199) 12/2003 - 12/2009
  • Mercedes Sprinter (W906) 04/2006 - 08/2013
  • Mercedes Sprinter (W906) 08/2013 - 05/2018
  • Mercedes Sprinter (W907/W910) 06/2018 - 12/2020
  • Mercedes Sprinter (W907/W910) 11/2019 - 2023
  • Mercedes Vito/Viano (W639) 07/2003 - 08/2010
  • Mercedes Vito/Viano (W639) 09/2010 - 03/2014
  • Mercedes Vito (W447) 10/2014 - 02/2019
  • Mercedes Vito (W447) 05/2019 - 2023

Opel


  • Opel Antara (L-A) 11/2006 - 11/2010
  • Opel Antara (L-A) 01/2011 - 03/2015
  • Opel Agila A (H00) 06/2003 - 10/2007
  • Opel Astra H (A-H) 03/2004 - 02/2007
  • Opel Astra H (A-H) 02/2007 - 11/2010
  • Opel Combo (C) 10/2004 - 09/2011
  • Opel Corsa C (X01) 07/2003 - 07/2006
  • Opel Corsa D (S07) 10/2006 - 11/2010
  • Opel Corsa D (S07) 01/2011 - 08/2014
  • Opel Meriva A (X01) 11/2005 - 03/2010
  • Opel Signum I (Z03) 09/2005 - 08/2008
  • Opel Tigra Twin Top (X-C) 07/2004 - 11/2009
  • Opel Vectra C (Z02) 09/2005 - 09/2008
  • Opel Vivaro A (X83) 09/2006 - 01/2011
  • Opel Zafira B (A-H) 07/2005 - 06/2010
  • Opel Zafira B (A-H) 02/2008 - 12/2014

Peugeot**


  • Peugeot 207 (W/W CR/W SW/W CC) 06/2006 - 07/2015
  • Peugeot 208 (C) 04/2012 - 04/2015
  • Peugeot 307 (3/ 3 Break/ 3 SW/3 CC) 06/2005 - 03/2009
  • Peugeot 308 (4/4 GTI/4 SW/4 CC) 09/2007 - 07/2015
  • Peugeot 407 (6/6 SW/6 Coupé) 05/2004 - 03/2011
  • Peugeot 807 (E) 07/2002 - 11/2014
  • Peugeot Expert (X) 02/2007 - 08/2016
  • Peugeot Partner (7) 05/2008 - 03/2012
  • Peugeot RCZ (4J) 04/2010 - 09/2015

Porsche


  • Porsche 911 (997) 07/2004 - 08/2009
  • Porsche 911 (977) 08/2008 - 05/2013
  • Porsche Boxster (987) 10/2004 - 01/2009
  • Porsche Boxster (987) 02/2009 - 01/2012
  • Porsche Boxster (981) 04/2012 - 01/2016
  • Porsche Cayenne (9PA/955) 09/2002 - 12/2006
  • Porsche Cayenne (9PA/955) 02/2007 - 02/2010
  • Porsche Cayenne (92A/958) 05/2010 - 07/2014
  • Porsche Cayenne (92A/958) 10/2014 -12/2017
  • Porsche Cayman (987C) 11/2005 - 01/2009
  • Porsche Cayman (987C) 02/2009 - 11/2012
  • Porsche Cayman (987C) 03/2013 - 04/2016
  • Porsche Panamera (970) 09/2009 - 04/2013
  • Porsche Panamera (970) 07/2013 - 07/2016

Seat


  • Seat Alhambra (7N) 10/2010 - 04/2015
  • Seat Altea (5P) 06/2004 - 07/2015
  • Seat Exeo (3R) 03/2009 - 05/2013
  • Seat Ibiza (6J) 06/2008 - 06/2015
  • Seat Leon (1P) 09/2005 - 03/2009
  • Seat Leon (1P) 04/2009 - 11/2012
  • Seat Mii (AA) 12/2011 - 06/2019****
  • Seat Mii (AA) 01/2020 - 02/2021****
  • Seat Toledo (5P) 01/2005 - 10/2009
  • Seat Toledo (NH) 03/2013 - 05/2015

Skoda


  • Skoda Citigo (AA) 06/2012 - 05/2017****
  • Skoda Citigo (AA) 05/2017 - 06/2019****
  • Skoda Citigo iv (AA) 01/2020 - 08/2021****
  • Skoda Fabia (5J) II 03/2007 - 04/2010*
  • Skoda Fabia (5J) II 06/2010 - 06/2014*
  • Skoda Fabia III (5J) 11/2014 - 08/2018
  • Skoda Fabia III (5J) 08/2018 -05/2021
  • Skoda Karoq (NU) 11/2017 - 11/2021
  • Skoda Kodiaq (NS) 03/2017 - 06/2021
  • Skoda Octavia II (1Z) 06/2004 - 05/2009*
  • Skoda Fabia (5J) II 03/2007 - 04/2010*
  • Skoda Fabia (5J) II 06/2010 - 06/2014*
  • Skoda Fabia III (5J) 11/2014 - 08/2018
  • Skoda Fabia III (5J) 08/2018 -05/2021
  • Skoda Karoq (NU) 11/2017 - 11/2021
  • Skoda Kodiaq (NS) 03/2017 - 06/2021
  • Skoda Octavia II (1Z) 06/2004 - 05/2009*
  • Skoda Fabia (5J) II 03/2007 - 04/2010*
  • Skoda Fabia (5J) II 06/2010 - 06/2014*
  • Skoda Fabia III (5J) 11/2014 - 08/2018
  • Skoda Fabia III (5J) 08/2018 -05/2021
  • Skoda Karoq (NU) 11/2017 - 11/2021
  • Skoda Kodiaq (NS) 03/2017 - 06/2021
  • Skoda Octavia II (1Z) 06/2004 - 05/2009*
  • Skoda Octavia II (1Z) 01/2009 - 03/2013*
  • Skoda Octavia III (5E) 02/2013 - 12/2016
  • Skoda Octavia III (5E) 02/2013 - 12/2016
  • Skoda Octavia III (5E) 02/2013 - 12/2016
  • Skoda Octavia III (5E) 01/2017 - 01/2020
  • Skoda Rapid (NH) 10/2012 - 04/2015
  • Skoda Rapid (NH) 04/2015 - 05/2017
  • Skoda Rapid (NH) 10/2012 - 04/2015
  • Skoda Rapid (NH) 04/2015 - 05/2017
  • Skoda Rapid (NH) 10/2012 - 04/2015
  • Skoda Rapid (NH) 04/2015 - 05/2017
  • Skoda Rapid (NH) 05/2017 - 02/2019
  • Skoda Roomster (5J) 09/2006 - 04/2010
  • Skoda Roomster (5J) 06/2010 - 02/2015
  • Skoda Superb (3T) 07/2008 - 05/2013
  • Skoda Superb (3T) 06/2013 - 05/2015*
  • Skoda Superb (3V) 06/2015 - 06/2019
  • Skoda Yeti (5L) 08/2009 - 10/2013
  • Skoda Yeti (5L) 10/2013 - 07/2017

Smart


  • Smart For Four (W454) 01/2004 - 04/2007

Toyota


  • Toyota Proace 03/2013 - 08/2016

VW


  • VW Amarok (2H) 07/2010 - 08/2016
  • VW Amarok (2H) 09/2016 - 07/2020
  • VW Arteon (3H) 11/2017 - 06/2020
  • VW Beetle (16) 11/2011 - 06/2016*
  • VW Beetle (16) 06/2016 - 03/2018
  • VW Caddy III (2K) 10/2003 - 08/2010**
  • VW Caddy III (2K) 09/2010 - 04/2015*
  • VW Caddy IV (DU) 06/2015 - 09/2020
  • VW Caravelle (7H) 10/2004 - 09/2009*
  • VW Caravelle (7H) 09/2009 - 05/2015*
  • VW CC (3C/35) 06/2008 - 08/2016*
  • VW Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
  • VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016
  • VW Crafter II (SY/SZ) 03/2017 - 2022
  • VW EOS (1F) 05/2006 - 10/2010
  • VW EOS (1F) 10/2010 - 04/2015
  • VW Fox (5Z) 04/2005 - 06/2011
  • VW Golf V (1K) 11/2003 - 09/2008
  • VW Golf V (1KM) 06/2007 - 10/2009
  • VW Golf V Plus (1KP) 01/2005 - 02/2009
  • VW Golf VI (1K) 11/2008 - 09/2012
  • VW Golf VI (1KM) 11/2009 - 04/2013
  • VW Golf VI Plus (1KP) 03/2009 - 01/2014*
  • VW Golf VII (AU) 11/2012 - 12/2016
  • VW Golf VII (AU) 03/2017 - 05/2020
  • VW Jetta III (1K5/1KM) 09/2005 - 10/2010
  • VW Jetta IV (162) 01/2011 - 08/2014
  • VW Multivan (7H) 02/2003 -09/2009*
  • VW Multivan (7H) 09/2009 - 05/2015*
  • VW Passat B6 (3C2) 11/2005 - 07/2010
  • VW Passat B6 (3C5) 08/2005 - 07/2010
  • VW Passat B7 (3C/362) 11/2010 - 10/2014
  • VW Passat B8 10/2014 - 05/2019
  • VW Polo IV (9N) 03/2005 - 03/2009
  • VW Polo V (6R) 06/2009 - 01/2014
  • VW Polo V (6R) 04/2014 - 07/2017
  • VW Polo VI (AW) 11/2017 - 05/2021
  • VW Phaeton (3D) 05/2007 - 05/2010
  • VW Scirocco III (13) 08/2008 - 04/2014
  • VW Sharan II (7N) 08/2010 - 04/2015
  • VW Sharan II (7N) 07/2015 - 10/2021
  • VW T5 Transporter (7H) 08/2003 - 09/2009*
  • VW T5 Transporter (7H) 09/2009 - 05/2015*
  • VW T6 (7HC) 07/2015 - 08/2019
  • VW T6.1 (7HC) 11/2019 - 2022
  • VW T-Roc (A1) 11/2017 -
  • VW EOS (1F) 05/2006 - 10/2010
  • VW EOS (1F) 10/2010 - 04/2015
  • VW Fox (5Z) 04/2005 - 06/2011
  • VW Golf V (1K) 11/2003 - 09/2008
  • VW Golf V (1KM) 06/2007 - 10/2009
  • VW Golf V Plus (1KP) 01/2005 - 02/2009
  • VW Golf VI (1K) 11/2008 - 09/2012
  • VW Golf VI (1KM) 11/2009 - 04/2013
  • VW Golf VI Plus (1KP) 03/2009 - 01/2014*
  • VW Golf VII (AU) 11/2012 - 12/2016
  • VW Golf VII (AU) 03/2017 - 05/2020
  • VW Jetta III (1K5/1KM) 09/2005 - 10/2010
  • VW Jetta IV (162) 01/2011 - 08/2014
  • VW Multivan (7H) 02/2003 -09/2009*
  • VW Multivan (7H) 09/2009 - 05/2015*
  • VW Passat B6 (3C2) 11/2005 - 07/2010
  • VW Passat B6 (3C5) 08/2005 - 07/2010
  • VW Passat B7 (3C/362) 11/2010 - 10/2014
  • VW Passat B8 10/2014 - 05/2019
  • VW Polo IV (9N) 03/2005 - 03/2009
  • VW Polo V (6R) 06/2009 - 01/2014
  • VW Polo V (6R) 04/2014 - 07/2017
  • VW Polo VI (AW) 11/2017 - 05/2021
  • VW Phaeton (3D) 05/2007 - 05/2010
  • VW Scirocco III (13) 08/2008 - 04/2014
  • VW Sharan II (7N) 08/2010 - 04/2015
  • VW Sharan II (7N) 07/2015 - 10/2021
  • VW T5 Transporter (7H) 08/2003 - 09/2009*
  • VW T5 Transporter (7H) 09/2009 - 05/2015*
  • VW T6 (7HC) 07/2015 - 08/2019
  • VW T6.1 (7HC) 11/2019 - 2022
  • VW T-Roc (A1) 11/2017 -
  • VW EOS (1F) 05/2006 - 10/2010
  • VW EOS (1F) 10/2010 - 04/2015
  • VW Fox (5Z) 04/2005 - 06/2011
  • VW Golf V (1K) 11/2003 - 09/2008
  • VW Golf V (1KM) 06/2007 - 10/2009
  • VW Golf V Plus (1KP) 01/2005 - 02/2009
  • VW Golf VI (1K) 11/2008 - 09/2012
  • VW Golf VI (1KM) 11/2009 - 04/2013
  • VW Golf VI Plus (1KP) 03/2009 - 01/2014*
  • VW Golf VII (AU) 11/2012 - 12/2016
  • VW Golf VII (AU) 03/2017 - 05/2020
  • VW Jetta III (1K5/1KM) 09/2005 - 10/2010
  • VW Jetta IV (162) 01/2011 - 08/2014
  • VW Multivan (7H) 02/2003 -09/2009*
  • VW Multivan (7H) 09/2009 - 05/2015*
  • VW Passat B6 (3C2) 11/2005 - 07/2010
  • VW Passat B6 (3C5) 08/2005 - 07/2010
  • VW Passat B7 (3C/362) 11/2010 - 10/2014
  • VW Passat B8 10/2014 - 05/2019
  • VW Polo IV (9N) 03/2005 - 03/2009
  • VW Polo V (6R) 06/2009 - 01/2014
  • VW Polo V (6R) 04/2014 - 07/2017
  • VW Polo VI (AW) 11/2017 - 05/2021
  • VW Phaeton (3D) 05/2007 - 05/2010
  • VW Scirocco III (13) 08/2008 - 04/2014
  • VW Sharan II (7N) 08/2010 - 04/2015
  • VW Sharan II (7N) 07/2015 - 10/2021
  • VW T5 Transporter (7H) 08/2003 - 09/2009*
  • VW T5 Transporter (7H) 09/2009 - 05/2015*
  • VW T6 (7HC) 07/2015 - 08/2019
  • VW T6.1 (7HC) 11/2019 - 2022
  • VW T-Roc (A1) 11/2017 - 10/2021
  • VW Tiguan I (5N) 10/2007 - 02/2011
  • VW Tiguan I (5N) 06/2011 - 04/2016
  • VW Tiguan II (5N) 05/2016 - 05/2021
  • VW Touran I (1T) 01/2003 - 09/2006
  • VW Touran I (1T) 11/2006- 04/2010
  • VW Touran I (1T) 08/2010 - 04/2015
  • VW Touareg I (7L) 06/2003 - 11/2006
  • VW Touareg I (7L) 11/2006 - 02/2010*
  • VW UP! (AA) 12/2011 - 06/2016****
  • VW UP! (AA) 07/2016 - 12/2020****

Volvo


  • Volvo S60/V60 (R) 09/2000 - 06/2004
  • Volvo S60/V60 (R) 06/2004 - 06/2009
  • Volvo S70/V70/VX70 (S) 05/2000 - 06/2004
  • Volvo S70/V70/VX70 (S) 07/2004 - 01/2008
  • Volvo XC90 (C) 05/2006 - 09/2011
  • Volvo XC90 (C) 12/2011 - 07/2014

The following signals are provided



Reimported vehicles or vehicles with different software may be incompatible in terms of functions.


  • pink: +12V ignition terminal 15 1.5A max.
  • orange: +12V lighting terminal 58 0.1A max.
  • white: +12V reversing signal 1.5A max.
  • yellow/green yellow/red: speed signal
  • *CAN activation OEM sound system
  • **Vehicle settings supported
  • *** Blind spot assistant Blind spot not supported
  • ****Vehicles without OEM sound system
  • ******Vehicles with Magneti Marelli RT3 EV OEM navigation

Optional



Vehicle-specific wiring harness


  • LFB wiring harness 42cx401/42cx402 Ford 32Pin: 42cx11
  • LFB wiring harness 42cx401/42cx402 Opel 40Pin Quadlock: 42cx21
  • LFB wiring harness 42cx401/42cx402 Skoda ISO/Mini ISO: 42cx22
  • LFB wiring harness 42cx401/42cx402 Audi ISO/Mini ISO: 42cx23
  • LFB wiring harness 42cx401/42cx402 Porsche ISO/Mini ISO: 42cx24
  • LFB wiring harness 42cx401/42cx402 VAG 40Pin Quadlock: 42cx25
  • LFB wiring harness 42cx401/42cx402 Mercedes ISO/Mini ISO: 42cx26
  • LFB wiring harness 42cx401/42cx402 Mercedes ISO/10Pin ISO: 42cx27
  • LFB wiring harness 42cx401/42cx402 Mercedes/BMW/Porsche Quadlock: 42cx28
  • LFB wiring harness 42cx401/42cx402 Mercedes Quadlock 2MB: 42cx29
  • LFB wiring harness 42cx401/42cx402 Citroen/Peugeot 40Pin Quadlock: 42cx30
  • LFB wiring harness 42cx401/42cx402 Volvo S60/V70 12pin/12pin: 42cx33
  • LFB wiring harness 42cx401/42cx402 Ford 40Pin Quadlock: 42cx35
  • LFB wiring harness 42cx401/42cx402 VAG 52Pin Quadlock: 42cx38

Accessories


  • Active system adapter Audi/VW Quadlock MQS insert loose: 13-1424-25-0
  • E-Call maintenance Mercedes Sprinter/V-Class loose: 1424-27-0

General installation instructions


  • Connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the operating instructions are for guidance and information purposes only for trained specialist personnel.
  • Connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions
  • 1: Connections and modifications must only be carried out by trained specialist personnel
  • 2: Connections and modifications must be checked for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications before connection
  • 3: Connections and modifications must be checked for function and correctness before connection by measuring and adjusting using the vehicle's cable assignment diagram
  • 4: Connections and modifications are made on your own responsibility without any guarantee of function
  • 5: Connections and modifications are carried out under your own responsibility without guarantee of damage to the vehicle, the retrofit device or the interface
  • 6: Modifications to the pre-assembled wiring harness will invalidate the product warranty
