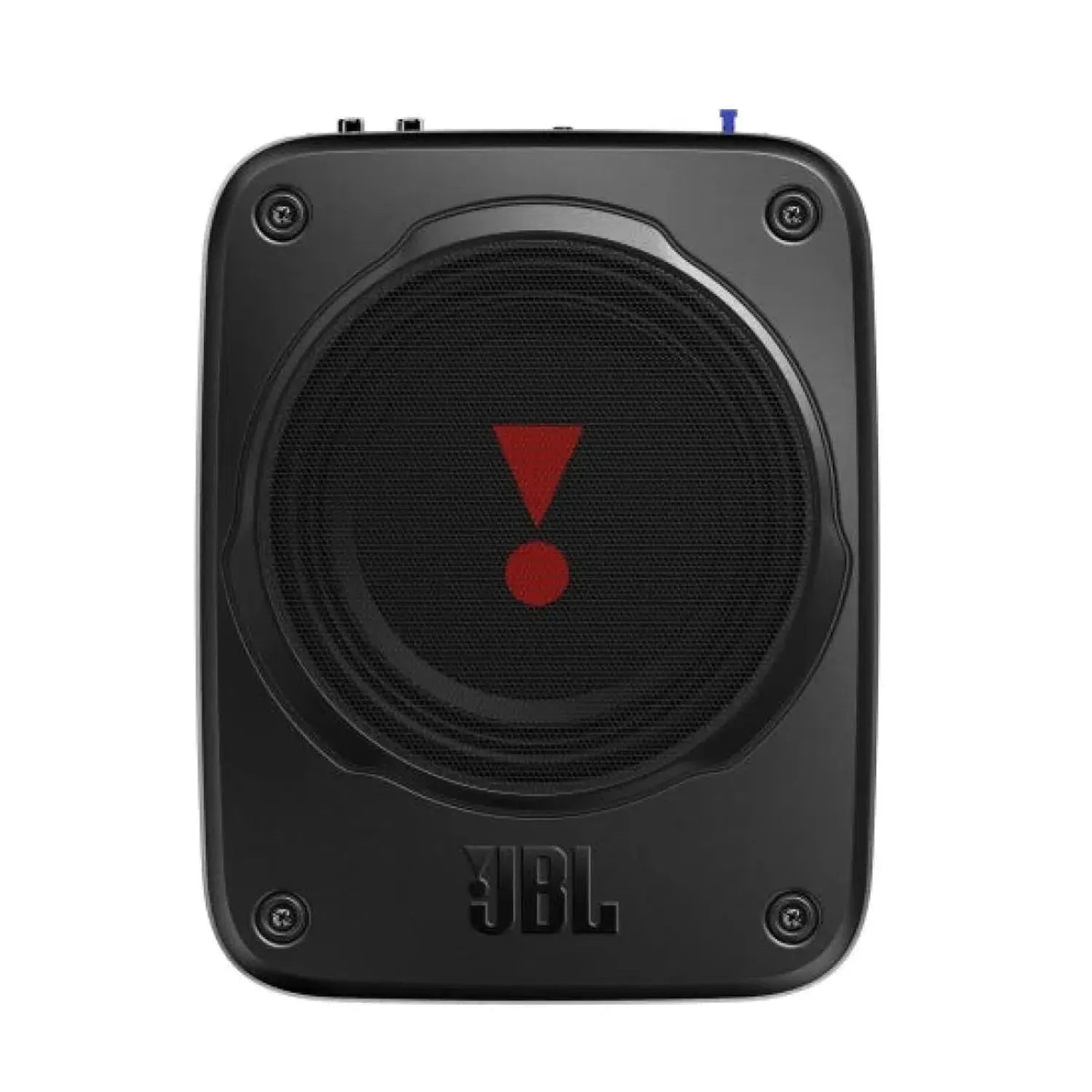

BassPro LITE

Discover the JBL BassPro LITE, a 7" (17.8cm) active enclosure subwoofer known for its extraordinary sound quality and compact design. This subwoofer stands out for its power and delivers tight, precise bass with an integrated 100Wrms amplifier. Additionally, it features easy connectivity, allowing you to daisy-chain two devices without additional power supply or complex cables. The aluminum die-cast enclosure is not only ultra-compact but also offers strong acoustic performance. Finally, the JBL BassPro LITE comes with a bass boost volume control, allowing you to freely adjust the sound.

Big bass, ultra-compact space
The JBL BassPro LITE delivers deep bass while taking up very little space. Its integrated 100Wrms amplifier is power-matched to the subwoofer and provides tight, precise bass.

Easier to upgrade, connected in series
The JBL BassPro LITE can be connected in series, allowing the user to purchase 2 devices. The secondary BassPro LITE is still self-adjusting, without additional power supply or complex wiring.

Aluminum die-cast housing design
The aluminum die-cast housing design is not only ultra-compact, but the ALL IN ONE also combines an elegant JBL industrial design element with strong acoustic performance.

Bass Boost Volume Control

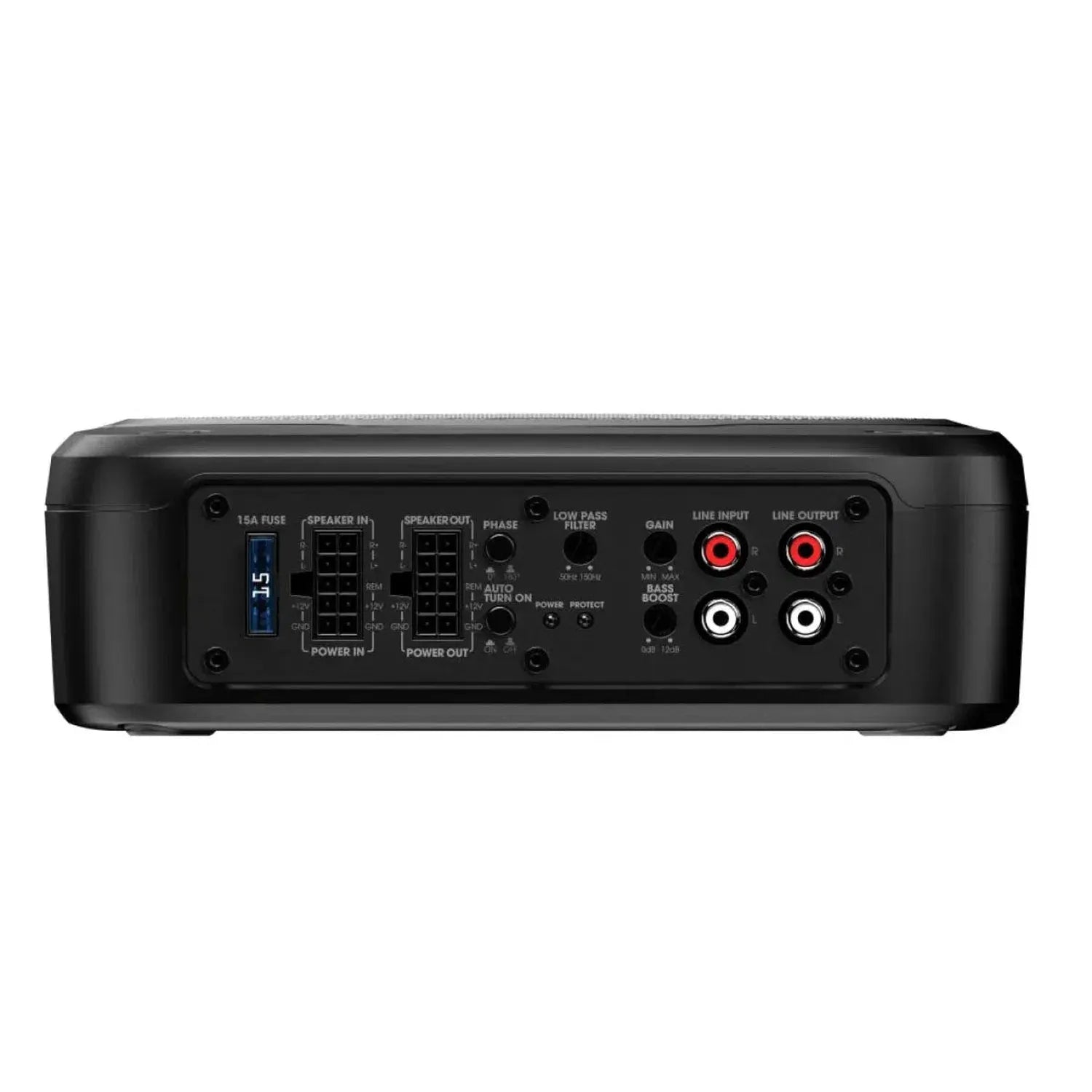

The volume control for the bass boost is integrated into the I/O panel, allowing you to adjust the sound freely.

Technical Data

• Driver size 7" (178mm) subwoofer
• Amplifier power: Class D, 100Wrms; 200W Max
• Frequency response: 30Hz - 150Hz
• Fuse: 15A
• Maximum current draw: 15 A
• Quiescent current consumption: Input sensitivity: 0.18 V - 5.0 V Low-
• Level input; 0.75 V - 20 V high-level input
• Transition frequency: 50 Hz - 150 Hz
• Slope of the crossover: 12 dB/octave
• Bass boost: 0 dB to +12 dB at 50 Hz
• Dimensions (L x W x H) 259.6mm x 203.1mm x 65.5mm
• Weight: 3.5kg

Contents of the package

• 1x subwoofer under the seat
• 4x screws
• 2x cable harness for power and speaker input (300mm)
• 1x 15A fuse
