  3. Voce II AV 6.5 P II

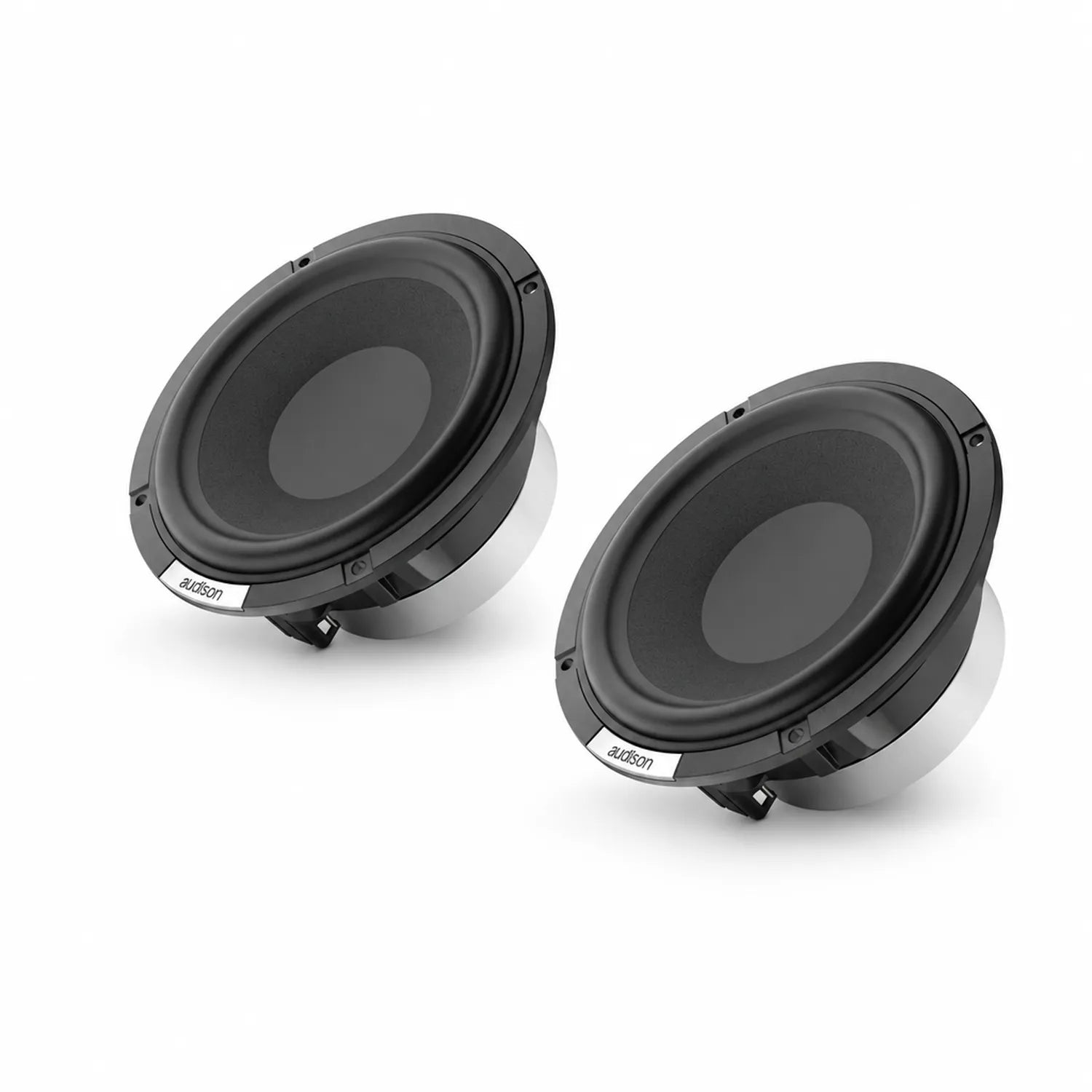

Audison Voce II AV 6.5 P II 6.5" (16,5cm) Mid-Woofer
SKU:  AV-6.5-P-II
EAN:  8018823143288
150 Watt

Voce II AV 6.5 P II

SKU:  AV-6.5-P-II
EAN:  8018823143288

Technical Highlights

  • Power: 150 W RMS, Impedance: 4 Ohm, Frequency response: 45-7500 Hz.
  • Magnet material: High Density Flux Ferrite, aluminum ring, T-shaped pole piece.
  • Voice coil: Ø 40 mm, magnetic cover, low inductance.
  • More technical details
€449,00
€449,00 €449,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 6, - Jun 9,
x pair
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €37,41 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Audison-Voce II AV 6.5 P II-6.5" (16,5cm) Tiefmitteltöner-masori-kaufen
€449,00
€449,00 €449,00

Voce II AV 6.5 P II by Audison

The Voce II AV 6.5 P II from Audison is a 6.5 inch mid-bass driver with an impedance of 4 Ohm. It features a 40 mm CCAW voice coil and a FEM-optimized magnetic system with High Density Flux Ferrite. The chassis is made of aluminum die-cast, while the basket is made of fiberglass and the cone is made of semi-pressed paper with cotton fibers. The suspension is made of High Excursion Butyl Rubber. The driver is designed for use with OEM and Faston connectors and utilizes eID technology for traceability. A gentle 6 dB/octave filter is integrated.

Features
  • 6.5 inch (16.5 cm) mid-bass driver
  • Power: 150 Watts RMS
  • Power: 300 Watts Max
  • Impedance: 4 Ohm
  • Cone material: Semi-pressed paper with cotton fibers
  • Basket material: Fiberglass
  • Chassis material: Aluminum die-cast
  • Voice coil material: CCAW
  • Magnet material: High Density Flux Ferrite
  • Surround material: Butyl rubber
  • Voice coil diameter: 40 mm
  • Installation diameter: 140.8 mm
  • Installation depth: 69.8 mm
  • Weight: 1.6 kg
Technical specifications
  • Frequency response: 45 - 7500 Hz
  • Sensitivity: 91 dB
  • Minimum impedance: 3.1 Ohm
  • Magnet size: 100 x 45 x 18 mm
  • Xmax: 4.95 mm
  • Xmech: 7.5 mm
  • Winding height of the voice coil: 13 mm
  • Air gap height: 6 mm
  • Re: 2.9 Ohm
  • Fs: 66 Hz
  • Le: 0.3 mH
  • Vas: 9.09 l
  • Mms: 15.3 g
  • Cms: 0.38 mm/N
  • BL: 5.5 Tm
  • Qts: 0.57
  • Qes: 0.61
  • Qms: 9.06
  • Overall diameter: 165 mm
  • Hole spacing: 155 mm
  • Hole diameter: 4.5 mm

Your benefits at Masori

Audison Voce II AV 6.5 P II Datasheet

Open datasheet

Frequently Asked Questions about Voce II AV 6.5 P II

What power does the Audison Voce AV 6.5 P II subwoofer provide?

The Audison Voce AV 6.5 P II subwoofer delivers a peak power of 300 watts and a continuous power handling of 150 watts RMS. Thanks to the 1.6-inch CCAW voice coil, which ensures maximum excursions and efficient heat dissipation, the subwoofer can reproduce powerful bass even at high volumes without experiencing dynamic compression. The low inductance supports playback in the upper midrange and ensures clear vocal and instrument reproduction. The acoustic properties are maximized by the oversized magnetic assembly and FEM-optimized geometry, resulting in excellent efficiency and dynamic sound.

What technical features distinguish the Voce AV 6.5 P II subwoofer?

The Voce AV 6.5 P II subwoofer stands out with its special technical features, such as the use of a semi-pressed paper cone with cotton fibers, which combines stiffness and lightness for a wide frequency response from 45 Hz to 7500 Hz. The magnetic circuit is optimized according to FEM to maximize the concentration of the magnetic field on the coil. An integrated aluminum ring in the motor minimizes distortion. The CCAW voice coil and the aluminum die-cast basket improve heat dissipation and performance at high volumes, while the design of the surround and spider structure ensures control and linearity.

What is the frequency response of the Audison Voce AV 6.5 P II?

The Audison Voce AV 6.5 P II has a frequency response that ranges from 45 Hz to 7500 Hz. This allows for clear low and mid-range reproduction without the need for a low-pass filter, improving phase stability in door installations. The use of semi-pressed paper for the cone, combined with the 40 mm CCAW voice coil, optimizes bass reproduction and guarantees accurate playback even at low frequencies. The T-shaped pole piece and aluminum ring are designed to optimize frequency response and minimize distortion.

What does the installation and mounting of the Voce AV 6.5 P II look like?

The installation of the Voce AV 6.5 P II is easy thanks to the flexible connection options, such as OEM and FASTON terminals. The dimensions are 165 mm in nominal size, and the basket diameter measures about 140.8 mm, allowing for broad compatibility with common vehicle doors. The included accessories, including interchangeable metal grilles in black or silver, protect the woofer and aesthetically integrate into the vehicle cabin. Two self-adhesive Audison logo plaques allow for custom branding placement. This design offers variability for different installation locations and ensures that the system performs well in most environments.

What materials are used in the Audison Voce AV 6.5 P II?

The Audison Voce AV 6.5 P II uses high-quality materials such as a semi-pressed paper cone with cotton fibers, an aluminum die-cast basket, and a CCAW voice coil. The magnet is made of high-density flux ferrite, providing excellent magnetic properties. The surround is made of durable rubber, while the basket is reinforced with fiberglass to ensure longevity and stability. These material combinations not only optimize acoustic performance but also enhance thermal stability and distortion minimization. All together, they ensure precise and dynamic sound results.

What technical parameters influence the sound quality of the Voce AV 6.5 P II?

The sound quality of the Voce AV 6.5 P II is determined by various technical parameters. The nominal impedance of 4 ohms and the minimum impedance of 3.1 ohms affect the electrical coupling and matching to amplifiers. The sensitivity rating of 91 dB ensures high volume at low drive. Acoustic properties such as Fs at 66 Hz and Vas at 9.09 liters emphasize the bass range. The voice coil and the aluminum die-cast basket optimize sound dispersion. These technical parameters work together to deliver a clear, uncolored audio experience, even at high volumes.

How does the basket diameter affect the installation compatibility of the Voce AV 6.5 P II?

The basket diameter of the Voce AV 6.5 P II is 165 mm, which is a significant size for compatibility with vehicle doors. This common dimension is well-suited for installation in many car models without the need for extensive modifications. The distance from center to center is 155 mm, providing important flexibility in placement within the door structure. With these measurements, the woofer can be used in various environments, while the shape and structure of the basket offer maximum rigidity and lasting reliability. These dimensions allow for flexible installation options without sacrificing acoustic performance.

What role does the aluminum short-circuit ring play in the Voce AV 6.5 P II?

The aluminum short-circuit ring in the Voce AV 6.5 P II optimizes the reproduction of the upper midrange, particularly between 2 to 3 kHz, by reducing the speaker's inductance. This improves the clarity of voices and instruments, providing a balanced sound image. The ring also minimizes distortions that can be caused by voice coil vibrations, which is especially important when the woofer is exposed to high levels. Its integration into the motor ensures a uniform distribution of the magnetic field, enhancing the speaker's performance and efficiency in the mid and high frequency range.

How does the Voce AV 6.5 P II improve bass reproduction?

The Voce AV 6.5 P II enhances bass reproduction through its technical design, which includes a semi-pressed paper cone that is both durable and lightweight. This combination allows for a wide frequency coverage in the bass range and reduces unwanted distortions. The 40 mm CCAW voice coil ensures efficient cooling and large excursions, producing strong, precise bass tones. Additionally, the aluminum die-cast basket provides thermal stability during extended use. These materials and the overall design contribute to the amplification of low frequencies while optimizing overall sound quality.

What role does FEM optimization play in the Audison Voce AV 6.5 P II?

FEM optimization in the Audison Voce AV 6.5 P II plays a crucial role in maximizing the efficiency and precision of the woofer. Through the Finite Element Method (FEM), the magnetic field is accurately focused around the voice coil, ensuring effective energy transfer. This optimization not only increases dynamic performance but also minimizes energy losses and distortions. Notably, the adjustment of the magnetic circuit geometry improves sound reproduction across all frequency ranges. This technique ensures that the woofer delivers clear and detailed sound even during challenging musical passages.
