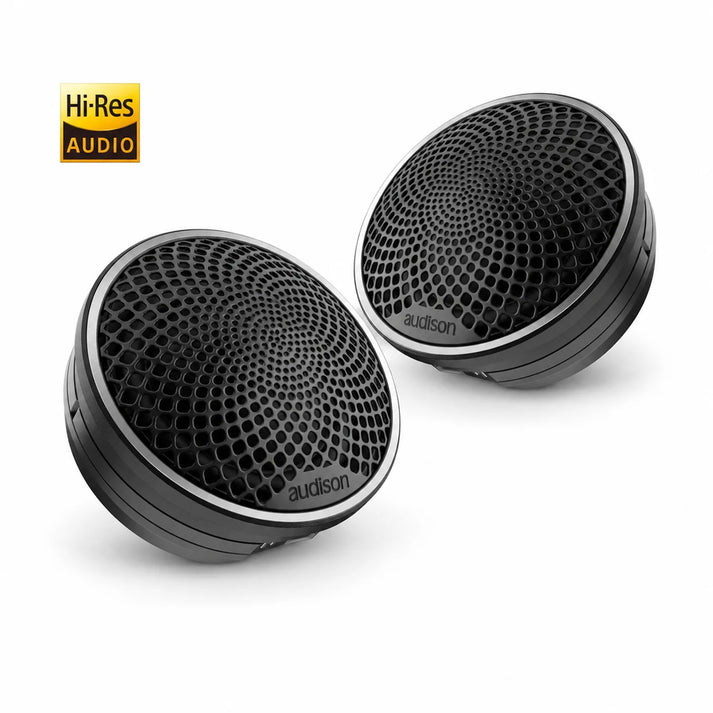

Audison Voce II AV 1.1 II Dome Tweeter
SKU:  AV-1.1-II
EAN:  8018823143363
90 Watt

Voce II AV 1.1 II

SKU:  AV-1.1-II
EAN:  8018823143363

Technical Highlights

  • Hi-Res Audio, frequency response up to 40 kHz, impedance 4 ohms.
  • Neodymium magnet, CCAW voice coil, power: 180 W peak.
  • Minimum impedance 3.9 Ohm, sensitivity 91 dB, Fs 900 Hz.
  • More technical details
€399,00
€399,00 €399,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 3, - Jun 6,
x pair
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €33,25 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Audison-Voce II AV 1.1 II-Kalotten-Hochtöner-masori-kaufen
€399,00
€399,00 €399,00

Voce II AV 1.1 II by Audison

The Audison Voce II AV 1.1 II is a Dome Tweeter with Hi-Res Audio certification and a Tetolon dome. The technical specifications include a powerful neodymium magnet and a lightweight 28 mm CCAW voice coil. With an impedance of 4 Ohms, it covers a frequency range of 1000 to 40000 Hz. The power handling is 10 Watts for continuous operation and reaches a peak power of 180 Watts. For installation, it uses AIF (Any Install Faceplate) technology and OEM-style Faston connectors. The basket is made of aluminum, and the membrane and surround are made of Tetolon fibers. Additional features include eID technology, two front plates, three mounting accessories, and grille options.

\
\Features\\
\
    \
  • Dome Tweeter\
    • \
  • Tetolon Soft Dome Membrane Material\
    • \
  • 28 mm Diameter Voice Coil made of CCAW\
    • \
  • Neodymium Magnet\
    • \
  • Aluminum Basket\
    • \
  • AIF (Any Install Faceplate) Technology\
    • \
  • Hi-Res Audio Certified\
    • \
  • eID Technology for Traceability\
    • \
  • OEM Style Faston Connector\
    • \
  • Tetolon Fiber Surround\
    • \
  • Dimension A: 48 mm\
    • \
  • Dimension B: 44.9 mm\
    • \
  • Dimension C: 26.7 mm\
    • \
  • Dimension D: 16.5 mm\
    • \
  • Weight: 0.07 kg\
    • \
\
\Technical Data\\
\
    \
  • Continuous Power Handling: 10 Watts\
    • \
  • Peak Power Handling: 180 Watts\
    • \
  • Impedance: 4 Ohm\
    • \
  • Minimum Impedance: 3.9 Ohm\
    • \
  • Frequency Response: 1000 - 40000 Hz\
    • \
  • Sensitivity: 91 dB\
    • \
  • Resonance Frequency (Fs): 900 Hz\
    • \
  • DC Resistance (Re): 3.2 Ohm\
    • \
  • Inductance (Le): 0.02 mH\
    • \
  • Moving Mass (Mms): 0.38 g\
    • \
  • Compliance (Cms): 0.088 mm/N\
    • \
  • Drive Factor (BL): 2.15 T•m\
    • \
  • Total Quality (Qts): 1.1\
    • \
  • Electrical Quality (Qes): 1.5\
    • \
  • Mechanical Quality (Qms): 4.4\
    • \
  • Ferrofluid: No\
    • \

Your benefits at Masori

Audison Voce II AV 1.1 II Datasheet

Open datasheet

Frequently Asked Questions about Voce II AV 1.1 II

What is the frequency response of the Voce AV 1.1 II Tweeter?

The frequency response of the Voce AV 1.1 II is remarkable, as it allows for playback from 1000 Hz to 40000 Hz. This wide bandwidth is a result of the Tetolon Dome Tweeter, which has been specifically selected to ensure outstanding high-frequency reproduction. Dome Tweeters like the Voce AV 1.1 II are known for their precise reproduction of high frequencies, and the extension up to 40 kHz enables detailed audio playback that also meets Hi-Res Audio specifications. Notably, the improved off-axis response provides exceptional performance even when the tweeter is not directly aimed at the listener.

What materials are used in the Audison Voce AV 1.1 II?

The Audison Voce AV 1.1 II stands out due to the use of high-quality materials such as the Tetolon Dome Tweeter, known for its fine, natural sound. Additionally, a powerful neodymium magnet is employed to enhance dynamics and precision. The voice coil is made of CCAW (Copper Clad Aluminium Wire), which combines the benefits of low weight and high stability. The aluminum basket and front plate technology (AIF) provide both structural integrity and flexible installation options. This material orientation allows the tweeter to achieve minimal distortion while ensuring a clear, natural sound.

What installation options does the Voce AV 1.1 II offer?

The Audison Voce AV 1.1 II is very flexible in installation thanks to the AIF (Any Install Faceplate) technology. This technology allows for easy adaptation of the tweeter to different vehicle environments, as it includes various front plates and mounting options. This means that the tweeter can be integrated into almost any vehicle without additional adapters. Furthermore, two front plates and three mounting accessories come with the product, which facilitate adaptation to individual vehicle configurations and significantly reduce setup time. This flexibility is ideal for users planning to install in vehicles with different interiors.

What is the significance of the electro-acoustic parameters of the Voce AV 1.1 II?

The electro-acoustic parameters of the Voce AV 1.1 II include values such as the minimum impedance of 3.9 Ohms, Re of 3.2 Ohms, and a minimum inductance Le of 0.02 mH. These parameters are crucial for the efficiency and sound characteristics of the Tweeter. The resonance frequency Fs is at 900 Hz, while the total quality factor (Qts) is at 1.1 and the mechanical quality factor (Qms) is at 4.4. These parameters influence the playback accuracy of the Tweeter by determining the ability for precise sound reproduction and adaptation to various acoustic systems. A higher Qms value also indicates good mechanical damping.

What is the advantage of the Hi-Res Audio certification of the Voce AV 1.1 II?

The Hi-Res Audio certification of the Voce AV 1.1 II from Audison confirms its ability to deliver high-resolution sound quality beyond the standard frequency range. This certification can only be achieved with faithful and detailed sound reproduction systems. The Voce AV 1.1 II meets the strict testing conditions of the IEC 60268-5 standard and can reproduce frequencies up to 40 kHz. This performance allows for an exceptional sonic representation of music that relies on high-precision playback and is particularly suitable for car audio enthusiasts who value superior sound quality.

What technical advantages does the CCAW voice coil in the Voce AV 1.1 II offer?

The CCAW voice coil (Copper Clad Aluminium Wire) used in the Voce AV 1.1 II combines the advantages of lightweight aluminum with the conductivity properties of copper. This combination allows for a reduction in the moving weight of the voice coil, improving the response speed and efficiency of the Tweeter. Additionally, transient compression is eliminated, resulting in undistorted sound reproduction. At high sound pressure levels, the sound remains clean and natural, which is particularly beneficial in demanding car audio environments where sound precision and clarity are required.

How do the mounting options of the Voce AV 1.1 II differ?

The mounting options of the Voce AV 1.1 II are exceptionally versatile, offering both OEM style and the flexibility of FEM-optimized faceplates. Two front plates and three mounting accessories are included, allowing for customization to various vehicle needs. When using the Faston connectors, no additional adapter is needed, reducing installation time. The grille and storage mesh also provide an aesthetically pleasing integration into the vehicle's interior. This flexibility allows for the efficient and precise installation of the Tweeter in different car models without compromising the listening experience.

How does the neodymium magnet material of the tweeter affect its performance?

The neodymium magnet material in the Voce AV 1.1 II is an integral part of its construction, contributing to the generation of a powerful magnetic field. Neodymium magnets are known for their high magnetic flux density, which exerts greater driving force on the voice coil. The result is improved dynamics and completeness in sound reproduction. The high magnetic strength also reduces distortion across the entire frequency range, enhancing both clarity and precision. Thus, neodymium magnets not only offer a compact design but also superior performance, ideal for high-quality sound systems.

What advantages does the eID technology of the Voce AV 1.1 II offer?

The eID technology in the Voce AV 1.1 II enables seamless traceability of the tweeter from production to the end consumer. With this feature, the authenticity of the product can be verified at any time, providing an additional level of security for owners. The technology serves not only as a quality promise but also protects against product counterfeiting. Additionally, consumer service can be improved by making specific product histories individually traceable. Thus, the eID technology enhances not only the authenticity but also the long-term reliability of the product.

What are the dimensions of the Voce AV 1.1 II and how do they affect installation in the car?

The specific dimensions of the Voce AV 1.1 II are crucial for seamless integration into vehicles. With dimension A of 48 mm, dimension B of 44.9 mm, dimension C of 26.7 mm, and dimension D of 16.5 mm, the tweeter is compact enough to be installed in various vehicle areas. These dimensions allow for discreet mounting, which is particularly advantageous in cars with limited installation space. Since the Voce AV 1.1 II can be installed without recessed adapters or special modifications, this represents a significant ease in adapting to specific car models. It thus offers maximum flexibility for individual installation requirements.
