Prima APS 10 S4S by Audison

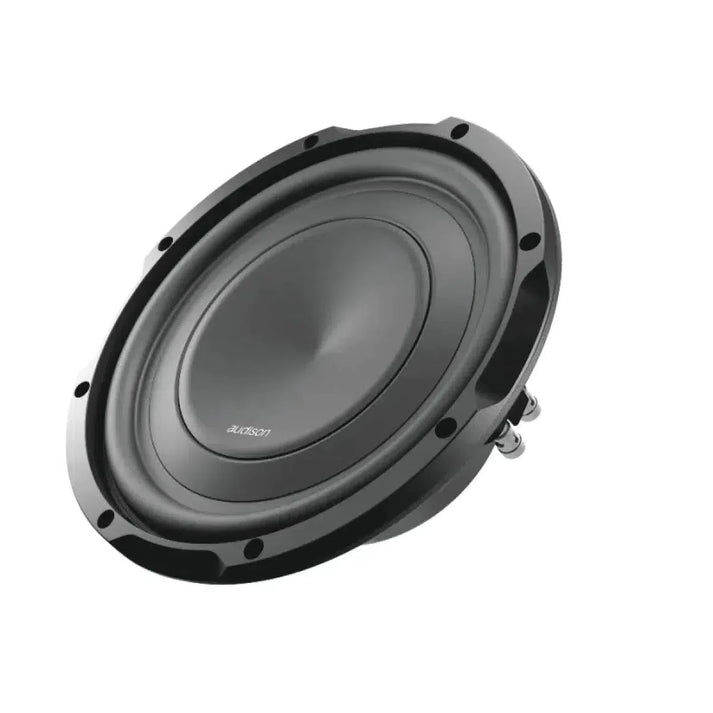

Discover the Prima APS 10 S4S from Audison, a 10 inch (25 cm) subwoofer that stands out for its compact size and high performance. The APS 10 S4S expands the family of compact subwoofers and is optimized for enclosures with a minimum volume of 10 liters. With its single 4-ohm voice coil, it is ideal for driving by the new AP F8.9 Bit amplifier with integrated DSP. Additionally, it offers the possibility to create custom enclosures with two APS 10 S4S units. With a peak power of 800 W and an impedance of 4 ohms, this subwoofer delivers excellent results.

TECHNICAL DATA

  • Size 250 mm
  • Power Handling - Peak 800 W
  • Power Handling - Continuous 400 W
  • Impedance 4 Ohm
  • Magnet Material HIGH DENSITY FLUX FERRITE
  • Voice Coil Ø 60 mm
  • Woofer Qes 0.75
  • Cone Material WATER REPELLENT PRESSED PAPER
  • Xmax 12.6 mm
  • Xmech 18 mm

ELECTRO-ACOUSTIC PROPERTIES

  • D 220 mm
  • Driver Displacement Volume 1.12
  • Re 3.7 Ohm
  • Fs 28.5 Hz
  • Vas 39.62 l
  • Mms 160 g
  • Cms 0.2 mm/N
  • BL 12.9 T•m
  • Qms 6.9
  • Qts 0.68
  • Le Standard 1.9 mH
  • SPL 83.5 dB

GENERAL

  • Weight 5.24 kg

DIMENSIONS

  • Dimension A 270 mm
  • Dimension B 233 mm
  • Dimension C 105 mm
  • Dimension D 88 mm

FEATURES

  • Ultra-flat profile (120 mm) for maximum installation flexibility.
  • Designed to deliver maximum performance in a sealed enclosure from 10 liters.
  • The specially designed cone-dust cap-frame geometry guarantees a long linear excursion (11 mm, one-sided) with minimal mounting depth.
  • Ventilation openings on the frame below the spider eliminate the need for central pole venting and allow mounting close to the enclosure's rear wall.
  • Massive motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high power and large excursion conditions.
  • Water-repellent treated 10-inch paper cone, whose profile was developed with FEM simulation and optimized with the Klippel Scan Vibrometer.
  • Single voice coil design, specifically developed for combination with one of the two AP F8.9 Bit amplifiers (2 CH, bridged, 260 Watt RMS), utilizing the bass boost function and the integrated parametric equalizer of the built-in DSP.
  • Includes steel grille and plastic gasket.

Audison Prima APS 10 S4S Datenblatt

Datenblatt öffnen

Frequent questions about Prima APS 10 S4S

Was zeichnet den Audison Prima APS 10 S4S Subwoofer technisch aus?

The Prima APS 10 S4S subwoofer from Audison is a technical masterpiece. It features a 10-inch (25 cm) diaphragm with a 4-ohm voice coil, optimized for enclosures with a volume of at least 10 liters. With a peak power of 800 watts and a continuous power of 400 watts, it is designed for high performance. Its electromagnetic properties, such as a BL value of 12.9 T•m and a Qts of 0.68, ensure remarkable sound quality. The subwoofer also has specific designs such as the venting openings below the spider to reduce the overall height.

Wie groß ist der Audison Prima APS 10 S4S und wie beeinflusst das den Einbau?

The Audison Prima APS 10 S4S has a size of 250 mm and an ultra-flat profile of 120 mm, allowing for flexible installation. The external dimensions are A: 270 mm, B: 233 mm, C: 105 mm, and D: 88 mm. These compact dimensions make it ideal for space-saving installations in tight spaces or in vehicles with limited installation space. Its design with innovative ventilation openings allows it to be mounted close to the back wall of the enclosure, enabling a practical and space-saving installation.

Welche Materialien und Konstruktionseigenschaften hat der Prima APS 10 S4S Subwoofer?

The Prima APS 10 S4S subwoofer is made from high-quality materials, such as a water-repellent treated, pressed paper cone that has been specifically optimized for extreme conditions. The massive motor assembly uses high-density flux ferrite and is optimized using FEM to handle high power and displacement. Additionally, the special geometry of the cone, dust cap, and basket allows for a long linear displacement with minimal installation depth.

Wie funktioniert die Bassverstärkung beim Audison Prima APS 10 S4S?

The Audison Prima APS 10 S4S is optimized for bass amplification with the AP F8.9 Bit amplifier featuring an integrated DSP. The subwoofer utilizes the bass enhancement function as well as the parametric equalizer of the DSP to precisely amplify and adjust the bass. This allows for fine-tuning of the bass frequencies, resulting in a detailed and powerful bass reproduction, which is particularly evident in applications with closed enclosures starting from 10 liters in volume.

Welche elektrischen Parameter sollte ich beim Betrieb des AproPOS APS 10 S4S beachten?

When operating the Prima APS 10 S4S subwoofer, you should pay attention to the electrical parameters such as impedance, which is 4 ohms, and the Re, which is 3.7 ohms. These parameters are crucial for matching with the amplifier. The subwoofer requires an amplifier that can handle this impedance to achieve maximum power output. Equally important is the voice coil with a diameter of 60 mm, which is essential for the required load capacity and power output to avoid distortion.

Welche Thiele-Small-Parameter hat der Audison Prima APS 10 S4S und was bedeuten sie?

The Audison Prima APS 10 S4S has important Thiele-Small parameters, including a Qts of 0.68, a Vas of 39.62 liters, and a Qes of 0.75. These parameters are crucial for the acoustic behavior of the subwoofer. Vas describes the equivalent air volume, and a higher Qts value indicates suitability for closed boxes. These values should be considered in the enclosure design to ensure the best possible sound and efficient use of the subwoofer.

Welche Art von Gehäuse ist optimal für den Audison Prima APS 10 S4S Subwoofer?

The Prima APS 10 S4S subwoofer has been designed for optimal use in closed enclosures, starting from a volume of 10 liters. Thanks to the construction with a water-repellent cone and the specially adapted acoustic parameters such as Fs of 28.5 Hz and an Xmax of 12.6 mm, it achieves the best performance in these types of enclosures in terms of sound quality and bass power. The design of the cone allows for a long linear excursion, which is particularly advantageous in closed enclosure types.

Wie wird der Audison Prima APS 10 S4S korrekt installiert?

The correct installation of the Prima APS 10 S4S requires that the dimensions of 270 mm in width and 233 mm in height be taken into account. When mounting near a rear wall of the enclosure, the ventilation openings below the spider must be considered, which allow for additional ventilation of the voice coil and can prevent errors. The use of the included steel mesh and plastic seals ensures stability and protection during installation. The installation should take place in a volume of at least 10 liters to achieve maximum performance.

Was ist die maximale Auslenkung des Audison Prima APS 10 S4S Subwoofers und was bedeutet dies?

The maximum mechanical displacement Xmech of the Prima APS 10 S4S subwoofer is 18 mm, while the linear displacement Xmax is 12.6 mm. This means that the subwoofer is capable of handling large movements of the diaphragm, resulting in powerful bass reproduction. The linear displacement allows for undistorted playback of the bass, especially at high volumes. The robust construction ensures that the subwoofer operates without sound loss and distortions, even under maximum load.

Wie beeinflusst der Konusmaterial des Prima APS 10 S4S den Klang?

The cone material used in the Audison Prima APS 10 S4S, which consists of water-repellent treated, pressed paper, has significant influences on the sound character. This design offers an ideal balance between stiffness and damping, enabling precise and dynamic bass reproduction. Thanks to the water-repellent properties, performance remains consistent even under humid conditions. The specific cone geometry, which was simulated using FEM and tested with the Klippel Scan Vibrometer, ensures improved displacement and sound quality.
