Audison Prima APK 690 6"x9" Speaker Set
SKU:  APK-690
EAN:  8018823129695

1 Review

100 Watt

Prima APK 690

SKU:  APK-690
EAN:  8018823129695

1 Review

Technical Highlights

  • Peak power 300W, impedance 4 Ohm, frequency response 40-20kHz.
  • Optimized crossovers, easy installation, compact size.
  • Tweeter 26mm, woofer 690mm, voice coil 25mm.
  • More technical details
€169,00
€169,00 €169,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 30, - Jun 2,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €14,08 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

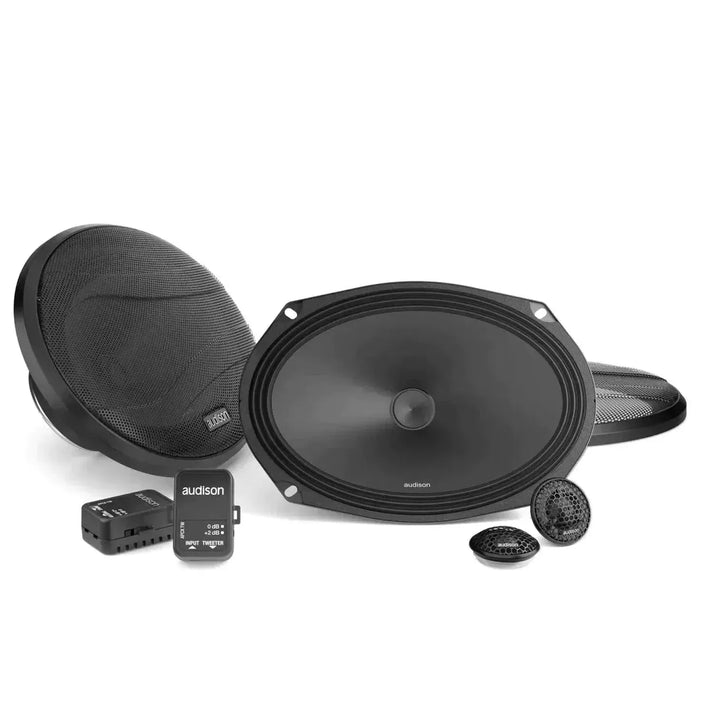

Audison-Prima APK 690-6"x9" Lautsprecherset-masori-kaufen
€169,00
€169,00 €169,00

Prima APK 690 by Audison

Audison Prima APK 690 is a 6x9 inch Speaker Set with AP 1 Tweeter, AP 690 Woofer, and APCX TW 690 Crossover. The power handling is 300 W peak and 100 W continuous, with an impedance of 4 Ohms. The crossover operates as HP 6 dB/Oct at 3.3 kHz and features a damping switch with 0 dB and +3 dB. The AP 1 Tweeter uses a 26 mm diaphragm with a wide roll surround and an acoustic lens for the range of 10 kHz to 13 kHz. The AP 690 Woofer relies on a 25 mm voice coil made of pure copper, a water-resistant treated paper cone with a profile developed using FEM, optimized with the Klippel R&D Scan Vibrometer. Additional features include reduced installation depth, triple-wave surround profile, compact basket with abrasion and scratch-resistant coating, motor secured with damping epoxy glue, and a high-current quick-connect terminal with double contact. The APCX TW 690 is supplied with quick connections.

Features
  • 6x9 inch Speaker Set
  • Power handling peak 300 W
  • Power handling continuous 100 W
  • Impedance 4 Ohms
  • Includes AP 1 Tweeter, AP 690 Woofer, and APCX TW 690 Crossover
  • Crossover type HP 6 dB/Oct at 3.3 kHz
  • Damping switch 0 dB / +3 dB
  • AP 1 Tweeter: 26 mm diaphragm, wide roll surround
  • Acoustic lens 10 kHz to 13 kHz
  • AP 690 Woofer: 25 mm voice coil made of pure copper
  • Water-resistant treated paper cone
  • Profile developed with FEM simulation, optimized with Klippel R&D Scan Vibrometer
  • Reduced installation depth
  • Triple-wave surround profile
  • Compact basket with abrasion and scratch-resistant coating
  • Motor secured with damping epoxy glue
  • High-current quick-connect terminal with double contact
  • Supplied with quick connections
Technical Specifications
  • Tweeter size 26 mm
  • Woofer size 690 mm
  • Voice coil diameter Woofer 25 mm
  • Voice coil diameter Tweeter 20 mm
  • Magnet size Woofer 90 x 32 x 15
  • Frequency response 40 - 20 k
  • Woofer cone diameter 171 mm
  • Xmax Woofer 4 mm
  • Re Woofer 3.1 Ohm
  • Fs Woofer 55 Hz
  • Le Woofer 0.2 mH @ 1 kHz
  • Vas Woofer 37.1 l
  • Mms Woofer 17 g
  • Cms Woofer 0.5
  • Bxl Woofer 5.3
  • Qts Woofer 0.6
  • Qms Woofer 7
  • Qes Tweeter 2.78
  • SPL Woofer 95 dB
  • Weight Woofer 1.17 kg
  • Weight Tweeter 0.04 kg

Your benefits at Masori

Audison Prima APK 690 Datasheet

Open datasheet

Frequently Asked Questions about Prima APK 690

What power does the Audison Prima APK 690 speaker offer?

The Audison Prima APK 690 offers a peak power of 300 Watts and a continuous power handling of 100 Watts. This means you can expect impressive volume and clarity without overloading the speaker. With an impedance of 4 Ohms, the speaker is suitable for both simpler and more powerful Amplifiers, making it a versatile choice for different audio systems. Additionally, the combination of an AP 1 Tweeter and an AP 690 Woofer provides excellent acoustic performance and a linear frequency response from 40 Hz to 20 kHz.

What are the technical specifications of the Woofer in the Prima APK 690?

The AP 690 Woofer of the Prima APK 690 is equipped with a 25 mm voice coil made of pure copper, providing high power handling. The 171 mm paper cone is water-resistant and has been optimized using FEM technology. The installation depth of the Woofer is reduced, simplifying installation. The Woofer has a frequency response of 40 Hz to 20 kHz and achieves a sensitivity of 95 dB with a Qts value of 0.6. Its compact basket is scratch and abrasion-resistant, while the "Triple-Wave" surround profile allows for maximum excursion.

What features does the Tweeter in the Audison Prima APK 690 have?

The AP 1 Tweeter of the Audison Prima APK 690 features a diaphragm profile with a diameter of 26 mm and offers a wide roll surround for maximum efficiency. Thanks to the use of high-quality materials and technology to reduce resonance frequency, the Tweeter is perfect for high-frequency applications. The integrated acoustic lens compensates for the frequency response in the vehicle between 10 kHz and 13 kHz to balance critical OEM installations. The voice coil measures 20 mm and the sensitivity is at 2.78. These advanced features ensure high sound fidelity, even under challenging acoustic conditions.

How does the APCX TW 690 Crossover optimize sound in the vehicle?

The APCX TW 690 Crossover of the Audison Prima APK 690 is designed for OEM integration and features a switch for response adjustment with damping options of 0 dB and +3 dB. This function allows you to optimize the sound according to the vehicle acoustics. The crossover type is HP 6 dB Oct at 3.3 kHz, ideal for a precise transition between the Tweeter and Woofer. Equipped with quick connections, it minimizes connection errors and allows for fast installation. This adaptability ensures that the sound in the vehicle is always optimally tuned.

What are the dimensions of the Prima APK 690 and how does this affect installation?

The Prima APK 690 speaker has a 6"x9" oval frame and has specific installation dimensions that allow for easy integration into many OEM mounting locations. Thanks to the reduced mounting depth of the Woofer, installation is also easier in vehicles with limited space. The compact dimensions are designed for user-friendly installation, while the abrasion-resistant coating of the basket provides additional protection. However, make sure that the dimensions of the speakers are compatible with the existing openings and the vehicle acoustics to ensure optimal performance.

What materials are used for the Prima APK 690 speakers?

The Prima APK 690 speakers from Audison are made from high-quality materials to ensure durability and sound quality. The Woofer features a water-repellent treated paper cone and a voice coil made of pure copper, which provides high load capacity and deep frequency control. The basket of the Woofer is reinforced with a scratch-resistant and abrasion-resistant coating. The AP 1 Tweeter uses a 26 mm diaphragm in combination with an acoustic lens for frequency compensation. This choice of materials enables high sound precision and protection against environmental influences.

What advantages does the electro-acoustic optimization of the Prima APK 690 offer?

The electroacoustic optimization of the Audison Prima APK 690 enables outstanding sound reproduction even in challenging installation environments. With a Re value of 3.1 Ohms, an Fs of 55 Hz, and a Vas of 37.1 liters, the woofer is designed for precise and powerful bass reproduction. This optimization also supports easy installation in various OEM locations, as the speaker is designed to achieve maximum sound efficiency despite space constraints. Such specific adjustments significantly enhance the overall performance of the speaker system.

How does the Thiele-Small parameter design affect the Prima APK 690?

The Thiele-Small parameter design of the Audison Prima APK 690 allows the speaker to provide the best possible sound efficiency and performance for the specific installation situation. Parameters such as the Qts value of 0.6 and the Mms of 17 g are crucial for bass performance and sound quality. These values help the speakers achieve a balanced sound profile, as they ensure an ideal balance between bass resonance and efficiency. Especially in compact installation situations, these parameters work wonders by providing sound experiences tailored to the space.

What is the compatibility of the Prima APK 690 with common car brands?

The Audison Prima APK 690 is compatible with many common car brands and models due to its dimensions and electroacoustic properties. Its 6"x9" design allows for installation in numerous vehicle types, particularly where space is often a constraint. Although specific car brands are not mentioned in the description, you can be assured that OEM integration is facilitated by standardized measurements. However, you should check the installation dimensions of your specific installation locations to ensure a smooth installation without modifications.

What distinguishes the placement options of the Prima APK 690?

The placement options of the Audison Prima APK 690 are versatile, as the speaker is aimed at common OEM installation locations. The abrasion-resistant, compact design of the woofer allows for installation even in tight or unconventional spaces in the vehicle. Thanks to the "Triple-Wave" surround technology, sound reproduction remains linear even in compact installations. The speaker can be placed in doors, rear side panels, or special speaker enclosures to optimize acoustics according to preferences and vehicle geometry. The specific electroacoustic optimization creates diverse application possibilities.
