  3. Prima APK 570
Audison Prima APK 570 5"x7" Speaker Set
SKU:  APK-570
EAN:  8018823129688

1 Review

100 Watt

Prima APK 570

SKU:  APK-570
EAN:  8018823129688

1 Review

Technical Highlights

  • Peak power 300W, impedance 4 Ohm, frequency response 55-20kHz.
  • Compact crossovers, tweeter 26mm, woofer 570mm.
  • Large voice coil, high power handling, fast connection.
  • More technical details
€159,00
€159,00 €159,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 30, - Jun 2,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €13,25 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Audison-Prima APK 570 (B-Ware)-5"x7" Lautsprecherset-masori-kaufen
€159,00
€159,00 €159,00

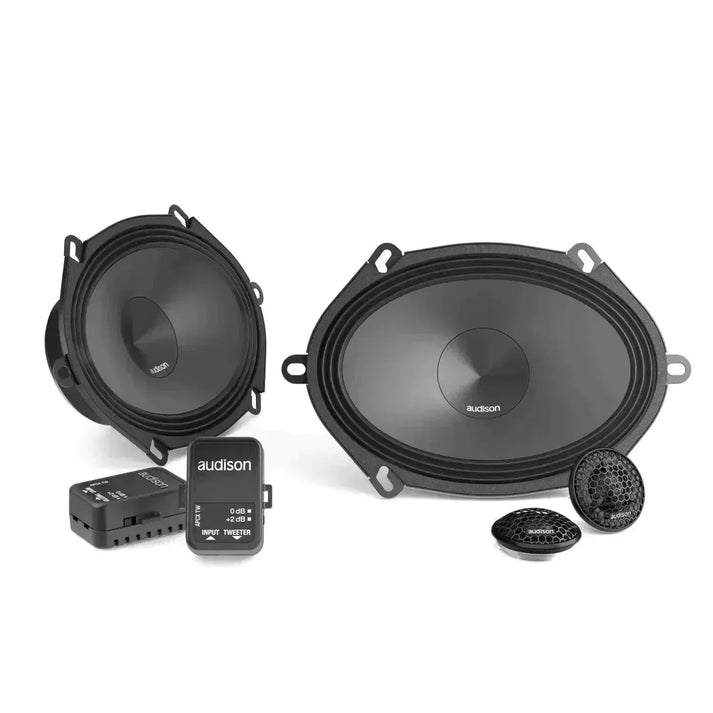

Prima APK 570 by Audison

Audison Prima APK 570 is a 5 x 7 inch Speaker Set with AP 570 Woofer, AP 1 Tweeter, and ultra-compact APCX TW 570 Crossovers with HP 6 dB/Oct at 3 kHz. The power handling is 100 W continuous and 300 W peak, the impedance is 4 Ohm, and the frequency response is 55 Hz to 20 kHz. The Woofer uses a 32 mm copper voice coil, a water-repellent treated paper cone with FEM-developed profile and Klippel optimization, a low installation depth, and a Triple Wave surround. The basket is compact, with abrasion and scratch-resistant coating, the motor is secured with damping epoxy glue, and there are high-current quick connections with double contact. The mechanical shutdown of the cone dust cap system allows operation without a filter. The AP 1 Tweeter has a 26 mm diaphragm with wide roll surround, an acoustic lens for the range of 10 kHz to 13 kHz, and a 20 mm voice coil. The crossover features a damping switch with 0 dB or +2 dB and comes with quick connections. The SPL of the Woofer is 93.5 dB.

Features
  • 5 x 7 inch Speaker Set
  • Included: AP 570 Woofer, AP 1 Tweeter, APCX TW 570 Crossovers
  • Power Handling Continuous 100 W
  • Power Handling Peak 300 W
  • Impedance 4 Ohm
  • Frequency Response 55 Hz to 20 kHz
  • Crossover HP 6 dB/Oct at 3 kHz, ultra-compact
  • Damping switch on the crossover 0 dB or +2 dB
  • AP 1 Tweeter with 26 mm diaphragm, wide roll surround, and acoustic lens 10 kHz to 13 kHz
  • AP 1 Tweeter voice coil 20 mm
  • AP 570 Woofer with 32 mm copper voice coil
  • Water-repellent treated paper cone, FEM profile, Klippel optimized
  • Low installation depth
  • Triple Wave Surround
  • Compact basket, abrasion and scratch-resistant coating
  • Motor secured with damping epoxy glue
  • High-current quick connection with double contact and direct connection to the Tweeter
  • Mechanical shutdown of the cone dust cap system; operation without filter possible
Technical Specifications
  • Woofer Size 570 mm
  • Tweeter Size 26 mm
  • Voice Coil Diameter Woofer 32 mm
  • Voice Coil Diameter Tweeter 20 mm
  • Crossover Type HP 6 dB/Oct at 3 kHz
  • Magnet Size Woofer 85 x 40 x 15
  • Power Handling Peak 300 W
  • Power Handling Continuous 100 W
  • Impedance 4 Ohm
  • Frequency Response 55 Hz to 20 kHz
  • Woofer Cone Diameter 139 mm
  • Xmax Woofer 2.5 mm
  • Re Woofer 3.1 Ohm
  • Fs Woofer 70 Hz
  • Le Woofer 0.23 mH @ 1 kHz
  • Vas Woofer 10.5 l
  • Mms Woofer 14.5 g
  • Cms Woofer 0.32
  • Bxl Woofer 4.6
  • Qts Woofer 0.85
  • Qms Woofer 6.5
  • Qes Tweeter 2.78
  • SPL Woofer 93.5 dB
  • Weight Woofer 0.88 kg
  • Weight Tweeter 0.04 kg

Your benefits at Masori

Audison Prima APK 570 Datasheet

Open datasheet

Frequently Asked Questions about Prima APK 570

What size are the woofers and tweeters of the Prima APK 570 system?

The woofers in the Audison Prima APK 570 system have an elliptical size of 570 mm, while the tweeters have a diameter of 26 mm. These specific formats are designed to be compatible with the common doors of car models that can accommodate 5×7-inch woofers. The compact design of the woofers also allows for efficient installation in various vehicles. The size of the voice coil in the woofer is 32 mm, which ensures high load capacity and control, especially at low frequencies. The tweeters feature a voice coil with a diameter of 20 mm for precision in the high-frequency range.

What power does the Audison Prima APK 570 system offer?

The Audison Prima APK 570 system provides a peak power of 300 watts and an RMS power of 100 watts. These power values allow the system to deliver clear and distortion-free audio playback even at high volumes. The efficient use of the 4-ohm impedance ensures optimal power consumption and enhances the overall performance of the system. At the same time, the large voice coil in the woofer guarantees a high load capacity, which is necessary to produce the powerful and precise bass frequencies that are especially important during aggressive dynamic peaks.

How is the crossover of the Audison Prima APK 570 designed?

The crossover of the Audison Prima APK 570 is of the HP 6 dB/octave type at 3 kHz and features a specially ultra-compact design that allows for easy integration into various vehicles. It is equipped with a damping switch that allows the tweeter output level to be adjusted by 0 dB or +2 dB to optimize the response in the vehicle. These adjustment options are particularly useful for personalizing the sound output depending on the vehicle environment. The crossover is also designed to minimize potential connection errors, as it comes with quick connections.

How do the electroacoustic parameters affect the performance of the woofer in the Prima APK 570?

The electroacoustic parameters of the woofer in the Prima APK 570 are precisely optimized to deliver impressive performance. The nominal impedance (Re) is 3.1 Ohms, while the free air resonance frequency (Fs) of the woofer is set at 70 Hz to effectively reproduce deep bass tones. The mechanical quality (Qms) is 6.5 and the electrical quality (Qes) is 0.85, resulting in a Qts of 0.85. Vas, which represents the equivalent volume, is 10.5 liters, minimizing the impact of the enclosure on performance. The large copper wire of the voice coil also ensures excellent control.

What special features do the woofers of the Audison Prima APK 570 have?

The woofers of the Audison Prima APK 570 have several outstanding features. The paper cone, treated to be water-resistant and optimized with FEM technology, ensures robust and precise bass reproduction. The 'Triple Wave' surround profiling allows for maximum excursion linearity, providing smooth and distortion-free bass performance. A compact basket structure facilitates installation in OEM positions. Additionally, a wear- and scratch-resistant coating protects the basket. High-current quick connectors simplify the connection, while the 32 mm voice coil made of pure copper ensures high load capacity and fine control of low frequencies.

How does the AP 1 tweeter of the Prima APK 570 enhance the sound image in the vehicle?

The AP 1 tweeter of the Prima APK 570 is specifically designed to refine the sound image in the vehicle. With a 26 mm diaphragm diameter and a wide roll surround, it optimizes efficiency and reduces unwanted resonance frequencies. The acoustic lens of the tweeter compensates for discrete frequency response errors in the critical range of 10 kHz to 13 kHz, where challenging OEM setups often cause issues. The tweeter is also equipped with a 20 mm voice coil that ensures targeted and clear sound reproduction, especially at high frequencies.

What materials are used in the Prima APK 570?

The Audison Prima APK 570 uses high-quality materials to ensure the best sound performance. The woofer features a voice coil made of pure copper, known for its high load capacity and exceptional control. The cone is made of water-resistant treated paper, designed for robustness and precise sound reproduction. The mechanical shutdown of the dust cap system in the woofer is another constructive advantage that allows operation without a crossover. The basket is coated with a wear- and scratch-resistant finish, and the motor is secured with damping epoxy glue, increasing overall durability.

What is the load capacity of the woofers and tweeters in the Prima APK 570?

The maximum load capacity of the woofers in the Prima APK 570 system is 300 watts, while the continuous power handling is limited to 100 watts. This allows for distortion-free playback even during dynamic music reproduction. The tweeter, with a peak load capacity within its own performance range, enhances the sound profile with clear and precise highs. Notably, the large copper voice coils used in both the woofer and tweeter provide high load capacity and control, allowing them to be easily powered by various amplifiers.

What installation advantages does the Audison Prima APK 570 system offer?

The Audison Prima APK 570 system offers several installation advantages, especially for vehicles with limited door space. The compact design of the woofers facilitates installation in common OEM positions. The ultra-compact crossover adapts to spatial conditions without hindering installation. Additionally, high-current quick connectors speed up the installation by allowing electrical connections without specific tools. The handy size of the system and the protective coating of the basket ensure smooth and flexible integration into various car models that support 5×7-inch woofers.

What frequency ranges does the Prima APK 570 system cover?

The Audison Prima APK 570 system covers a wide frequency range from 55 Hz to 20 kHz, allowing for comprehensive sound adjustment from deep bass notes to high frequencies. The woofer is optimized to efficiently reproduce low frequencies, thanks to a large voice coil and a special cone and surround construction. The tweeter complements this range with its precise reproduction of high frequencies, made possible by the acoustic lens and optimized voice coil. This combination creates a complete and nuanced sound image.
