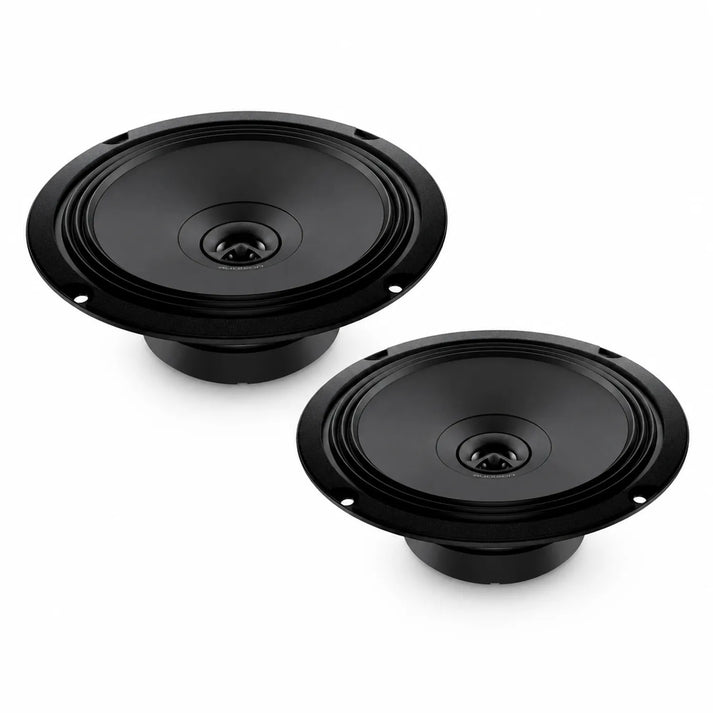

Audison APX 6.5 6.5" (16.5cm) coaxial speaker

Name: Audison APX 6.5 6.5 inch coaxial speakers | Masori
Brand: Audison
Price: 83.22 EUR
Availability: InStock
Rating: 4.89 (18 reviews)

18 Reviews

CYBER -15%

Max, Mikael and 53k+ customers already with Masori sound upgrade

Audison APX 6.5 6.5" (16.5cm) coaxial speaker

18 Reviews

Power: 70 W continuous, 210 W peak, impedance: 4 ohms.
32 mm paper cone, concentric coaxial tweeter, 165 mm woofer.
Resonance frequency: 80 Hz, frequency response: 60-23k Hz, Mms: 11.5 g.
Mehr technische Details

00

€83,22

~~€97,90~~ €83,22

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Bequem in 12 zinsfreien Raten à €6,93 mit Klarna zahlen.

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €14,99 60 Monate Plusgarantie Am beliebtesten €19,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

APX 6.5 by Audison

The APX 6.5 from Audison is a 6.5-inch coaxial speaker that creates a precise soundstage thanks to its concentric coaxial tweeter. With a sophisticated "Triple-Wave" TPU suspension, it ensures maximum linearity of excursion. The 32-mm pure copper voice coil provides high power handling and excellent control of low frequencies. The water-repellent paper cone and the compact basket with abrasion-resistant coating make the speaker robust and versatile. Developed with KLIPPEL technology, it offers optimized OEM integration and impressive acoustic performance. Thanks to the high-current quick-connect terminal, a reliable connection is ensured.

Features

Concentric coaxial tweeter: Tweeter inside the woofer, single emission point, uniform phase response, precise soundstage.
Acoustic lens: Extremely linear frequency response, even with off-center placement.
32-mm pure copper voice coil: High power handling, excellent control of low frequencies.
Optimized mounting depth: For OEM integration through a shallow basket.
Water-repellent paper cone: Developed with FEM simulation and optimized with Klippel Scan Vibrometer.
TPU suspension: "Triple-Wave" profile for maximum linearity.
Compact basket: Abrasion- and scratch-resistant coating, motor fixed with epoxy adhesive.
High-current quick-connect terminal: Double contact, temperature-resistant plastic cover, short-circuit protection.
Developed with the KLIPPEL suite: Optimization through KLIPPEL technology.

Technical Specifications

Woofer size: 165 mm
Tweeter size: 24 mm
Woofer power handling (peak): 210 W
Woofer power handling (continuous): 70 W
Woofer impedance: 4 Ohm
Woofer frequency response: 60 ÷ 23k Hz
Woofer magnet size: 85 x 40 x 15 mm
Woofer voice coil diameter: 32 mm
Tweeter voice coil diameter: 15 mm
Xmax (maximum excursion): 2 mm
Re (DC resistance): 3.1 Ohm
Fs (resonant frequency): 80 Hz
LE (inductance): 0.1 mH
Vas (equivalent air volume): 8.1 l
Mms (moving mass): 11.5 g
Cms (suspension compliance): 0.33 mm/N
Bl (force factor): 4.6 T·m
Qts (total Q factor): 0.73
Qes (electrical Q factor): 0.84
Qms (mechanical Q factor): 5.4
Tweeter sound pressure level (SPL): 94 dB

Audison APX 6.5 Datenblatt

Datenblatt öffnen

Frequent questions about APX 6.5

Welche technischen Merkmale definiert den APX 6.5 Lautsprecher?

The Audison APX 6.5 is a 6.5'' coaxial speaker with a concentric coaxial tweeter. This creates a precise soundstage with a uniform phase response through a single emission point. The 32-mm voice coil made of pure copper offers high power handling and excellent control of low frequencies. With a woofer frequency response of 60 ÷ 23k Hz and a 4 Ohm impedance, it impresses across all tones. The water-repellent paper cone, developed with KLIPPEL technology and optimized for OEM integration, ensures universal applicability, even with off-center placement. The compact basket with abrasion-resistant coating provides robustness.

Wie beeinflusst die Schwingspule des APX 6.5 die Audioleistung?

The 32-mm voice coil of the APX 6.5 is made of pure copper, which makes it particularly powerful. This design allows for high load capacity with a maximum input power of 210 watts and a continuous power of 70 watts. The excellent control of low frequencies is a direct result of this voice coil quality. In addition to the voice coil, the Bluetooth and WiFi connectivity influence the surrounding flexibility of the setup. The voice coil significantly contributes to the precision of the sound image by operating without distortion even at higher volumes, thus enabling an accurate representation of musical pieces.

Welche Technologie wurde bei der Entwicklung des APX 6.5 genutzt?

The Audison APX 6.5 was developed with KLIPPEL technology, which optimizes acoustic performance, especially in OEM integration. This technology helps to analyze and improve all critical parameters for sound reproduction. This also includes the FEM simulation of the water-repellent paper cone, which allows for precise calculation of the resonance frequency of 80 Hz. With an Xmax of 2 mm, the speaker guarantees linear displacement in both low and high frequencies. The KLIPPEL technology thus ensures outstanding sound even with complex musical pieces.

Wie unterscheiden sich Woofer und Tweeter im APX 6.5?

In the APX 6.5, the woofer with a size of 165 mm and a frequency response of 60 ÷ 23k Hz defines the low frequencies, providing precise control thanks to its stable construction and the 32 mm voice coil. The tweeter, on the other hand, is more compact at 24 mm and specifically optimized for higher frequencies, which is reflected in a tweeter SPL of 94 dB. The concentric coaxial tweeter in the woofer ensures uniform radiation from a single point, keeping the phase position stable. Both components synergize for a coherent and high-quality sound experience.

Welche Parameter verbessern die OEM-Integration des APX 6.5?

The APX 6.5 was specifically designed for optimized OEM integration. A key feature is the low profile, made possible by the flat basket with its abrasion-resistant coating. Additionally, the speaker offers a quick and reliable connection through the high-current quick-connect terminal without complicated wiring, saving time and effort during installation. The 4 Ohm woofer impedance ensures that the speaker is compatible with most factory amplifiers. The various customization options guarantee perfect acoustics, even in demanding installation situations.

Wie wird die Klangbühne des APX 6.5 optimiert?

The sound stage of the APX 6.5 is optimized by the concentric coaxial tweeter, which allows for a uniform sound emission. This design minimizes phase issues, as both the low and high frequency ranges are radiated from a single point. The acoustic lens ensures that the frequency response remains extremely linear even when positioned off-axis. These features guarantee excellent sound projection by minimizing distortion and maximizing sonic precision. The "Triple-Wave" TPU suspension contributes to ensuring stable displacement, thereby ensuring consistent sound quality.

Wie wirkt sich der wasserabweisende Papierkonus auf die Leistung aus?

The water-repellent paper cone of the APX 6.5 stands for durability and stability, even under demanding conditions. Developed through FEM simulation, it withstands moisture that often occurs in vehicles due to temperature and humidity fluctuations. This protects the internal components from corrosion and guarantees consistently high sound quality. The special treatment of the cone, combined with the 32 mm voice coil, supports precise control of the bass range. Its robust design allows for constant performance, even under higher loads and prolonged use, which is optimal for mobile applications.

Welchen Vorteil bietet die Hochstrom-Schnelleinschaltklemme?

The high-current quick-connect terminal of the APX 6.5 ensures a fast and secure installation. It reduces the risk of short circuits through the double contact surface and the temperature-resistant plastic cover. For installation, this means not only less wiring effort but also increased safety. Another advantage is the galvanic isolation, which ensures a stable power supply. This technology is particularly valuable in automotive audio installations, where vibrations and mechanical stresses occur, to ensure trouble-free performance and a long service life.

Ist der APX 6.5 mit meinem Fahrzeug kompatibel?

The APX 6.5 is suitable for a variety of vehicles due to its optimized installation depth and flexible connection options. Thanks to the flat, abrasion-resistant basket, the speaker can be used in limited space conditions. A 4 Ohm woofer impedance ensures broad compatibility with many common amplifier models. Additionally, the installation depth has been deliberately tailored to the requirements of OEM installations, achieving an optimal fit in most factory installation locations. The adaptability of the design allows for seamless integration, even in compact automotive interiors.

Welche Frequenzbereiche deckt der APX 6.5 ab?

The Audison APX 6.5 covers a frequency range of 60 Hz to 23 kHz, making it ideal for reproducing a wide sound spectrum in vehicles. The woofer is capable of producing powerful bass tones with a flexible Xmax of 2 mm, while the compact tweeter covers the clear highs. Thanks to the 32 mm voice coil and the optimized acoustic lens, the frequency response is kept linear, which is particularly advantageous in vehicles with fluctuating acoustic conditions. This wide frequency coverage allows for precise and dynamic audio reproduction.
