PNW 65
Technical Highlights
- 2.6 ohm impedance, DC resistance, for improved efficiency.
- XO frequency at 5250 Hz, tweeter 20 mm voice coil.
- Frequency response 75-20k Hz, complex motor, high efficiency.
- More technical details
Pay conveniently in 12 interest-free installments at €24,91 with Klarna .
Availability for pickups could not be loaded.
Rob
Max
Avoid a bad purchase? We check your setup!
Rob & Max check your project: So you are guaranteed to get the maximum performance for your budget.
-
Normal price €9,00Normal price€9,00Selling price €9,00DeliveryDelivered automatically as soon as available from the supplier. -
200 WattNormal price €140,40Normal price€150,00Selling price €140,40DeliveryJun 8, - Jun 12, -
Normal price From €10,00Normal price€10,00Selling price From €10,00In stockJun 5, - Jun 6,
This could also look like this for you!
A speaker is only as good as its construction. While mass-produced products often sound flat, brands like DD Audio focus on precision and Deaf Bonce on uncompromising dynamics. We have filtered out the systems that technically get more out of your budget and open up a new league in sound quality for you.
PNW 65 by Audiocontrol Description

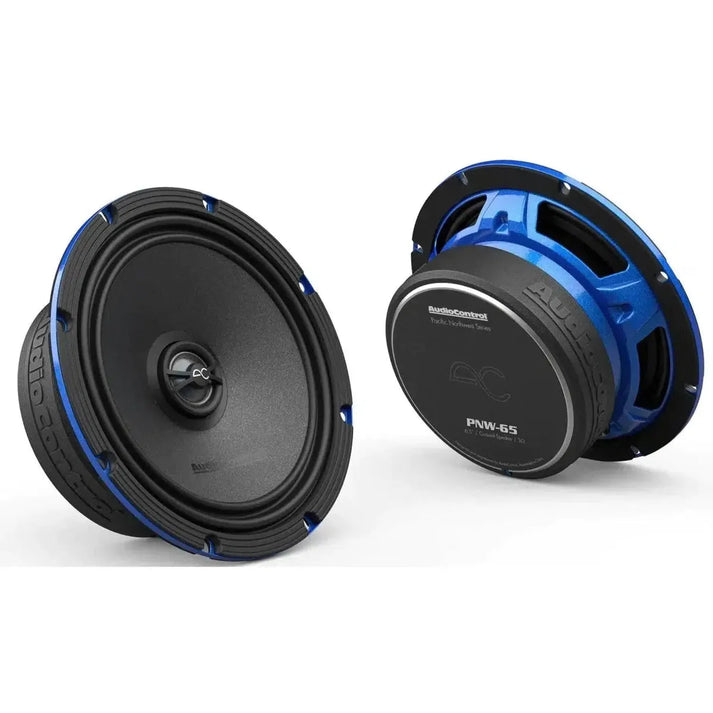

The PNW 65 is a 6.5" (16.5cm) coaxial speaker from Audiocontrol, distinguished by numerous features. Thanks to the edge-reinforced steel frame, this device guarantees extraordinary structural strength. With its black anodized voice coil carrier, excellent heat dissipation is ensured. Furthermore, the linear double-roll surround provides precise cone movement, and the stiff cone coated with polyglimmer optimizes sound reproduction. The rear-damped hybrid silk dome tweeter allows for an extended frequency response, while the concentric point source design offers a seamless transition from the midrange to the tweeter. The package is rounded off with high-quality mounting materials included.
features
- 6.5" (16.5cm) Coax
- Reinforced steel frame for additional structural strength
- Black anodized coil carrier for excellent heat dissipation
- Linear double roll groove for precise cone movement
- Complex, FEA-calculated motor with high efficiency
- Stiffer cone coated with polyglimmer for optimized sound reproduction
- Rear-damped hybrid silk dome tweeter for extended frequency response
- Concentric point sound source design for a seamless transition from midrange to tweeter
- Sound diffuser and radiation collar for better off-axis frequency response
- High-quality mounting material included in the delivery scope
Technical Data
- Butterworth crossover
- DC resistance (Re). 2.6 Ohm
- Filter Type HP
- System frequency (Fs) frequency response 75-20k Hz
- XO frequency 5250 Hz
- Slope (Octave) -6 dB
- Tweeter voice coil diameter. 20 mm
- Diameter of the midrange voice coil. 35 mm
Dimensions
- Overall diameter (without grid): 166 mm
- Cut-out diameter: 142 mm
- Installation depth: 60 mm
- Height (without grid): 5.2 mm
- Height (with grid): 22 mm
- Motor diameter (with cover): 117 mm
- Overall diameter of the grid: 179 mm
