Audio System Radion R 10 Flat G Active Evo 10" (25cm) active enclosure subwoofer

Name: Audio System Radion R 10 Flat G Active Evo 10 inch Subwoofer
Brand: Audio System
Price: 318.75 EUR
Availability: InStock

CYBER -15%

Max, Mikael and 53k+ customers already with Masori sound upgrade

Audio System Radion R 10 Flat G Active Evo 10" (25cm) active enclosure subwoofer

With 285 watts maximum power, RMS power of 240 watts, 4 ohms.
Efficient 1-channel digital amplifier, signal-to-noise ratio over 96 dB.
Variable depth between 150 mm at the top and 280 mm at the bottom, flexible installation.
Mehr technische Details

00

€318,75

~~€375,00~~ €318,75

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Bequem in 12 zinsfreien Raten à €26,56 mit Klarna zahlen.

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €34,99 60 Monate Plusgarantie Am beliebtesten €44,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

Radion R 10 Flat G Active Evo by Audio System

Discover the Radion R 10 Flat G Active Evo from Audio System, a 10-inch (25 cm) active enclosure subwoofer known for its stable bass reproduction. With a sealed 20-liter enclosure made of 18 mm thick MDF and a striking carbon-look front panel, the device delivers impressive performance at 4 Ohms impedance and a maximum of 285 watts. The integrated 1-channel digital amplifier M-350.1 D1 EVO ensures efficient performance with a signal-to-noise ratio of over 96 dB. The dimensions allow for flexible installation: 460 mm length, 340 mm height, and a variable depth from 150 mm at the top to 280 mm at the bottom. The package is completed by low-pass and subsonic filters for precise sound control.

Features

Series: RADION-SERIES
Enclosure type: 20 l sealed enclosure
Speaker: R 10 FLAT
Amplifier: M-350.1 D1 EVO
18 mm MDF with a 33 mm carbon-look front panel
High-strength design for stable bass reproduction
Impedance: 4 Ohms
285 watts (maximum power)
240 watts (RMS power)
Length (l): 460 mm
Height (h): 340 mm
Depth top (t1): 150 mm
Depth bottom (t2): 280 mm

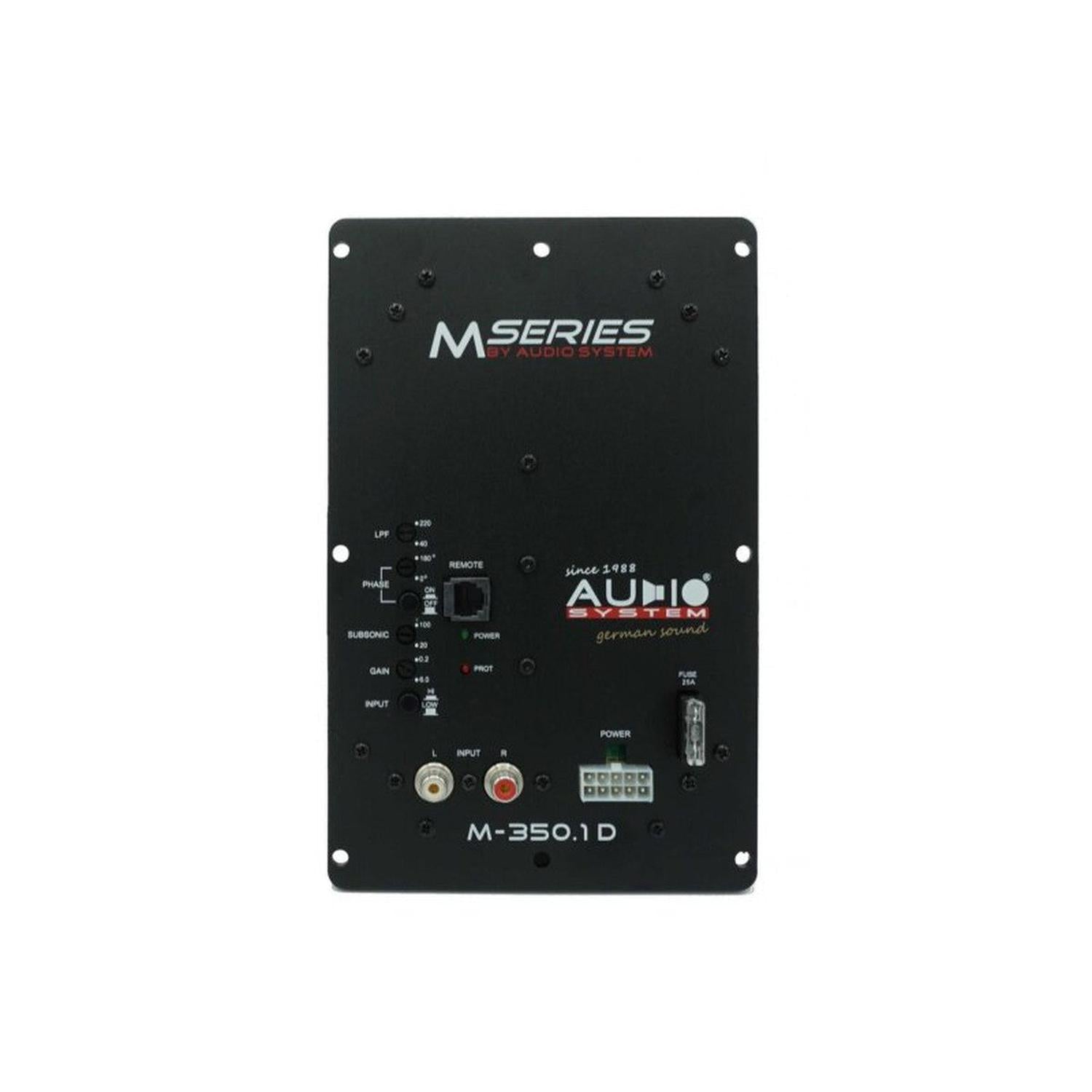

Features M-350.1 D1 EVO

Product name: Audio System M-350.1 D
Amplifier type: 1-channel digital amplifier / active module
Operating voltage: 10 - 16 V
Output power (at 14.4 V, 3% THD):
RMS power @ 4 Ohms mono: 1 x 240 W
RMS power @ 2 Ohms mono: 1 x 350 W
Technical specifications:
Signal-to-noise ratio: > 96 dB
Low-pass filter: 40 - 220 Hz
Subsonic filter: 20 - 100 Hz
Transmission frequency: 20 Hz - 220 Hz (+/- 1 dB)
Distortion factor at 4 Ohms: < 0.048 %
Fuse: 1 x 20 A
Input sensitivity: 200 mV - 6 V (+/- 5 %)
Includes RTC (level remote control)
Dimensions:
Metal cover: 210 x 135 mm
Installation size: 165 x 106 x 55 mm (depth)

Frequent questions about Radion R 10 Flat G Active Evo

Wie unterscheidet sich der Audio System Radion R 10 Flat G Active Evo von anderen Subwoofern?

The Radion R 10 Flat G Active Evo from Audio System stands out with its closed 20-liter enclosure made of 18 mm thick MDF. The front panel in carbon look not only provides an aesthetic appearance but also supports the structure to optimize bass reproduction. The integrated M-350.1 D1 EVO is a 1-channel digital amplifier that operates with a maximum power of 285 watts and 240 watts RMS power. With a signal-to-noise ratio of over 96 dB, as well as integrated low-pass and subsonic filters, this active subwoofer allows for precise sound control, making it particularly distinguished for audiophiles.

Welche technischen Daten zeichnen den Aktiv-Gehäusesubwoofer Radion R 10 Flat G Active Evo aus?

The Radion R 10 Flat G Active Evo impresses with its 10-inch (25 cm) size and a housing type of 20 liters, which is kept closed. It has an impedance of 4 ohms and offers a maximum power of 285 watts, with the RMS power at 240 watts. The housing is made of high-quality 18 mm MDF with a 33 mm front panel in carbon look. The integrated amplifier has an operating voltage of 10 to 16 V, a signal-to-noise ratio of over 96 dB, and a power of 240 watts at 4 ohms mono. These technical specifications ensure outstanding audio performance.

Welche Installationshinweise gibt es für den Radion R 10 Flat G Active Evo?

The installation of the Radion R 10 Flat G Active Evo is facilitated by its flexible dimensions. With a length of 460 mm, a height of 340 mm, and a variable depth of 150 mm at the top to 280 mm at the bottom, the subwoofer can be placed in various positions. This allows for adaptation to different vehicle interiors. The installation should be done in such a way that the front panel in carbon look can unfold its sound unhindered. A robust mounting within the vehicle is recommended to ensure lasting and stable bass performance.

Welche Leistung bietet der integrierte Verstärker des Radion R 10 Flat G Active Evo?

The integrated amplifier M-350.1 D1 EVO in the Radion R 10 Flat G Active Evo offers impressive performance data. It operates with an RMS power of 240 watts at 4 ohms mono and can reach up to 350 watts RMS power at 2 ohms mono. With a signal-to-noise ratio of over 96 dB, the amplifier ensures clear and distortion-free playback. It also features a low-pass filter from 40 to 220 Hz and a subsonic filter from 20 to 100 Hz, providing precise sound control. A low total harmonic distortion of less than 0.048% ensures the highest sound fidelity.

Wie beeinflussen die Abmessungen des Radion R 10 Flat G Active Evo die Kompatibilität mit Fahrzeugen?

The dimensions of the Radion R 10 Flat G Active Evo are designed to allow flexible installation in different vehicle types. With a length of 460 mm, a height of 340 mm, and a variable depth of 150 mm at the top to 280 mm at the bottom, the subwoofer can be accommodated in a space-saving manner without compromising bass performance. Due to its special shape, the subwoofer fits particularly well in sedans and SUVs, where space conditions often pose a challenge. The stable MDF housing supports secure installation. In smaller vehicles, optimization can be achieved through the varying depth.

Welche Vorteile bietet das geschlossene 20-Liter-Gehäuse des Radion R 10 Flat G Active Evo?

The closed 20-liter enclosure of the Radion R 10 Flat G Active Evo is designed for stable and precise bass reproduction. Closed enclosures provide controlled sound wave projection, which contributes to the precision of low frequencies. The 18 mm thick MDF provides structural strength, while the 33 mm front panel in carbon look is not only aesthetically pleasing but also supports stiffness for optimal sound reproduction. Such closed systems are ideal for genres that require precision in bass, such as jazz or classical music. The air pressure in the closed enclosure also acts as additional damping.

Wie beeinflusst der Signalrauschabstand die Audioqualität beim Radion R 10 Flat G Active Evo?

The signal-to-noise ratio of the Radion R 10 Flat G Active Evo is over 96 dB, ensuring that the audio output is exceptionally clear and free from background noise. A high signal-to-noise ratio is crucial so that quiet audio sections do not get lost in the noise. This allows even subtle sounds to be reproduced accurately, and the entire audio spectrum is presented crystal clear. Especially with complex pieces of music, where detailed reproduction is important, the high signal-to-noise ratio stands out positively. Owners of the Radion Subwoofer can therefore expect undisturbed, clean listening pleasure.

Welche Filtermöglichkeiten bietet der Radion R 10 Flat G Active Evo für die Klangoptimierung?

The Radion R 10 Flat G Active Evo is equipped with a variable low-pass filter and a subsonic filter, which are crucial for sound optimization. The low-pass filter is adjustable in the range of 40 to 220 Hz, allowing the frequency response to be tailored to the specific needs and preferences of the user. The subsonic filter, with a range of 20 to 100 Hz, protects the speaker from unwanted low frequencies that could strain the subwoofer at high volumes. These filters allow for fine-tuning of the sound, ensuring that the subwoofer can be optimally set to personal music tastes at all times.

Welche Anforderungen gibt es an die Betriebsspannung des Radion R 10 Flat G Active Evo?

The Radion R 10 Flat G Active Evo requires an operating voltage between 10 and 16 volts to achieve its optimal performance. This voltage requirement corresponds to typical values in most vehicles, allowing the subwoofer to deliver a constant and reliable audio performance. Adhering to this operating voltage is crucial for the functionality of the integrated 1-channel digital amplifier, as deviations could impair sound quality or even the device's functionality. Therefore, it is essential to ensure that the vehicle battery can provide this operating voltage stably to avoid disturbances.

Welche Funktionen bietet die RTC-Pegel-Fernbedienung beim Radion R 10 Flat G Active Evo?

The RTC level remote control of the Radion R 10 Flat G Active Evo offers the user the ability to conveniently and easily adjust the output volume of the subwoofer from a distance. This feature is particularly useful for quick adjustments while driving, without interrupting user workflows. The remote control allows for precise level adjustments to respond to different music styles or soundscapes, significantly enhancing user-friendliness. The RTC function also ensures consistently high audio quality by optimally regulating the volume level at all times.
