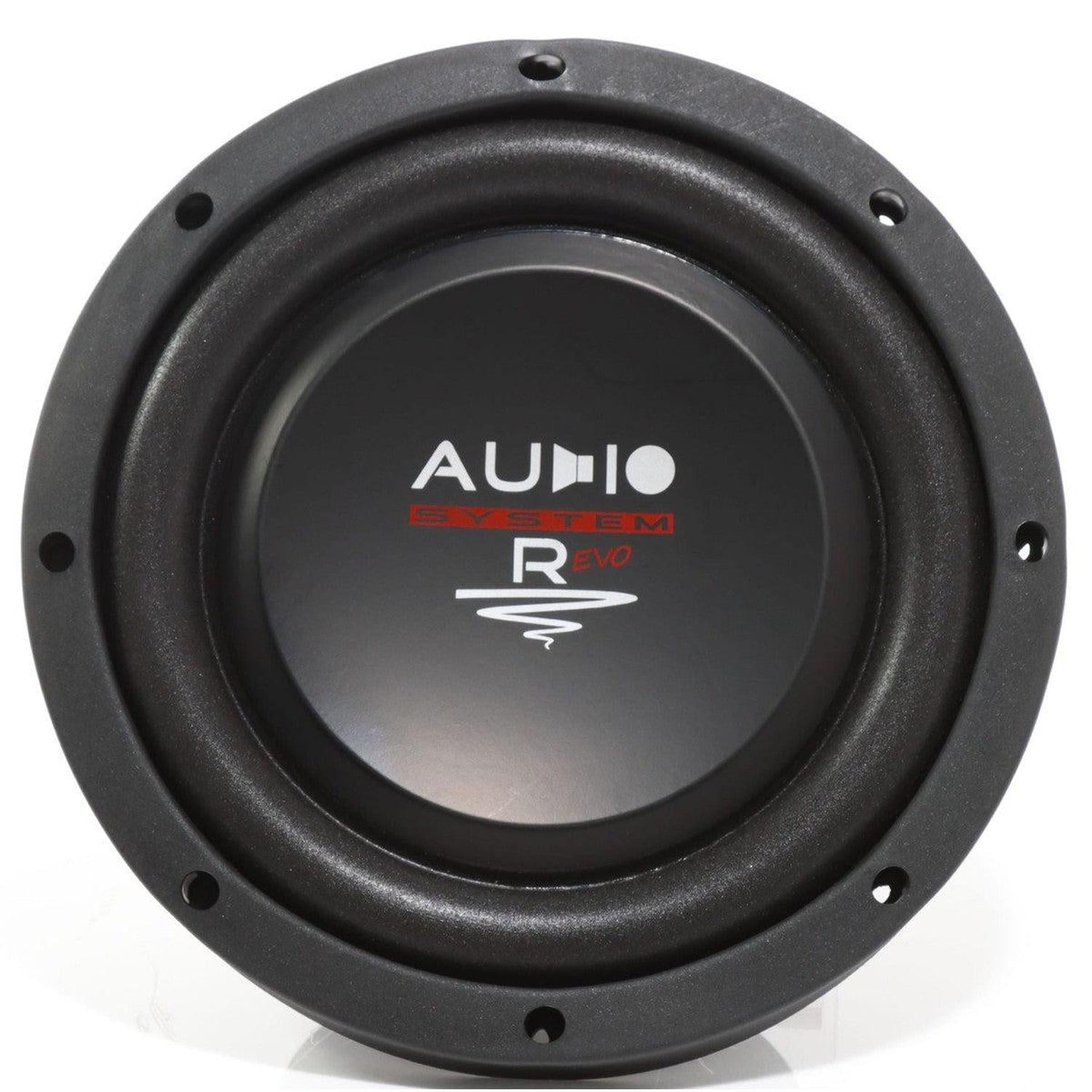

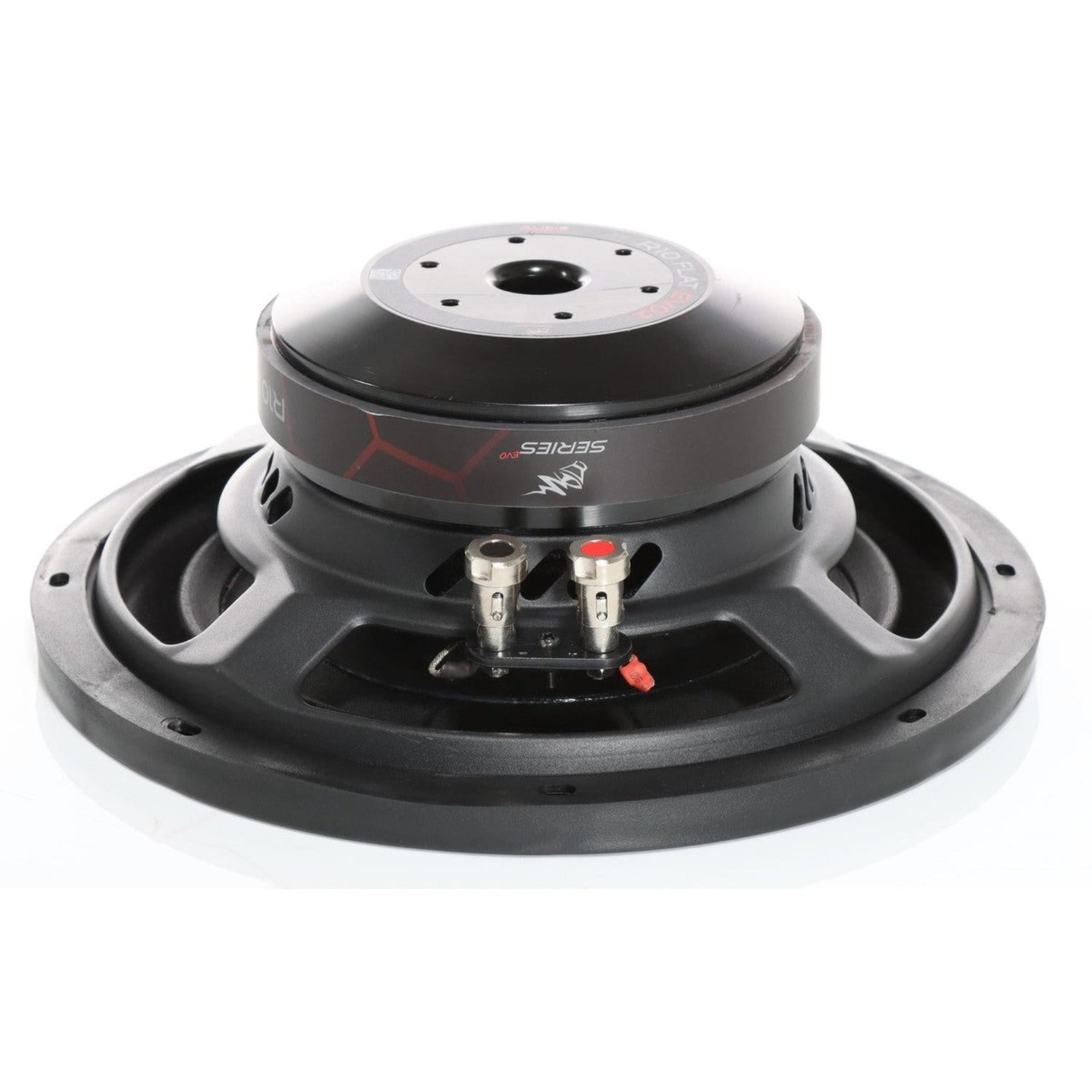

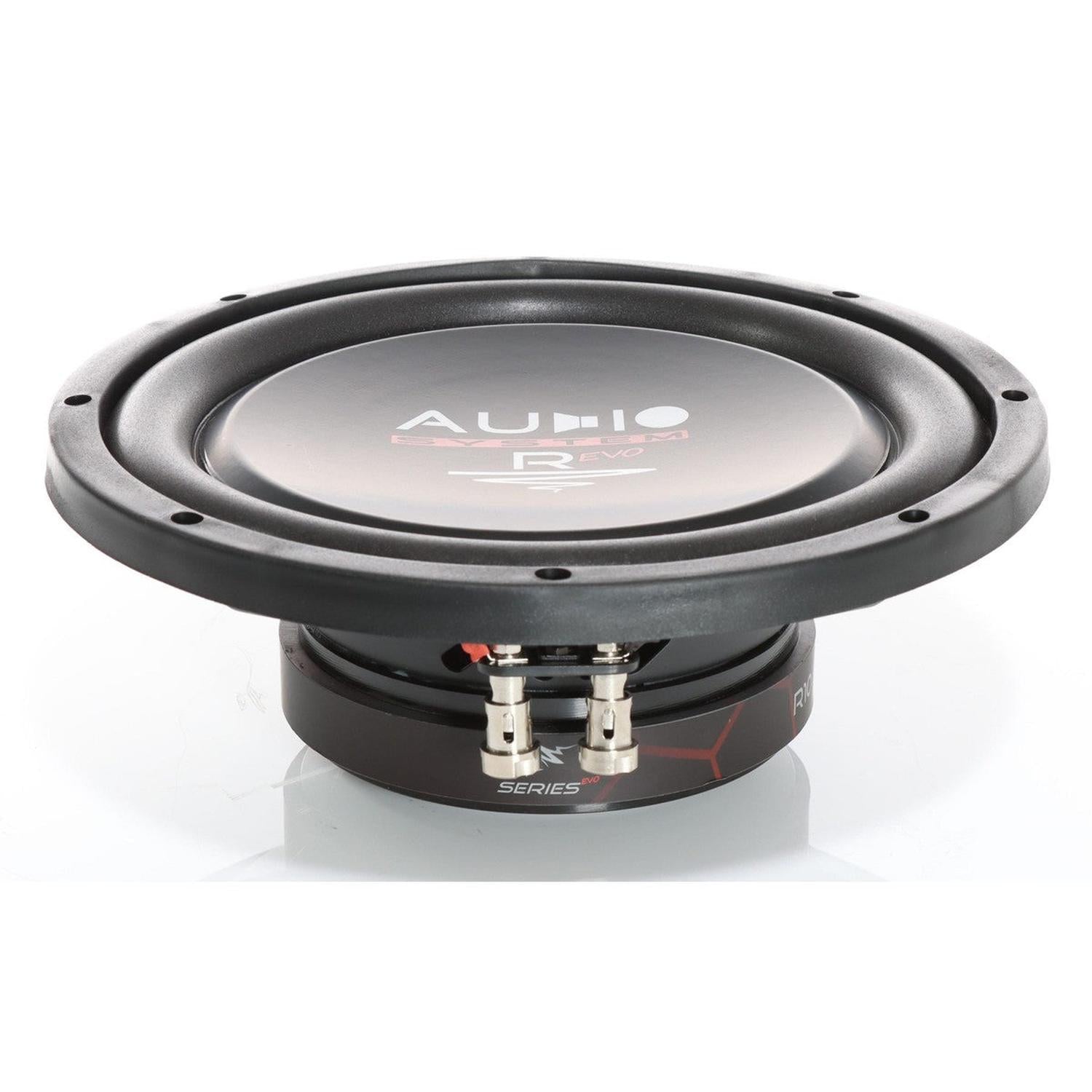

Audio System R 10 Flat Evo 2 10" (25cm) flat subwoofer

Name: Audio System R 10 Flat Evo 2 10 inch Flat Subwoofer | Masori
Brand: Audio System
Price: 106.25 EUR
Availability: InStock

CYBER -15%

Max, Mikael and 53k+ customers already with Masori sound upgrade

Audio System R 10 Flat Evo 2 10" (25cm) flat subwoofer

400/300 watts power, 4 ohm impedance, 2.0″ voice coil.
Multiple ventilation system, Connex spider, stable terminals.
LLE, installation diameter 232 mm, installation depth 80 mm.
Mehr technische Details

00

€106,25

~~€125,00~~ €106,25

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Bequem in 12 zinsfreien Raten à €8,85 mit Klarna zahlen.

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €14,99 60 Monate Plusgarantie Am beliebtesten €19,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

R 10 Flat Evo 2 by Audio System

Discover the R 10 Flat Evo 2 from Audio System, a 10 inch (25 cm) flat subwoofer. This subwoofer is part of the RADION-SERIES EVO and features a 2.0″ voice coil and sturdy terminals. A multi-ventilation system ensures optimal cooling. The Connex spider and Long Life Edge (LLE) stand for durability. The subwoofer has an impedance of 4 ohms and delivers 400/300 watts. Thanks to its compact installation depth of 80 mm and an installation diameter of 232 mm, flexible installation is possible.

Features

RADION-SERIES EVO woofer
250 mm FLAT – subwoofer
2.0″ voice coil
Sturdy terminals
Multi-ventilation system
Connex spider
LLE (Long Life Edge) and pole core vent
Impedance: 4 ohms
400/300 watts
Installation depth: 80 mm
Installation Ø: 232 mm
Outer Ø: 262 mm

Audio System R 10 Flat Evo 2 Datenblatt

Datenblatt öffnen

Frequent questions about R 10 Flat Evo 2

Welche Abmessungen hat der R 10 Flat Evo 2 von Audio System?

The R 10 Flat Evo 2 from Audio System, a subwoofer of the RADION-SERIES EVO, has specific dimensions that are crucial for its flexible installation. With a diameter of 10 inches (25 cm), it fits into various enclosure applications. Its installation depth is a compact 80 mm, making it particularly attractive for vehicles with limited installation space. The installation diameter is 232 mm, while the outer radius is 262 mm. These dimensions can be critical when it comes to installation and compatibility with existing speaker cutouts, often allowing adjustments to existing systems to be avoided.

Welche Impedanz und Leistung bietet der R 10 Flat Evo 2?

The R 10 Flat Evo 2 subwoofer from Audio System delivers outstanding performance specifications that are impressive for subwoofers of this size. The impedance of 4 ohms is standard and allows for easy integration into various audio systems. In terms of power, the subwoofer offers 400 watts of maximum power and 300 watts of RMS power. These performance parameters ensure that the subwoofer delivers powerful bass, whether at low or high volume. Such performance parameters are crucial for audio enthusiasts seeking balanced sound in their audio setup.

Welche besonderen Kühleigenschaften hat der R 10 Flat Evo 2?

The R 10 Flat Evo 2 is equipped with an advanced ventilation system that is crucial for performance and longevity. This multiple ventilation system ensures effective cooling of the components, especially the 2.0-inch voice coil. These cooling mechanisms are necessary to prevent overheating at high power and to maintain consistent performance. The pole core drilling also supports airflow, which ensures even heat distribution. As a result, the acoustic properties remain consistent over longer periods, which is of great importance to audio enthusiasts.

Was ist das Besondere an der Schwingspule des R 10 Flat Evo 2?

The 2.0 inch voice coil of the R 10 Flat Evo 2 is a central element that technically highlights the subwoofer from Audio System. This coil is designed to ensure high performance and load capacity. Thanks to its dimensions and material selection, it can withstand higher temperatures without loss of performance even under intense use. In conjunction with the stable terminals, seamless signal transmission and lasting reliability are achieved. Music listeners seeking clear and powerful bass reproduction significantly benefit from these well-thought-out technical specifications.

Wie trägt der Connex-Spider zur Langlebigkeit des R 10 Flat Evo 2 bei?

The Connex spider plays a crucial role in the R 10 Flat Evo 2, ensuring that the subwoofer offers a long lifespan. The spider, often made from a robust material, guarantees the precise movement of the diaphragm and helps eliminate unwanted resonances. This function is essential to ensure consistent sound quality over long operating periods. Together with the Long Life Edge (LLE) construction, this means that the subwoofer remains powerful even under intense use and in demanding audio environments, without showing signs of wear.

Welche Bedeutung hat die Long Life Edge beim R 10 Flat Evo 2?

The Long Life Edge (LLE), a technical detail of the R 10 Flat Evo 2, is crucial for the longevity of the subwoofer. This special edge that surrounds the diaphragm is designed to support flexibility and stability over a long period. It helps to minimize mechanical stress and ensures that the diaphragm retains its shape even after prolonged use. In practice, this means that the LLE contributes to consistent bass quality by keeping the overall resonance of the speaker in balance. These are excellent features for audiophiles who prioritize long-term quality.

Wie unterstützt das Terminaldesign die Leistung des R 10 Flat Evo 2?

The stable terminals in the R 10 Flat Evo 2 from Audio System are crucial for the high efficiency of signal transmission. These robust connections ensure a secure link and minimize signal loss, leading to excellent sound reproduction. This is particularly important under high power demands to avoid distortions or power losses. The design of these terminals also allows for easy handling during installation, which can be advantageous for experts in audio installation. Such terminals uphold the reputation of the subwoofer as a powerful and reliable audio component.

Welche Vorteile bietet der R 10 Flat Evo 2 dank seines Belüftungssystems?

The multiple ventilation system in the R 10 Flat Evo 2 ensures continuous cooling of the internal components, which pays off especially at high volumes. This technology not only provides thermal stability but also extends the lifespan of the materials used. The cooling of the voice coil is crucial here to consistently deliver powerful bass reproduction. Another advantage: The efficiently designed ventilation system reduces the possibility of power losses, even in challenging applications, which is of enormous benefit in dynamic music situations.

Wie einfach ist die Installation des R 10 Flat Evo 2 im Auto?

The installation of the R 10 Flat Evo 2 is straightforward thanks to its thoughtful dimensions and product details. With a installation depth of only 80 mm and an installation diameter of 232 mm, it can be integrated space-savingly into many vehicles. Despite its compact size, the powerful terminals are easily accessible, simplifying the wiring process. Especially in cars with limited space, where complete systems are difficult to install, the R 10 Flat Evo 2 shows its strengths. This significantly facilitates the adaptation to already existing audio systems in the vehicle.

Welche technischen Aspekte kennzeichnen den R 10 Flat Evo 2 als Teil der RADION-SERIES EVO?

The R 10 Flat Evo 2 as a subwoofer of the RADION-SERIES EVO from Audio System benefits from several technical refinements that distinguish it. It is equipped with a 2.0-inch voice coil, which, in combination with a stable terminal design, ensures consistent performance. Additionally, the Connex spider, together with the Long Life Edge construction, guarantees durability and stability. The specific impedance of 4 ohms and a combined power of 400/300 watts contribute to its dynamics. With a well-thought-out ventilation design, the subwoofer maintains thermal efficiency and quality over long periods.
