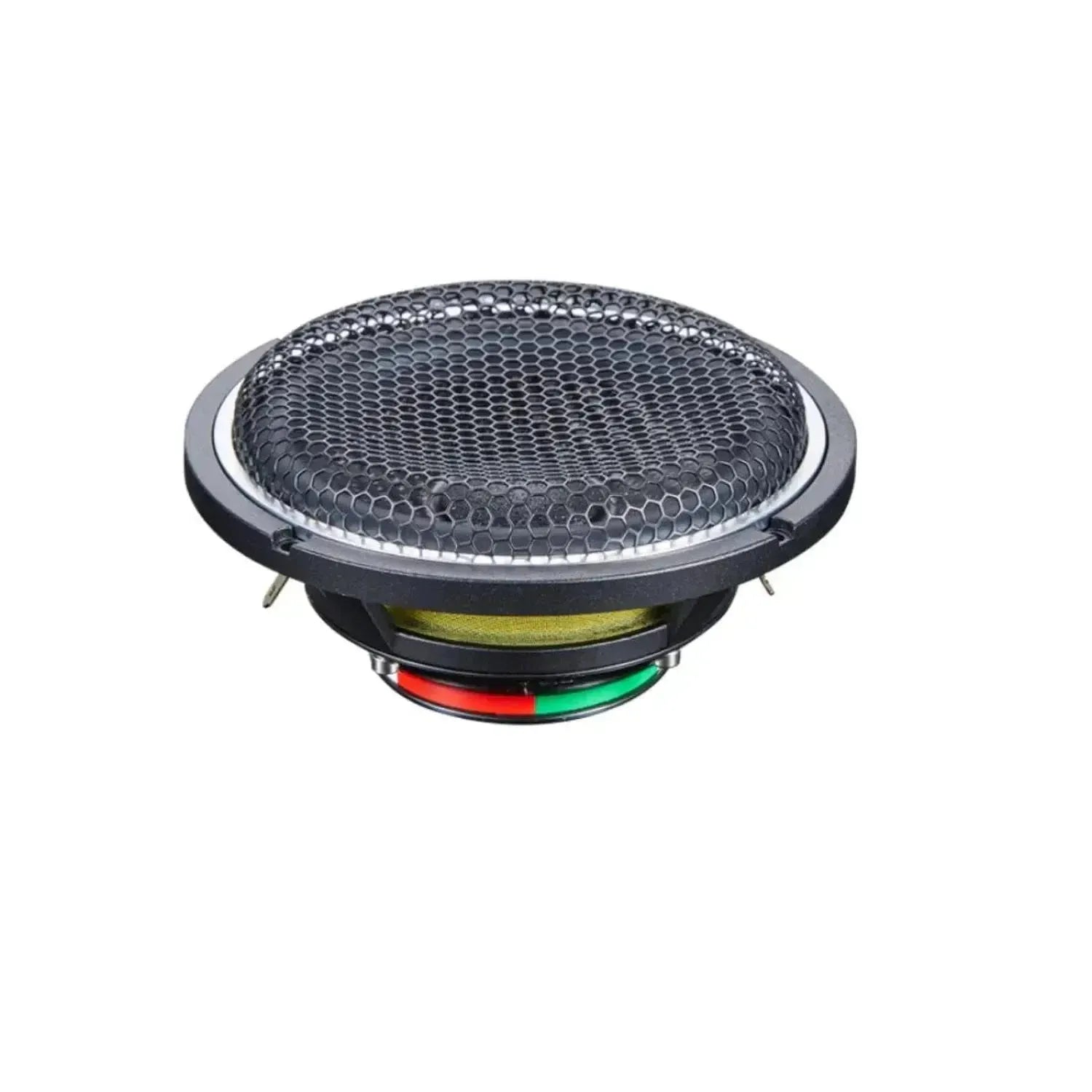

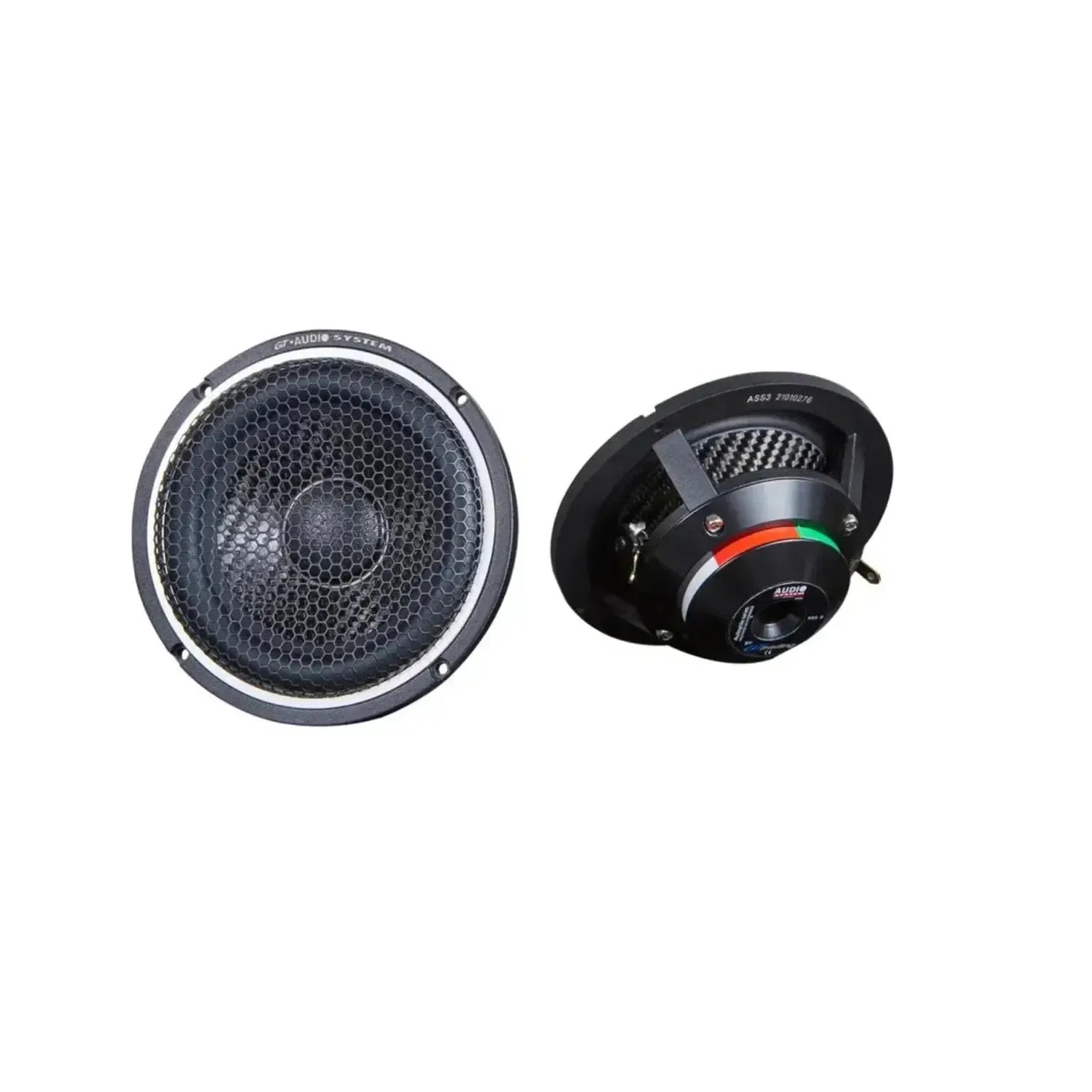

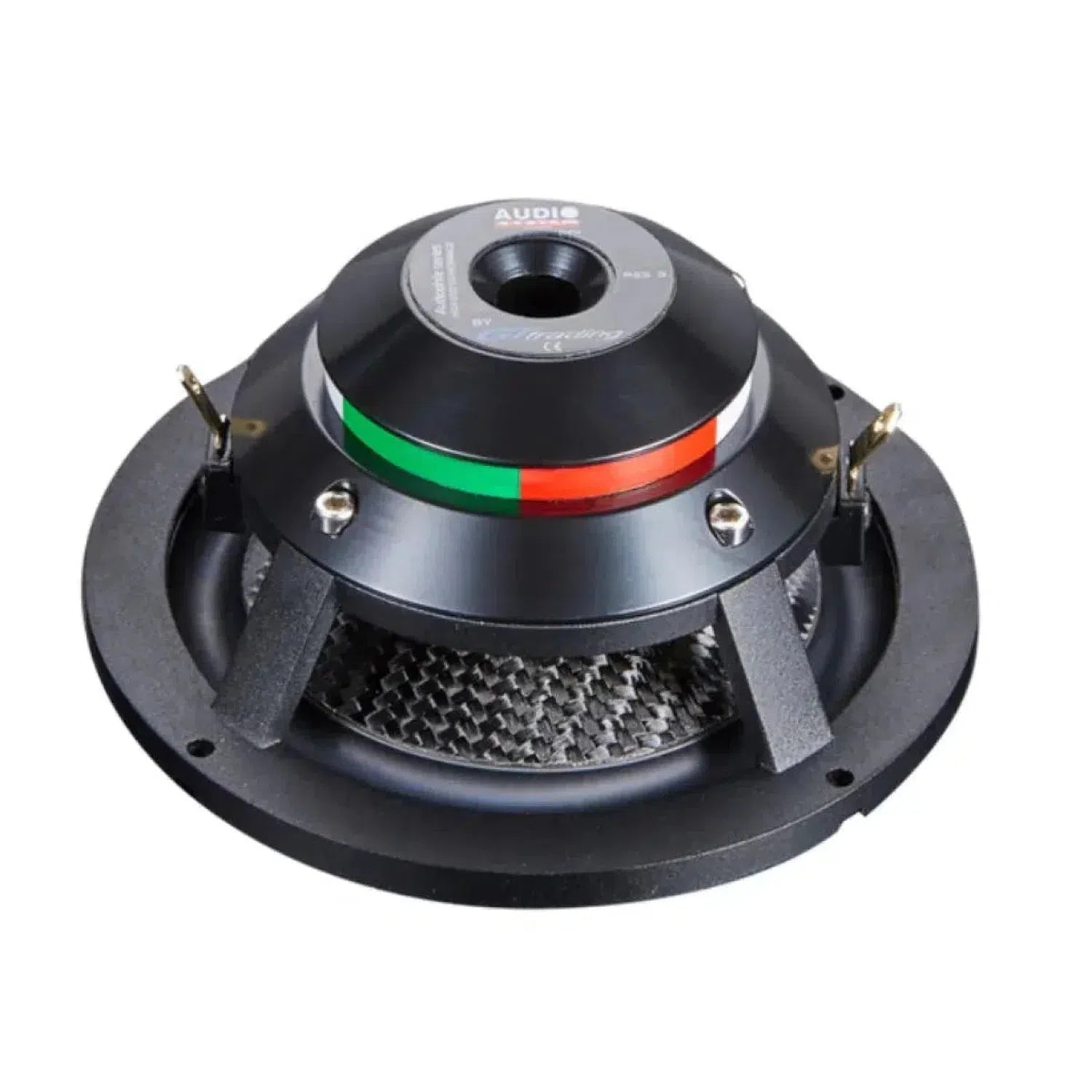

Audio System Italy ASS3 4" (10cm) midrange driver

1 Review

Audio System Italy ASS3 4" (10cm) midrange driver

1 Review

  • Impedance: 4 Ohm, Voice coil: 25.5 mm, Power: 70W RMS.
  • Frequency response: 100 Hz-12 kHz, neodymium magnet system, SPL: 86 dB.
  • DC resistance: 3.60 Ohm, resonance frequency: 97 Hz, Qms: 6.08.
  • Mehr technische Details
€419,00
€419,00 €419,00
5% Rabatt mit Vorkasse
inkl. VAT , possibly plus shipping
Klarna Bequem in 12 zinsfreien Raten à €34,91 mit Klarna zahlen.
Delivery to Home
Dec 6, - Dec 9,
x Couple
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa

Seen cheaper?

Shipping cost calculator

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

Deshalb wählen uns 100.000+ Kunden

Expert Image

Rob

Expert Image

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

ASS3 by Audio System Italy

ASS3 is the latest 4-inch midrange speaker from Audio System Italy. With technical features such as an impedance z of 4 Ohms, a DC resistance Re of 3.60, and voice coil dimensions of Ø 25.5 mm, this midrange sets new standards. It also impresses with a high-quality carbon fiber diaphragm with resin filling and an innovative neodymium magnet system. With a net weight of 0.36kg and other outstanding technical specifications, the ASS3 makes a strong impression. It offers a frequency response from 100 Hz to 12 kHz and a rated power/hi-pass of 1500 Hz. Experience midrange technology on a new level.

Technical Data ASS 3

  • Speaker size 4.3 inches
  • Impedance z 4 Ohms
  • DC resistance Re 3.60
  • Voice coil dimensions Ø 25.5 mm
  • Voice coil inductance Le 0.09 mH
  • Voice coil former/VCF Kaplan CCAW
  • Diaphragm material carbon fiber with resin filling
  • Magnet system Ms neodymium
  • Net weight 0.36kg
  • Suspension of the transducer Qms 6.08
  • Suspension of the transducer Qts 0.65
  • Motor strength BI 3.76
  • Centering device Cd Konex
  • Suspension cone Sc 50sh rubber
  • Resonance frequency Fs 97 Hz
  • Frequency response Fr 100 Hz-12 kHz
  • Sensitivity 1 W /1 m SPL 86 dB
  • Rated power/Hi-Pass 1500Hz
  • RMS 70W
  • Radiating mass load Mms 4.74g
  • Suspension compliance Cms 568 umN
  • Compressed air volume Vas 2.04 Ur
  • Cone surface Sd 50 cm2
  • Maximum linear excursion Xmax 3mm
  • Recommended frequency attenuation: High-pass up to 10kHz, low-pass from 100Hz

Audio System Italy ASS3 Datenblatt

Datenblatt öffnen

Frequent questions about ASS3

Welche technischen Besonderheiten bietet der Mitteltöner ASS3?

The ASS3 midrange driver from Audio System Italy impresses with a range of technical highlights. These include an impedance of 4 Ohms, a DC resistance of 3.60 Ohms, and a voice coil with a diameter of 25.5 mm. These features contribute to precise sound reproduction. The innovative carbon fiber membrane with resin filling also ensures high stiffness and reduced distortion. A neodymium magnet is used for the magnetic system, keeping the weight of the speaker at only 0.36 kg. The magnetic system also influences the motor strength BI, which is 3.76. Overall, the ASS3 offers high performance in compact dimensions.

Wie ist der Frequenzgang des Audio System Italy ASS3?

The midrange driver ASS3 features an impressive frequency response of 100 Hz to 12 kHz, allowing for comprehensive sound reproduction. The frequency response is complemented by the hi-pass at 1500 Hz, optimizing the speaker's efficiency in the midrange frequencies. The resonance frequency is at 97 Hz, further covering the bass range. Due to its technical characteristics such as the carbon fiber membrane with resin filling and the optimized geometry of the voice coil, the ASS3 delivers a clearly defined reproduction in its frequency range. This frequency response is ideal for precise and dynamic music playback in various settings.

Wie hoch ist die Nennleistung des Lautsprecher-Typs ASS3?

The ASS3 midrange driver from Audio System Italy has a rated power of 70 watts RMS. This power is supported by the hi-pass at 1500 Hz, which means that the speaker remains clear and defined even at higher volumes. The membrane material made of carbon fiber with resin filling ensures a precisely focused sound reproduction, while the effective radiation mass load Mms of 4.74 g increases the agility of the speaker. Despite its compact size of 4.3 inches, the ASS3 delivers impressive performance that is perfectly designed for demanding audiophiles.

Welche Komponenten beeinflussen die Klangqualität beim ASS3 Lautsprecher?

The sound quality of the ASS3 midrange driver is determined by various components: The voice coil carrier made of VCF Kaplan CCAW ensures high thermal conductivity and stability. The conical centering device Cd made of Konex and the Sc 50sh rubber suspension improve the mobility of the diaphragm. Additionally, the resonance frequency value of Fs 97 Hz optimizes the lower frequency range. The highlights are the approximately 50 cm² large cone and the magnet material neodymium. The carefully developed parameters such as efficiency SPL of 86 dB at 1 W/1 m give the speaker its brilliant sound. All details work harmoniously together for outstanding sound.

Welches Membranmaterial benutzt der Audio System Italy ASS3?

The Audio System Italy ASS3 midrange driver uses a particularly robust and lightweight diaphragm material, namely carbon fiber with resin filling. This special composition allows for high stiffness combined with low weight, which ensures minimal coloration and distortion in sound reproduction. Especially with rapidly changing audio programs, the carbon fiber diaphragm delivers precise impulse reproductions. The material properties also ensure a long durability of the diaphragm, even with intensive use. Together with the carefully tuned geometry of the baffle, this results in a stable and controlled radiation behavior of the speaker across its frequency range.

Wie sind die Abmessungen des ASS3 Mitteltöners, und wie beeinflussen sie die Installation?

The ASS3 midrange speaker has a compact size of 4.3 inches, making it ideal for integration into various vehicle models. The voice coil has a diameter of 25.5 mm, allowing the speaker to operate efficiently even in limited installation space. With a net weight of only 0.36 kg, it is suitable for versatile installation options and does not impose excessive strain on the mounting devices. The ASS3 is optimally designed for the interior of cars, where space is often a limiting factor. These dimensions allow for discreet installation while still delivering full performance in any location.

Welche Rolle spielt der Neodymmagnet im ASS3 Mitteltöner?

The neodymium magnet in the ASS3 midrange driver from Audio System Italy plays a central role in the speaker's performance. Neodymium is a particularly strong and lightweight magnetic material, which allows for the design of a compact and efficient speaker. This choice of material improves the motor strength BI to 3.76 and positively influences the efficiency of the speaker. As a result, the ASS3 can achieve high volume levels even with low energy input. The reduced mass inertia due to the use of neodymium ensures precise control of the diaphragm movement and results in clearer sound reproduction.

Wie beeinflussen Schwingspule und Schwingspulenträger den Audio System Italy ASS3?

The voice coil of the ASS3 with an inductance of 0.09 mH and the voice coil carrier made of VCF Kaplan CCAW are crucial components for sound performance. The minimalist inductance value leads to a quick response of the coil to frequency changes, ensuring clear and detailed reproduction without delays. The carrier, made from CCAW, offers excellent heat dissipation and reduces thermal distortion. Together, these components support precise and efficient energy transfer to the diaphragm, resulting in consistent and outstanding acoustic output, suitable for discerning listeners.

Welche Parameter umfasst die Aufhängung beim ASS3 Lautsprecher?

In the ASS3 midrange driver, various suspension parameters are important, including Qms of 6.08 and Qts of 0.65. These values indicate how well the mechanical damping system works to minimize unwanted resonances. The suspension cone made of Sc 50sh rubber provides flexible movements and a quick return to the original position. These characteristics ensure clean reproduction without noise interference. The coordinated parameters guarantee precise sound reproduction even at high volumes. Such a sophisticated suspension system has a crucial impact on the linearity and longevity of the speaker.

Was sind die wichtigsten Leistungsdaten des ASS3 Lautsprechers?

The main performance data of the ASS3 includes a resonance frequency of Fs 97 Hz and an efficiency, measured at 1 W/1 m, of 86 dB SPL. The maximum linear excursion, Xmax, is 3 mm, allowing the speaker to reproduce loud sounds without distortion. Its air volume Vas is 2.04 L, which influences the controlled behavior of the speaker diaphragm. The ASS3 operates within a frequency range of 100 Hz to 12 kHz and has a radiation mass load of Mms 4.74g, making the speaker ideal for demanding applications in the mid-frequency range.
