Audio System HX 165 SQ EVO 3 6.5" (16,5cm) Speaker Set
SKU:  HX165-SQ-EVO3
EAN:  4260101642561
120 Watt

HX 165 SQ EVO 3

SKU:  HX165-SQ-EVO3
EAN:  4260101642561

Technical Highlights

  • Power 140/120 Watts, Impedance 4 Ohms, 2-Way HIGH END Compo System.
  • Vented 165mm Basket, NAWI Glass Fiber Membrane, Nomex Spider.
  • 25mm Neodymium Tweeter, Ferrofluid Cooling, Fs: 960 Hz, 4 Ohm Impedance.
  • More technical details
00 d
00 h
00 m
00 s
€374,00
€375,00 €374,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €31,16 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Audio System-HX 165 SQ EVO 3-6.5" (16,5cm) Lautsprecherset-masori-kaufen
€374,00
€375,00 €374,00

HX 165 SQ EVO 3 by Audio System

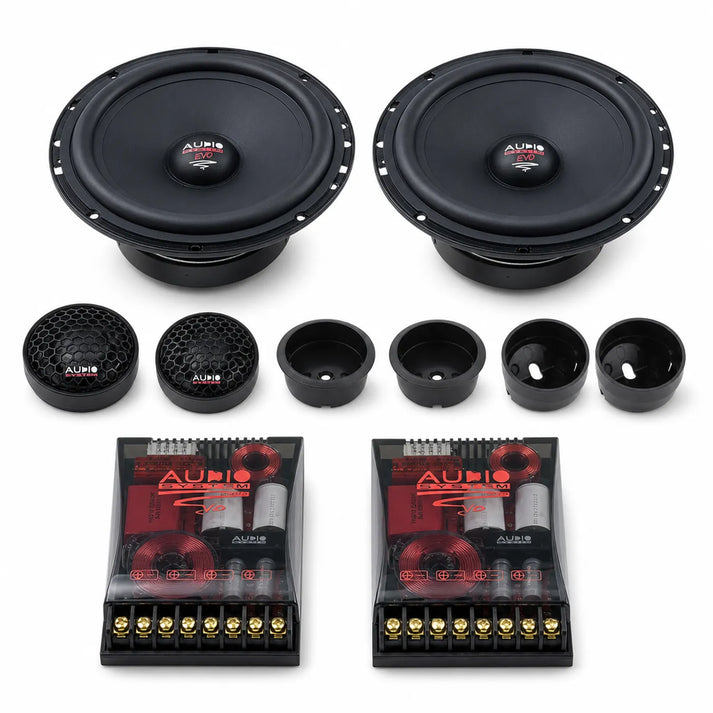

HX 165 SQ EVO 3 is a 6.5 inch (16.5 cm) Speaker Set from Audio System. The HX-SERIES SQ 2-way system includes 2x HS 25 EVO 2, 2x FWX EVO 2 Crossovers, and 2x EX 165 SQ EVO 3. The HS 25 EVO 2 are 25 mm textile neodymium tweeters with ferrofluid cooling, protective grilles, and mounting brackets. The FWX EVO 2 are 2-way crossovers with a 12 dB filter, PTC high-frequency protection circuit, impedance linearization, 3000-fold acoustic adaptation, and plug-in HIGH END gold bridges. The EX 165 SQ EVO 3 are 165 mm speakers with a ventilated basket, NAWI fiberglass membranes, and Nomex spiders. Impedance specifications: 4 Ohms for tweeter and woofer. Fs for the tweeter is 960 Hz, with diameter and installation dimensions according to the specified specifications.

Features
  • 6.5 inch (16.5 cm) Speaker Set
  • HX-SERIES SQ 2-way system
  • Included: 2x HS 25 EVO 2, 2x FWX EVO 2 Crossovers, 2x EX 165 SQ EVO 3
  • HS 25 EVO 2: 25 mm textile neodymium tweeter
  • HS 25 EVO 2: protective grille
  • HS 25 EVO 2: mounting brackets
  • HS 25 EVO 2: ferrofluid cooling
  • FWX EVO 2: 2-way crossover with 3000-fold acoustic adaptation
  • FWX EVO 2: 12 dB crossover with PTC high-frequency protection circuit
  • FWX EVO 2: impedance linearization
  • FWX EVO 2: plug-in HIGH END gold bridges
  • EX 165 SQ EVO 3: 165 mm speaker with ventilated basket
  • EX 165 SQ EVO 3: NAWI fiberglass membrane
  • EX 165 SQ EVO 3: Nomex spider
  • EX 165 SQ EVO 3: very deep sound reproduction
Technical Data
  • HS 25 EVO 2: Fs 960 Hz
  • HS 25 EVO 2: impedance 4 Ohms
  • HS 25 EVO 2: outer diameter with bracket 53.5 mm
  • HS 25 EVO 2: outer diameter without bracket 44 mm
  • HS 25 EVO 2: installation depth with bracket 16 mm
  • HS 25 EVO 2: installation depth without bracket 21 mm
  • HS 25 EVO 2: installation measurement with bracket 47.5 mm
  • HS 25 EVO 2: installation measurement without bracket 44 mm
  • HS 25 EVO 2: height of mounting housing 28 mm
  • FWX EVO 2: suitable for 2 Ohm, 4 Ohm, and 8 Ohm systems
  • FWX EVO 2: dimensions 128 x 85 x 38 mm
  • EX 165 SQ EVO 3: outer diameter 167 mm
  • EX 165 SQ EVO 3: installation depth 65 mm
  • EX 165 SQ EVO 3: installation measurement 143 mm
  • EX 165 SQ EVO 3: impedance 4 Ohms
  • EX 165 SQ EVO 3: power 140 Watts
  • EX 165 SQ EVO 3: power 120 Watts

Your benefits at Masori

Audio System HX 165 SQ EVO 3 Datasheet

Open datasheet

Frequently Asked Questions about HX 165 SQ EVO 3

What technical features does the HX 165 SQ EVO 3 from Audio System offer?

The HX 165 SQ EVO 3 from Audio System is equipped with a 2-way high-performance component system. This includes 2x 25 mm textile neodymium tweeters HS 25 EVO 2 and 2x crossovers FWX EVO 2, which deliver accurate audio quality. The speakers have a ventilated 165 mm basket and NAWI fiberglass membranes for deep sound reproduction. Other technical specifications include an impedance of 4 Ohms and a power of 140/120 Watts. The Fs frequency of the tweeter is 960 Hz, the outer diameter is 167 mm, and the installation depth is 65 mm.

Why is the NAWI fiberglass membrane in the HX 165 SQ EVO 3 remarkable?

The NAWI fiberglass membrane of the HX 165 SQ EVO 3 speaker offers high stability and lightness, contributing to excellent sound quality. This membrane allows for precise reproduction of even the lowest audio pieces with reduced distortion risk, thanks to its structural properties. In combination with the Nomex spider, which also ensures linear movements, audio playback is enhanced, resulting in precise tone control and powerful bass output.

What features does the FWX EVO 2 crossover in the HX 165 SQ EVO 3 have?

The FWX EVO 2 crossover of the HX 165 SQ EVO 3 offers precise frequency adjustment thanks to its 3000-fold acoustic adaptation. It includes a 12 dB crossover with PTC high-frequency protection circuit, which prevents high tones from overwhelming and damaging the speakers. Additionally, it is equipped with impedance linearization to ensure compatibility with 2, 4, and 8 Ohm systems. The plug-in high-end gold bridges facilitate adjustments for different system settings.

How does the HX 165 SQ EVO 3 fit into different vehicle types?

The HX 165 SQ EVO 3 from Audio System fits into many vehicle types due to its compact dimensions. The outer diameter of the speakers is 167 mm, the installation depth is 65 mm, and the installation measurement is 143 mm. These dimensions allow for installation in standard speaker openings. The tweeter, with an outer diameter of 53.5 mm including the mount, can also be easily integrated. It is advisable to check the exact dimensions of the vehicle to ensure compatibility, especially with more exotic vehicle models.

What performance does the HS 25 EVO 2 textile neodymium tweeter offer in the HX 165 SQ EVO 3?

The HS 25 EVO 2 textile neodymium tweeter delivers remarkable sound clarity and precision. With an Fs of 960 Hz and a lightweight design with an outer diameter of 53.5 mm including the mount, this tweeter is designed for a wide treble output. The ferrofluid cooling enhances performance and protects against thermal overload. This carefully designed element ensures a balanced high-frequency spectrum and impressive detail accuracy in audio playback.

What advantages do the vented baskets of the HX 165 SQ EVO 3 offer?

The vented baskets of the HX 165 SQ EVO 3 improve the efficiency of bass reproduction through increased air circulation, leading to less heat buildup. This technical feature reduces compression effects, allowing the speakers to provide consistent sound performance even at high power. This design particularly supports the rapid cooling of the diaphragm during long sessions, optimizing the speaker's performance and increasing longevity. The precise sound reproduction is maintained at all times.

How is the HX 165 SQ EVO 3 installed in the car?

The installation of the HX 165 SQ EVO 3 begins with selecting suitable locations within the vehicle for the speakers with their 165 mm baskets. Thanks to the compact dimensions, including a mounting depth of 65 mm, they fit into many factory openings. Connect the speakers and tweeters to the crossovers, which should be mounted in easily accessible locations. Make sure to leave enough space for the ventilation of the basket. The mounting brackets of the tweeter must be securely fastened.

What impedance do the speakers in the HX 165 SQ EVO 3 support?

The HX 165 SQ EVO 3 Speaker Set has an impedance of 4 Ohms, ensuring versatile compatibility for both conventional car radios and external amplifiers. This wide applicability facilitates integration into existing Audio Systems without significant modifications. The crossovers included in the set even support 2 and 8 Ohm systems through their specific adaptation, with the stepwise adjustment via gold bridges being particularly significant for Hi-Fi enthusiasts.

How does power affect the audio quality of the HX 165 SQ EVO 3?

With a power of 140/120 Watts, the HX 165 SQ EVO 3 offers impressive volume and clarity, even in large interiors. This power allows the system to remain stable and clear even at high volumes, while the specially designed components minimize distortion. Various listening styles are supported by the system's performance, whether at low listening levels or at maximum volume. The acoustic depth it delivers makes it ideal for audiophiles seeking a lifelike listening experience.

Why is ferrofluid cooling important in the HX 165 SQ EVO 3?

The ferrofluid cooling in the HS 25 EVO 2 tweeter of the HX 165 SQ EVO 3 is a crucial feature for extending the thermal stability and lifespan of the speaker. This cooling effectively reduces heat buildup in the voice coils during the reproduction of high frequencies. As a result, a consistent frequency response is ensured, and the risk of power loss due to overheating is significantly reduced. This technology ensures lossless sound transmission and protects against long-term wear.
