  3. HX 130 SQ EVO 2
Audio System HX 130 SQ EVO 2 5" (13cm) Speaker Set
SKU:  HX130-SQ-EVO2
EAN:  4260101642554
80 Watt

HX 130 SQ EVO 2

SKU:  HX130-SQ-EVO2
EAN:  4260101642554

Technical Highlights

  • 5" Speaker Set, neodymium tweeter, 3000-fold acoustic adjustment.
  • NAWI aluminum membranes, Nomex spider, deep-reaching reproduction.
  • Protective grille, adaptability, 2, 4, and 8 Ohm systems.
  • More technical details
00 d
00 h
00 m
00 s
€374,00
€375,00 €374,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €31,16 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Audio System-HX 130 SQ EVO 2-5" (13cm) Lautsprecherset-masori-kaufen
€374,00
€375,00 €374,00

HX 130 SQ EVO 2 by Audio System

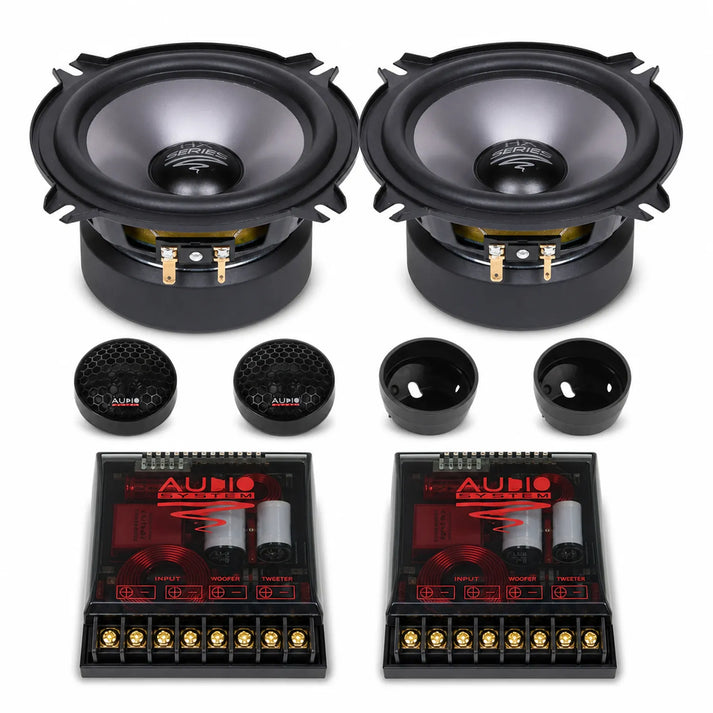

HX 130 SQ EVO 2 is a 5-inch (130 mm) Speaker Set from Audio System. The 2-way system includes two HS 25 EVO 2 neodymium tweeters, two FWX EVO 2 crossovers, and two EX 130 SQ EVO 2 mid-bass drivers. The mid-bass drivers feature an ultra-light and stable NAWI aluminum membrane as well as a Nomex spider. The tweeters are designed as 25 mm fabric neodymium tweeters and come with ferrofluid cooling, protective grilles, and mounting brackets. The crossovers offer a 3000-fold acoustic adjustment, 12 dB separation, PTC high-frequency protection, impedance linearization, and plug-in gold bridges; suitable for 2, 4, and 8 Ohm systems. The tweeter has a resonance frequency of 960 Hz and an impedance of 4 Ohm, while the mid-bass driver has an impedance of 4 Ohm.

Features
  • 5-inch (130 mm) Speaker Set
  • 2-way system
  • 2x HS 25 EVO 2 neodymium tweeters
  • 25 mm fabric tweeter
  • Ferrofluid cooling
  • Protective grille
  • Mounting brackets
  • 2x FWX EVO 2 crossovers
  • 2-way crossover with 3000-fold acoustic adjustment
  • 12 dB crossover with PTC high-frequency protection circuit
  • Impedance linearization and plug-in gold bridges
  • Suitable for 2, 4, and 8 Ohm systems
  • 2x EX 130 SQ EVO 2 mid-bass drivers
  • Ultra-light/stable NAWI aluminum membrane
  • Nomex spider
Technical Specifications
  • System size: 130 mm
  • Tweeter resonance frequency (Fs): 960 Hz
  • Tweeter outer diameter with holder: 53.5 mm
  • Tweeter outer diameter without holder: 44 mm
  • Tweeter installation depth with holder: 16 mm
  • Tweeter installation depth without holder: 21 mm
  • Tweeter installation measurement with holder: 47.5 mm
  • Tweeter installation measurement without holder: 44 mm
  • Tweeter height installation housing: 28 mm
  • Tweeter impedance: 4 Ohm
  • Crossover dimensions: 128 x 85 x 38 mm
  • Crossover separation: 12 dB
  • Mid-bass driver outer diameter: 129/150 mm
  • Mid-bass driver installation depth: 56 mm
  • Mid-bass driver installation measurement: 114 mm
  • Mid-bass driver impedance: 4 Ohm
  • Power: 120 Watts
  • Power: 80 Watts

Your benefits at Masori

Audio System HX 130 SQ EVO 2 Datasheet

Open datasheet

Frequently Asked Questions about HX 130 SQ EVO 2

How does the HX 130 SQ EVO 2 improve the sound in my vehicle?

The HX 130 SQ EVO 2 from Audio System offers excellent sound quality with its 5" (13 cm) Speaker Set. The combination of neodymium tweeters and lightweight NAWI aluminum membranes allows for detailed sound reproduction. The 3000-fold acoustic adjustment of the crossovers optimizes sound performance tailored to your listening habits, while the impedance adjustment provides flexibility for systems with 2, 4, and 8 ohms. This ensures clear and powerful music playback in the vehicle. The 2-way configuration guarantees a wide frequency coverage, accurately representing both high and low tones.

What technical details do the tweeters of the HX 130 SQ EVO 2 offer?

The tweeters of the HX 130 SQ EVO 2, specifically the Audio System HS 25 EVO 2, are equipped with 25 mm neodymium fabric domes that ensure excellent high-frequency reproduction. The outer diameter is 53.5 mm with mounting and 44 mm without mounting; the installation depth is 16 mm with mounting and 21 mm without. Thanks to their ferrofluid cooling, high power handling is ensured. The frequency at Fs is 960 Hz, which gently rounds off the acoustic spectrum at the top. Thus, the tweeters are optimally designed for detailed sound characteristics in the vehicle.

What role do the crossovers play in the HX 130 SQ EVO 2?

In the HX 130 SQ EVO 2, the crossovers of the Audio System FWX EVO 2 series are integrated, allowing for a 3000-fold acoustic adjustment. These 12 dB crossovers are equipped with a PTC high-frequency protection circuit and impedance linearization. Fitted with plug-in high-end gold bridges, they support speaker systems with 2, 4, and 8 ohms. The dimensions of the crossovers are 12.8x8.5x3.8 cm, allowing for practical installation in the vehicle. These features guarantee a clean separation of high and low tones, significantly improving the overall sound image.

How does the material of the membrane affect the sound of the HX 130 SQ EVO 2?

In the HX 130 SQ EVO 2, ultra-light NAWI aluminum is used for the woofer membranes, combining excellent stability with low weight. This allows for quick movements of the membrane for precise bass reproduction, as well as high sound quality with minimal distortion. The 130 mm woofer is also equipped with a Nomex spider, contributing to stability and performance. These material choices lead to dynamic, clear, and detailed sound reproduction, especially in the low frequency range, resulting in an overall authentic sound experience.

What are the installation options for the HX 130 SQ EVO 2 in the car?

The speaker units of the HX 130 SQ EVO 2 require specific installation dimensions: The tweeters have an outer diameter of 53.5 mm with a mount and 44 mm without a mount. The installation depth is 16 mm with a mount and 21 mm without a mount, while the installation measurement is 47.5 mm with a mount and 44 mm without a mount. The woofers require an installation depth of 56 mm and an outer diameter of 129/150 mm. Due to this compactness, they fit into many common speaker mounts, allowing for simplified installation in the car. These technical specifications significantly ease integration into the existing sound system.

What is the significance of impedance in the HX 130 SQ EVO 2?

The impedance of the HX 130 SQ EVO 2 speaker system is 4 Ohms, which is suitable for most standard car audio systems. However, the crossovers allow operation with 2, 4, and 8 Ohm systems thanks to their impedance matching, providing high compatibility with various amplifiers. This flexibility ensures that the HX 130 SQ EVO 2 can be optimally integrated into existing audio systems not only on a technical level but also on an electrical level, allowing for lossless sound transmission with maximum quality.

What power capacity does the HX 130 SQ EVO 2 speaker set offer?

The HX 130 SQ EVO 2 speaker set from Audio System is designed for a nominal power of 80 Watts RMS and a maximum load capacity of 120 Watts. These power parameters allow for intense and distortion-free music playback even at high volumes. Especially with dynamic music pieces, the speaker set can fully showcase its strengths. This power dimensioning ensures a balanced balance between efficiency and sound quality, making the speaker set ideal for discerning listeners who value consistent sound both in urban settings and on long journeys.

What protective devices are used in the HX 130 SQ EVO 2?

The Speaker Set HX 130 SQ EVO 2 includes integrated protective grills that effectively shield the chassis from mechanical damage. Additionally, the crossovers receive a PTC high-frequency protection circuit that protects the tweeters from sudden voltage spikes. These protection circuits are essential to ensure the longevity of the components and the reliability of the audio system. Especially for users who regularly expose their vehicle to high loads or extreme temperatures, these protective measures provide significant value in maintaining audio quality.

How do the protective grills contribute to the overall design of the HX 130 SQ EVO 2?

The protective grills included in the HX 130 SQ EVO 2 not only serve a protective function but also contribute to the aesthetics of the Speaker Set. They seamlessly integrate into the design and provide a discreet shield against external influences or unwanted contact with the membrane configuration. This supports not only the mechanical integrity but also the elegant overall appearance of the Speaker Set in the vehicle's interior. This combination of practicality and design awareness makes them an essential component of the speaker.

How do the neodymium tweeters affect the performance of the HX 130 SQ EVO 2?

The specially designed neodymium tweeters of the HX 130 SQ EVO 2 significantly contribute to audio quality. Neodymium allows for stronger magnetic force in a smaller area, which gives the tweeters high sensitivity while requiring little space. The 25 mm textile tweeters provide smooth yet precise high-frequency reproduction, ensuring detailed music playback. Thanks to the ferrofluid cooling system, sound quality remains stable even at higher volumes. This technical specification facilitates both installation and acoustic fine-tuning to the individual listening environment.
