  3. HX 130 SQ EM Evo 3
Audio System HX 130 SQ EM Evo 3 5" (13cm) Speaker Set
SKU:  HX-130-SQ-EM-EVO-3
EAN:  4251834507999
90 Watt

HX 130 SQ EM Evo 3

SKU:  HX-130-SQ-EM-EVO-3
EAN:  4251834507999

Technical Highlights

  • 5" speaker set, neodymium midrange, 3 ohm impedance, 120/90 watts.
  • NAWI paper cone, fiberglass, Nomex spider, deep reproduction.
  • Compact design, plug and play crossovers, easy adjustment.
  • More technical details
€325,00
€325,00 €325,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 5, - Jun 8,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €27,08 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Audio System-HX 130 SQ EM Evo 3-5" (13cm) Lautsprecherset-masori-kaufen
€325,00
€325,00 €325,00

HX 130 SQ EM Evo 3 by Audio System

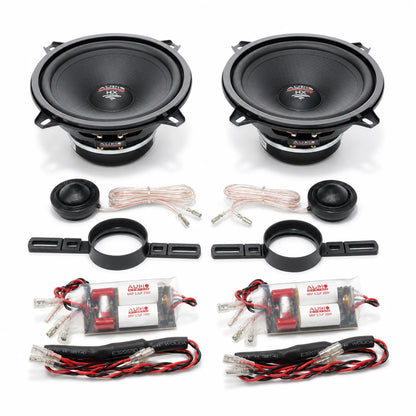

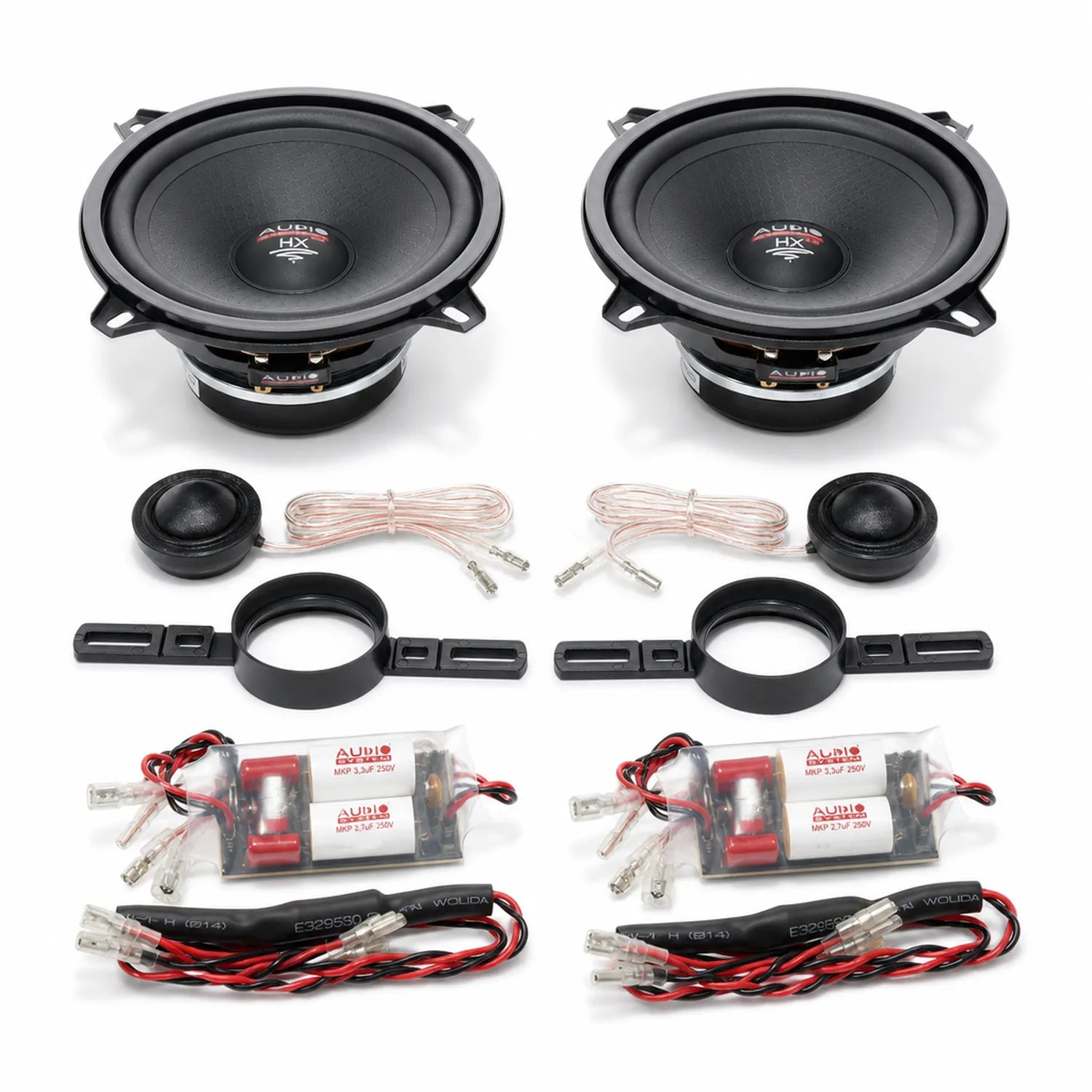

The 5-inch Speaker Set HX 130 SQ EM Evo 3 from Audio System consists of high-quality technical components for audio playback. It includes two 130 mm high-end neodymium midrange drivers with a ventilated basket and two 25 mm fabric neodymium tweeters with ferrofluid cooling. The midrange drivers feature an ultra-light and stable NAWI paper diaphragm with fiberglass as well as a Nomex spider. The system operates with an impedance of 3 ohms and a maximum power of 120 watts or 90 watts RMS. The equipment also includes plug and play crossovers for midrange and tweeters, as well as universal installation accessories. The tweeters are equipped with protective grilles and mounting brackets.

Features
  • 5-inch (13 cm) Speaker Set
  • 130 mm high-end neodymium midrange drivers
  • 25 mm fabric neodymium tweeters
  • Ultra-light paper diaphragm with fiberglass
  • Nomex spider and ventilated basket
  • Ferrofluid cooling of the tweeters
  • Plug and play crossovers
  • Power: 120 watts maximum
  • Power: 90 watts RMS
  • Impedance midrange driver: 3 ohms
  • Impedance tweeter: 4 ohms
Technical Specifications
  • Outer diameter midrange driver: 129/153 mm
  • Mounting depth midrange driver: 56 mm
  • Mounting size midrange driver: 113 mm
  • Outer diameter tweeter: 44 mm (53.5 mm with bracket)
  • Mounting depth tweeter: 21 mm (16 mm with bracket)
  • Mounting size tweeter: 44 mm (47.5 mm with bracket)
  • Resonance frequency (Fs) tweeter: 960 Hz
  • Height of mounting housing: 28 mm

Your benefits at Masori

Audio System HX 130 SQ EM Evo 3 Datasheet

Open datasheet

Frequently Asked Questions about HX 130 SQ EM Evo 3

What are the technical specifications of the HX 130 SQ EM Evo 3?

The HX 130 SQ EM Evo 3 Speaker Set from Audio System consists of a 130 mm neodymium midrange driver and a 25 mm textile neodymium tweeter. The midrange drivers feature an ultra-light paper diaphragm with fiberglass and Nomex spider. The impedance is 3 Ohms with a power rating of 120/90 Watts. The outer diameter is 129/153 mm and the installation depth is 56 mm. The tweeter has an impedance of 4 Ohms and a frequency response starting at 960 Hz. With these dimensions, the set offers high-quality sound and deep reproduction.

What size are the speakers in the HX 130 SQ EM Evo 3 set?

In the HX 130 SQ EM Evo 3 set from Audio System, the midrange driver is 130 mm in size. The tweeter has an outer diameter of 53.5 mm with a mount and 44 mm without a mount. The installation depth of the tweeter varies depending on the use of the mount, but is a maximum of 21 mm without the mount. These sizes allow for versatile installation options in the vehicle. Additionally, they are ideal for addressing acoustically demanding areas without overwhelming the installation location, which is especially advantageous in limited space.

What materials are used in the HX 130 SQ EM Evo 3 Speaker Set?

The HX 130 SQ EM Evo 3 from Audio System uses high-quality materials. The midrange driver features an ultra-light paper diaphragm with fiberglass, combined with a Nomex spider for stability and efficiency. These materials are ideal for deep sound reproduction. The tweeter is made of a 25 mm textile neodymium material. This combination of materials ensures precision and a quality sound output that impresses at both high and low frequencies, meeting the demands of discerning listeners.

What does the installation of the HX 130 SQ EM Evo 3 look like?

The installation of the HX 130 SQ EM Evo 3 Speaker Set is well thought out and user-friendly. With a mounting depth of 56 mm for the midrange drivers and variable mounting depths for the tweeters, the set is flexible to use. Thanks to the included universal installation accessories and the plug and play crossovers, the installation is straightforward. The crossovers offer triple adjustment, allowing for precise sound control. A clear advantage is the equipment with protective grilles and brackets for secure installation both in surface and flush mounting.

What power does the HX 130 SQ EM Evo 3 Speaker Set provide?

The HX 130 SQ EM Evo 3 Speaker Set from Audio System delivers an impressive power of 120 watts maximum and 90 watts RMS. These power specifications enable excellent sound reproduction and volume, ensuring clear and distortion-free playback even at high levels. The impedance remains constant at 3 ohms. Thanks to these parameters, it is ideal for users who value powerful yet precise sound quality, ensuring a top-level music experience.

What crossovers are included with the HX 130 SQ EM Evo 3?

The HX 130 SQ EM Evo 3 includes special plug and play crossovers. The FWK MW model is used for the midrange driver, allowing for precise adjustment of mid frequencies. The FWK TW EVO model is intended for the tweeter, which has triple adjustment options, thus enabling very flexible sound settings. These crossovers are designed for easy installation and ensure optimal frequency tuning of the speakers in the set to meet individual sound preferences.

Which car brands is the HX 130 SQ EM Evo 3 Set compatible with?

Since the compatibility of the HX 130 SQ EM Evo 3 Set from Audio System mainly depends on the installation dimensions, there is no specific vehicle model that can be named. The midrange drivers have an outer mounting diameter of 113 mm, while the tweeters have a variable installation option between 47.5 mm with bracket and 44 mm without bracket. These flexible installation parameters allow for installation in many common vehicle models, provided the installation locations offer sufficient space and the parameters of the respective vehicle fit.

What features does the neodymium midrange driver of the HX 130 SQ EM Evo 3 offer?

The neodymium midrange driver in the HX 130 SQ EM Evo 3 impresses with its 130 mm high-end design with a ventilated basket. This construction ensures improved ventilation and temperature regulation during playback, maximizing the overall performance and durability of the Speaker Set. Together with the ultra-light paper diaphragm combined with fiberglass and Nomex spider, this design allows for remarkable efficiency in sound reproduction that is both detailed and powerful, which is particularly beneficial for discerning music lovers.

How do the materials of the diaphragm contribute to the sound quality of the HX 130 SQ EM Evo 3?

The diaphragm of the HX 130 SQ EM Evo 3 uses a combination of ultra-light paper, fiberglass, and a Nomex spider. These materials are key components for the stability and lightness of the diaphragm. Fiberglass combined with the Nomex spider provides increased restoring force and improved resonance characteristics, making the sound more even and clearer, while the paper ensures lightness to capture fine details of the music. Despite very intensive use, the sound remains defined and consistent without losing precision.

What advantages do the protective grilles of the HX 130 SQ EM Evo 3 Set offer?

The protective grilles in the HX 130 SQ EM Evo 3 Set not only protect against physical damage to the speakers but also contribute to sound optimization. They prevent dust and other foreign objects from affecting the sensitive components. Additionally, they provide stability and minimize unwanted vibrations that could impair sound quality. Especially in cars, where vibrations are ubiquitous, such a protective grille is a real added value to ensure the longevity and consistently high sound quality of the speakers.
