Helon H-3000.1 D
Technical Highlights
- 3000 WRMS at 1 Ohm, 86% efficiency, 24dB Low Pass Filter.
- Dual MOSFET Power Supply, SMD technology, 24dB Subsonic Filter.
- Bass Boost +6 dB at 45 Hz, Phase shift 0-180°, 7500 WRMS 2 Ohm.
- More technical details
Pay conveniently in 12 interest-free installments at €83,25 with Klarna .
Availability for pickups could not be loaded.
Shipping cost calculator
Shipping cost calculator
Rob
Max
Unsure if this product fits your car?
We help you – quickly, personally, and without obligation.
Fill out the form and we'll send you a personalised offer
This product is not universally compatible. Send us your vehicle details and we will check fitment for your model free of charge.

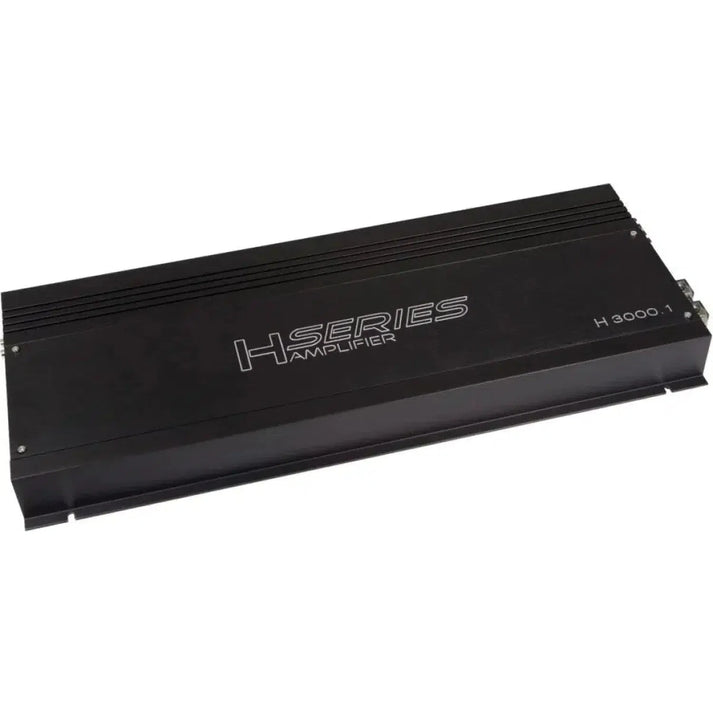

Helon H-3000.1 D by Audio System
Helon H-3000.1 D is a 1-Channel Amplifier from Audio System with digital MONO high-performance architecture. The model features Full-MOSFET and SMD technology as well as a Dual MOSFET Power Supply. On the filter side, there is a 24 dB Low Pass Filter and a 24 dB Subsonic Filter available. Additional features include a Bass Boost of +6 dB at 45 Hz and a continuously adjustable phase shift from 0–180°. The efficiency is up to 86%. An RTC is included. The housing measures 594 x 50 x 248 mm.
- 1-Channel Amplifier
- Digital MONO high-performance amplifier with SMD technology
- Full-MOSFET technology
- Dual MOSFET Power Supply
- 24 dB Low Pass Filter
- 24 dB Subsonic Filter
- Bass Boost +6 dB at 45 Hz
- Continuously adjustable 0–180° phase shift
- Up to 86% efficiency
- Includes RTC
- 1 x 750 WRMS at 4 Ohm Mono
- 1 x 1500 WRMS at 2 Ohm Mono
- 1 x 3000 WRMS at 1 Ohm Mono
- 1 x 6000 WRMS at 2 Ohm 2x amplifiers linked at 14 V
- 1 x 7500 WRMS at 2 Ohm 2x amplifiers linked at 16 V
- Dimensions 594 x 50 x 248 mm
