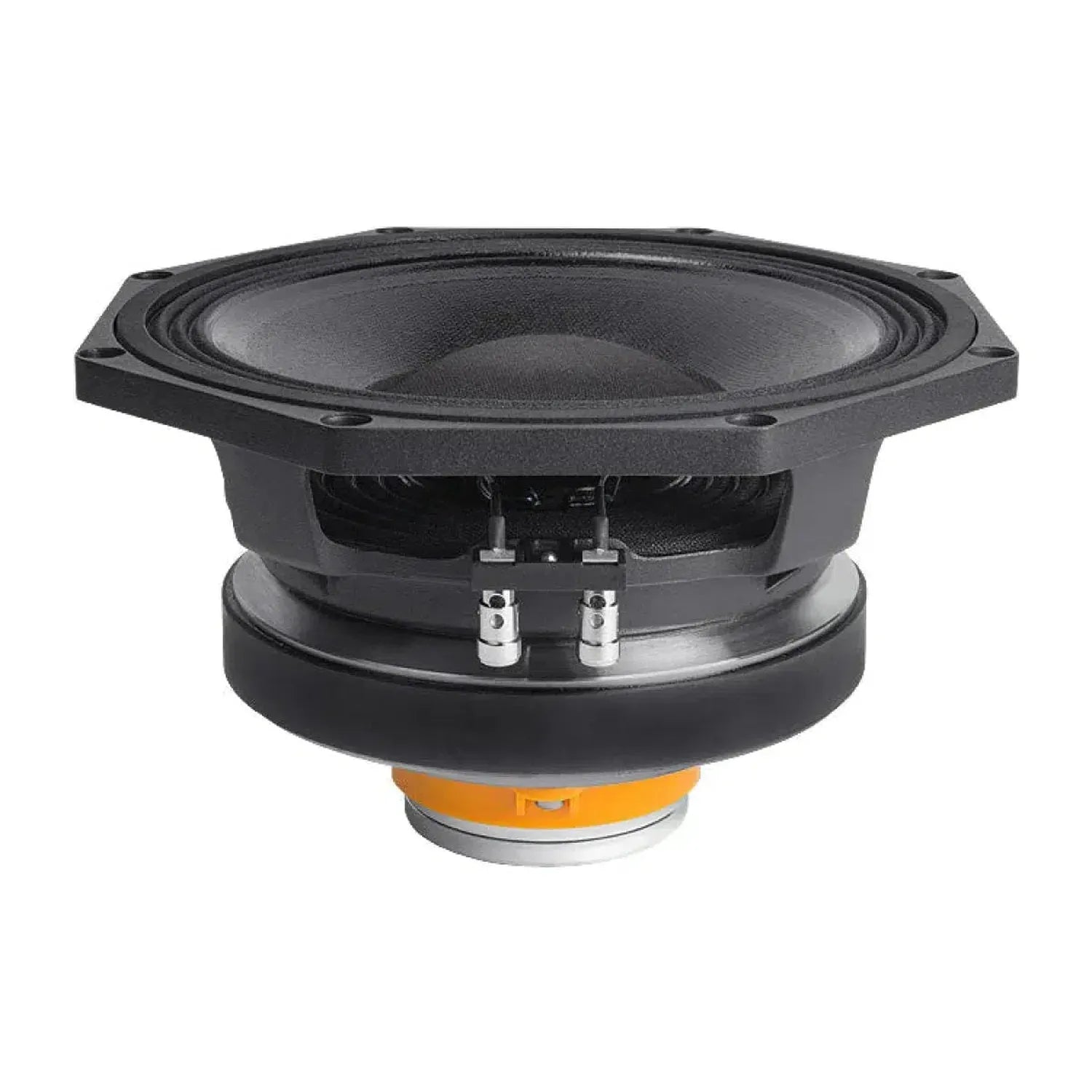

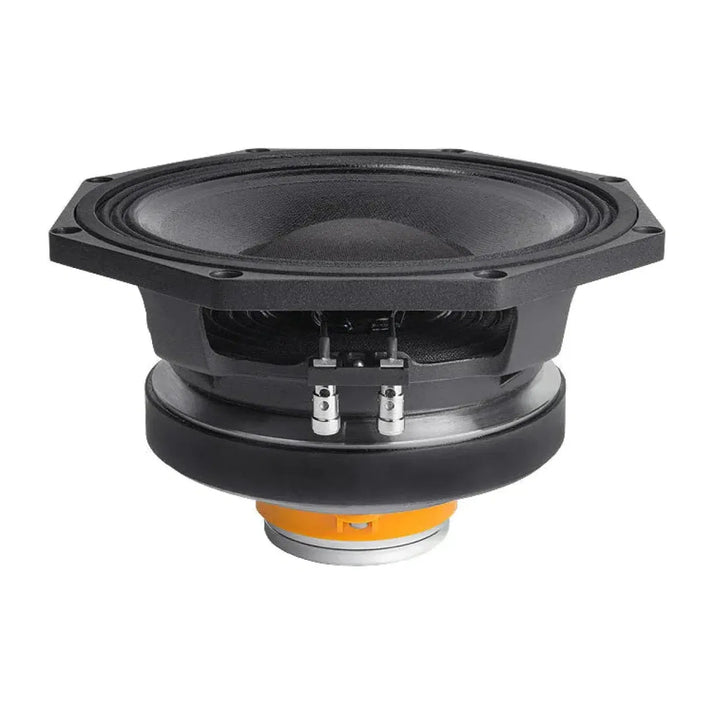

8HX230 by FaitalPro
8HX230 Koax FaitalPro is a high-quality, professional driver unit that offers the best sound quality to achieve powerful audio results in live shows and recordings. With its 8-inch diaphragm and four bridges that sharpen the sound and provide a smooth frequency response, the 8HX230 ensures a natural sound image that adds warmth to any performance.
SPECIFICATIONS
- Nominal diameter 200 mm
- Overall diameter 223.75/207.9 mm
- Hole circle diameter 210 mm
- Diameter of the sound wall cutout 183 mm
- Depth 126.5 mm
- Flange and gasket thickness 10.7 mm
- Net weight 4.7 kg
- Nominal impedance 8 Ohm 8 Ohm
- Minimal Impedance 8 Ohm 7 Ohm
- RMS load capacity 250 W 30 W
- Max. Load Capacity 500 W 60 W
- Sensitivity (1W/1m) (3) 94 dB 105 dB
- Frequency range 70-4000 Hz 1200-20000 Hz
- Winding coil diameter 65 mm 37 mm
- Wrapping material Al Al
- Former material fiberglass Kapton
- Winding depth 15 mm 2.1 mm
- Magnetic split depth 8 mm 2.6 mm
- Density 1.12 t 1.85 t
- Min. Cross. Frequency (4) - 1.7 kHz
- Emission angle - 100°
- Membrane material - Ketone polymer
- Membrane form - ring-shaped
- Magnet Ferrite Ring Neodymium Ring
- Basket material: Aluminum -
- Demodulations-Aluminum Ring -
- Cone Edge (5) Triple Roll -
- NET volume filled by speaker 1 dm^3 (0.035 ft^3) -
- Spider profile 1x shafts with variable height -
- Fs 70 Hz
- Re [LF] 6.5 Ohm
- Re [HF] 5.5 Ohm
- Qes 0.31
- Qms 6.0
- Qts 0.29
- Vessel 14.7 dm^3 (0.52 ft^3)
- Sd 223 cm² (34.57 in²)
- Xmax (6) 6.17 mm
- Xdamage (7) 15.5 mm
- Mms 24.4 g
- Bl 15 N/A
- The 0.59 mH
- Mmd 20.6 g
- Cms 0.21 mm/N
- Rms 1.8 kg/s
- Eta Zero 1.58 %
- EBP 226 Hz
