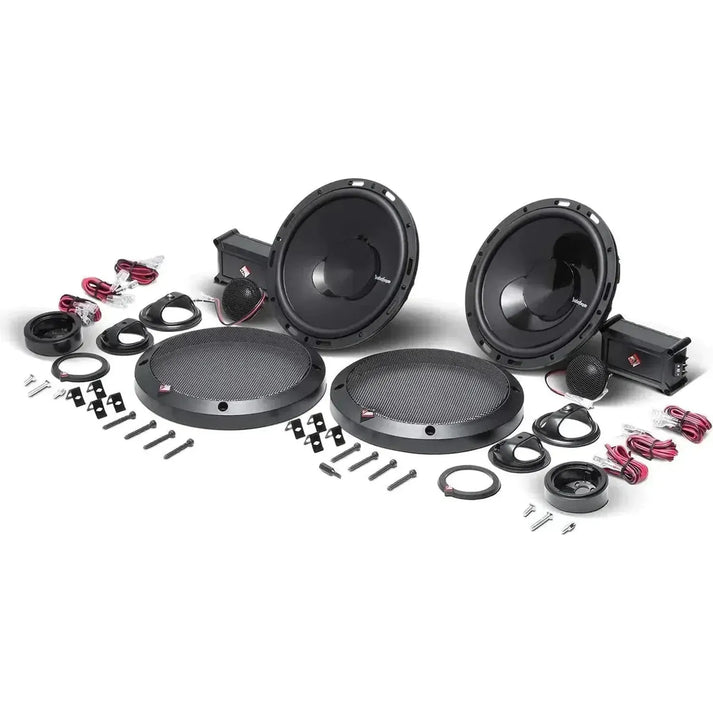

Rockford Fosgate Punch P165-SE 6.5" (16,5cm) Speaker Set
SKU:  P165-SE
EAN:  4251950322834
60 Watt

Punch P165-SE

SKU:  P165-SE
EAN:  4251950322834

Technical Highlights

  • 60 watts RMS, 4 ohm impedance, 43Hz-20kHz frequency response.
  • Flex Fit2™ basket, external crossover, PEI dome tweeter.
  • VAST technology, Santoprene rubber surround, 88 dB sensitivity.
  • More technical details
00 d
00 h
00 m
00 s
€137,81
-31% €199,00 €137,81
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 5, - Jun 8,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €11,48 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
FocalUniversal ISU165
Focal-Universal ISU165-6.5" (16,5cm) Lautsprecherset-masori-kaufen
Hifonics-Zeus ZS4.2E-4" (10cm) Lautsprecherset-masori-kaufen
HifonicsZeus ZS4.2E
Rockford Fosgate-Punch P165-SE-6.5" (16,5cm) Lautsprecherset-masori-kaufen
€137,81
€199,00 €137,81

Punch P165-SE by Rockford Fosgate

The Punch P165-SE is a 6.5 inch (16.5 cm) Speaker Set from Rockford Fosgate. The 2-way front system utilizes an injection-molded, mineral-filled polypropylene diaphragm, a Santoprene rubber surround, and a stamped aluminum frame. The VAST technology for vertical mounting of the surround and a motor design tuned for high excursion with suspension are integrated. A 25.4 mm Tweeter with treated PEI dome works with an external Crossover with 12 dB/octave and is mounted via the DDC Tweeter mounting system. The FlexFit 2 mounting makes installation easier; covers, mounting hardware, and accessories for flush and angled Tweeter installation are included. Technical specifications include 60 Watts RMS, 120 Watts Max, 4 Ohms, a frequency response of 43 Hz to 20 kHz, and 88 dB (1 W/1 m). Mounting depth: Midrange 57 mm, Tweeter 13 mm. Plug & Play in a variety of VW and Citroen models.

Features
  • 6.5 inch (16.5 cm) Speaker Set
  • 2-way front system
  • Injection-molded, mineral-filled polypropylene diaphragm
  • Santoprene rubber surround
  • VAST technology for vertical mounting of the surround
  • Motor and suspension design tuned for high excursion
  • 25.4 mm PEI dome Tweeter
  • FlexFit 2 mounting
  • External Crossover
  • DDC Tweeter mounting system
  • Stamped aluminum frame
  • Includes covers and mounting hardware
  • Includes mounting hardware for flush and angled Tweeters
  • Plug & Play in a variety of VW and Citroen models
Technical Specifications
  • RMS Power: 60 Watts
  • Maximum Power: 120 Watts
  • Impedance: 4 Ohms
  • Frequency Response: 43 Hz – 20 kHz
  • Sensitivity: 88 dB (1 W/1 m)
  • Midrange nominal diameter: 165 mm (6.5 inches)
  • Midrange mounting depth: 57 mm (2.24 inches)
  • Tweeter nominal diameter: 25.4 mm (1.0 inch)
  • Tweeter mounting depth: 13 mm (0.50 inches)
  • External high-frequency Crossover: 12 dB/octave
  • Grille/frame: included
  • Mounting hardware: included

Your benefits at Masori

Frequently Asked Questions about Punch P165-SE

What crossover does the Punch P165-SE system use?

The Punch P165-SE from Rockford Fosgate features an external crossover that ensures more precise frequency separation. This crossover operates with a slope of 12 dB/octave, which guarantees accurate separation between high and mid-range frequencies. It is an important component of the speaker system to ensure that each component receives the intended frequencies. This contributes to achieving a clear and balanced sound that enriches musicality. Especially at higher volumes and with more complex sound structures, such precise conditions are crucial for sound quality.

What power does the Rockford Fosgate Punch P165-SE have?

The Rockford Fosgate Punch P165-SE offers an RMS power handling of 60 watts, meaning it can consistently handle up to 60 watts. The peak power is 120 watts, which accommodates short-term power spikes that can occur during musical peaks. Its sensitivity is rated at 88 dB @ 1W/1M, providing good volume output with energy efficiency. The nominal impedance is 4 ohms, which fits the standard configuration in the car audio field, making it compatible with a variety of amplifiers. All these features contribute to a strong and clear sound experience.

What materials were used for the membranes in the Punch P165-SE?

The membranes of the Rockford Fosgate Punch P165-SE are made from injection-molded, mineral-filled polypropylene. This material is resistant to moisture and temperature fluctuations, making it ideal for use in vehicles. The polypropylene membrane is designed to remain durable and shape-stable over time, leading to consistently high sound reproduction. Choosing such a material helps to reproduce sound clearly and precisely by minimizing distortion, a feature that is particularly beneficial when reproducing complex musical structures.

What is the significance of the VAST technology in the Punch P165-SE?

The VAST technology (Vertical Drive Shore Surround) in the Punch P165-SE increases the effective radiating area of the diaphragm by up to 25%. By expanding the area of the speaker, more air can be moved, resulting in improved bass reproduction without increasing diaphragm diameter. This technology maximizes the acoustic efficiency of the speaker, especially in tight installation situations, which are often encountered in car audio. This leads to a full, dynamic sound with strong bass, even in confined spaces.

What is the compatibility of the Punch P165-SE with VW and Citroen?

The Punch P165-SE is Plug&Play compatible with several models of VW and Citroen. Thanks to the Flex Fit2™ basket, a hassle-free installation in these vehicle brands is made possible. The mounting depth of the midrange driver is 2.24 inches (57 mm), and that of the tweeter is 13 mm (0.50 inches), which aids in direct installation. The set also includes the DDC tweeter mounting system and all necessary materials for a flush or angled installation. These features provide a straightforward and precise installation, making sound improvements easy to achieve.

What are the dimensions of the speaker components in the Punch P165-SE?

The speaker units of the Punch P165-SE consist of midrange drivers with a nominal diameter of 6.5 inches and tweeters with a diameter of 1.0 inches (25.4 mm). The mounting depth of the midrange driver is 2.24 inches (57 mm), which can be an important parameter for placement in the vehicle. The tweeter requires a mounting depth of only 13 mm (0.50 inches), allowing it to be easily mounted in various interior positions. These specific dimensions are essential to ensure a smooth installation and optimal sound flow inside the vehicle.

How does the Santoprene rubber surround affect the performance of the Punch P165-SE?

The Santoprene rubber surround of the Punch P165-SE plays a crucial role in controlling the diaphragm movement and the longevity of the speaker. It provides flexible yet stable guidance at high speaker excursions, which is necessary for reproducing clear bass and a wide dynamic range. This rubber surround is highly resistant to temperature and humidity influences, characteristics that are significant in a constantly changing vehicle environment. It thus contributes to consistently high sound quality and a long product life, even under intense use.

What mounting materials are included with the Punch P165-SE?

The Rockford Fosgate Punch P165-SE component system comes with a range of mounting materials to allow for flexible installation. This includes specially designed covers for the protection and aesthetics of the units, mounting hardware for flush and angled installation options of the tweeters, and the discreet DDC mounting system that ensures stable and unobtrusive tweeter integration. This extensive selection of mounting materials assists the user in optimal speaker placement in the vehicle, thereby enhancing the acoustic performance and visual aesthetics of the system.

How is the sensitivity of the Punch P165-SE described?

The sensitivity of the Punch P165-SE is 88 dB @ 1W/1M, which allows for significant sound volume at relatively low input voltage. A higher sensitivity rating, particularly in dB, means that the speaker can play louder at the same power input than a unit with lower sensitivity. Right alignment complemented by assumed compatibility with a variety of car amplifiers delivers strong sound volume with efficient energy consumption. Such features are especially important when achieving room-filling sound in tight installation spaces.

What is the tweeter dome of the Punch P165-SE made of?

The tweeter dome of the Punch P165-SE is made from treated PEI (Polyetherimide). This gives the driver a stable structure with high resistance to temperature changes while providing excellent high-frequency reproduction without sound distortion. Such a design allows for clear performance at high frequencies and contributes to comprehensive acoustics, ideal for reproducing complex musical passages. The material used offers consistent tonal quality and durability, which is beneficial for all conditions within the vehicle interior.
