Rockford Fosgate Punch P152-S 5" (13cm) Speaker Set
SKU:  P152-S
EAN:  4251950322803
50 Watt

Punch P152-S

SKU:  P152-S
EAN:  4251950322803

Technical Highlights

  • 50 W RMS, 100 W Max, 4 Ohm impedance, 87 dB sensitivity.
  • 5" speaker set, Flex Fit™ basket, ICC crossover.
  • PEI dome tweeter, polypropylene cone, OEM adapter plate.
  • More technical details
00 d
00 h
00 m
00 s
€129,11
-24% €169,00 €129,11
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 5, - Jun 8,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €10,75 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
HertzCento CK 130
Hertz-Cento CK 130-5" (13cm) Lautsprecherset-masori-kaufen
A set of black Rockford Fosgate Power T152-S car audio speakers, including a 5 Zoll Lautsprecher, subwoofer, and amplifier on a white background.
Rockford FosgatePower T152-S

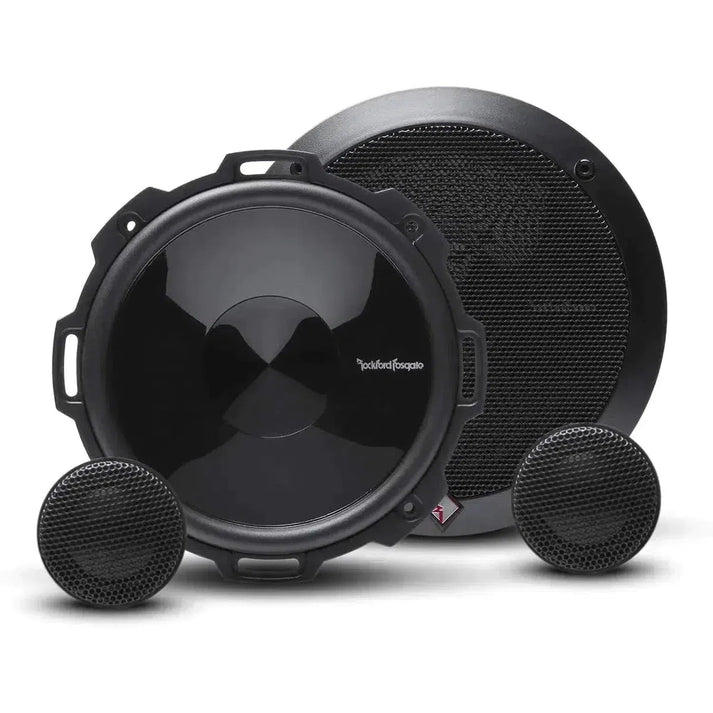

Two large and two small round black speakers from the Rockford Fosgate Punch P152-S set are displayed on a white background.
€129,11
€169,00 €129,11

Punch P152-S by Rockford Fosgate

Punch P152-S is a 5-inch Speaker Set from Rockford Fosgate with FlexFit basket design and ICC Crossover. The 2-way Speaker Set features a PEI dome Tweeter and a butyl Midrange driver with a rubber surround, as well as a injection-molded, mineral-filled polypropylene diaphragm. The power handling is 50 Watts RMS, with a maximum power of 100 Watts. The frequency response ranges from 70 Hz to 22 kHz, sensitivity is 87 dB, and nominal impedance is 4 Ohms. The Crossover includes a high-pass at 3.5 kHz with 12 dB/octave according to Butterworth, as well as a midrange area with natural acoustic 12 dB/octave roll-off. Included are an OEM adapter plate, grille/ring, and mounting hardware. The mounting depth is 13 mm for the Tweeter and 47 mm for the Midrange driver. The nominal diameter of the Midrange driver is 133.35 mm.

Features
  • 5-inch Speaker Set
  • 2-way Speaker Set
  • FlexFit basket design
  • ICC Crossover (Integrated Concealed Crossover)
  • PEI dome Tweeter
  • Butyl Midrange driver with rubber surround
  • Injection-molded, mineral-filled polypropylene diaphragm
  • Includes OEM adapter plate
  • Grille/ring included
  • Mounting hardware included
Technical Specifications
  • RMS Power: 50 Watts
  • Maximum Power: 100 Watts
  • Frequency Response: 70 Hz – 22 kHz
  • Sensitivity: 87 dB (1 W/1 m)
  • Nominal Impedance: 4 Ohms
  • Midrange driver nominal diameter: 133.35 mm
  • Mounting depth Tweeter: 13 mm
  • Mounting depth Midrange driver: 47 mm
  • Crossover Tweeter: High-pass 3.5 kHz at 12 dB/octave (Butterworth)
  • Midrange area: natural acoustic roll-off 12 dB/octave
  • Shipping weight: 2.49 kg

Your benefits at Masori

Frequently Asked Questions about Punch P152-S

How can the Rockford Fosgate Punch P152-S speaker be installed in a car?

The installation of the Rockford Fosgate Punch P152-S speaker set is simplified by the FlexFit™ basket design, which allows for flexible adjustment to uneven mounting points. With a mounting depth of 47 mm for the midrange and 13 mm for the Tweeter, the speaker easily fits into various vehicle types. Thanks to the integrated OEM adapter plate, you can seamlessly mount the speaker into existing openings without requiring major modifications. The butyl rubber surround of the midrange additionally provides stability, while the included grille rings and mounting materials ensure a secure and aesthetic installation.

What power does the Punch P152-S from Rockford Fosgate offer?

The Rockford Fosgate Punch P152-S is designed to handle 50 watts RMS continuously and up to 100 watts maximum. The power handling values ensure that the speaker remains stable even at high volumes. Especially at frequencies between 70Hz and 22kHz, this 2-way system shows its strength, as it provides optimally tuned frequency separation through the integrated ICC crossover. The mounting depths are 1.87 inches for the midrange and 0.50 inches for the Tweeter, ensuring compact integration into various living spaces. The bass range extends from 70Hz to 550Hz. In the high-frequency range, the good deep bass representation dominates for 22kHz. While music lovers immerse the technically discerning in a whisper-quiet sound layer, the butyl membrane cushioning ensures a homogeneous sound image.

What material is used for the membrane of the Rockford Fosgate Punch P152-S?

The Rockford Fosgate Punch P152-S features a injection-molded, mineral-filled polypropylene membrane. This material choice offers an excellent balance between stiffness and damping, leading to optimized sound reproduction. Polypropylene is known for its resistance to moisture and environmental influences, making this speaker ideal for use in vehicles. The mineral filling increases the density of the membrane, contributing to controlled bass and precise reproduction of high frequencies. The result is a balanced sound with strong presence across the entire frequency range of 70Hz to 22kHz.

What role does the ICC crossover play in the Punch P152-S speaker?

The Integrated Concealed Crossover (ICC) of the Rockford Fosgate Punch P152-S eliminates the need for external crossovers. By integrating it into the speaker design, spatial arrangement is optimized and installation is simplified, as no additional components need to be wired. The ICC handles frequency separation by connecting the tweeter at 3.5kHz with a 12dB/octave Butterworth high-pass filter, ensuring clear and accurate reproduction of mid and high frequencies. The concealed design also allows for an uncomplicated and visually unobtrusive installation that leaves the interior of the car untouched.

What are the dimensions of the midrange and tweeter in the Rockford Fosgate P152-S?

The dimensions of the Rockford Fosgate Punch P152-S speaker are specifically designed for optimal sound reproduction. The midrange has a nominal diameter of 5.25 inches, which is typical for this class of speakers and allows for excellent sound dispersion. The mounting depth is 1.87 inches, making installation in various vehicles easier. The tweeter, on the other hand, has a compact design with a nominal diameter of 1 inch and a mounting depth of only 0.50 inches. This shallow depth is particularly advantageous for vehicles with limited space in the dashboard area.

How does the butyl midrange surround affect the sound quality of the Punch P152-S?

The butyl midrange surround of the Rockford Fosgate Punch P152-S significantly contributes to the sound integration and durability of the speaker. Butyl is a robust material known for its high elasticity and resistance to temperature fluctuations. These properties allow the midrange to remain controlled and stable even at high volumes and long playtimes. The rubber surround supports natural diaphragm movement, minimizing distortion and producing a deep, resonance-free sound. This particularly ensures that the low and mid-frequency range from 70Hz to 3.5kHz is represented clearly and precisely.

What is the impedance of the Rockford Fosgate P152-S speaker?

The Rockford Fosgate Punch P152-S is equipped with a nominal impedance of 4 ohms. This impedance is specifically optimized for most common car audio systems and allows for efficient power transfer from the amplifier to the speaker. A 4-ohm impedance is considered standard for many vehicle speaker systems and ensures sufficient output power without overloading the signals. The adjustment of the distribution level setting provides consistency and balance in playback and contributes to a clear sound characteristic across the entire frequency range from 70Hz to 22kHz.

How is the crossover managed in the Rockford Fosgate Punch P152-S?

The Rockford Fosgate Punch P152-S uses a specialized crossover to ensure clear and precise frequency separation. A high-pass filter is applied to the tweeter at 3.5kHz with a 12dB/octave Butterworth characteristic. This ensures that high frequencies are directed precisely to the tweeter without unnecessary strain on the midrange driver. The midrange driver takes over the frequency range at a certain frequency level, leading to a natural acoustic separation. This integration significantly enhances the sound image and ensures a consistent, clear audio performance from 70Hz to 22kHz.

What is the sensitivity of the Rockford Fosgate Punch P152-S?

The Rockford Fosgate Punch P152-S has a sensitivity of 87dB at 1W/1M. This sensitivity indicates how efficiently the speaker can produce sound relative to the power supplied. A value of 87dB is typical for car speakers and ensures that the speaker achieves sufficient volume even at moderate amplifier power levels. This guarantees that sound quality remains consistent across the entire frequency range, from 70Hz to 22kHz, even when the audio signal is not operating at maximum power. This specification particularly supports the reproduction of fine details in music.

What technologies are integrated into the Rockford Fosgate Punch P152-S?

The Rockford Fosgate Punch P152-S incorporates several advanced technologies that make the speaker unique. The FlexFit™ basket design allows for flexible mounting and adaptability to various vehicle architectures. The Integrated Concealed Crossover (ICC) integrates the crossover within the speaker, minimizing installation effort. The PEI dome tweeter and the injection-molded, mineral-filled polypropylene diaphragm are known for their detailed sound reproduction. The speaker's ability to deliver satisfactory performance across a wide frequency range of 70Hz to 22kHz is made possible by these technical features. This combination allows the P152-S to achieve excellent value for money.
