ETON POW 16+ 6.5" (16,5cm) Speaker Set
SKU:  ET-POW16P
EAN:  4039449004856

9 Reviews

70 Watt

POW 16+

SKU:  ET-POW16P
EAN:  4039449004856

9 Reviews

Technical Highlights

  • Rated power 70 W RMS, music power 100 W, impedance 4 Ohm.
  • Effective cone area 137 cm², resonant frequency 69 Hz.
  • Efficiency 94.3 dB at 2.83 V, voice coil diameter 25 mm.
  • More technical details
00 d
00 h
00 m
00 s
€232,00
-22% €299,00 €232,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 5, - Jun 8,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €19,33 with Klarna .
Expert Image

Rob

Expert Image

Max

Avoid a bad purchase? We check your setup!

Rob & Max check your project: So you are guaranteed to get the maximum performance for your budget.

Response on weekdays within 24 hours

Your benefits at Masori

AudisonPrima APK 130
Audison-Prima APK 130-5" (13cm) Lautsprecherset-masori-kaufen
Hertz-Uno K 165-6.5" (16,5cm) Lautsprecherset-masori-kaufen
HertzUno K 165
ETON-POW 16+-6.5" (16,5cm) Lautsprecherset-masori-kaufen
€232,00
€299,00 €232,00

More power than POW 16+ here!

Show all
  • A round black honeycomb mesh grille for the Deaf Bonce GDB-65 features faint EDB letters across its center.

    GDB-65

    €9,00
    €9,00 €9,00
    Delivery
    Delivered automatically as soon as available from the supplier.
  • Deaf Bonce-Apocalypse AP-X69A-6"x9" Koaxial-Lautsprecher-masori-kaufen
    200 Watt

    Apocalypse AP-X69A

    €140,40
    €150,00 €140,40
    Delivery
    Jun 8, - Jun 12,
  • Ai-Sonic-S2-C6.2-6.5" (16,5cm) Lautsprecherset-masori-kaufen
    90 Watt

    S2-C6.2

    €199,00
    €199,00 €199,00
    Delivery
    Jun 9, - Jun 14,
  • DD Audio-GR-MR Grill 5-8 Zoll-Lautsprechergitter-masori-kaufen

    GR-MR Grill 5-8 inch

    From €10,00
    €10,00 From €10,00
    In stock
    Jun 5, - Jun 6,
  • DD Audio-DC6.5a-6.5" (16,5cm) Lautsprecherset-masori-kaufen
    75 Watt

    DC6.5a

    €199,00
    €199,00 €199,00
    Delivery
    Jun 19, - Jun 24,
DSC01014_2

This could also look like this for you!

A speaker is only as good as its construction. While mass-produced products often sound flat, brands like DD Audio focus on precision and Deaf Bonce on uncompromising dynamics. We have filtered out the systems that technically get more out of your budget and open up a new league in sound quality for you.

Discover now

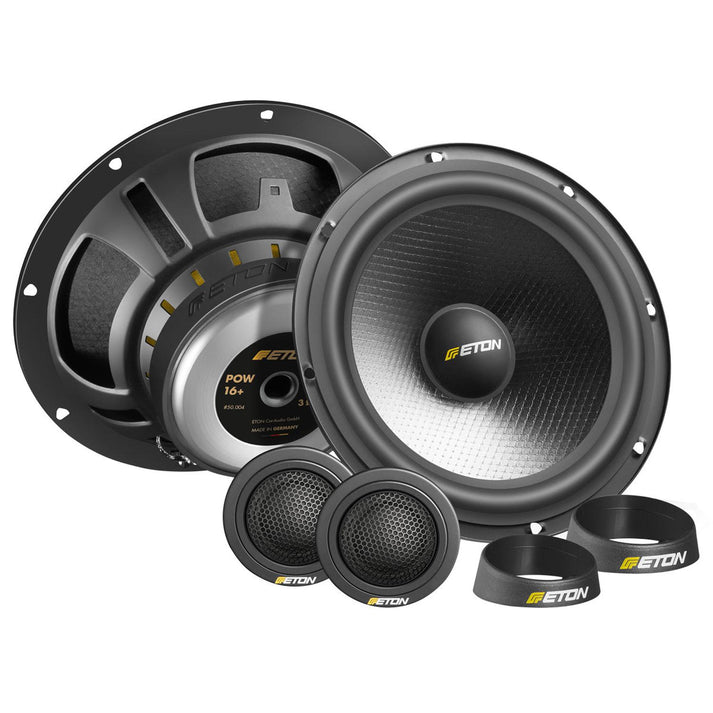

POW 16+ by ETON Description

POW 16+ by ETON is a 6.5 inch (165 mm) Speaker Set as a 2-way component system with a 28 mm textile tweeter. The fiberglass-reinforced 2-layer paper diaphragm and the ferrite magnet are combined with a polished base plate with a large core bore. The reinforced, powder-coated metal basket features ventilation and high-quality terminal connectors. The set includes surface-mounted and built-in enclosures for the tweeter with swivel and tilt function, as well as a tweeter crossover. Rated power 70 W RMS and music power 100 W, rated impedance 4 Ohm, characteristic sound pressure level 94 dB (1 W/1 m) and 94.3 dB at 2.83 V. Compact installation dimensions with coupling volume; development and manufacturing made in Germany.

Features
  • 6.5 inch (165 mm) Speaker Set
  • 2-way component system
  • 28 mm textile tweeter
  • Fiberglass-reinforced 2-layer paper diaphragm
  • Ferrite magnet
  • Reinforced, powder-coated metal basket with ventilation
  • Polished base plate with a large core bore
  • Tweeter surface-mounted and built-in enclosures with swivel and tilt function
  • Includes tweeter crossover
  • High-quality terminal connectors
  • Compact installation dimensions with coupling volume
  • Development and manufacturing made in Germany
  • Efficiency 94.3 dB at 2.83 V
  • Rated power 70 W RMS
  • Music power 100 W
Technical Specifications
  • Rated impedance 4 Ohm
  • DC resistance Re 2.5 Ohm
  • Moving total mass MMD 12.8 g
  • Effective diaphragm area SD 137 cm²
  • Inductance of the voice coil Le 0.32 mH
  • Resonance frequency 69 Hz
  • Force factor BL 4.3 Tm
  • Compliance of the suspension CMS 0.41 mm/N
  • Mechanical quality factor QMS 4.39
  • Electrical quality factor QES 0.67
  • Total quality QTS 0.58
  • Xmax mechanical +/- 9.0 mm
  • Equivalent air volume VAS 11.0 liters
  • Characteristic sound pressure level 94 dB (1 W/1 m)
  • Voice coil diameter 25 mm
  • Magnet material ferrite
  • Mechanical resistance RMS 1.38 kg/s

ETON POW 16+ Datasheet

Open datasheet

Frequently Asked Questions about POW 16+

What components are included in the Eton POW 16+ Speaker Set?

The Eton POW 16+ Speaker Set consists of a high-quality 2-way component system. The central components are a 165 mm (6.5 inch) speaker with a fiberglass-reinforced 2-layer paper diaphragm and a 28 mm (1 1/8 inch) fabric tweeter. These components are equipped with a strong ferrite magnet that ensures clear and precise sound reproduction. The set also includes surface-mounted and built-in housings for the tweeters, as well as a tweeter crossover that can be individually adjusted with a swivel and tilt function to ensure optimal sound distribution.

What are the technical highlights of the POW 16+?

The POW 16+ from Eton features a nominal impedance of 4 Ohms and has a nominal/music power handling of 70 Watts RMS/100 W. The speaker has an efficiency of 94.3 dB at 2.83 V, ensuring efficient conversion of amplifier power into acoustic power. The speaker is housed in a powder-coated, reinforced metal basket, providing stability and durability. The ferrite magnet with a polished base plate and large core bore maximizes magnetic guidance and minimizes distortion, while the high resonance frequency of 69 Hz ensures balanced bass reproduction.

How is the sound quality of the Eton POW 16+?

The sound quality of the Eton POW 16+ is impressive thanks to the precisely tuned 2-way component system. The fabric tweeter with a diameter of 28 mm offers fine highs, while the 165 mm speaker with a fiberglass-reinforced paper diaphragm provides clean midrange tones. The ferrite magnet contributes to clear and distortion-free sound reproduction, which is particularly advantageous at high volumes. The high efficiency of 94.3 dB also means that the system works well with less powerful amplifiers, making it easier to adapt to different audio setups in the vehicle.

What are the dimensions of the POW 16+ Speaker Set?

The Eton POW 16+ Speaker Set features a main speaker with a diameter of 165 mm (6.5 inches). The Tweeter has a diameter of 28 mm (1 1/8 inches). These dimensions are typical for 2-way component systems in vehicles and allow for easy integration into most standard speaker installation spaces. The compact design with an optimized coupling volume facilitates installation and helps reduce resonances, ensuring clean and resonance-free playback. The included mounting options for the Tweeters allow for flexible installation possibilities.

What is the impedance of the POW 16+ Speaker Set?

The Eton POW 16+ Speaker Set has a nominal impedance of 4 Ω. A thoughtful selection of impedance is important as it indicates the electrical load that the Amplifier must drive. With a nominal impedance of 4 Ohms, this Speaker Set is excellent for use with most commercially available Amplifiers and car radios, with a matched impedance optimizing the efficiency and performance of the entire audio system. The impedance also helps reduce electrical losses and maintain the sound quality of the speaker system.

What role does the ferrite magnet play in the POW 16+?

The ferrite magnet in the POW 16+ plays a crucial role in the sound quality and efficiency of the speaker. It serves as the central component that sets the speaker's voice coil in motion, which in turn generates sound waves. By utilizing a strong ferrite magnet, a high magnetic flux density is achieved, ensuring precise control of the diaphragm movement. This configuration minimizes distortion, especially at high volumes, providing clean and clear playback even with complex audio signals.

How does the fiberglass-reinforced paper diaphragm affect the sound of the POW 16+?

The fiberglass-reinforced paper diaphragm of the Eton POW 16+ is specifically designed to produce clear and precise sound waves. Fiberglass provides additional stiffness and stability, while the paper structure optimizes the acoustic properties, resulting in a natural and open sound reproduction. This construction allows for excellent control over the diaphragm movement and reduces distortion, especially in the midrange. Particularly with highly dynamic music pieces, this combination offers superior detail reproduction and a harmonious listening experience.

What cable options does the Eton POW 16+ offer?

The Eton POW 16+ includes high-quality terminal connectors and a Tweeter crossover that allows for adjustment of signal transmission to meet acoustic needs. The Tweeters can be precisely tuned through the flexible crossover, ensuring finely adjusted high-frequency reproduction. Installation is made easier by the included terminal connectors, which ensure a stable and low-loss connection. These components allow for relatively easy integration into existing audio systems without the need for additional adapters or modifications, which is particularly advantageous in complex vehicle environments.

What is the resonance frequency of the POW 16+?

The Eton POW 16+ has a resonance frequency of 69 Hz. This frequency is the point at which the speaker system vibrates on its own, maximizing bass reproduction without external stimulation. A low resonance frequency like this means that the speaker can reproduce lower tones more effectively, resulting in a richer and fuller sound. This technical characteristic is particularly important for music genres with a pronounced bass range, such as hip-hop or electronic music, as it ensures balanced bass reproduction.

How do I install the Eton POW 16+ in the car?

When installing the Eton POW 16+ in the car, it is crucial to pay attention to the compact dimensions of the 165 mm Speaker and the 28 mm Tweeter. Since these components use standardized sizes, they fit into most factory-prepared speaker installation spaces. For mounting the Tweeter, the included surface-mount and flush-mount housings offer more flexibility, especially due to their swivel and tilt function. This feature allows you to position the Tweeter exactly in the desired direction to achieve optimal sound distribution in the vehicle. The included terminal connectors significantly simplify the wiring.
