B2 Audio Riot 61v2 6.5" (16,5cm) Speaker Set
SKU:  RIOT61V2
75 Watt

Riot 61v2

SKU:  RIOT61V2

Technical Highlights

  • 6.5" speaker set, 100W RMS, 4Ω impedance, 55Hz-25kHz.
  • 88.9dB sensitivity, 1" voice coil, flexible integration.
  • Ideal for music lovers, clear sound reproduction, versatile.
  • More technical details
00 d
00 h
00 m
00 s
€139,00
-13% €159,00 €139,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 8, - Jun 12,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €11,58 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Ground ZeroIridium GZIC 130.2
Ground Zero-Iridium GZIC 130.2-5" (13cm) Lautsprecherset-masori-kaufen
Focal-Auditor ASE165-6.5" (16,5cm) Lautsprecherset-masori-kaufen
FocalAuditor ASE165
B2 Audio-Riot 61v2-6.5" (16,5cm) Lautsprecherset-masori-kaufen
€139,00
€159,00 €139,00

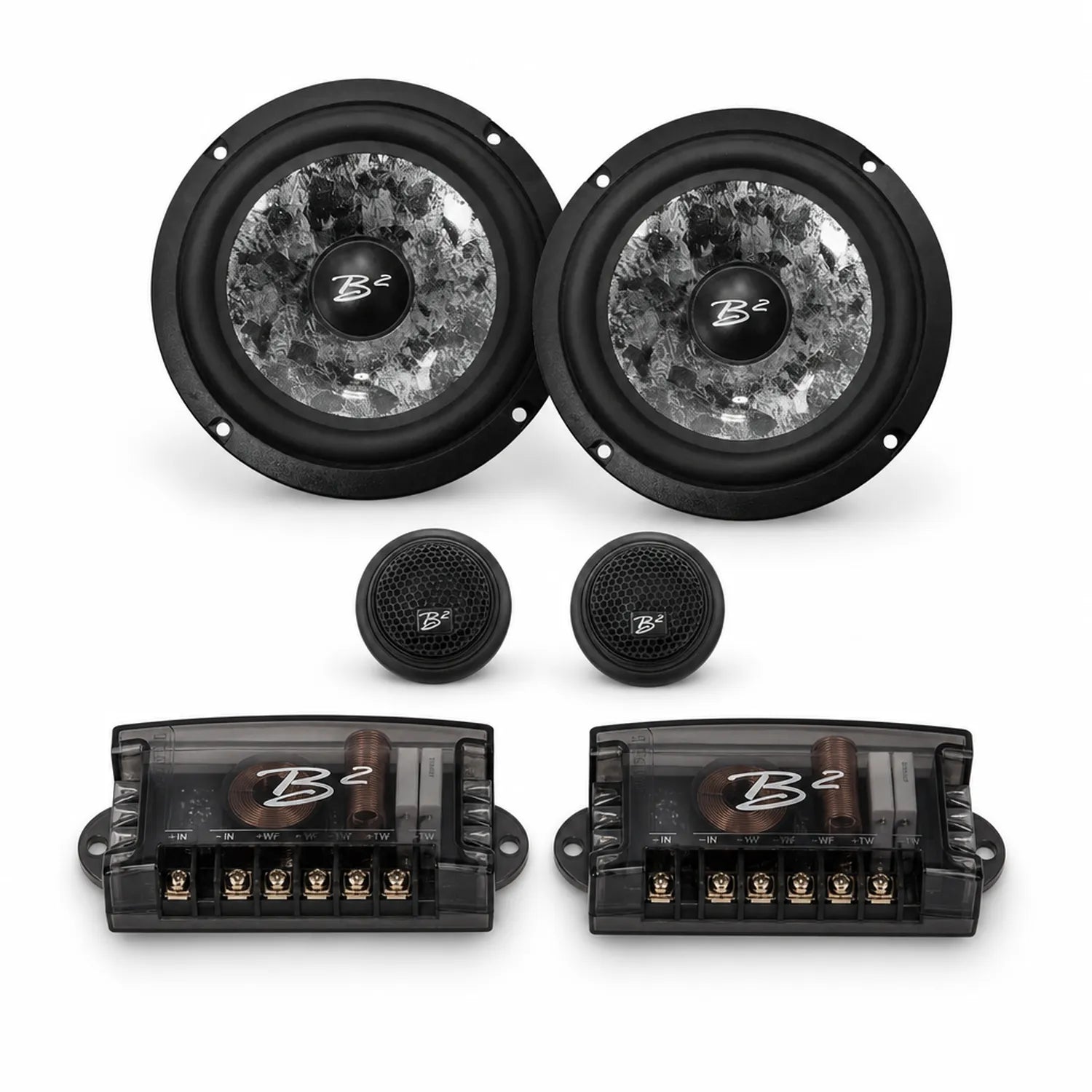

Riot 61v2 by B2 Audio

The Riot 61v2 from B2 Audio is a 6.5 inch Speaker Set with an RMS power handling of 100 Watts and a maximum power handling of 200 Watts. The impedance of the system is specified at 4 Ohms. The frequency range extends from 55Hz to 25kHz with a sensitivity of 88.9dB. The technical specifications include a voice coil diameter of 25.4 mm. For integration, a mounting diameter of 142 mm, a mounting depth of 59.9 mm, and an overall depth of 65.8 mm are provided. The set is characterized by its technical specifications for audio playback.

Features
  • 6.5 inch (16.5cm) Speaker Set
  • RMS power handling: 100 Watts
  • Maximum power handling: 200 Watts
  • Impedance: 4 Ohms
  • Frequency range: 55Hz-25kHz
  • Sensitivity: 88.9dB
  • Voice coil diameter: 25.4 mm
  • Mounting diameter: 142 mm
  • Mounting depth: 59.9 mm
  • Overall depth: 65.8 mm
Technical Data
  • Resonant frequency (FS): 52Hz
  • Equivalent volume (Vas): 11.38 l
  • DC resistance (RE): 3.3 Ohms
  • Mechanical quality (Qms): 5.54
  • Electrical quality (Qes): 0.666
  • Total quality (Qts): 0.595
  • Force factor (BL): 5.56
  • Moving mass (MMS): 18.89 g
  • Linear excursion (Xmax): 6.5 mm

Your benefits at Masori

B2 Audio Riot 61v2 Datasheet

Open datasheet

Frequently Asked Questions about Riot 61v2

What technical features does the B2 Audio Riot 61v2 Speaker Set offer?

The Riot 61v2 Speaker Set from B2 Audio offers numerous technical features that are of interest to audio experts. It is a 6.5-inch speaker set with an RMS power handling of 100 watts and a maximum power handling of 200 watts. It has an impedance of 4 ohms and covers a frequency range of 55Hz to 25kHz. The sensitivity of the speakers is 88.9 dB, and the voice coil diameter is 1 inch. The mounting diameter is 142 mm, allowing for flexible integrations. The Thiele-Small parameters include an Fs of 52 Hz, a Vas of 11.38 L, a Re of 3.3 ohms, Qms of 5.54, Qes of 0.666, and Qts of 0.595. The Bl product is 5.56, with a total moving mass (Mms) of 18.89 g and a maximum displacement (Xmax) of 6.5 mm.

How do you integrate the Riot 61v2 into existing audio systems?

Integrating the Riot 61v2 from B2 Audio into existing audio systems is quite simple thanks to its thoughtful dimensions. The mounting diameter of 142 mm allows for easy installation of the speaker into appropriate fixtures in the vehicle. The mounting depth is 59.9 mm, while the total depth is 65.8 mm. This ensures compatibility with many common enclosures and mounting positions. It is advisable to install the speaker in a location where it can deliver optimal sound, such as in doors or dashboard niches. If an adjustment of the mounting opening is necessary, attention should be paid to the specific mounting dimensions.

What advantages does the low impedance of the Riot 61v2 offer?

The 4 Ohm impedance of the B2 Audio Riot 61v2 Speaker Set is a technical advantage that has significant effects on audio quality. A lower impedance means that less resistance stands in the way of the electrical signal, allowing a higher current to flow through the speaker. This results in a louder and more dynamic sound reproduction, particularly noticeable at higher output levels. Especially if you enjoy listening to music at high volumes, you will clearly notice the difference. Combined with a high sensitivity of 88.9 dB, the system can operate efficiently with less power consumption, leading to better performance with lower distortion.

For which types of music is the frequency spectrum of the Riot 61v2 optimal?

The B2 Audio Riot 61v2 Speaker Set offers a wide frequency range from 55Hz to 25kHz, allowing versatile applications for various music genres. This spectrum covers deep bass and high frequencies, an essential feature for reproducing modern music styles such as pop, rock, or electronic music. In genres that require expressive mids and highs, such as jazz or classical music, the speaker also performs well. With the specific frequency response, you can clearly experience details in complex musical pieces, making the speaker interesting for both frequency enthusiasts and the average music listener.

What role does the sensitivity of 88.9 dB play in the B2 Audio Riot 61v2?

The sensitivity of 88.9 dB of the B2 Audio Riot 61v2 Speaker Set is a crucial factor that determines the speaker's volume at a given input power. A higher sensitivity rating means that the speaker is more efficient and can produce more sound pressure with less power. This is particularly important when you combine the speaker with a lower-powered amplifier to achieve powerful audio playback. Sensitivity is critical for a rich sound experience in both home and vehicle settings, as it leads to greater clarity and lower distortion at various volume levels, enhancing listener comfort.

How do the Thiele-Small parameters of the Riot 61v2 affect its sound behavior?

The Thiele-Small parameters of the Riot 61v2 from B2 Audio, including Fs, Vas, and Q values, are crucial for the speaker's sound characteristics. Fs, the resonance frequency of 52 Hz, indicates the frequency at which the speaker efficiently begins to radiate sound. The Vas value of 11.38 L indicates the volume that an idealized sealed enclosure should have to optimally operate the speaker. The Q values (Qts 0.595, Qms 5.54, Qes 0.666) describe the damping and allow conclusions to be drawn about the optimal enclosure design. Combined, this affects the bass response, dynamics, and integration into speaker types. These parameters are essential for precise construction and sound tuning.

What is the power handling of the B2 Audio Riot 61v2 Speaker Set?

The Riot 61v2 Speaker Set from B2 Audio is specified with an RMS power handling of 100 watts and a maximum power handling of 200 watts. These figures indicate how much power the speaker set can handle over a longer period (RMS) and briefly (Max) without suffering coupling damage. The RMS specification is important when choosing the right amplifier power to avoid distortion and overload. Especially at full power, the set reveals its full sound spectrum, so it is advisable to use an amplifier that has sufficient output power to realize the full potential of the speaker.

What factors determine the sound quality of the Riot 61v2?

The sound quality of the B2 Audio Riot 61v2 speaker is influenced by a variety of factors. First, the sensitivity of 88.9 dB plays a role, which determines the efficiency of the speaker. The frequency range of 55Hz to 25kHz allows for precise reproduction of both deep bass and high tones. The 4-ohm impedance ensures increased electrical conductivity, leading to more dynamics. The voice coil with a diameter of 1 inch contributes to the clarity of sound reproduction. Finally, parameters such as Fs, Vas, and Qts influence the bass reproduction and dynamic play behavior, crucial variables for the overall sound character.

How does the Riot 61v2 perform in terms of audio output under high load?

The Riot 61v2 Speaker Set from B2 Audio is distinguished by its exceptional durability, especially under high power output. With an RMS power handling of 100 Watts and a maximum power handling of 200 Watts, it can be driven by powerful Amplifiers without producing CLIPPING or distortion. The voice coil diameter of 1 inch and the high sensitivity of 88.9 dB also contribute to delivering clear, undistorted sound even at maximum volume. When the speaker is operated within the ideal frequency range of 55Hz to 25kHz, its tuned design ensures impressive dynamics and fidelity, even during demanding musical performances.

What installation options does the Riot 61v2 Speaker Set offer for different vehicles?

The Riot 61v2 Speaker Set from B2 Audio offers enormous flexibility for integration into a variety of vehicles due to its specific installation dimensions. With an installation diameter of 142 mm and a mounting depth of 59.9 mm, it fits into many standardized speaker mounting openings, simplifying installation in different car types. The total depth of 65.8 mm ensures that it can also be mounted in shallow, space-restricted areas. Ideal for doors or dashboards, as the size does not exceed the available space. It is important to check the vehicle's installation guidelines to ensure that the set can be installed correctly and safely.
