Morel Elate Carbon PRO 63 6.5" (16.5cm) speaker set
SKU:  ELATE-PRO63A
EAN:  4251950318233
180 Watt

Elate Carbon PRO 63

SKU:  ELATE-PRO63A
EAN:  4251950318233

Technical Highlights

  • 180 watts RMS, 87 dB sensitivity, 30-25,000 Hz frequency response.
  • 6-1/2" carbon fiber/Rohacell woofer cone, minimized distortion.
  • 3" midrange driver, Elate Alto tweeter, precise sound.
  • More technical details
€3.299,00
€3.299,00 €3.299,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Art: Active
Delivery
Jun 6, - Jun 9,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €274,91 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
MorelElate Carbon PRO 93
Morel-Elate Carbon PRO 93-8" (20cm) Lautsprecherset-masori-kaufen
Morel-Elate Carbon PRO 53-5" (13cm) Lautsprecherset-masori-kaufen
MorelElate Carbon PRO 53

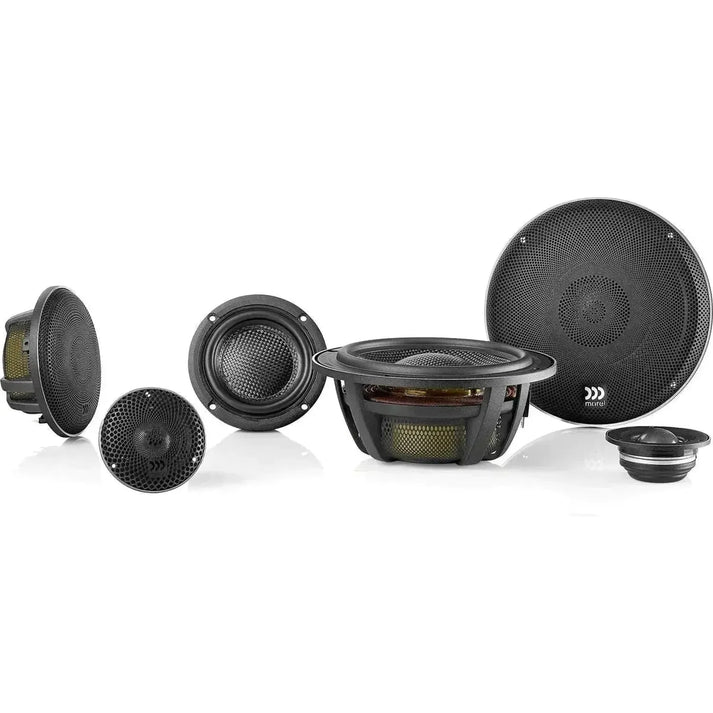

Five Morel Elate Carbon PRO 63 speakers of various sizes are displayed on a white background, showcasing their mesh covers and inner components.
€3.299,00
€3.299,00 €3.299,00

Elate Carbon PRO 63 by Morel

With the Elate Carbon Pro 63 3-way 6.5 inch speaker set, Morel sets the performance bar at a level that has established itself as unrivaled by combining first-class power handling and musicality. The Pro variants are highlighted by the new high-resolution Elate Alto Cavity-Back silk dome tweeter. The new Elate Carbon woofers feature 3-inch voice coils and KLIPPEL-optimized EVC motors and carbon fiber/ROHACELL sandwich cones for extremely low distortion, even at the highest volumes. The 3-way systems receive the new Elate MM3 3.5 inch dome midrange, which offers a wider usable frequency range than its predecessor and drastically improves the system's performance. The new Elate Carbon Pro set is made for people who want to enjoy every aspect of music to the fullest.

The style of the iconic Lotus-design speaker grilles from Morel alone will take your breath away, and then there's the sound... The 3-way system Elate Carbon Pro 63 includes, in the active version, a 6-1/2 inch woofer, a 3-inch midrange, and the Elate Alto 1.1-inch tweeter, which is not included in the Elate Carbon systems without Pro. Both the midrange and woofer use a carbon fiber/Rohacell cone that minimizes distortion, allowing for the most precise sound possible. And for the Elate Alto tweeter, Morel uses the Cavity-Back technology developed for the Supremo Piccolo tweeter to achieve amazing highs.

Features

  • 3-way component speaker system
  • Includes two woofers, two midranges, and two tweeters
  • 6-1/2" 3-layer carbon fiber/Rohacell woofer cone with butyl rubber surround
  • 3-inch midrange made of 3-layer carbon fiber/Rohacell
  • 1.1-inch tweeter with Elate Carbon Alto Acuflex coating
  • Optional: 2 crossovers in the passive version
  • Aluminum cast basket
  • Power handling up to 180 watts RMS
  • Frequency response: 30-25,000 Hz
  • Sensitivity: 87 dB at 2.83 V
  • Woofer mounting depth: 6.2cm
  • Woofer cutout diameter: 13.8cm
  • Midrange mounting depth: 4cm
  • Midrange cutout diameter: 8.3cm
  • Includes grilles

Scope of delivery

  • Optional: 2 crossovers in the passive version
  • 2 MW6 woofers
  • 2 MM3 midranges
  • 2 Alto tweeters (with included 7" speaker cable)
  • 2 woofer grilles
  • 2 midrange grilles
  • 2 midrange grille frames
  • 2 tweeter grilles (installed)
  • Eight 1-1/4 inch screws
  • Fourteen 3/4 inch screws
  • 18 quick-release clips
  • Putty for grilles
  • Installation manual

Your benefits at Masori

Frequently Asked Questions about Elate Carbon PRO 63

Welche Technologien verwendet der Elate Carbon PRO 63?

The Elate Carbon PRO 63 from Morel utilizes advanced technologies such as the 3-layer carbon fiber/Rohacell membrane and the Klippel-optimized EVC drivers, resulting in extremely low distortion. The cavity-back technology is used in the Elate Alto tweeter, derived from the development of the Supremo Piccolo for excellent acoustics. The woofer integrates a 3-inch voice coil, ensuring exceptional durability, while the Acuflex coating of the tweeter provides precise high-frequency representation.

Wie hoch ist die Belastbarkeit des Elate Carbon PRO 63 Lautsprechersets?

The load capacity of the Elate Carbon PRO 63 speaker set is up to 180 watts RMS. This robust load capacity is supported by the use of 3-inch voice coils, especially in the woofers that are part of the 3-way component system. The combination of high-quality materials such as the carbon fiber/Rohacell membrane and the aluminum die-cast basket structure helps to ensure clear and distortion-free sound reproduction even at the highest volumes. Thus, the speaker system is optimal for dynamic and loud music.

Welche Komponenten enthält das Elate Carbon PRO 63 Lautsprecherset?

The Elate Carbon PRO 63 speaker set from Morel consists of a 3-way component system. It includes two 6-1/2-inch woofers equipped with a 3-layer carbon fiber/Rohacell membrane. Additionally, there are two 3-inch midrange drivers and the unique Elate Alto 1.1-inch tweeters with Acuflex coating. Optionally, two passive crossovers are included, which ensure optimal sound criteria when installed carefully. Grilles for all speaker components as well as installation accessories are also included.

Wie ist die Klangqualität des Elate Carbon PRO 63 3-Wege-Systems?

The Elate Carbon PRO 63 offers impressive sound quality, primarily achieved through the new combination of materials and technology. The use of carbon fiber/Rohacell in the membranes ensures low distortion, even at maximum volume. The frequency response ranges from 30 Hz to 25,000 Hz, guaranteeing a wide and balanced sound reproduction. The sensitivity rating is 87 dB at 2.83 V. These parameters allow the speaker system to bring out even the finest nuances of musical content.

Welche Einbautiefen und Ausschnittmaße sind für den Einbau des Elate Carbon PRO 63 relevant?

For the installation of the Elate Carbon PRO 63 speaker set, specific measurements must be considered. The installation depth of the woofer is 6.2 cm with a required cutout diameter of 13.8 cm. The midrange driver has an installation depth of 4 cm, suitable for a cutout diameter of 8.3 cm. These dimensions allow for seamless integration into the vehicle doors or dashboard, depending on the individual vehicle design. The precise installation significantly contributes to an optimal sound image.

Welche Besonderheiten besitzt der Elate Alto-Hochtöner des Elate Carbon PRO 63?

The Elate Alto tweeter of the Elate Carbon PRO 63 has a size of 1.1 inches and impresses with the use of Cavity-Back technology. Originally developed for the Supremo Piccolo tweeter, this technology significantly enhances acoustic performance. The tweeter is equipped with a special Acuflex coating that ensures the production of clear and detailed highs. These features ensure that even the finest audio details become audible, which is particularly advantageous for audiophile listeners.

Wie wirkt sich das Membranmaterial auf die Klangqualität des Elate Carbon PRO 63 aus?

The membrane material of the Elate Carbon PRO 63, a combination of carbon fiber and Rohacell, has a significant impact on sound quality. These materials are known for their high stiffness and low mass, which minimize distortion and enhance fidelity. The 3-layer construction increases acoustic precision and allows for clear, powerful bass as well as excellent midrange reproduction. This material ensures that complex musical details are reproduced charmingly and authentically, a must for music lovers.

Welche Rolle spielen die Schwingspulen im Elate Carbon PRO 63 Lautsprecherset?

The 3-inch voice coils in the Elate Carbon PRO 63 are crucial for the sound performance and robustness of the set. They allow for high load capacity while simultaneously reducing distortion, even at high levels. The Klippel-optimized EVC drives ensure precise movement of the speaker membranes, giving the speaker system an impressive sound intensity without loss of quality. These technical features make the voice coils an essential part of producing powerful and natural sounds.

Ist das Elate Carbon PRO 63 mit meinem Auto kompatibel?

The compatibility of the Elate Carbon PRO 63 depends on the exact dimensions of your vehicle. The woofers require a cutout diameter of 13.8 cm and a mounting depth of 6.2 cm. The midrange drivers require a cutout diameter of 8.3 cm and a mounting depth of 4 cm. It is important to compare these measurements with the available installation spaces in your vehicle. Adjustments may be necessary to ensure optimal sound quality. The included installation instructions can assist with the adjustments.

Gibt es besondere Installationshinweise für das Elate Carbon PRO 63?

When installing the Elate Carbon PRO 63, special attention must be paid to the installation depths and cut-out dimensions. It must be ensured that all components are securely fastened to minimize vibrations. The set includes detailed installation instructions and the necessary mounting materials, including special frames for the midrange drivers. For complete integration in the vehicle, grilles and putty for grille mounting are also included to ensure a clean installation. Choose the placement of the speakers to optimize acoustic performance and spatial effect.
