Morel Elate Carbon 53 5" (13cm) speaker set
SKU:  ELATE-53A
EAN:  4251950318141
160 Watt

Elate Carbon 53

SKU:  ELATE-53A
EAN:  4251950318141

Technical Highlights

  • Power up to 160 watts RMS, 1000 watts peak, 85 dB sensitivity.
  • 5-1/4" woofer with carbon fiber/Rohacell, open-cavity tweeter.
  • Frequency response 40-25,000 Hz, neodymium magnet motor, dual drive.
  • More technical details
€2.799,00
€2.799,00 €2.799,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Art: Active
Delivery
Jun 6, - Jun 9,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €233,25 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
MorelElate Carbon 63
Five black car audio speakers, including Morel Elate Carbon 63 woofers, form a 3-way speaker set arranged on a white surface.
Four black and silver Morel Elate Carbon PRO 52 2-way component system speakers and tweeters displayed closely on a white background.
MorelElate Carbon PRO 52

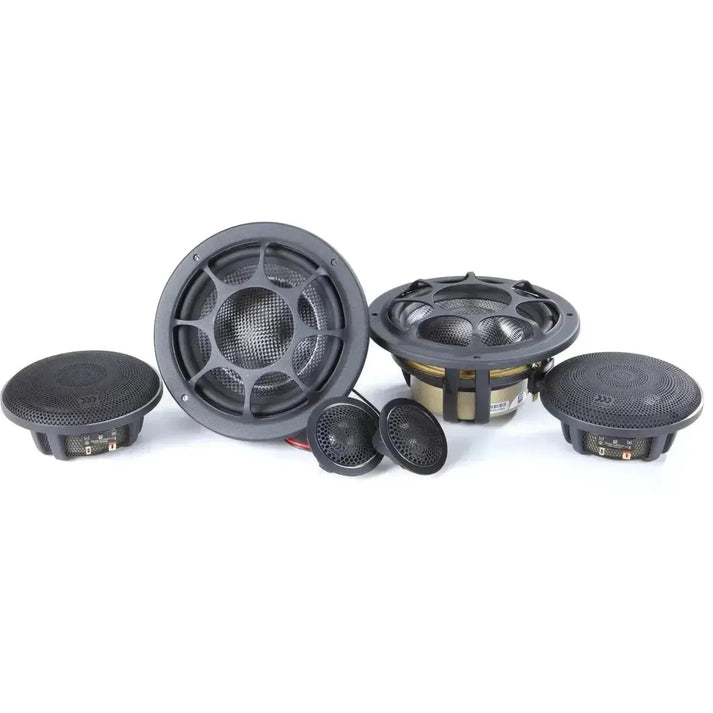

Morel-Elate Carbon 53-5" (13cm) Lautsprecherset-masori-kaufen
€2.799,00
€2.799,00 €2.799,00

Elate Carbon 53 by Morel

The Morel Elate Carbon 53 3-way 5-inch speaker set uses the same unique woofers and midrange drivers as the Elate Carbon Pro versions, but is equipped with the new compact MT450 tweeter featuring an open-cavity design and dual neodymium magnet motor.

The style of the iconic Lotus-design speaker grilles from Morel alone will take your breath away, and then there's the sound... The active Elate Carbon 53 5-1/4 inch 3-way component system includes a 5-1/4 inch woofer, a 3" midrange driver, and the MT450 tweeter for a fuller sound and outstanding detail at impressive volumes. Both the midrange and woofer use a carbon fiber/Rohacell cone, minimizing distortion for the most accurate sound possible.

Features

  • 3-way component speaker system
  • Includes two woofers, two midrange drivers, and two tweeters
  • 5-1/4 inch 3-layer carbon fiber/Rohacell woofer with butyl rubber surround
  • 3-inch midrange driver made of 3 layers of carbon fiber/Rohacell
  • 1.1-inch tweeter with Acuflex-coated silk dome MT450
  • Optional: 2x crossovers in the passive version
  • Aluminum cast basket
  • Power handling up to 160 watts RMS (1000 watts peak power)
  • Frequency response: 40-25,000 Hz
  • Sensitivity: 85 dB at 2.83 V
  • Woofer mounting depth: 6.2cm
  • Midrange mounting depth: 4cm
  • Midrange cutout diameter: 8.3cm
  • Includes grilles

Scope of delivery

  • Optional: 2x crossovers in the passive version
  • 2 MW5 woofers
  • 2 MM3 midrange drivers
  • 2 MT 450 tweeters (with included 7" speaker cable)
  • 2 woofer grilles
  • 2 midrange grilles
  • 2 midrange grille frames
  • 2 tweeter grilles (installed)
  • 2 tweeter mounting enclosures (tweeters installed)
  • 2 flush-mount brackets
  • 2 angled tweeter enclosures for surface mounting
  • 2 rubber feet for surface-mount enclosures
  • Eight 1-1/4 inch screws
  • Four 1" screws
  • Eight 3/4 inch screws
  • 8 large speed clips
  • 8 small quick-release clips
  • Grille spatula
  • Eight 0.25 inch crimp quick connectors
  • Two 0.187" crimp quick connectors
  • Two 0.110 inch crimp quick connectors with internal thread
  • Two 0.187" insulation covers for quick slides
  • Two insulation covers with 0.110 inch quick connectors
  • Installation manual
  • Warranty card

Your benefits at Masori

Frequently Asked Questions about Elate Carbon 53

Was sind die Hauptmerkmale des Morel Elate Carbon 53 Lautsprechersets?

The Morel Elate Carbon 53 is a 3-way component speaker system with impressive technical specifications. It includes two 5-1/4 inch woofers, two 3-inch midrange drivers, and the innovative MT450 tweeters. The speakers utilize a unique 3-layer carbon fiber/Rohacell membrane that minimizes distortion through its precise technological implementation. The set offers a power handling capacity of up to 160 watts RMS and a frequency response of 40-25,000 Hz. The high sensitivity of 85 dB at 2.83 V ensures clear and powerful reproduction even at high volumes. An aluminum die-cast basket provides the set with its structural integrity.

Welche technischen Spezifikationen hat der MT450 Hochtöner des Elate Carbon 53?

The MT450 tweeter in the Elate Carbon 53 speaker set is particularly noteworthy for its 1.1-inch Acuflex-coated silk dome, which provides outstanding sound details. The open-cavity design of the tweeter and the dual neodymium magnet motor enable a very clear and detailed high-frequency range. Through acoustic engineering, the tweeter achieves precise high-frequency reproduction that remains distortion-free even at high volumes. Its efficiency in sound dispersion makes it a central element in the speaker set.

Welche Materialien werden im Elate Carbon 53 Lautsprecherset verwendet?

The Morel Elate Carbon 53 speaker set relies on high-quality materials, including a 3-layer carbon fiber/Rohacell membrane, which is used in both the 5-1/4 inch woofer and the 3 inch midrange driver. These materials are known for their lightness and strength, allowing for precise and rapid movement to reproduce sound without distortion. The tweeters are equipped with an Acuflex-coated silk dome, which ensures detailed high frequencies. Together with the aluminum die-cast basket, these materials provide durability and acoustic quality.

Wie ist das Frequenzspektrum des Morel Elate Carbon 53?

The Morel Elate Carbon 53 covers a wide frequency spectrum from 40 to 25,000 Hz. The woofer provides strong bass, while the midrange drivers accurately and dynamically represent the mid-frequency range. The MT450 tweeter impresses with detailed high-frequency reproduction. This comprehensive spectrum allows for faithful sound reproduction across all music genres. The careful tuning of the drivers ensures a harmonious integration of all components, resulting in a balanced and clear sound image. Ideal for discerning listeners.

Wie installiert man die Morel Elate Carbon 53 Lautsprecher korrekt?

The installation of the Morel Elate Carbon 53 begins with the correct placement of the woofers and midrange drivers, which require a mounting depth of 6.2 cm and 4 cm, respectively. The midrange cutout has a diameter of 8.3 cm. The included grilles and mounting housings facilitate proper positioning. The MT450 tweeter can be installed either flush or in an angled housing for surface mounting, providing flexibility in installation. The set includes all necessary cables and connection components to ensure the simplest and most efficient installation possible.

Welche Komponenten sind im Lieferumfang des Morel Elate Carbon 53 enthalten?

The Morel Elate Carbon 53 package includes extensive accessories in addition to the essential speakers. This includes two 5-1/4 inch woofers, two 3-inch midrange drivers, and two MT450 tweeters with an included 7-inch speaker cable. Also included are the matching grilles for woofers, midrange drivers, and tweeters, as well as various enclosures for easy installation. The delivery also includes screws, speed clips, and quick releases in various sizes. Thus, a comprehensive equipment for installation is included directly in the package.

Wie hoch ist die Belastbarkeit des Elate Carbon 53 Lautsprechersets?

The Elate Carbon 53 speaker set from Morel impresses with a maximum load capacity of up to 160 watts RMS and a peak power of 1000 watts. This power allows the system to deliver crystal-clear and undistorted sound even at high volumes. The high load capacity is due to the robust materials and advanced technology used in the construction. This enables the reproduction of dynamic music pieces while ensuring a long lifespan of the speakers, even with intensive use.

Wie verhält sich das Elate Carbon 53 bei unterschiedlichen Lautstärken?

The Elate Carbon 53 speaker set is optimally tuned to provide excellent sound quality at both low and high volumes. Thanks to the 3-layer carbon fiber/Rohacell membranes in the midrange and bass drivers, sound reproduction remains precise at all times, without distortion or increased harmonic distortion. The MT450 tweeter also contributes to clear high-frequency reproduction. The sensitivity of 85 dB at 2.83 V additionally ensures that even with low power input, a full and dynamic sound representation is achieved, making it ideal for any listening environment.

Mit welchen Automarken ist das Morel Elate Carbon 53 kompatibel?

The Morel Elate Carbon 53 speakers fit a variety of vehicles without directly supporting specific car brands, as they have universal dimensions. A mounting depth of 6.2 cm for the woofer and 4 cm for the midrange makes them flexible for installation in most vehicle doors. As long as the installation location provides enough space and the cutouts meet the diameter requirements, they can be installed in a variety of car models. The variable mounting solutions make it easy to find application readiness without major modifications.

Welche Anschlussmöglichkeiten bietet das Elate Carbon 53 Lautsprechersystem?

The Morel Elate Carbon 53 speaker set offers a variety of connection options. The package includes 7-inch speaker cables, various crimp quick connectors, insulating covers, and speed clips, which allow for easy connection with amplifiers and other audio components. These components support secure and efficient connections to ensure the optimal sound of this high-performance speaker system. The option for passive crossovers also provides additional flexibility during installation, especially when extended control of the audio signal is required. Everything is designed for smooth integration.
