  5. Mille Legend ML 280.3

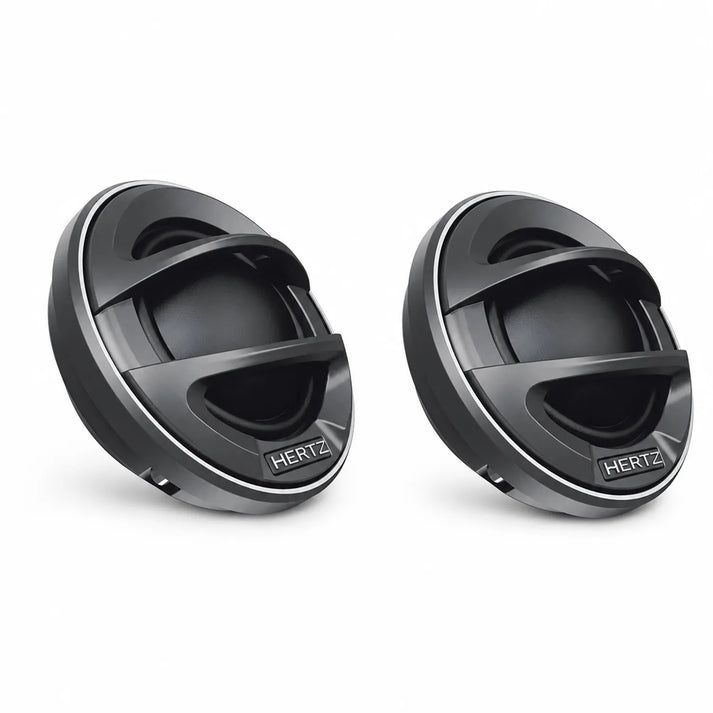

Hertz Mille Legend ML 280.3 dome tweeter

1 Review

CYBER -15%

Hertz Mille Legend ML 280.3 dome tweeter

1 Review

  • Power 180 W, impedance 4 Ohm, frequency response 1k 28k Hz.
  • Frequency response increased by optimized neodymium magnet.
  • Die-cast aluminum front panel for clear high frequencies.
  • Mehr technische Details
00
00
00
00
€220,15
€259,00 €220,15
5% Rabatt mit Vorkasse
inkl. VAT , possibly plus shipping
Klarna Bequem in 12 zinsfreien Raten à €18,34 mit Klarna zahlen.
Delivery to Home
Dec 7, - Dec 10,
x Couple
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa

Seen cheaper?

Shipping cost calculator

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

Deshalb wählen uns 100.000+ Kunden

Expert Image

Rob

Expert Image

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h
RenegadeRXA1100
Renegade-RXA1100-4-Kanal Verstärker-masori-kaufen
Audison-Prima AP 560P&P I/O-Verstärker-Zubehör-masori-kaufen
AudisonPrima AP 560P&P I/O

Compatible with Mille Legend ML 280.3

  • LSK2x1,5mm² OFC verdrillt

    Masori-LSK2x1,5mm² OFC verdrillt 100m-2x1,5mm² Lautsprecherkabel-masori-kaufen Masori-LSK2x1,5mm² OFC verdrillt 100m-2x1,5mm² Lautsprecherkabel-masori-kaufen
    €14,00
    €14,00 €14,00
    €1,40 m
    5% Rabatt mit Vorkasse
    Delivery to Home
    Dec 6, - Dec 7,

  • 250V MKT

    Masori-250V MKT-Kondensator-masori-kaufen
    From €9,00
    €9,00 From €9,00
    5% Rabatt mit Vorkasse
    Delivery to Home
    Dec 6, - Dec 7,

  • MKT CAP

    Audio System Italy-MKT CAP-Kondensator-masori-kaufen Audio System Italy-MKT CAP-Kondensator-masori-kaufen
    €19,00
    €19,00 €19,00
    5% Rabatt mit Vorkasse
    Delivery to Home
    Dec 6, - Dec 7,

Mille Legend ML 280.3 by Hertz

The Mille Legend ML 280.3 is a dome tweeter from Hertz. This tweeter is not just an evolution; it has already become a recognized reference since its market launch. The ML 280.3 Legend was born from extensive research and development, with a focus specifically on optimizing the Tetolon dome geometry. Noteworthy is the dazzling geometry, which was further developed to improve frequency response and reduce distortion. Additionally, the device benefits from an improved rear acoustic chamber. Ultimately, this results in a significant improvement in response behavior at low frequencies.

Technical Data

  • Size mm 35
  • Power Handling - Peak W 180
  • Power Handling - Peak Note (Hi-Pass filtered @ 1.8kHz - 12dB Oct.)
  • Impedance Ohm 4
  • Voice Coil Ø 28 (1.1)
  • Frequency Response Hz 1k - 28k
  • Magnet Size W x D x H mm 27.8 x 3.5 x 3
  • Weight kg 0.10
  • Magnet Neodymium
  • Dome Tetolon

Physical Specifications

ML 280.3 Legend

  • A 53.4 mm
  • B 48 mm
  • C 29 mm
  • D 13.5 mm

Electro-Acoustic Specifications

  • D mm 28
  • Re Ohm 3.3
  • Fs Hz 900
  • Le mH 0.013
  • Mms g 0.4
  • Cms mm/N 0.09
  • BL T*m 1.9
  • Qts 1.3
  • Qes 1.9
  • Qms 4
  • Spl dB 92

Frequency Response

ML 280.3 Legend

Features

Mille Legend ML 280.3

  • Neodymium magnet optimized with FEA simulations of the magnetic flux to ensure maximum control and fast transient response.
  • Extremely pure copper short-circuit ring for excellent high-frequency extension.
  • Aluminum die-cast front plate with a profile optimized by FEA simulations to improve frequency response and radiation behavior.
  • Tetolon fiber dome optimized with FEA simulations for lower distortion and improved radiation behavior in the high-frequency range.
  • The frame structure and rear loading chamber are both made from a CNC-machined solid aluminum block to ensure mechanically inert behavior against resonances.
  • The rear chamber is designed for an Fs value of only 900 Hz: The low Fs value ensures wide extension in the low-frequency range and low distortion even in the crossover region, allowing for a lower cutoff frequency.
  • High-density damping material under the dome and low-density absorbing material in the rear chamber ensure smooth sound radiation and high damping in the bass range.

Hertz Mille Legend ML 280.3 Datenblatt

Datenblatt öffnen

Frequent questions about Mille Legend ML 280.3

Wie verbessert die Geometrie des Tetolon-Domes den Frequenzgang des Mille Legend ML 280.3?

The optimized geometry of the Tetolon dome in the Mille Legend ML 280.3 significantly enhances the frequency response by adjusting the structure of the dome for low distortion in the high-frequency range. By using FEA simulations, the radiation characteristic has been improved to achieve accurate and clean highs, which is particularly important for discerning audiophiles who value high fidelity. The dome geometry is designed to optimize a higher frequency bandwidth, enhancing the enjoyment of music listening. These details make the dome tweeter a recognized reference.

Welche Rolle spielt die akustische Kammer im Mille Legend ML 280.3?

The improved acoustic chamber of the Hertz Mille Legend ML 280.3 plays a crucial role by optimizing the response behavior at low frequencies. With an Fs value designed for 900 Hz, the performance in the bass range is enhanced, resulting in less distortion from the tweeter even in the transition area. The material density in the chamber ensures controlled vibration behavior. The high-quality absorbing materials effectively prevent unwanted resonances, significantly improving sound quality and enabling clear, uncolored reproduction.

Welche Materialien werden für die Kalotte des Mille Legend ML 280.3 verwendet und warum?

The Mille Legend ML 280.3 uses a Tetolon fiber for the dome. This fiber is known for its low distortion and fine radiation behavior, especially in the high-frequency range. Tetolon is specifically optimized for a significant reduction of self-resonances. For enthusiasts seeking the purest sound reproduction, this material offers the ideal balance between stiffness and damping, supporting precise and natural sound dispersion. This material composition makes the ML 280.3 a favorite among high-quality tweeters.

Was macht den Neodym-Magneten im Mille Legend ML 280.3 so besonders?

The neodymium magnet in the Mille Legend ML 280.3 is specifically optimized with FEA simulations to ensure maximum control and quick responsiveness to transients. This optimization allows for precise control of the magnetic flux, which ensures a high power density with minimal space requirements. Through intensive simulation, an exceptionally good high-frequency extension is achieved, making the tweeter particularly suitable for high-resolution audio systems. This significantly contributes to the recognized reputation of the ML 280.3 as a reference-class tweeter.

Wie beeinflusst die Schwingspule die Performance des Mille Legend ML 280.3?

The heart of the Mille Legend ML 280.3 is the 28 mm voice coil, which plays a crucial role in sound generation. The voice coil is designed for high load capacity and can handle peak values of up to 180 watts, with the 4-ohm impedance ensuring a balanced resistance. This technical design allows for a clean response to electrical signals, while the voice coil remains protected from overheating through heat dissipation via the neodymium magnet motor. For fans of rich music playback, this balance between power and efficiency is essential.

Welche mechanischen Eigenschaften beeinflussen den Klang des Mille Legend ML 280.3?

Mechanically speaking, the structural elements of the Mille Legend ML 280.3 are designed to minimize resonances and positively influence the sound. A CNC-milled frame and a solid aluminum chamber contribute to a mechanically inert structure that effectively dampens unwanted vibrations. This construction significantly reduces distortion and improves sound propagation. Reinforcing materials under the dome also contribute to optimization by enabling a uniform reproduction across a wide frequency spectrum from 1 kHz to 28 kHz.

Welche Elektro-Akustischen Spezifikationen zeichnen den Mille Legend ML 280.3 aus?

Electro-acoustically, the Mille Legend ML 280.3 is equipped with a re-impedance of 3.3 ohms and an inductance value of 0.013 mH, which guarantees a very precise and interference-free transmission of electrical signals. The Mms value is 0.4 g, allowing for a sensitively designed diaphragm movement, while the total quality measurement value (Qts) is 1.3, perfectly tuned to the expected listening environment. The combined values of the electro-acoustic specifications ensure a sonically consistent reproduction across the entire frequency spectrum.

Wie gewährleistet der Mille Legend ML 280.3 eine erweiterte Hochfrequenzwiedergabe?

The extended high-frequency reproduction of the Mille Legend ML 280.3 is achieved through the extremely pure copper short-circuit ring, which, together with the aluminum die-cast front panel, improves the radiation behavior. The combination of these materials reduces distortion and enhances acoustic clarity. FEA-optimized structures additionally ensure that high frequencies are reproduced cleanly and authentically, making even the smallest details audible. This makes the ML 280.3 ideal for discerning music lovers who want to hear every detail of their recordings.

Ist der Mille Legend ML 280.3 mit meiner Autoinnenausstattung kompatibel?

The Hertz Mille Legend ML 280.3 tweeter is designed with a diameter of 35 mm and specific installation dimensions of 53.4 mm (A) x 48 mm (B) x 29 mm (C) x 13.5 mm (D), making it suitable for many standardized car interiors. Its compact dimensions facilitate integration into existing speaker systems, as long as the structural space in the vehicle is sufficient. It is important to measure the exact space in the car before installation and ensure that the installation location meets the specifications to guarantee optimal performance.

Welche Frequenzgangcharakteristika weist der Mille Legend ML 280.3 auf?

The Mille Legend ML 280.3 from Hertz offers an outstanding frequency range from 1 kHz to an impressive 28 kHz. This enormous bandwidth is made possible by the precise tuning of the neodymium magnet and the Tetolon dome technology. The combination of these innovative technologies allows for seamless transmission from deep to extremely high frequencies. Users who appreciate both clearly defined highs and solid mids will benefit from this tweeter, which enables the experience of the finest musical details without loss.
