Audio System HX 12 FLAT EVO 12" (30cm) Flat Subwoofer
SKU:  HX-12-FLAT-EVO
EAN:  4251834508057
400 Watt

HX 12 FLAT EVO

SKU:  HX-12-FLAT-EVO
EAN:  4251834508057

Technical Highlights

  • 300mm FLAT subwoofer, 2" voice coil, 15-way ventilation system.
  • HPPC membrane, HEM Y45 magnet, 2x 2 ohm impedance.
  • Progressive PC/Connex spider, reinforced paper dust cap, 92 mm installation depth.
  • More technical details
00 d
00 h
00 m
00 s
€224,00
-12% €255,00 €224,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 5, - Jun 8,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €18,66 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
RebecD800
Rebec-D800-1-Kanal Verstärker-masori-kaufen
Audison-bit Play HD-Verstärker-Zubehör-masori-kaufen
Audisonbit Play HD
Audio System-HX 12 FLAT EVO-12" (30cm) Flachsubwoofer-masori-kaufen
€224,00
€255,00 €224,00

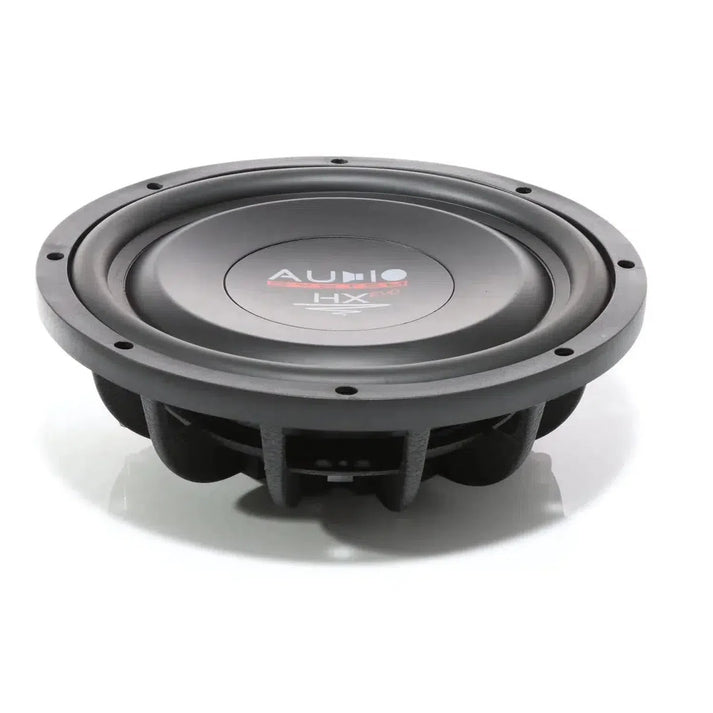

HX 12 FLAT EVO by Audio System

The HX 12 FLAT EVO is a 12-inch (30 cm) flat Subwoofer from Audio System in the HX series. Features include a 2-inch (50.8 mm) voice coil, stable terminals, and a 15-fold ventilation system. The HPPC membrane (High Pressed Paper Cone), woven silver wires, and a highly efficient HEM Y45 magnet are integrated. A progressive PC/Connex spider and a reinforced paper dust cap are present. The impedance is 2x 2 ohms. The installation depth is 92 mm. The Subwoofer has a cast basket and an NBR rubber surround. Nominal dimensions: installation diameter 281 mm, outer diameter 321 mm. Power specifications: 2x 200 watts RMS and 2x 400 watts max. The weight is 8 kg.

Features
  • 12-inch (30 cm) flat Subwoofer
  • HX series
  • 2-inch (50.8 mm) voice coil
  • stable terminals
  • 15-fold ventilation system
  • HPPC membrane (High Pressed Paper Cone)
  • cast basket
  • NBR rubber surround
  • woven silver wires
  • highly efficient HEM Y45 magnet
  • progressive PC/Connex spider
  • reinforced paper dust cap
Technical Specifications
  • Impedance: 2x 2 ohms
  • RMS power: 2x 200 watts
  • Max power: 2x 400 watts
  • Installation depth: 92 mm
  • Installation diameter: 281 mm
  • Outer diameter: 321 mm
  • Weight: 8 kg

Your benefits at Masori

Audio System HX 12 FLAT EVO Datasheet

Open datasheet

Frequently Asked Questions about HX 12 FLAT EVO

What distinguishes the HX 12 FLAT EVO from the HX series?

The HX 12 FLAT EVO from Audio System is a 300mm high-end flat subwoofer that impresses with its advanced technical features. It has a 2-inch voice coil that ensures the performance and stability of the subwoofer. Its HPPC membrane (High Pressed Paper Cone) offers excellent sound precision, while the HEM Y45 magnet guarantees high efficiency and power. The stable construction is complemented by a robust cast basket design and a reinforced paper dust cap. This combination of advanced materials and excellent construction makes the HX 12 FLAT EVO an outstanding audio product.

What is the load capacity of the HX 12 FLAT EVO subwoofer?

The HX 12 FLAT EVO from Audio System has an impressive load capacity with a maximum power input of 2x 400 watts and an RMS power of 2x 200 watts. These technical specifications allow the subwoofer to produce powerful and dynamic sounds, which is particularly beneficial for music lovers who value deep and full-bodied bass reproduction. Especially if you enjoy listening to music at high volumes, the robust construction of the HX 12 FLAT EVO will help minimize distortion and ensure clear sound reproduction.

How does the 15-fold ventilation system of the HX 12 FLAT EVO work?

The 15-fold ventilation system of the HX 12 FLAT EVO significantly contributes to heat dissipation by preventing the overheating of the voice coil. This extensive ventilation increases the efficiency of the subwoofer by maximizing air circulation, which is particularly advantageous under high power demands. It is a complex system that effectively dissipates heat through the clever integration of channels and ventilation openings. This not only optimizes sound quality but also extends the lifespan of the subwoofer by reducing thermal stress on the electrical components.

What makes the HEM Y45 magnet in the HX 12 FLAT EVO particularly efficient?

The high-efficiency HEM Y45 magnet of the HX 12 FLAT EVO is known for its strong magnetic force, which contributes to the performance enhancement of the subwoofer. The magnetic effect increases the sensitivity of the voice coil, which is particularly beneficial for extended bass reproduction. This property allows for an expanded frequency response and optimized sound quality. The HEM Y45 magnet is made from a specific material that offers high temperature resistance, ensuring that it maintains stable magnetic properties even under continuous load to guarantee consistent sound quality.

How easy is the installation of the HX 12 FLAT EVO in the car?

With a mounting depth of 92 mm and a mounting diameter of 281 mm, the HX 12 FLAT EVO can be easily integrated into most vehicle models. The advanced design allows for flexible adaptation to various enclosure configurations without significant modifications required. The sturdy terminals simplify the wiring, further streamlining the installation process. It is important to check the specific dimensions of your vehicle beforehand to ensure that the Subwoofer fits correctly in the designated opening and has optimal contact with the acoustic chambers to guarantee the best sound quality.

What role does the HPPC membrane play in the sound of the HX 12 FLAT EVO?

The HPPC membrane (High Pressed Paper Cone) is crucial for the outstanding sound quality of the HX 12 FLAT EVO. It enables precise sound reproduction with reduced distortion, which is particularly beneficial at high volumes. This special type of membrane has high sound pressure resistance and is known for its lightness, resulting in quick response times and precise bass reproduction. The integrated woven silver wires support the mechanical stability of the membrane, thereby contributing to the overall sound quality of the Subwoofer. These technical features highlight the level of innovation of the HX 12 FLAT EVO.

What influence does the progressive PC/Connex spider have on the performance of the HX 12 FLAT EVO?

The progressive PC/Connex spider in the HX 12 FLAT EVO provides an excellent balance between stability and flexibility of the membrane's movement, improving the reproduction of low-frequency sounds. This special design supports the linear movement of the voice coil and reduces unwanted vibrations that could lead to distortion. The precise control of the membrane's movement ensures consistent bass reproduction and extends the lifespan of the electroacoustic components. This spider mechanism is optimized for precise sound quality, making the Subwoofer an excellent choice for high-fidelity audio applications. The innovative technology of the spider emphasizes the premium quality of the HX 12 FLAT EVO.

What technical advantages do stable terminals offer in the HX 12 FLAT EVO?

The stable terminals of the HX 12 FLAT EVO ensure a reliable connection between the cables and the Subwoofer, which is extremely important for consistent signal transmission. This solid construction prevents loose connections from forming during vibration operation, which could distort the sound. The high-quality craftsmanship of the terminals supports long-lasting performance through secure cable fixation, thereby reducing installation effort. Terminals help minimize power losses, allowing for more efficient use of the supplied energy and maximizing the output power of the Subwoofer. This is a crucial factor for sound clarity and performance strength.

What advantages does the 2x 2 Ohm impedance of the HX 12 FLAT EVO offer?

The HX 12 FLAT EVO is equipped with a dual voice coil of 2x 2 Ohm, allowing for more flexible connection options to various Amplifier systems. This impedance configuration opens up the potential for what's called 'wiring', where parallel or series wiring is possible to adjust the resistance value to the specific requirements of your audio system. This allows for tuning the Subwoofer to individual acoustic needs and amplifier configurations to extract maximum performance. The 2-ohm configuration can be particularly advantageous for utilizing amplifiers with lower impedance while optimizing power delivery.

How does the NBR rubber surround affect the sound of the HX 12 FLAT EVO?

The NBR rubber surround of the HX 12 FLAT EVO plays a key role in controlling the membrane's vibrations by setting the movement limits and thus reducing unwanted distortions. This highly durable connection piece allows for consistent membrane movement even at intense sound levels, improving responsiveness and making bass reproduction more precise. Nitrile rubber (NBR) is known for its resistance to temperature and mechanical stress, as well as its durability. This material choice contributes to damping unwanted resonances and ensures clean sound, especially in the critical low-frequency segment, thereby maximizing audio performance.
