  3. Rockford Fosgate Speakers, Subwoofers & More for Cars
  5. Punch P500X2

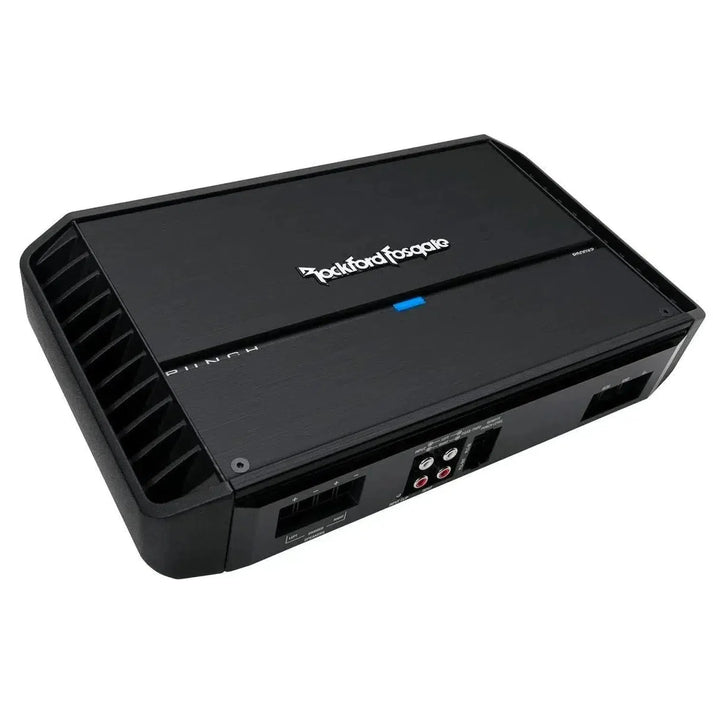

Rockford Fosgate Punch P500X2 2-Channel Amplifier

1 Review

250 Watt

Rockford Fosgate Punch P500X2 2-Channel Amplifier

1 Review

Technical Highlights

  • 2-channel amplifier with 150W RMS power per channel at 4 ohms.
  • Highly efficient Class A/B circuit for differentiated sound.
  • Built-in punch EQ with +18dB boost at 45Hz.
  • More technical details
€399,00
€399,00 €399,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
Mar 23, - Mar 26,
x Piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €33,25 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Rockford FosgatePunch P500X1bd
Rockford Fosgate-Punch P500X1bd-1-Kanal Verstärker-masori-kaufen
Rockford Fosgate-RFFAGU-Sicherungshalter-masori-kaufen
Rockford FosgateRFFAGU
Rockford Fosgate-Punch P500X2-2-Kanal Verstärker-masori-kaufen
€399,00
€399,00 €399,00

Punch P500X2 by Rockford Fosgate

The Rockford Fosgate Punch P500X2 2-channel amplifier is an excellent way to power the sound system with plenty of power without taking up the entire trunk. This is made possible by a highly efficient digital Class A/B circuit, which provides a warm and detailed sound along with a massive aluminum heat sink.

Features

  • High-level capable input with auto turn-on circuit
  • RCA Pass-Through Outputs
  • 12dB/Octave Butterworth Crossover
  • Characteristics of C.L.E.A.N. Attitude
  • Optional remote-controlled Punch Level Control (PLC2) (with input clip display)
  • Built-in punch EQ with +18 dB boost at 45 Hz
  • Mute on power on
  • Cast aluminum heat sink
  • Stealth control panel on the top
  • short-circuit protection
  • Overcurrent protection

Specifications

  • 2-channel amplifier
  • RMS Power:
    • 150 Watt x 2 @ 4-Ohm
    • 250 Watt x 2 @ 2-Ohm
    • 500 Watt x 1 @ 4-Ohm bridged
  • Dynamic power:
    • 223 Watt x 2 @ 4-Ohm
    • 365 Watt x 2 @ 2-Ohm
  • Bridgable: Yes
  • Frequency response: 20Hz to 20kHz +/- 1.0dB
  • Input sensitivity: 150 mV - 12 V
  • Circuit topology class: Class A/B
  • Efficiency (Average): 73% @ 4-Ohm
  • Signal input: High/Low level: 1 RCA pair
  • Signal output: Low level: 1 RCA pair
  • Sound control:
  • Punch EQ2 Bass: 0dB to +18dB at 45Hz
  • Punch EQ2 Treble: 0dB to +12dB @ 12kHz
  • Function depends on the position of the LP/AP/HP switch.
  • Crossover Controller:
  • High-pass: 50Hz-250Hz @ 12dB/Octave Butterworth
  • Low-pass: 50Hz-250Hz @ 12dB/Octave Butterworth
  • Remote controls: Optional punch level control (PLC2) ready
  • Optical Indicators: Power/Protection/Thermal LED
  • Cable diameter: 20mm²
  • Speaker cable diameter: 8mm²
  • Cooling: Convection
  • Operating voltage: 9 - 16 VDC
  • Recommended fuse: 80 A
  • Average current consumption (13.8 V music): 40 A
  • Max. current consumption (13.8 V sine): 80 A
  • Dimensions (H x W x D): 6.05 x 19.71 x 33.73 cm
  • Shipping weight: 5.57 Kg

Your benefits at Masori

Frequently Asked Questions about Punch P500X2

What power does the Rockford Fosgate Punch P500X2 Amplifier provide for my audio system?

The Rockford Fosgate Punch P500X2 Amplifier delivers impressive power. At 4 Ohms, it offers 150 watts per channel, while at 2 Ohms, the power increases to 250 watts per channel. In bridged mode, it can even reach 500 watts at 4 Ohms. Additionally, it impresses with a dynamic power of 223 watts at 4 Ohms and 365 watts at 2 Ohms. These power specifications show that the amplifier provides extensive capabilities that significantly enhance your audio experience, especially at higher volumes or more demanding sound settings.

How does the Class A/B circuitry affect sound quality in the Rockford Fosgate Punch P500X2?

The Class A/B circuitry of the Rockford Fosgate Punch P500X2 ensures a warm and detailed sound, as it combines the advantages of Class A and Class B. The Class A/B technology offers high efficiency and precise sound reproduction. This circuit topology allows the amplifier to clearly transmit both low and high frequencies without losing detail and warmth. As a result, your musical experience is noticeably improved, both at quiet and loud volumes, making the Punch P500X2 particularly versatile.

What Crossover functions does the Punch P500X2 have and how do they affect performance?

The Punch P500X2 from Rockford Fosgate is equipped with a 12dB/octave Butterworth Crossover, which provides high-pass and low-pass filters in a frequency range of 50Hz to 250Hz. These crossovers ensure a clean separation of signals, minimizing distortion and resulting in a more even sound overall. With dynamic adjustment, the crossover can be tailored to specific speaker requirements, significantly increasing flexibility in sound design and allowing you to utilize the full potential of your sound system.

What is the C.L.E.A.N. setting and what benefits does it offer with the Punch P500X2 Amplifier?

The C.L.E.A.N. setting in the Punch P500X2 Amplifier from Rockford Fosgate stands for 'Clipping Eliminating, Advanced, Null'. This feature allows for precise adjustment of the input signal to avoid clipping, which is crucial for sound quality. With C.L.E.A.N. technology, the input clip indicator can help optimize the signal level, thereby minimizing distortion. This is especially useful if you prefer high volumes, as it ensures that the audio output remains clear and distortion-free even at high levels.

How can the Punch Level Control (PLC2) make the Punch P500X2 Amplifier more effective?

The Punch P500X2 Amplifier is equipped with an optional Punch Level Control (PLC2). This allows you to adjust the bass boost and volume from a convenient location. By installing the PLC2, you can precisely control the output volume and bass of the amplifier. This is particularly handy when the amplifier is installed in the trunk and adjustments are needed while driving. The PLC2 offers additional flexibility and comfort, especially when you listen to different music genres and want to make quick adjustments.

What safety features are integrated into the Punch P500X2 Amplifier?

The Rockford Fosgate Punch P500X2 Amplifier has several built-in safety features to ensure performance and longevity. These include short circuit protection and overcurrent protection, which safeguard the device from potential damage due to electrical malfunctions. This is complemented by an optical display that shows the power status and temperature monitoring. These protective mechanisms ensure that the amplifier operates safely and efficiently, even under demanding conditions, and minimize the risk of failures or damage to the audio system.

What are the dimensions of the Punch P500X2 and how do they affect installation options?

The Punch P500X2 Amplifier from Rockford Fosgate measures 6.05 x 19.71 x 33.73 cm. These compact dimensions make installation easier in tight spaces, as often found in vehicle interiors or trunks. Due to its small size, it is particularly suitable for vehicles that offer limited space without completely taking over the trunk. The space-saving design combined with integrated heat dissipation through the aluminum heat sink ensures that installation is straightforward while keeping the device powerful.

How does the automatic turn-on function of the Punch P500X2 Amplifier work?

The Rockford Fosgate Punch P500X2 features an auto turn-on circuit for high-level inputs. This function detects automatic signal inputs and turns on the amplifier without requiring an additional remote signal. This is particularly advantageous for aftermarket audio systems that do not have a dedicated remote turn-on lead. The automatic turn-on function also protects the system from unnecessary power consumption by activating the amplifier only when a signal is present. This supports a clean, efficient operation of the amplifier and reduces installation effort.

What role does the aluminum heat sink play in the Punch P500X2?

The massive, cast aluminum heat sink of the Punch P500X2 Amplifier is crucial for temperature regulation during operation. Its function is to quickly and efficiently dissipate the heat generated by the amplifier to avoid thermal overload. This is especially important at high volumes or when playing bass-heavy music for extended periods. The aluminum heat sink ensures that the amplifier remains consistently within safe operating temperatures, stabilizing its performance and increasing longevity. This provides additional safety and reliability in use.

How do I optimally set the input sensitivity on the Punch P500X2?

The Punch P500X2 Amplifier from Rockford Fosgate offers an input sensitivity range of 150 mV to 12 V. For optimal adjustment, the source of the audio signal should be known. First, set the amplifier to a low sensitivity value and slowly increase it until distortion becomes audible. This adjustment ensures an optimal signal-to-noise ratio for the best sound quality. The flexibility in the adjustment range allows the amplifier to be adapted to various signal sources and system setups, which is important for both quiet and loud sound settings.
