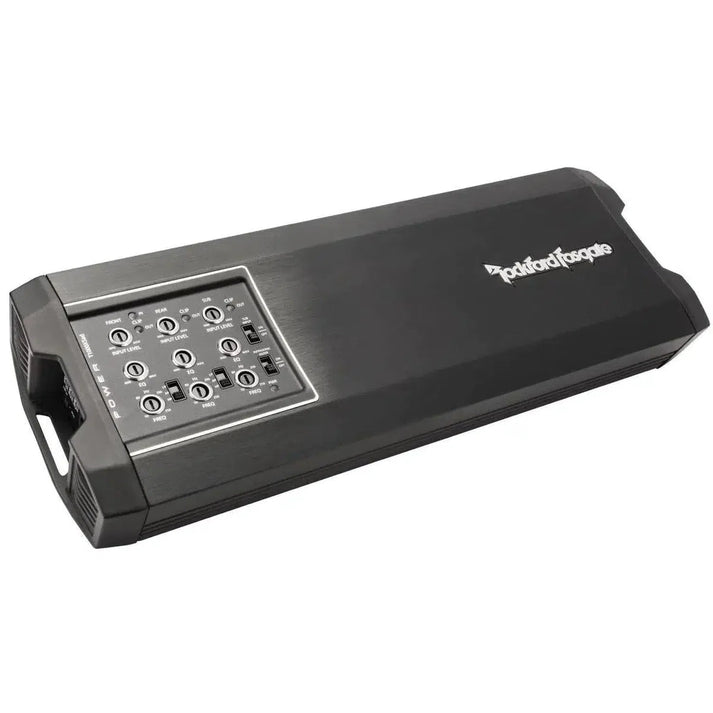

Rockford Fosgate Power T1000x5ad 5-Channel Amplifier
SKU:  T1000X5AD
EAN:  4251950323985
100 Watt

Power T1000x5ad

SKU:  T1000X5AD
EAN:  4251950323985

Technical Highlights

  • RMS power: 100W x 4 + 400W x 1 @ 4Ω, impedance: 4/2 ohms.
  • Class-AD, dynamic power: 138W x 4 + 487W x 1 @ 4Ω.
  • Frequency response: 20Hz-20kHz, efficiency: >85%, crossover.
  • More technical details
€899,00
€899,00 €899,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 5, - Jun 8,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €74,91 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Rockford FosgatePunch P3SG-12
Round metal mesh screen with a honeycomb pattern, like the Rockford Fosgate Punch P3SG-12 Subwoofer Grille, with four notches along the edge, shown on a white background.
A close-up of a Rockford Fosgate Punch Pro PPS4-8 car audio speaker with a silver cone center and visible terminals, designed for high sound pressure levels.
Rockford FosgatePunch Pro PPS4-8
Rockford Fosgate-Power T1000x5ad-5-Kanal Verstärker-masori-kaufen
€899,00
€899,00 €899,00

Power T1000x5ad by Rockford Fosgate

Power T1000x5ad is a 5-Channel Amplifier from Rockford Fosgate with 1000 Watts RMS based on Rockford Fosgate's proprietary Class-AD technology. The Constant-Power technology allows for up to 25% above the nominal power per channel. Top-mounted controls with C.L.E.A.N. level adjustment system, integrated high and low pass crossovers, input channel configuration switches, and Punch EQ boost. Dual fan-cooled with real-time temperature measurement and rollback, as well as two extruded heat sinks. Compatible with the PLC2 remote control for adjusting the sub-channel output level. Frequency response 20 Hz to 20 kHz, efficiency over 85%, THD+Noise under 1.0%. Circuit topology Class AD and Class BD (Sub), differential inputs with automatic turn-on function and remote-out for high-level input. Dimensions 4.1 x 10.8 x 30.5 cm, weight 5.4 kg.

Features
  • 5-Channel Amplifier
  • 1000 Watts RMS
  • Rockford Fosgate's proprietary Class-AD technology
  • Constant-Power technology (up to 25% per channel)
  • 4/2-Ohm multi-impedance constant power
  • C.L.E.A.N. input/output clip detection and display LEDs
  • Punch EQ boost circuit
  • Top-mounted controls
  • Integrated high and low pass crossovers
  • Differential inputs with automatic turn-on function for high levels
  • Remote-out function when using high-level inputs
  • PLC2 remote controllable
  • Dual fan-cooled
  • Real-time temperature measurement with rollback technology
  • Two extruded heat sinks
  • All other standard Rockford protection mechanisms
  • Discrete surface mount technology
Technical Specifications
  • RMS continuous power: 100 Watts x 4 + 400 Watts x 1 @ 4 Ω
  • RMS continuous power: 100 Watts x 4 + 600 Watts x 1 @ 2 Ω
  • RMS continuous power: N/A + 600 Watts x 1 @ 1 Ω
  • RMS continuous power: 200 Watts x 2 @ 4 Ω bridged + N/A
  • Dynamic power: 138 Watts x 4 + 487 Watts x 1 @ 4 Ω
  • Dynamic power: 118 Watts x 4 + 748 Watts x 1 @ 2 Ω
  • Dynamic power: N/A + 663 Watts x 1 @ 1 Ω
  • Dynamic power: 225 Watts x 2 @ 4 Ω bridged + N/A
  • Bridgeable: Yes
  • Frequency response: 20 Hz - 20 kHz
  • Input sensitivity: 150 mV to 12 V
  • Circuit topology: Class AD + Class BD (Sub)
  • Efficiency (average): >85%
  • Total harmonic distortion (THD+Noise): <1.0%
  • Front High/Low input: 4-pin harness
  • Rear High/Low input: 4-pin harness
  • Sub High/Low input: 4-pin harness
  • Input switch: 2CH/4CH
  • Sound control Front/Rear (HP mode): 0 to +14 dB at 12.5 kHz
  • Sound control Front/Rear (LP mode): 0 to +18 dB at 45 Hz
  • Sound control Sub: 0 to +18 dB at 45 Hz
  • Crossover high pass: 50 Hz - 250 Hz @ 12 dB/Octave
  • Crossover low pass: 50 Hz - 250 Hz @ 12 dB/Octave
  • Crossover Subwoofer: 50 Hz - 250 Hz @ 12 dB/Octave
  • Infrasonic filter: 28 Hz @ 12 dB/Octave
  • Butterworth alignment on all filters
  • Remote control: optional PLC2 Punch-Level control
  • Cable diameter: 25 mm²
  • Speaker output connection Front: 4-pin harness
  • Speaker output connection Rear: 4-pin harness
  • Cooling: dual fan-cooled
  • Heat sink: extruded aluminum
  • Recommended fuse: 100 A
  • Max current draw (13.8 V sine wave): 108 A
  • Dimensions (H x W x D): 4.1 x 10.8 x 30.5 cm
  • Weight: 5.4 kg

Your benefits at Masori

Frequently Asked Questions about Power T1000x5ad

How much power does the Power T1000x5ad Amplifier deliver?

The Power T1000x5ad Amplifier from Rockford Fosgate offers impressive power capabilities. It delivers an RMS continuous power of 100 watts per channel across four channels plus 400 watts on a sub-channel at an impedance of 4 ohms. At 2 ohms, the power increases to 100 watts per channel on the four main channels and 600 watts on the sub-channel. The dynamic power is 138 watts per channel plus 487 watts for the sub-channel at 4 ohms. These power parameters demonstrate that the T1000x5ad is capable of amplifying audio with high efficiency and impressive sound quality.

What technology is used in the Power T1000x5ad?

The Rockford Fosgate Power T1000x5ad utilizes proprietary Class-AD technology. This technology represents a combination of high efficiency and excellent sound quality. Due to the Class-AD circuit topology and the additional Class-BD topology for the sub-channel, with an average efficiency of over 85%, effective and powerful audio signal amplification is ensured. These features make the T1000x5ad ideal for demanding audio applications that far exceed the typical requirements of a conventional amplifier.

What crossovers are integrated in the Power T1000x5ad?

The Power T1000x5ad Amplifier is equipped with integrated high-pass and low-pass crossovers. The high-pass crossover is adjustable from 50 Hz to 250 Hz at 12 dB per octave, while the low-pass crossover has the same range and attenuation. The subwoofer channel also features an adjustable crossover in the range of 50 Hz to 250 Hz at 12 dB per octave. Additionally, there is an infrasonic filter that operates at 28 Hz. These crossover settings allow for precise tuning of the sound characteristics for maximum performance.

How is the cooling of the Power T1000x5ad Amplifier achieved?

The Power T1000x5ad Amplifier is kept at optimal operating temperature by a dual fan-cooled system with two extruded aluminum heat sinks. These fans operate in real-time with a heat measurement system that features rollback technology to efficiently dissipate heat. This is particularly advantageous at high power outputs, as the technology ensures continuous cooling, significantly improving the longevity and efficiency of the Amplifier while minimizing power consumption.

What connection options does the Power T1000x5ad Amplifier offer?

The Rockford Fosgate Power T1000x5ad offers versatile connection options for flexible installation. It features high and low-level inputs for both front and rear speakers, realized through 4-pin wiring harnesses. A dedicated sub-high/low input is also equipped with a 4-pin wiring harness. The input switches are toggleable between 2CH and 4CH, allowing for a variety of configuration options in different audio setups. This is particularly suitable for optimizing compatibility with a range of audiovisual setups.

What are the dimensions of the Rockford Fosgate Power T1000x5ad Amplifier?

The Rockford Fosgate Power T1000x5ad Amplifier is characterized by compact dimensions. With a height of 4.1 cm, a width of 10.8 cm, and a depth of 30.5 cm, it is relatively space-saving. These dimensions allow for flexible installation in various car models without requiring significant installation space. The weight of 5.4 kg also ensures stable placement, even when you listen to music loudly and frequently. The overall size makes it ideal for applications where both power and compactness are required.

What settings can be adjusted on the Power T1000x5ad Amplifier?

The Power T1000x5ad Amplifier offers extensive customization options to optimize the sound experience. On the input side, the C.L.E.A.N. level adjustment system provides the ability to use input/output clip detection and LED indicators for fine-tuning. Additionally, treble and bass for the front channels can be adjusted from 0 to +14 dB at 12.5 kHz. For the rear channels, the adjustment range is from 0 to +18 dB at 45 Hz. These features allow you to modify and tailor the sound to your preferences, resulting in a detailed and personalized sound.

What safety mechanisms does the Power T1000x5ad offer?

Rockford Fosgate's Power T1000x5ad features standard protection mechanisms that safeguard the Amplifier from overload and damage. Real-time temperature monitoring combined with rollback technology protects the Amplifier from overheating. Furthermore, the discrete surface mount technology enhances the efficiency and reliability of the component by reducing the likelihood of short circuits and other hazardous failures. These protective measures are essential to ensure the longevity of the Amplifier and to counteract constant performance losses.

Is there a way to remotely control the Power T1000x5ad?

Yes, the T1000x5ad from Rockford Fosgate is compatible with the optional PLC2 remote control, which allows for control of the punch level function. With this remote, you can specifically adjust the output level of the sub-channel to regulate the bass in real-time according to your preferences. This feature is particularly helpful in driving situations where quick and easy adjustments to the sound dynamics are required without interrupting the auditory experience or posing dangers.

What power supply was the Power T1000x5ad designed for?

The Power T1000x5ad Amplifier is designed for use in a 13.8 V-controlled vehicle battery, which corresponds to the common vehicle network voltage. The maximum current draw at full sine power is 108 A, so a recommended fuse of 100 A is required. These electrical specifications not only ensure stable and consistent power output but also support the high efficiency of the Amplifier to provide the best possible performance in audio playback and reliability during vehicle use.
