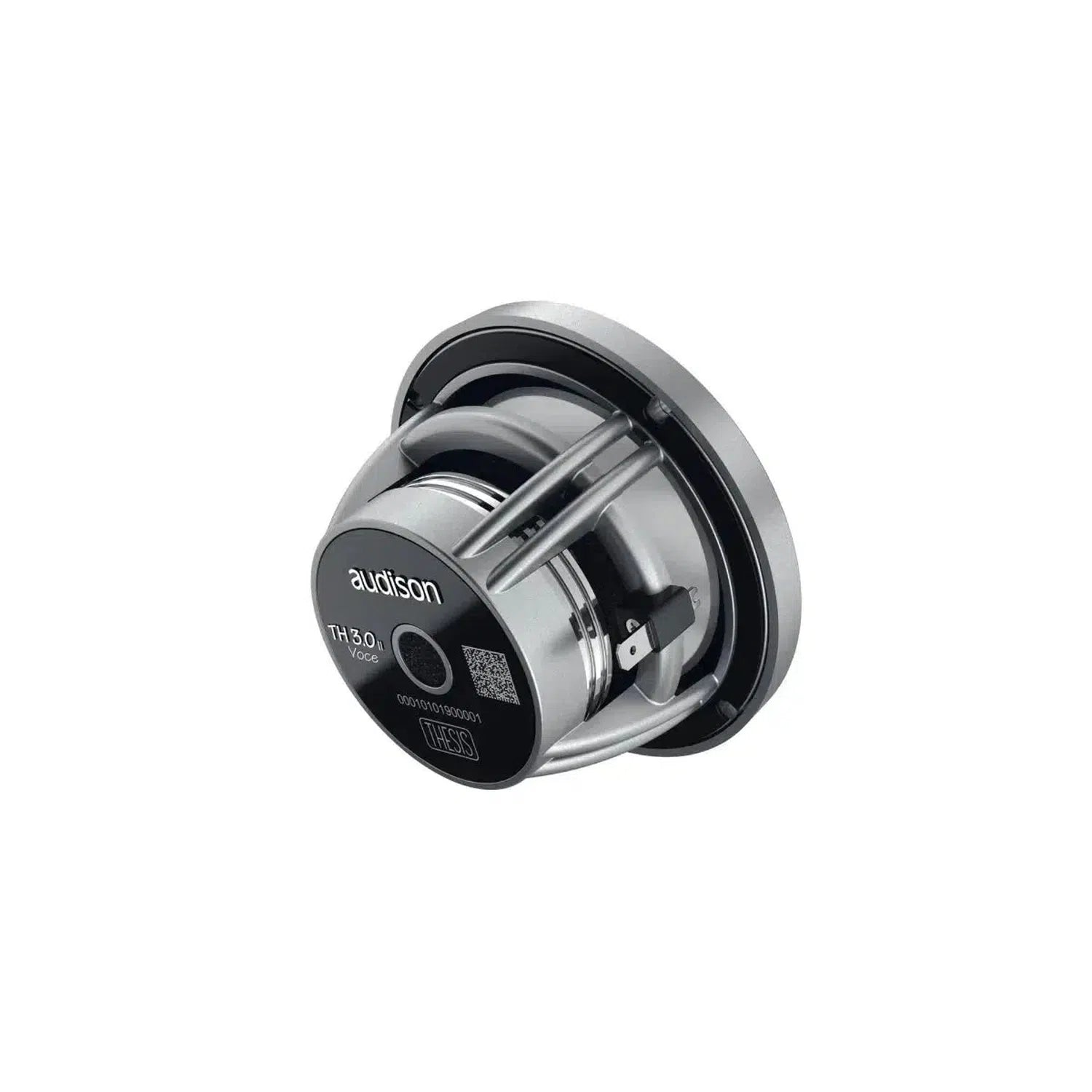

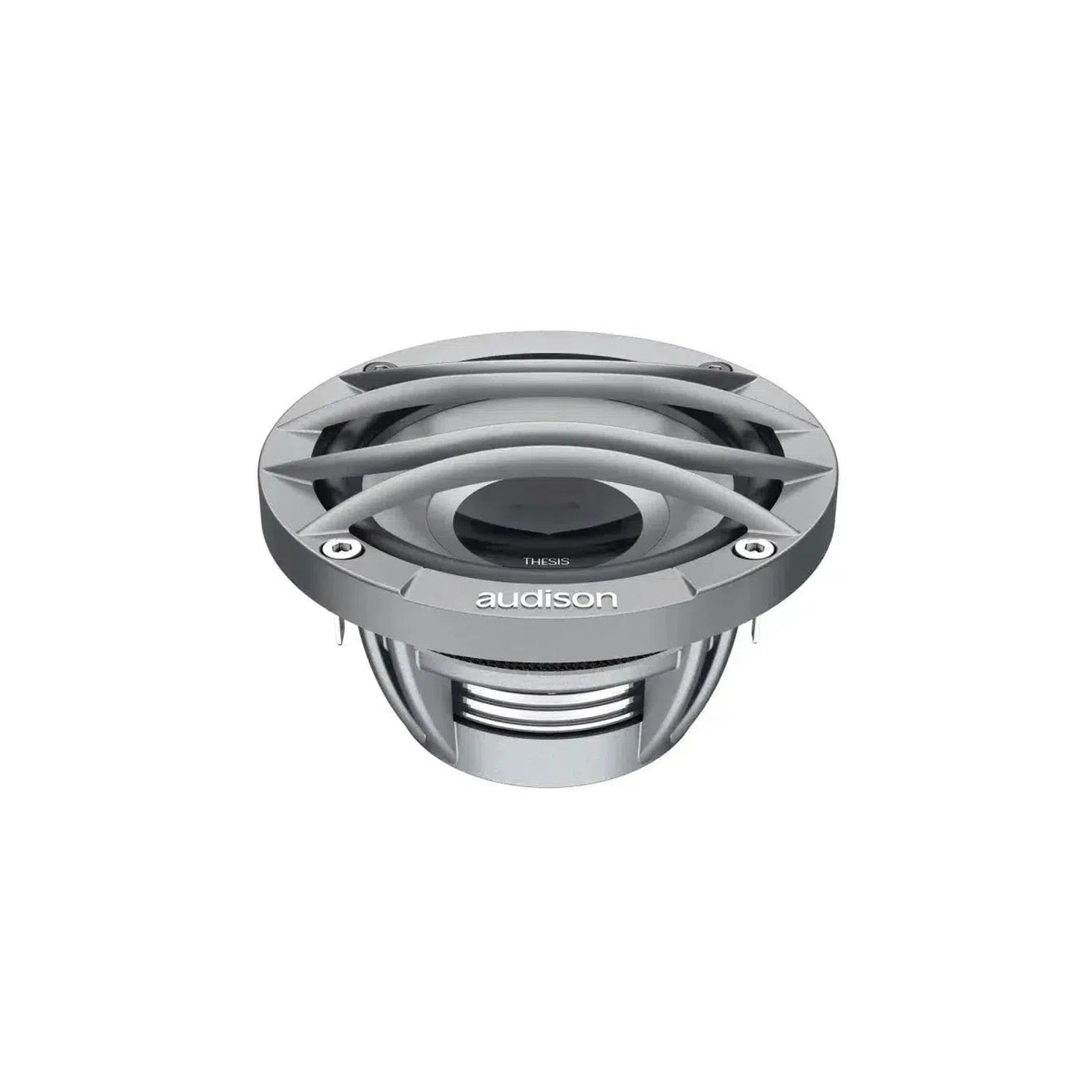

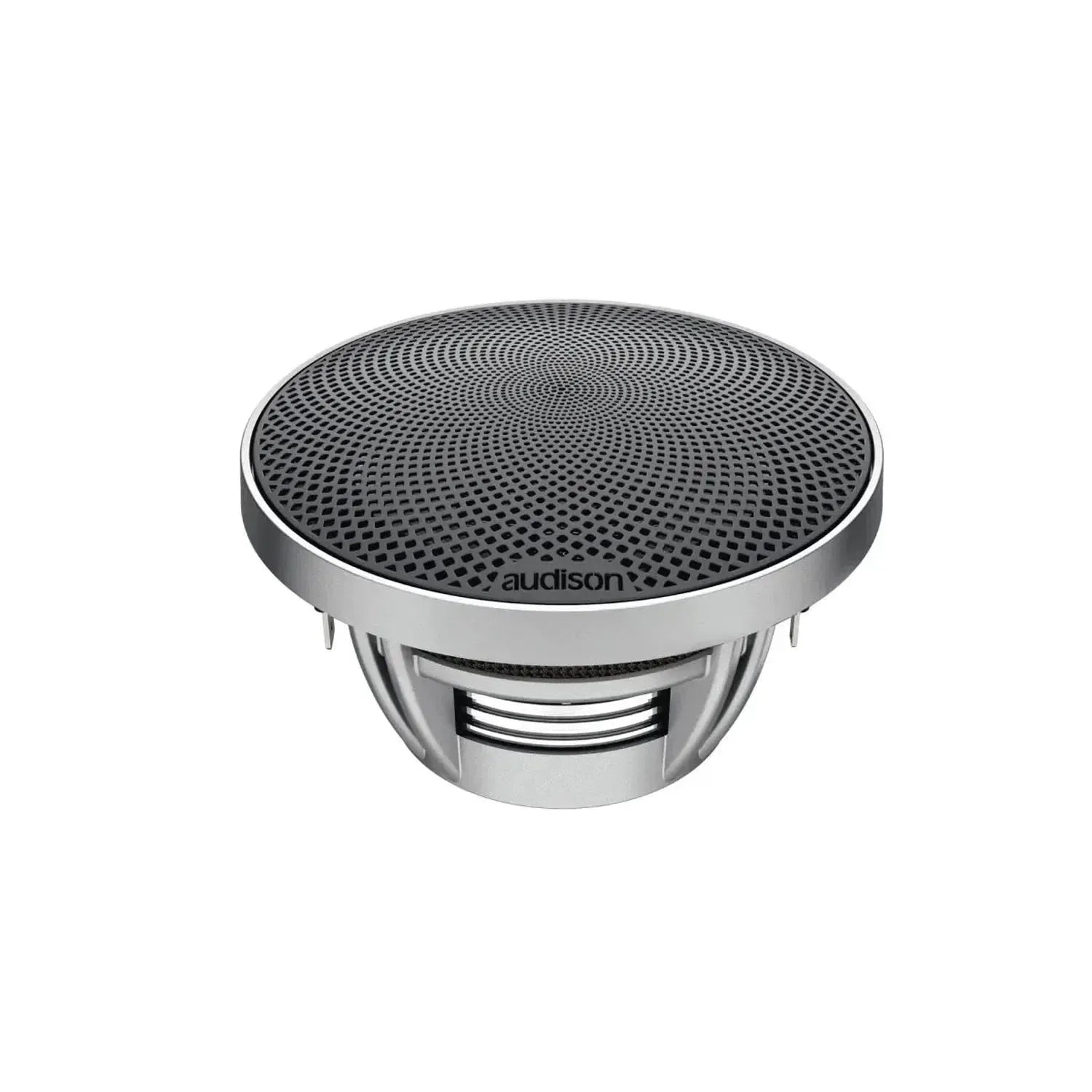

Audison Thesis TH 3.0 II voce 3" (8cm) midrange driver

CYBER -15%

Audison Thesis TH 3.0 II voce 3" (8cm) midrange driver

  • 3" midrange driver, 110W peak, 85.6 dB SPL, 4 Ohm.
  • Frequency response 110-5700 Hz, N38H neodymium magnet, TPX® membrane.
  • High linearity, aluminum demodulation ring, Audison quality.
  • Mehr technische Details
00
00
00
00
€823,65
€969,00 €823,65
5% Rabatt mit Vorkasse
inkl. VAT , possibly plus shipping
Klarna Bequem in 12 zinsfreien Raten à €68,63 mit Klarna zahlen.
Delivery to Home
Dec 7, - Dec 10,
x Couple
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa

Seen cheaper?

Shipping cost calculator

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

Deshalb wählen uns 100.000+ Kunden

Expert Image

Rob

Expert Image

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h
AudisonVoce AV 3.0
Audison-Voce AV 3.0-3" (8cm) Mitteltöner-masori-kaufen
Deaf Bonce-Machete MM-50L-5" (13cm) Mitteltöner-masori-kaufen
Deaf BonceMachete MM-50L

Thesis TH 3.0 II voce by Audison

The Thesis TH 3.0 II Voce from Audison is an outstanding 3-inch midrange driver that stands out especially for its optimal clarity in the midrange frequencies. Audison has specifically designed this device to offer the human ear maximum sensitivity and selectivity. With a peak power of 110 W, a diameter of 70 mm, and an impedance of 4 ohms, this midrange driver impresses with its extreme linearity, its specially made N38 H-grade neodymium magnet, and its transparent TPX® material, highlighting its high quality and sophistication. Since the human ear is sensitive in the midrange frequency area, the Thesis TH 3.0 II Voce reproduces every tone flawlessly. Choose the Thesis 3.0 II Voce to capture the smallest nuances in your music or spoken communication.

TECHNICAL DATA

  • Size 70 mm
  • Power Handling - Peak 110 W
  • Power Handling - Continuous 55 W
  • Impedance 4 Ohm
  • Frequency Response 110 - 5700 Hz
  • Magnet Material SPECIAL NEODYMIUM N38H
  • Voice Coil Ø 30.5 mm
  • Voice Coil Material CCAP - COPPER CLAD ALUMINUM RIBBON
  • Woofer Qes 0.52
  • Xmax 3.3 mm

ELECTRO-ACOUSTIC PROPERTIES

  • D 66.75 mm
  • Re 3.4 Ohm
  • Fs 100 Hz
  • Vas 1.01 l
  • Mms 4.3 g
  • Cms 0.59 mm/N
  • BL 4.2 T•m
  • Qms 5.5
  • Qts 0.48
  • Le Standard 0.18 mH
  • Spl 85.6 dB

GENERAL

  • Weight 0.25 kg

DIMENSIONS

  • Dimension A 84 mm
  • Dimension B 73.5 mm
  • Dimension C 45 mm
  • Dimension D 37 mm
  • Dimension E 89 mm
  • Dimension F 18

FEATURES

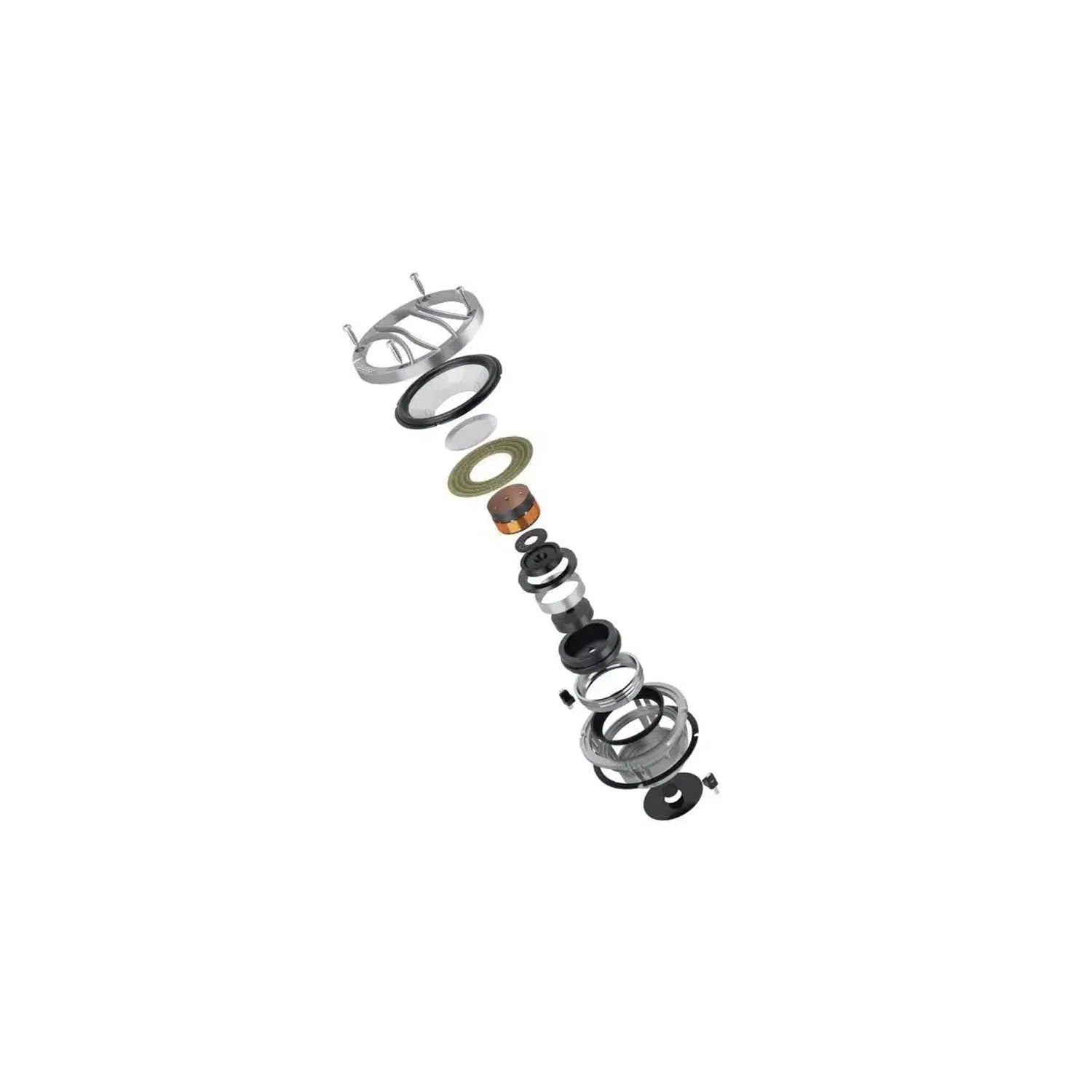

  • 30.5 mm moving voice coil made of CCAR (Copper Clad Aluminum Ribbon) wound with flat wire to maximize force factor and heat dissipation.
  • Aluminum demodulation ring to linearize high excursion, reduce intermodulation distortion, and eliminate sound coloration.
  • Motor geometry designed using finite element simulation software to optimize efficiency by concentrating the magnetic field in the gap.
  • Membrane made of TPX®, a transparent material that reduces irregularities in the frequency response.
  • Membrane geometry designed with simulation software to achieve homogeneous directivity.
  • Optimized cone/space resolution with extensive simulations to linearize the frequency response at mid frequencies.
  • Basket made from a single piece of die-cast aluminum with four pairs of spokes for maximum stiffness without slowing airflow.
  • Suspension and spider with very high excursion, optimized with simulations of the speaker's multiphysical behavior.
  • eID technology for traceability of TH 3.0 II items from production to purchase.

Audison Thesis TH 3.0 II voce Datenblatt

Datenblatt öffnen

Frequent questions about Thesis TH 3.0 II voce

Welche spezifischen Merkmale hat der Audison Thesis TH 3.0 II voce Mitteltöner?

The Thesis TH 3.0 II voice from Audison is a 3-inch midrange driver that impresses with its Neodymium N38 H-grade magnet and its 30.5 mm CCAP voice coil. The frequency response ranges from 110 to 5700 Hz, ensuring accurate reproduction of mid frequencies. The transparent TPX® diaphragm allows for detailed sound nuances with precision. With an impedance of 4 ohms and a power handling of 110 watts peak, it handles both high volumes and the finest musical details. The aluminum demodulation ring eliminates intermodulation distortion and ensures clear, uncolored sound.

Wie beeinflusst der Kupferbeschichtete Aluminiumdraht die Leistungsfähigkeit der Schwingspule des Thesis TH 3.0 II voce?

The voice coil of the Thesis TH 3.0 II consists of copper-coated aluminum wire (CCAR), which ensures high efficiency and heat dissipation. This construction maximizes the power factor, leading to excellent control of movements while simultaneously increasing thermal resilience. The material mix allows for stable performance even under extreme usage, while the flat wire design promotes the speed of signal transmission. This minimizes unwanted delays and distortions, which is particularly important for demanding sound systems.

Welchen Einfluss hat der Aluminium-Demodulationsring des Audison Thesis TH 3.0 II voce?

The aluminum demodulation ring of the Thesis TH 3.0 II voce is designed to reduce intermodulation distortions. At large displacements, the ring linearizes the movement, thereby supporting the purity of the sound by minimizing tonal distortions. This leads to a significant improvement in the reproduction of complex musical passages. Especially at high levels, the sound remains balanced and detailed, making the midrange driver particularly suitable for audiophile demands. Additionally, it enhances the thermal stability of the speaker.

Welche Rolle spielt die TPX-Membran im Audison Thesis TH 3.0 II voce?

The TPX membrane in the Thesis TH 3.0 II voce ensures exceptional sound clarity and uniform frequency reproduction. Its transparent design allows for precise detection of sound nuances, which is particularly advantageous in the mid frequencies. The membrane geometry developed with simulation software optimizes directivity and minimizes irregularities in the frequency response. These characteristics result in the ability to reproduce even the finest acoustic details without distortion, making the speaker ideal for use in high-end audio systems.

Welche Abmessungen hat der Thesis TH 3.0 II voce und was sind die Einbauvoraussetzungen?

The Thesis TH 3.0 II voice has a mounting diameter of 70 mm, while the overall dimensions A to F are 84 mm, 73.5 mm, 45 mm, 37 mm, 89 mm, and 18 mm. These dimensions are crucial for installation to ensure compatibility. Typical mounting points would be the dashboard or door panels, provided there is enough space. Precise positioning is essential due to its acoustic properties and serves optimal sound development. Preferably, speaker enclosures that are tailored to these dimensions are used to avoid acoustic impairments.

Wie verhalten sich die elektro-akustischen Eigenschaften des Mitteltöners Thesis TH 3.0 II voce?

The electro-acoustic properties of the Thesis TH 3.0 II voce include a D-value of 66.75 mm and a resonance frequency (Fs) of 100 Hz. The weight of the moving mass (Mms) is 4.3 g, and the compliance (Cms) is 0.59 mm/N, while the Bl-value reaches 4.2 T•m. Loss factors such as the Qes of 0.52 and the Qts of 0.48 indicate an excellent adaptation to various acoustic scenarios. These configurations ensure optimization for precise impulse fidelity and dynamics, supporting clear and consistent sound reproduction in demanding audio setups.

Welche Frequenzbandbreite bietet der Audison Thesis TH 3.0 II voce?

The Audison Thesis TH 3.0 II voice covers a frequency range of 110 to 5700 Hz, enabling excellent sound reproduction in the mid-range. This performance makes it an ideal choice for high-precision audio applications, as it captures and reproduces the important human hearing zone clearly. Sound comfort is optimized by its linearized frequency response, resulting in even complex sound collages being resolved cleanly and vocal reproduction being transmitted accurately. Its adaptability to different acoustic environments offers the highest listening pleasure.

Wie wurde die Membrangeometrie des Audison Thesis TH 3.0 II voce optimiert?

The membrane geometry of the Audison Thesis TH 3.0 II voice was designed using finite element simulation software to optimize directivity and frequency response. This technology enables homogeneous sound radiation, particularly in the mid-frequency range, resulting in even and clear sound reproduction. The cone/space resolution has been finely adjusted to ensure focused acoustics without tonal distortions, ideal for demanding music productions. The innovative simulation technique ensures that the membrane maintains its stable shape under load, guaranteeing sound precision under all conditions.

Welche Rolle spielt der Aluminium-Druckgusskorb im Audison Thesis TH 3.0 II voce?

The aluminum die-cast basket of the Thesis TH 3.0 II voce is made in one piece and offers maximum structural integrity, enhancing the stability of the speaker. The four pairs of spokes support the rigidity of the frame while preventing any impairment of airflow, allowing for even sound distribution. This enables precise reproduction, as the basket construction eliminates mechanical resonances. As a result, the speaker secures its performance in any radial and axial position, and sound distortions are minimized under most wiring arrangements.

Welche akustischen Eigenschaften verstärken die Klangqualität des Thesis TH 3.0 II voce?

The sound quality of the Thesis TH 3.0 II voce is enhanced by the combination of CCAP voice coil, neodymium N38 H-grade magnets, and the aluminum demodulation ring. The resonance frequencies are effectively utilized by the membrane design, with the speaker offering a BL of 4.2 T•m and an SPL of 85.6 dB for high sensitivity. The optimized Qms of 5.5 and the Qts of 0.48 allow for the reproduction of harmonic sounds with low distortion. The membrane made of TPX® and the die-cast basket help maximize acoustic coherence under dynamic changes in volume.
