  5. HTX 8H S-FL-SW
Hertz HTX 8H S-FL-SW 8" (20cm) Marine Enclosed Speaker
SKU:  HTX-8H S-FL-SW
EAN:  8018823139434
200 Watt

HTX 8H S-FL-SW

SKU:  HTX-8H S-FL-SW
EAN:  8018823139434

Technical Highlights

  • Powerful with 200 W RMS and 400 W Peak, 4 Ohm impedance.
    Frequency range from 45 Hz to 25 kHz, sensitivity: 98 dB SPL.
    8" marine speakers, ferrite magnets, waterproof paper cone.
  • More technical details
€659,00
€659,00 €659,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 6, - Jun 9,
x pair
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €54,91 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
HertzHMS 10 B4-LD-C
Hertz-HMS 10 B4-LD-C-10" (25cm) Subwoofer-masori-kaufen

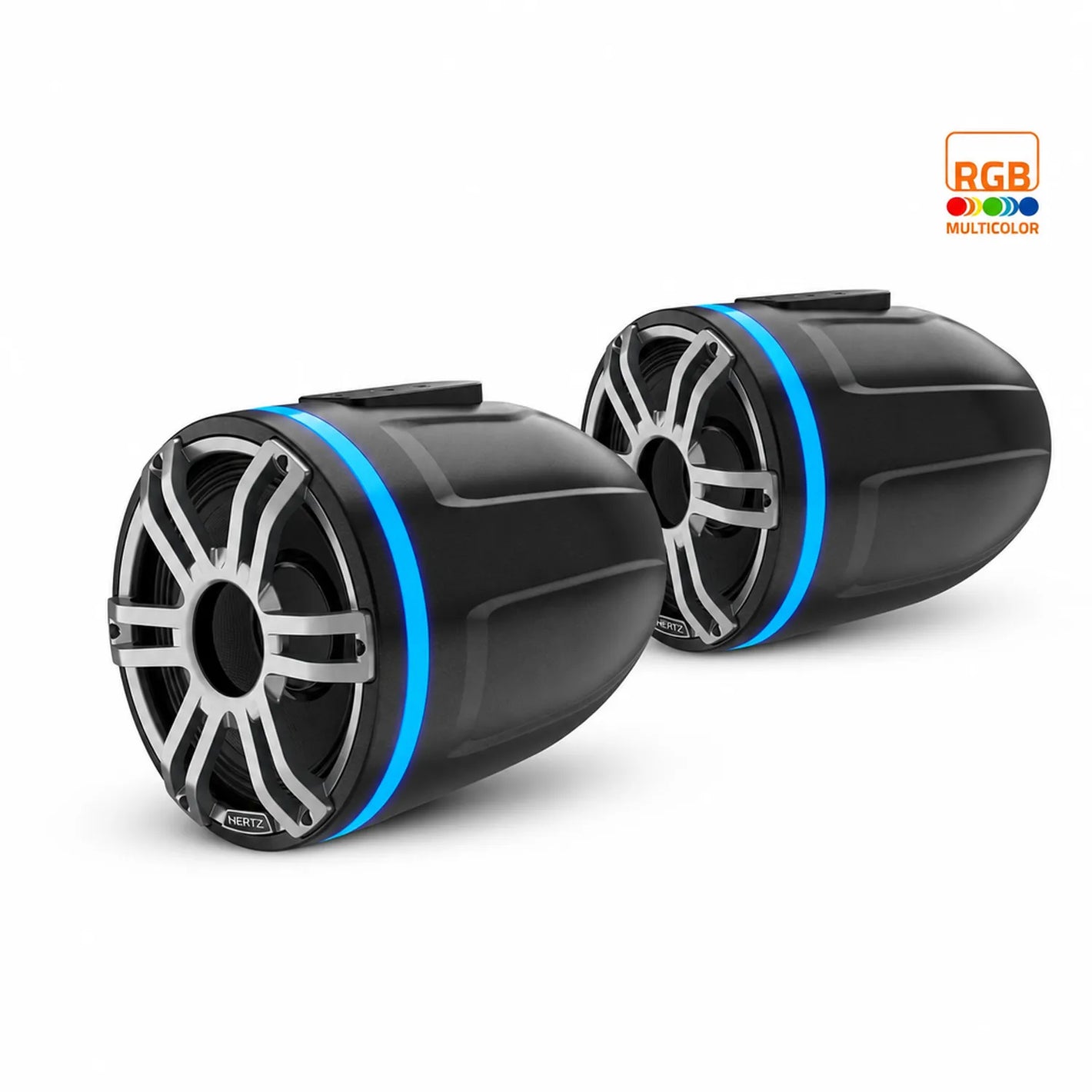

Hertz-HTX 8H S-FL-G-8" (20cm) Marine-Gehäuselautsprecher-masori-kaufen
HertzHTX 8H S-FL-G
Hertz-HTX 8H S-FL-SW-8" (20cm) Marine-Gehäuselautsprecher-masori-kaufen
€659,00
€659,00 €659,00

HTX 8H S-FL-SW by Hertz

The HTX 8H S-FL-SW from Hertz is an 8-inch marine enclosure speaker with an RMS power handling of 200 watts and a peak power handling of 400 watts. The system operates with an impedance of 4 ohms and covers a frequency range of 45 Hz to 25 kHz. The construction includes ferrite magnets with high flux density and a water-resistant diaphragm made of pressed paper. An integrated, sealed crossover as well as long-stroke 51 mm voice coil woofers are part of the technical features. The sensitivity is rated at 98 dB SPL. The enclosure has a depth of 288 mm and a total weight of 12.6 kg per speaker.

Features
  • 8-inch (20 cm) marine enclosure speaker
  • Power handling: 200 watts RMS
  • Power handling: 400 watts peak
  • Impedance: 4 ohms
  • Common Motor Driver technology
  • Water-resistant diaphragm made of pressed paper
  • Long-stroke 51 mm voice coil woofer
  • Integrated, sealed crossover
  • Resettable semiconductor tweeter protection circuit
  • Waterproof, acoustically transparent dust cover
  • FEM-optimized waveguide
  • Ferrite magnets with high flux density
  • Polyamide dome
Technical Specifications
  • Frequency response: 45 Hz - 25 kHz
  • Sensitivity: 98 dB SPL
  • Depth: 288 mm
  • Weight: 12.6 kg
  • Woofer magnet size: 140 x 62 x 22 mm
  • Xmech: 8.3 mm
  • D: 166 mm
  • Re: 3.3 ohms
  • Le: 0.28 mH
  • Vas: 10 l
  • Mms: 20.5 g
  • Cms: 0.15 mm/N
  • BL: 9 T*m
  • Dimension A: 225 mm
  • Dimension B: 308.2 mm
  • Dimension C: 231 mm
  • Dimension D: 6 mm

Your benefits at Masori

Frequently Asked Questions about HTX 8H S-FL-SW

What performance does the Hertz HTX 8H S-FL-SW speaker offer?

The Hertz HTX 8H S-FL-SW offers impressive performance with an RMS power handling of 200 watts and a peak power handling of 400 watts, making it ideal for use in demanding acoustic environments. Its high sensitivity of 98 dB SPL ensures a powerful listening experience, even in loud conditions. The 4-ohm impedance allows for easy integration of the speaker into existing audio systems, while the wide frequency response of 45 Hz to 25 kHz ensures that both low and high frequencies are reproduced with high precision.

How is the Hertz HTX 8H S-FL-SW speaker constructed?

The Hertz HTX 8H S-FL-SW speaker features a water-resistant membrane made of pressed paper, ensuring durability and consistent sound in marine environments. The 51 mm voice coil in the woofer is tuned for long excursions to effectively reproduce low frequencies. The speaker is equipped with ferrite magnets in both the woofer and tweeter, providing high flux density and thus excellent sound quality. A waterproof, acoustically transparent dust cover offers maximum protection during intense outdoor use, while the integrated waveguide is optimized for linear SPL response.

What are the dimensions of the Hertz HTX 8H S-FL-SW speaker?

The Hertz HTX 8H S-FL-SW speaker has specific dimensions that should be considered during installation. The speaker has a diameter of 200 mm, while the total depth of the enclosure is 288 mm. The woofer's magnet measures 140 mm in width, 62 mm in depth, and 22 mm in height. The speaker has a total weight of 12.6 kg, which is due to its robust construction and the materials used. These dimensions are crucial for ensuring proper integration into an existing audio system.

What applications is the Hertz HTX 8H S-FL-SW suitable for?

The HTX 8H S-FL-SW from Hertz is a marine enclosure speaker specifically designed for use in demanding outdoor environments. Its water-resistant construction and acoustically transparent dust cover showcase its strengths, especially in maritime or humid conditions. With a wide frequency response of 45 Hz to 25 kHz, it is ideal for music playback with a large dynamic range, while the high sensitivity of 98 dB ensures it cuts through even in loud environments. The robust construction and materials used guarantee long-lasting and reliably high performance.

How do the electromagnetic properties of the HTX 8H S-FL-SW speaker work?

The HTX 8H S-FL-SW speaker from Hertz utilizes a ferrite common motor driver technology that ensures high flux density in the woofer and tweeter. The electromagnetic properties are complemented by an impedance of 4 ohms, allowing for efficient operation in various audio systems. The BL value of 9 T*m is an indicator of the strength of the magnetic field and the resulting motor performance of the speaker. These factors contribute to the HTX 8H S-FL-SW speaker's ability to produce both powerful bass and clear highs, creating a comprehensive and dynamic sound image.

What specific technical specifications does the tweeter of the HTX 8H S-FL-SW have?

The tweeter of the HTX 8H S-FL-SW speaker from Hertz is equipped with a ferrite magnet that allows for high flux densities and thus precise high-frequency reproduction. The dome of the tweeter is made of polyamide, known for its lightweight construction and quick responsiveness. An integrated, sealed crossover with a resettable semiconductor tweeter protection circuit ensures that the tweeter is protected from damage due to overloads. This combination of materials and technology ensures that the tweeter delivers flawless sound even at high volumes and under challenging conditions.

How is the HTX 8H S-FL-SW installed in existing audio systems?

When installing the HTX 8H S-FL-SW speaker from Hertz into an existing audio system, several factors need to be considered. Due to its size of 200 mm and a depth of 288 mm, it requires installation spaces that can accommodate these dimensions. The impedance of 4 ohms should be compatible with the amplifier's output impedance to ensure optimal performance. It is recommended to check the available space in advance and ensure that the mounting points meet the requirements. When wiring, care should be taken to use high-quality cables to guarantee the best possible signal transmission.

What materials does the Hertz HTX 8H S-FL-SW use to optimize sound quality?

The HTX 8H S-FL-SW from Hertz is equipped with a variety of high-quality materials that contribute to optimizing sound quality. The diaphragm is made of pressed paper that has been specially treated to ensure water resistance and thus durability. The voice coil of the woofer measures 51 mm in diameter and is optimized for long-stroke operation, allowing for powerful bass. The ferrite magnet in the tweeter and woofer provides a high flux density, which directly leads to improved sound performance. This choice of materials ensures that the speaker is both robust and acoustically outstanding.

What is special about the integrated crossover in the HTX 8H S-FL-SW?

The integrated crossover of the HTX 8H S-FL-SW from Hertz is a key feature that contributes to its excellent sound quality. It is equipped with a resettable semiconductor tweeter protection circuit that ensures the tweeter remains protected during peak loads. This is particularly important when the speaker is used in loud or demanding environments. The crossover precisely separates high and low frequencies, resulting in a clear and balanced sound image. It ensures that every part of the speaker operates optimally and delivers the best possible sound performance.

How does the Hertz HTX 8H S-FL-SW support an optimal listening experience over longer distances?

The Hertz HTX 8H S-FL-SW is equipped with a FEM-optimized waveguide that provides a focused and very linear SPL response. This feature is essential to ensure clear and high-quality sound even over longer distances of up to 30 meters. The high sensitivity of 98 dB SPL also contributes to the speaker being audible over great distances with minimal power loss. These features make the HTX 8H S-FL-SW particularly suitable for use in large open areas, such as on the decks of boats or in expansive outdoor spaces.
