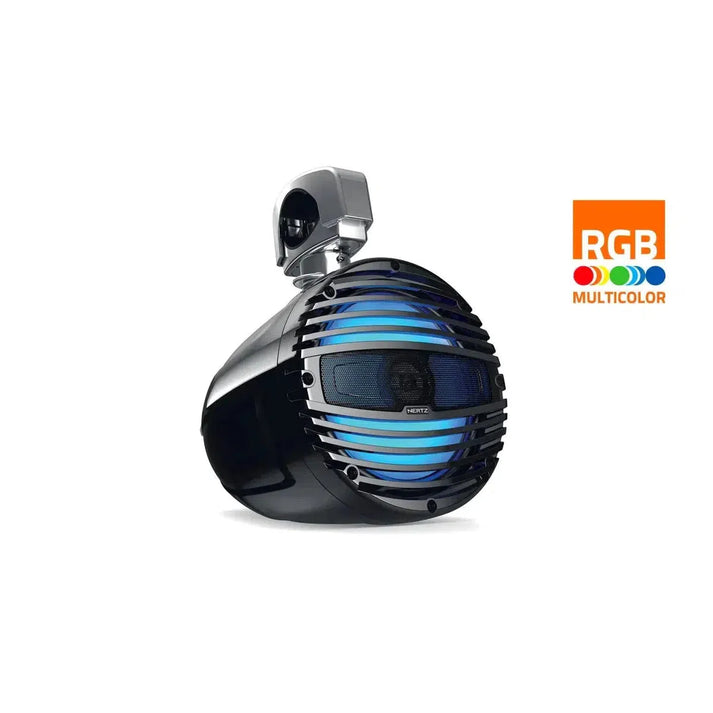

Hertz HTX 8 M-CL-TC 8" (20cm) Marine Enclosed Speaker
SKU:  HTX-8-M-CL-TC
EAN:  8018823137447
100 Watt

HTX 8 M-CL-TC

SKU:  HTX-8-M-CL-TC
EAN:  8018823137447

Technical Highlights

  • High power handling 100 W RMS, 200 W peak, impedance 4 Ohm.
  • Frequency response from 45 Hz to 25 kHz, 32 mm woofer coil.
  • Neodymium magnet in the 20 mm tweeter, high sound clarity.
  • More technical details
€799,00
€799,00 €799,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 6, - Jun 9,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €66,58 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
HertzHMS 12 B4-LD-W
Hertz-HMS 12 B4-LD-W-12" (30cm) Subwoofer-masori-kaufen
Hertz-HTX 8 M-CL-C-8" (20cm) Marine-Gehäuselautsprecher-masori-kaufen
HertzHTX 8 M-CL-C
Hertz-HTX 8 M-CL-TC-8" (20cm) Marine-Gehäuselautsprecher-masori-kaufen
€799,00
€799,00 €799,00

HTX 8 M-CL-TC by Hertz

Hertz HTX 8 M-CL-TC is an 8 inch marine enclosure speaker with RGB LED lighting, clamp fastening made of 316 stainless steel, and Q-OS² technology. The front RGB lighting is integrated into the grille; a rear RGB lighting is available as HTX RGB LOGO.1 add-on in black or white. The tower can be aligned horizontally in 18 steps of 20° each, the logo is adjustable in 64 steps. The clamp structure integrates a multi-pole high current connection and rubber inserts for vibration damping and fits round 38–76 mm as well as square pipe profiles. Certification according to IP65, ASTM-D4329, and ASTM-B117. Coaxial design with 32 mm long-stroke woofer with polypropylene membrane and UV inhibitors as well as neodymium tweeter. Rated power handling 100 W RMS, 200 W peak, impedance 4 Ohm, frequency response 45–25,000 Hz, depth 288 mm, weight 5.4 kg.

Features
  • 8 inch marine enclosure speaker
  • Manufacturer: Hertz
  • RGB LED lighting at the front of the grille; rear RGB lighting optional via HTX RGB LOGO.1 in black or white
  • Clamp fastening made of 316 stainless steel, suitable for round and square profiles
  • Q-OS² technology Quick Orientation & Release for Sound & Safety
  • Horizontal alignment in 18 steps of 20° each
  • Adjustable logo in 64 steps
  • Multi-pole high current connection integrated in the clamp structure
  • Rubber inserts for vibration damping
  • Suitable for round pipes 38–76 mm as well as square pipes or roof mounting
  • Hertz Pure Marine Certified: IP65, ASTM-D4329, ASTM-B117
  • Coaxial system with 32 mm long-stroke woofer, polypropylene membrane with UV inhibitors
  • Neodymium tweeter
  • Size 200 mm
  • Depth 288 mm
  • Weight 5.4 kg
  • Power handling RMS 100 W
  • Power handling peak 200 W
  • Impedance 4 Ohm
  • Frequency response 45–25,000 Hz
Technical specifications
  • Size 200 mm
  • Power handling RMS 100 W
  • Power handling peak 200 W
  • Impedance 4 Ohm
  • Depth 288 mm
  • Woofer voice coil Ø 32 mm
  • Tweeter voice coil Ø 20 mm
  • Frequency response 45–25,000 Hz
  • Woofer magnet size 90 x 40 x 20 mm
  • Tweeter magnet size 19.7 x 3 mm
  • Weight of a speaker 5.4 kg
  • Woofer magnet flux ferrite with high density
  • Tweeter magnet neodymium
  • Membrane polypropylene with UV inhibitors
  • Xmech ±8.5 mm
  • D 174 mm
  • Re 3.4 Ohm
  • Fs 51 Hz
  • Le 0.46 mH
  • Vas 26.1 l
  • Mms 30 g
  • Cms 0.33 mm/N
  • Bl 6.33 T·m
  • Qts 0.78
  • Qes 0.82
  • Qms 14.7
  • SPL 91 dB
  • A 225 mm
  • B 288 mm
  • D 50 mm
  • G 38–76 mm
  • H 12 mm

Your benefits at Masori

Hertz HTX 8 M-CL-TC Datasheet

Open datasheet

Frequently Asked Questions about HTX 8 M-CL-TC

What technical features does the HTX 8 M-CL-TC speaker have?

The HTX 8 M-CL-TC is a marine enclosure speaker from Hertz with a size of 200 mm. It offers a power handling of 100 Watts RMS and 200 W Peak with an impedance of 4 Ohms. The speaker has a woofer voice coil of 32 mm and a tweeter voice coil of 20 mm. The frequency response ranges from 45 Hz to 25 kHz, and the speaker weighs 5.4 kg. The diaphragm is made of polypropylene with UV inhibitors, making it resistant to environmental influences. The RGB LED lighting is easily integrable and provides an aesthetic enhancement for water sports vehicles.

How is the sound quality of the HTX 8 M-CL-TC marine speaker achieved?

The HTX 8 M-CL-TC speakers from Hertz utilize Q-OS² technology, which enables Quick Orientation & Release for Sound & Safety. This ensures precise sound orientation with 18 steps of 20° along the horizontal axis. The improved magnetic ferrite in the woofer and the neodymium-based design of the tweeter magnet provide clear sound reproduction. The speaker has an electroacoustic efficiency of 91 dB and a Qts of 0.78. Solid anchoring through a 316 stainless steel clamp mount guarantees a stable acoustic environment, perfectly adapted to maritime needs.

What special installation features does the HTX 8 M-CL-TC speaker have?

The HTX 8 M-CL-TC from Hertz is equipped with a unique clamp mount made of 316 stainless steel, ideal for round or square pipe applications. The mounting part includes rubber inserts for vibration damping and is suitable for pipe diameters from 38 mm to 76 mm. For easy installation, multi-pole high-current connections are integrated into the structure. Its dimensions of A 225 mm and B 288 mm provide flexibility in placement. A quick mechanical release ensures safety and allows for effortless maintenance and cleaning of the system.

How do the Thiele-Small parameters affect the performance of the HTX 8 M-CL-TC speaker?

The Thiele-Small parameters of the HTX 8 M-CL-TC, including an Re of 3.4 Ohms, Bl of 6.33 T*m, and Qes of 0.82, optimize speaker performance for marine applications. The Vas of 26.1 liters indicates a suitable enclosure volume to achieve adequate bass reproduction. The mechanical quality factor is high at Qms 14.7, suggesting good energy retention at low frequencies. Together, these parameters allow the speaker to maintain consistent audio quality under the extreme conditions of a boating environment.

What advantages does the RGB LED lighting offer with the HTX 8 M-CL-TC?

The RGB LED lighting of the HTX 8 M-CL-TC from Hertz not only creates an appealing visual atmosphere but also seamlessly integrates into the design of the speaker. Whether positioned at the front or rear grille, the lighting, in combination with the HTX RGB LOGO.1 technology, provides a cohesive aesthetic. This contributes to the visual customization of a marine environment and can be controlled with the optional remote control HM-RGB-1-BK, which adjusts color and light patterns in sync with the music rhythm, known as a musical light show.

What load-bearing characteristics does the Hertz HTX 8 M-CL-TC have?

The HTX 8 M-CL-TC has an RMS power handling of 100 W and a peak power handling of 200 W, demonstrating its suitability for intense audio playback in a marine environment. The thoughtful Re-splitting (3.4 Ohms) and energy absorption capability make it robust against power peaks. Combined with a low-frequency voice coil diameter of 32 mm and the flux ferrite magnet, which ensures efficient energy transfer. This power handling aligns with achieving audiophile low-frequency performance without sound distortion, even at high volumes.

What components contribute to the UV resistance of the HTX 8 M-CL-TC?

The use of UV-resistant polypropylene in the diaphragm of the HTX 8 M-CL-TC provides enhanced protection against sunlight, maximizing the speaker's longevity. The neodymium magnet tweeter, known for its resilience against external influences, complements this UV-resistant profile. The IP65-certified Hertz Pure Marine stamp confirms protection against water and dust. All of this ensures that the speakers operate in a marine environment without loss of performance or material degradation, perfectly tuned to the challenges of boating and recreational activities on the water.

What sound distribution does the Hertz HTX 8 M-CL-TC enable?

The Q-OS² technology of the Hertz HTX 8 M-CL-TC ensures unparalleled sound delivery by providing a position in 18 steps of 20° each from the horizontal alignment. This maximizes sound projection across the entire listening area and is ideal for large outdoor events or water sports. The high cardioid directional characteristic helps to enhance the audio radius. With the option to add RGB LED lighting to perfect the sound atmosphere, the speaker offers both visual and acoustic focus, never before heard in traditional marine audio options.

How can the logo of the HTX 8 M-CL-TC speaker be positioned for visual coherence?

The individually adjustable logo of the HTX 8 M-CL-TC allows for multiple placements of the speaker towers, which can be aligned correctly in 64 steps without affecting the Hertz brand. The "Adjustable Logo" feature enables a personalized look and ensures consistent presentation across multiple installation units. This is particularly helpful for installation on decks as well as in the interiors of larger recreational or sports boats. The professional design customization options, combined with acoustic perfection, provide a remarkable positive overall impression.

What frequency ranges can the HTX 8 M-CL-TC speaker cover?

The HTX 8 M-CL-TC speaker covers a remarkably wide frequency range from 45 Hz to 25 kHz. This means that both deep bass frequencies and high tones can be reproduced crystal clear. The combination of a 32 mm woofer voice coil and a 20 mm tweeter with a neodymium magnet significantly contributes to this comprehensive frequency response. The sound comes without distortion, even at higher volumes or intense bass passages, ensuring a dynamic and vibrant audio experience. Ideal for discerning audiophiles in a marine environment.
