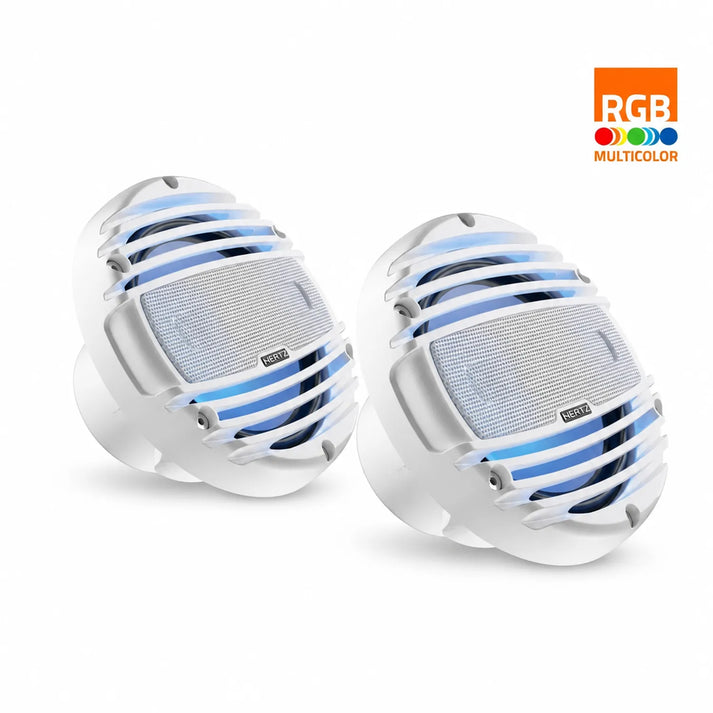

Hertz HMX 6.5-LD-TC 6.5" (16,5cm) Coaxial Speaker
SKU:  HMX-6.5-LD-TC
EAN:  8018823137416
75 Watt

HMX 6.5-LD-TC

SKU:  HMX-6.5-LD-TC
EAN:  8018823137416

Technical Highlights

  • 75W RMS, 4 Ohm impedance, 50-25k Hz frequency response.
  • RGB LED, UV-resistant membrane, neodymium tweeter.
  • Off-axis optimized, robust, water and dust resistant.
  • More technical details
€239,00
€239,00 €239,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 6, - Jun 9,
x pair
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €19,91 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
MuswayM6v3-24V
Musway-M6v3-24V-6-Kanal DSP-Verstärker-masori-kaufen
Hertz-HEX 6.5 C-W-6.5" (16,5cm) Koaxial-Lautsprecher-masori-kaufen
HertzHEX 6.5 CW
Hertz-HMX 6.5-LD-TC-6.5" (16,5cm) Koaxial-Lautsprecher-masori-kaufen
€239,00
€239,00 €239,00

HMX 6.5-LD-TC by Hertz

HMX 6.5-LD-TC is a 6.5 inch (16.5 cm) coaxial speaker from Hertz with integrated RGB LED lighting. The construction includes a polypropylene diaphragm with UV inhibitors, co-molded Santoprene surround, aramid fiber spider with silicone-insulated connection wires, and a sound-transparent stainless steel tweeter grille. Acoustically optimized for off-axis radiation with front plate and acoustic lens, 36 mm PEI tweeter diaphragm and neodymium magnet as well as 25 mm long-stroke voice coil in the woofer. The magnetic group consists of a high-density flux ferrite woofer magnet and a neodymium tweeter magnet, encapsulated in an injection-molded polymer basket of marine quality. Sealed built-in Crossover with resettable solid-state tweeter protection circuit and gold-plated corrosion-resistant terminals. Performance data: 75 W RMS, 150 W Peak, 4 Ohm, frequency response 50–25,000 Hz, SPL 89 dB, weight 1 kg. Dimensions and further specifications: Diameter 165 mm, depth 95.6 mm, tweeter voice coil 20 mm, woofer voice coil 25 mm, Xmech ±6.65 mm, additional dimensions A 172.2 mm, B 128 mm, C 95.6 mm, D 69 mm, F 26.6 mm. Electroacoustic values: D 125 mm, Re 3.5 Ohm, Fs 65 Hz, Le 0.53 mH, Vas 8.8 l, Mms 14 g, Cms 0.4 mm/N, Bl 5.2 Tm, Qts 0.7, Qes 0.75, Qms 11.5. Integrated RGB LEDs can be controlled with the HM RGB 1 BK accessory, including radio frequency remote control with color selection and music-synchronized effects. Designed and tested for UV, salt mist, vibrations, splash water, temperature shock, and dust.

Features
  • 6.5 inch (16.5 cm) coaxial speaker
  • Integrated RGB LED lighting
  • Compatible with HM RGB 1 BK (RF remote control for color selection and music-synchronized light control)
  • Acoustically optimized off-axis radiation with front plate and acoustic lens
  • Sound-transparent tweeter grille made of stainless steel
  • Polypropylene diaphragm with UV inhibitors and co-molded Santoprene surround
  • Aramid fiber spider with silicone-insulated connection wires
  • FEM-optimized moving unit with high excursion
  • Massive magnetic group, encapsulated in injection-molded polymer basket of marine quality
  • Sealed built-in Crossover with resettable solid-state tweeter protection circuit
  • Gold-plated, corrosion-resistant terminals
  • Designed and tested for UV, salt mist, vibrations, splash water, temperature shock, dust
Technical Specifications
  • Size 165 mm
  • RMS power 75 W
  • Peak power 150 W
  • Impedance 4 Ohm
  • Depth 95.6 mm
  • Tweeter diaphragm 36 mm
  • Woofer voice coil Ø 25 mm
  • Tweeter voice coil Ø 20 mm
  • Frequency response 50–25,000 Hz
  • SPL 89 dB
  • Woofer magnet size 78.5 x 32 x 17 mm
  • Tweeter magnet size 19.7 x 3 mm
  • Weight 1 kg
  • Woofer magnet flux ferrite with high density
  • Tweeter magnet neodymium
  • Diaphragm polypropylene with UV inhibitors
  • Xmech ±6.65 mm
  • D 125 mm
  • Re 3.5 Ohm
  • Fs 65 Hz
  • Le 0.53 mH
  • Vas 8.8 l
  • Mms 14 g
  • Cms 0.4 mm/N
  • Bl 5.2 Tm
  • Qts 0.7
  • Qes 0.75
  • Qms 11.5
  • A 172.2 mm
  • B 128 mm
  • C 95.6 mm
  • D 69 mm
  • F 26.6 mm

Your benefits at Masori

Hertz HMX 6.5-LD-TC Datasheet

Open datasheet

Frequently Asked Questions about HMX 6.5-LD-TC

How good is the sound quality of the Hertz HMX 6.5-LD-TC speaker?

The Hertz HMX 6.5-LD-TC, a high-performance marine coaxial speaker, impresses with excellent sound quality thanks to acoustic optimization for off-axis operation, maximizing sound pressure levels for powerful music playback. The combination of a 1.4-inch neodymium magnet tweeter and PEI material dome ensures precise highs, while the 25-mm voice coil of the woofer, tuned for infinite baffle applications, delivers powerful bass reinforced by a polypropylene cone with UV inhibitors. Sound transparency is ensured by the stainless steel tweeter grille. FEM optimization of the mobile devices enhances excursion and sound quality, while a sealed crossover harmoniously shapes transitions.

What power handling does the Hertz HMX 6.5-LD-TC speaker offer?

The Hertz HMX 6.5-LD-TC speaker offers a power handling of 75 watts RMS and a peak power handling of 150 watts. These specifications allow for long-lasting performance even at high volumes, which is ideal for sound enthusiasts who enjoy listening to music loudly. The 4-ohm impedance optimizes energy flow, while the 25-mm long-stroke voice coil ensures efficient energy use. The robust materials, including the polypropylene cone, are designed for durability and contribute to resilience at high power levels. The result is stable playback performance, even in demanding environments.

What makes the RGB LED lighting of the HMX 6.5-LD-TC speaker unique?

The integrated RGB LED lighting of the Hertz HMX 6.5-LD-TC speaker adds a visual dimension to the acoustic performance. In combination with the HM RGB 1 BK accessory, a radio frequency remote control, users can select colors according to their preference or create light shows synchronized with the music tempo. This functionality greatly enriches the user experience, especially on boats, where both acoustic and visual enjoyment are appreciated. The lighting is versatile and enhances the aesthetic customizability of the speaker in a marine environment.

What depth of space is required for the installation of the Hertz HMX 6.5-LD-TC speaker?

For the installation of the Hertz HMX 6.5-LD-TC speaker, a mounting depth of 95.6 mm is required. This value is essential for the successful integration of the speaker into various surfaces or enclosures, especially in marine applications where space constraints are common. The physical dimensions include a diameter of 172.2 mm (A) and a mounting average depth of 69 mm (D). Thanks to these compact dimensions, the speaker can be easily integrated into many boat structures without compromising sound quality. Installation should check for sufficient space behind the mounting interface.

Is the Hertz HMX 6.5-LD-TC speaker weather-resistant?

Yes, the Hertz HMX 6.5-LD-TC speaker is extremely weather-resistant. Its robust construction features a UV-resistant diaphragm and a grille that is both high-temperature and UV-resistant, allowing the speaker to withstand water, dust, mud, and other environmental influences. These properties are crucial for use in marine environments where speakers are exposed to aggressive elements. The use of aramid fibers with silicone-insulated connection wires and an injection-molded marine-grade polymer basket ensures durability and reliable performance under harsh operating conditions.

How is the Hertz HMX 6.5-LD-TC speaker protected from frequency overload?

The Hertz HMX 6.5-LD-TC speaker is equipped with a sealed, built-in crossover that includes a solid-state tweeter protection circuit. This design protects the tweeter from frequency overload and unwanted signal peaks, enhancing both sound quality and the lifespan of the speaker. The crossover ensures an optimal transition between the woofer and tweeter, minimizes distortion, and prevents damage from sudden power surges. This is particularly important in loud environments where level spikes can occur and speakers require careful protection.

What are the acoustic specifications of the Hertz HMX 6.5-LD-TC speaker?

The Hertz HMX 6.5-LD-TC speaker has a variety of sophisticated acoustic specifications: The frequency response ranges from 50 Hz to 25 kHz, an indicator of its ability to reproduce deep bass and clear highs. The speaker has a resonance frequency (Fs) of 65 Hz and an efficiency of 89 dB SPL. The Thiele-Small parameters include Vas of 8.8 liters, a mechanical quality factor (Qms) of 11.5, an electrical quality factor (Qes) of 0.75, and a total quality factor (Qts) of 0.7. These parameters combine to create a powerful, clear sound experience optimized for marine environments.

What materials are used in the Hertz HMX 6.5-LD-TC speaker?

The Hertz HMX 6.5-LD-TC speaker uses high-quality materials to ensure both sound quality and durability. The tweeter employs a neodymium magnet with a PEI material dome, which ensures efficient high-frequency transmission. The woofer consists of a polypropylene membrane with UV inhibitors, co-molded with a Santoprene surround to enhance resistance to environmental influences. The aramid fiber spider and silicone-insulated connection wires further contribute to stability and longevity, while a corrosion-resistant gold-plated contact complements material durability.

Can the Hertz HMX 6.5-LD-TC be integrated with any boat audio systems?

Yes, the Hertz HMX 6.5-LD-TC can be integrated into a variety of boat audio systems due to its technical specifications. The 4-ohm impedance and frequency matching options allow integration with different amplifiers and audio systems. The physical dimensions, particularly the diameter of 165 mm and the installation depth of 95.6 mm, facilitate adaptation to most standard audio setups on boats. However, note that the specific mounting environment can affect acoustics. Existing audio unit specifications and structural conditions should be checked before integration.

How does the off-axis optimization of the HMX 6.5-LD-TC speaker improve sound distribution?

The off-axis optimization of the Hertz HMX 6.5-LD-TC speaker significantly improves sound distribution by designing the speaker for situations where it is not directly aimed at the listener. This is achieved through an intelligent design of the tweeter with an acoustic lens and optimized front plate, delivering the highest possible sound pressure level. This technique allows for wider sound dispersion and consistent sound quality throughout the space. This capability is particularly useful on boats, as speakers often need to be installed at less favorable angles without compromising sound fidelity.
