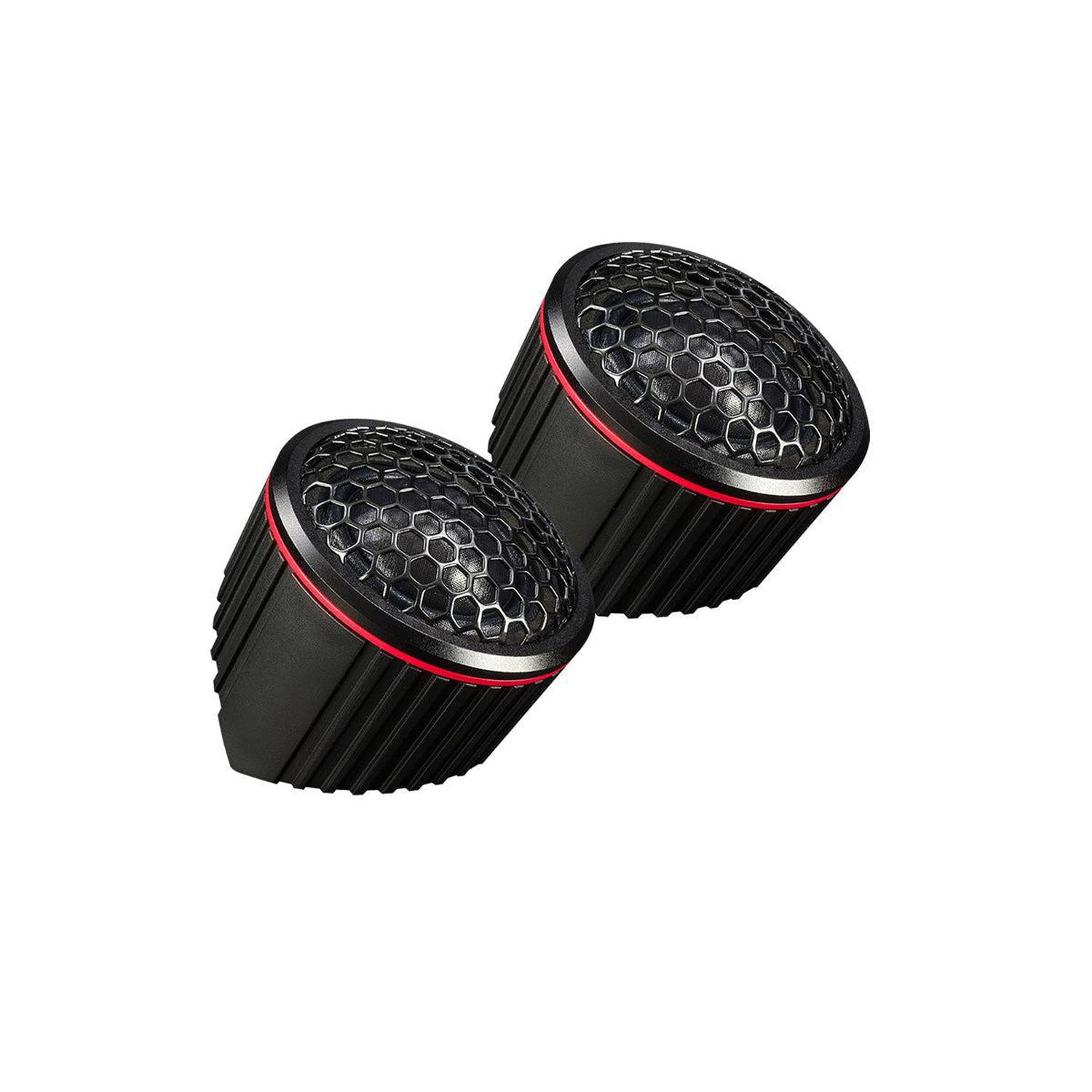

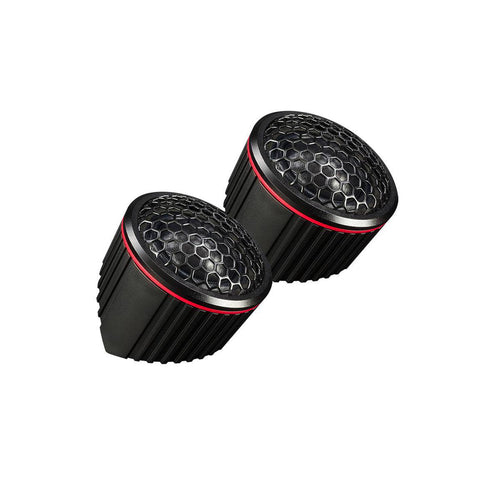

Emphaser ECP-M25T Dome Tweeter
SKU:  ECP-M25T
EAN:  7612309203773
25 Watt

ECP-M25T

SKU:  ECP-M25T
EAN:  7612309203773

Technical Highlights

  • Power: 25 watts RMS, Impedance: 4 ohms, Frequency response: 2.7-22 kHz.
  • CNC-milled aluminum housing, neodymium magnet system, no ferrofluid.
  • Mounting depth: 16 mm, Mounting-Ø: 45 mm, two beam angle housings.
  • More technical details
00 d
00 h
00 m
00 s
€74,95
-24% €99,00 €74,95
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
May 17, - May 20,
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €6,24 with Klarna .
Expert Image

Rob

Expert Image

Max

Avoid a bad purchase? We check your setup!

Rob & Max check your project: So you are guaranteed to get the maximum performance for your budget.

Response on weekdays within 24 hours

Your benefits at Masori

CrunchGTI6.2T
Crunch-GTI6.2T-Kalotten-Hochtöner-masori-kaufen
JBL-Club 3412T-Kalotten-Hochtöner-masori-kaufen
JBLClub 3412T
Emphaser-ECP-M25T (B-Ware)-Kalotten-Hochtöner-masori-kaufen
€74,95
€99,00 €74,95

More power than ECP-M25T here!

Show all
  • The Deaf Bonce GDB-65 is a round black metal speaker grille with honeycomb mesh and small mounting holes, made for 165 mm Apocalypse Serie Tiefmitteltöner.

    GDB-65

    €9,00
    €9,00 €9,00
    Delivery
    Delivered automatically as soon as available from the supplier.
  • Deaf Bonce-Apocalypse AP-X69A-6"x9" Koaxial-Lautsprecher-masori-kaufen
    200 Watt

    Apocalypse AP-X69A

    €150,00
    €150,00 €150,00
    Delivery
    May 20, - May 24,
  • Ai-Sonic-S2-C6.2-6.5" (16,5cm) Lautsprecherset-masori-kaufen
    90 Watt

    S2-C6.2

    €199,00
    €199,00 €199,00
    Delivery
    May 21, - May 26,
  • The DD Audio DC6.5a Lautsprecherset includes a large Speaker, sleek Tweeter, and compact Crossover Box on a white background.
    75 Watt

    DC6.5a

    €199,00
    €199,00 €199,00
    Delivery
    May 31, - Jun 5,
  • DD Audio-GR-MR Grill 5-8 Zoll-Lautsprechergitter-masori-kaufen

    GR-MR Grill 5-8 inch

    From €10,00
    €10,00 From €10,00
    In stock
    May 17, - May 18,
DSC01014_2

This could also look like this for you!

A speaker is only as good as its construction. While mass-produced products often sound flat, brands like DD Audio focus on precision and Deaf Bonce on uncompromising dynamics. We have filtered out the systems that technically get more out of your budget and open up a new league in sound quality for you.

Discover now

ECP-M25T by Emphaser Description

The ECP-M25T is a Dome Tweeter from Emphaser with a 25 mm fabric dome and a 25.4 mm voice coil. The CNC-machined aluminum housing is complemented by a neodymium magnet system. The design operates without ferrofluid and uses a protective grille with a very large opening area. The package includes mounting housings for two different radiation angles. The nominal power handling is 25 watts RMS, the frequency response is 2.7 – 22 kHz, and the impedance is 4 Ohm. The installation depth is 16 mm, and the installation diameter is 45 mm.

Features
  • Dome Tweeter
  • CNC-machined aluminum housing
  • Neodymium magnet system
  • Without ferrofluid
  • Protective grille with a very large opening area
  • Mounting housings for two different radiation angles included
Technical Data
  • Fabric dome: 25 mm
  • Voice coil: 25.4 mm
  • Nominal power handling: 25 watts RMS
  • Frequency response: 2.7 – 22 kHz
  • Impedance: 4 Ohm
  • Installation depth: 16 mm
  • Installation diameter: 45 mm

Emphaser ECP-M25T Datasheet

Open datasheet

Frequently Asked Questions about ECP-M25T

What is the frequency response of the ECP-M25T Tweeter from Emphaser?

The ECP-M25T from Emphaser offers an impressive frequency response of 2.7 kHz to 22 kHz. This wide range allows for detailed and clear reproduction of both low and high frequencies. Especially at high volumes, the advantage of such a frequency response becomes apparent, as the upper limit of 22 kHz is well above the human ear's perception capability. This means that the tweeter can also reproduce subtle overtones, leading to a richer and fuller soundstage. The combination of high-frequency reproduction and dynamic sound makes the ECP-M25T ideal for demanding audio applications.

What technical features does the ECP-M25T Tweeter have?

The ECP-M25T Tweeter from Emphaser is characterized by several advanced technical features. It has a 25 mm textile dome, optimized with a 25 mm voice coil for precise sound reproduction. Another highlight is the CNC-machined aluminum housing, which is not only robust but also ensures mechanical stability. The neodymium magnet provides high drive performance in a compact size. Additionally, ferrofluid is omitted to achieve maximum sound dynamics. A grille with a very large opening area minimizes reflections and ensures high sound permeability.

How do I properly install the ECP-M25T Tweeter?

When installing the ECP-M25T Tweeter from Emphaser, you should primarily pay attention to the installation parameters. The tweeter has a mounting diameter of 45 mm and a mounting depth of 16 mm. Furthermore, the delivery includes mounting housings for two different radiation angles. With these options, you can adjust the sound orientation to your specific needs and the acoustics of the room or vehicle. Ensure that the grille is positioned correctly to guarantee high sound permeability. Follow the included installation instructions for optimal results.

What load capacity does the ECP-M25T Tweeter offer?

The ECP-M25T Tweeter from Emphaser has a nominal power handling of 25 watts RMS. This power handling ensures that the tweeter delivers reliable performance even at higher volumes. Especially if you enjoy listening to music loudly, it is important that the tweeter manages energy efficiently and avoids sound distortion. The value of 25 watts RMS guarantees that the tweeter can be used in a variety of audio applications without compromising sound quality. This capability makes the ECP-M25T particularly attractive to discerning music lovers.

What materials are used in the ECP-M25T?

The ECP-M25T Tweeter from Emphaser uses high-quality materials to ensure optimal performance and durability. The 25 mm fabric dome provides precise and detailed sound reproduction, while the CNC-machined aluminum housing ensures stability and resonance suppression. The magnet is made of neodymium, a material known for its high magnetic strength without compromising the size of the tweeter. The combination of these specialized materials allows the tweeter to deliver excellent acoustic results, even under demanding conditions.

What dispersion angles does the ECP-M25T Tweeter offer?

The ECP-M25T Tweeter from Emphaser comes with mounting housings for two different dispersion angles. These alternative angles help to optimally distribute sound in the room or vehicle, depending on the need. Whether you choose a narrower or wider dispersion angle depends on the placement and acoustics of the space in which the tweeter is used. This flexibility is particularly useful in complex acoustic environments, where precise adjustment to local conditions is required to achieve the best possible sound quality.

What makes the ECP-M25T Tweeter particularly dynamic?

The ECP-M25T Tweeter from Emphaser is designed to provide maximum dynamics. The absence of ferrofluid in the design allows for freer movement of the diaphragm, resulting in faster response time and a more dynamic sound profile. Additionally, the neodymium magnet system guarantees strong yet compact magnetic force that supports driver performance. These factors, combined with the lightweight fabric dome, mean that the tweeter maintains a clear and powerful sound even with demanding musical pieces. This makes it ideal for various musical genres and dynamic listening environments.

How does the neodymium magnet affect the performance of the ECP-M25T?

The use of a neodymium magnet in the ECP-M25T Tweeter from Emphaser has a significant impact on performance. Neodymium, known for its high magnetic strength in a small size, allows for a compact design without compromising sound quality. The strong magnet increases the efficiency of the voice coil, resulting in precise sound reproduction even at lower amplifier power levels. This leads to a higher sound pressure at the same electrical input power compared to conventional magnets. Thus, the tweeter offers an excellent combination of power and efficiency.

What is the significance of the textile dome in the ECP-M25T Tweeter?

The 25 mm textile dome of the ECP-M25T Tweeter from Emphaser plays a central role in sound performance. It is responsible for a detailed and balanced sound color, as the material is capable of evenly reproducing both low and high frequencies. The lightweight textile dome enables a responsive vibration, resulting in clear and precise high-fidelity sound. Especially in complex musical pieces, the superiority of this design is evident, as it contributes to a natural and uncolored sound character.

What protective features does the ECP-M25T Tweeter have?

The ECP-M25T Tweeter from Emphaser is equipped with a special protective grille. This grille has a very large opening area, which provides protection against external influences while ensuring high sound permeability. The construction minimizes unwanted reflections, leading to uncolored and pure sound reproduction. Such protective features are particularly advantageous in mobile applications or harsh environmental conditions, as they protect the delicate membranes from mechanical damage without compromising sound quality. A clever solution for long-lasting and crystal-clear sound.
