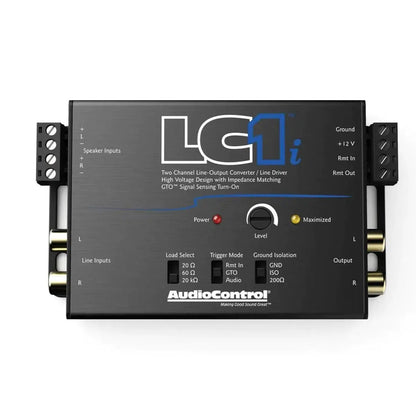

Audiocontrol LC1i High-Low Adapter

2 Reviews

LC1i

2 Reviews

Technical Highlights

  • 2-channel high-low adapter, optimal signal management. GTO™ Signal Sense, Audio Sense, remote 12-volt inputs. Compact, user-friendly, seamless OEM integration.
  • More technical details
€129,00
€119,00 €129,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
Apr 28, - May 1,
x Piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €10,75 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
GladenMosconi HLA-SLIM
Gladen-Mosconi HLA-SLIM-High-Low Adapter-masori-kaufen
Audiocontrol-LC8i-High-Low Adapter-masori-kaufen
AudiocontrolLC8i
Audiocontrol-LC1i-High-Low Adapter-masori-kaufen
€129,00
€119,00 €129,00

LC1i by Audiocontrol

The LC1i is a 2-channel high-low adapter, manufactured by Audiocontrol. As an integral part of the renowned series of active line-out converters, which also includes the popular LC2i, the LC1i is characterized by its optimal signal management that extends from the factory sound system to the amplifier. With user-friendly load selection switches, the LC1i allows for seamless integration into OEM systems. Its flexible features include GTO™ Signal Sense (DC Offset), Audio Sense, and remote 12-volt inputs. Additionally, the LC1i can also function as a line driver and remains compatible with future head unit updates to continue delivering an optimal preamp signal.

Features
  • Two channels with active speaker inputs (up to 40 V input power)
  • Two channels with line level inputs
  • last selection switch
  • GTOTM-Signal sampling
  • Switch for grounding insulation
  • Compact design

SPECIFICATIONS

ENTRANCES

  • Speaker level input: 1 (2 channels)
  • Maximum speaker level input: 40 Vrms / 400 W (20kΩ setting)
  • Input impedance of the speaker level (selectable): 20Ω, 60Ω, 20kΩ
  • Line-level input: 1 (2 channels)
  • Line-level input impedance: 7kΩ

EXITS

  • Preamp outputs: 1 (2 channels)
  • Maximum output level: 9.5Veff/13V peak
  • Output gain: +/- 12 dB
  • Output impedance: 150Ω

performance capability

  • Harmonic Total Distortion: 0.01%
  • Noise level: 110 dB
  • Frequency response: 20 Hz - 50 kHz ±1 dB

CONTROL

  • Remote In / GTO™ Signal Sense / Audio Sense
  • 12VDC Remote Out (always active when the device is turned on)

GENERAL

  • Current consumption: 120 mA
  • Recommended fuse rating: 1 A

WEIGHT DIMENSIONS

  • Dimensions: 13 x 8 x 2.5cm (including speaker connections)
  • Weight: 0.25 kg

SCOPE OF DELIVERY

  • LC1i
  • Speaker and power connections
  • Handbook
  • warranty card
Speaker connections
LC1i
Cinch connections LC1i
Selection of insulation materials LC1i
Clipping LED
Load selection
LC1i
Switch for On/Off mode
LC1i

    Your benefits at Masori

    Audiocontrol LC1i Datasheet

    Open datasheet

    Frequently Asked Questions about LC1i

    Was sind die Ein- und Ausgänge des Audiocontrol LC1i?

    The Audiocontrol LC1i features two types of inputs: two channels for speaker level with a maximum input power of 40 Vrms and a selectable input impedance of 20Ω, 60Ω, or 20kΩ, as well as two channels for line level with an input impedance of 7kΩ. On the output side, the LC1i provides a preamplifier output for two channels with a maximum output level of 9.5V RMS / 13V peak and an output impedance of 150Ω. This configuration allows for flexible adjustments and integration into various audio systems, whether connecting to factory systems or aftermarket solutions.

    Wie funktioniert die GTO™ Signalabtastung im Audiocontrol LC1i?

    The GTO™ signal sensing in the Audiocontrol LC1i allows the device to be automatically activated as soon as a DC offset signal is detected. This occurs when the factory radio is turned on, so the LC1i does not require an additional remote connection. This significantly simplifies installation, especially in modern vehicles with complex wiring. If an audio signal is detected, the Audio Sense function allows for an alternative activation. These intelligent signal monitoring features ensure seamless operation of the LC1i within OEM systems and minimize the need for additional control wires.

    Welche Rolle spielen die Lastwahlschalter im LC1i?

    The load selection switches in the LC1i allow for the adjustment of the input impedance to different factory audio systems. With options of 20Ω, 60Ω, or 20kΩ, the LC1i can be optimally tailored to the requirements of the specific vehicle. This flexibility is particularly useful when integrating into existing OEM systems, as it enables precise adaptation to the respective audio output conditions. Through this adaptability, distortions can be minimized and signal quality maximized, leading to better sound results when used as a high-low converter or line driver.

    Welche Leistungsspezifikationen hat der Audiocontrol LC1i?

    The Audiocontrol LC1i offers impressive technical specifications: A total harmonic distortion of only 0.01% ensures a clear audio experience, while the high signal-to-noise ratio of 110 dB supports interference-free playback. The frequency response ranges from 20 Hz to 50 kHz, ensuring comprehensive audio reproduction. The power consumption is 120 mA with a recommended fuse rating of 1 A, indicating efficient energy use. These performance figures highlight the LC1i's ability to deliver high-quality audio in the vehicle interior.

    Wie groß ist der Audiocontrol LC1i und wie viel wiegt er?

    The Audiocontrol LC1i is compactly built with dimensions of 13 cm in length, 8 cm in width, and a height of 2.5 cm, including the speaker connections. Its weight is only 0.25 kg. These small dimensions allow for easy installation in various vehicles without significantly taking up the available space in the vehicle. These design features are crucial for use in tight installation conditions while also providing sufficient flexibility for placement and integration into the existing vehicle components.

    Welche Vorteile bietet der Audiocontrol LC1i als Line Driver?

    The Audiocontrol LC1i acts as an effective line driver by delivering amplified and clear line-level signals up to a maximum output level of 9.5V RMS. This facilitates the transmission of audio signals over longer distances without significant signal degradation, making it ideal for complex and demanding audio systems in cars. The detailed gain adjustment of +/- 12 dB allows for precise tuning to achieve the desired audio experience. This is particularly useful when upgrading audio systems that require higher power and clarity.

    Welche Steuerungsfunktionen hat der LC1i?

    The LC1i offers several useful control functions that enhance operation and installation flexibility. This includes the Remote In, which activates the device as needed, as well as the GTO™ Signal Sense and Audio Sense, which enable automatic activations based on identified signals. The 12VDC Remote Out remains permanently active when the device is powered on to control other components of the audio system. Together, these functions form a robust control system that is easy to use while simplifying the connection to additional components.

    Wie kann der Audiocontrol LC1i in ein bestehendes Autosystem integriert werden?

    The Audiocontrol LC1i is designed to be seamlessly integrated into existing car sound systems. With its compact dimensions of 13 x 8 x 2.5 cm and a low power consumption of 120 mA, it fits easily into many vehicle types. You can simply connect the LC1i to the speaker level or line level inputs of the existing system, with the flexible load selection switch helping to optimally adjust the input impedance. The compact design allows for installation in tight spaces, while the integrated noise isolation minimizes unwanted interference.

    Welche Abmessungen und Gewicht hat der LC1i?

    The LC1i has compact dimensions of 13 cm in length, 8 cm in width, and a height of 2.5 cm, which even includes the speaker connections. Weighing only 0.25 kg, the LC1i is particularly lightweight, making it an ideal choice for installations where space optimization and ease of handling are important. It can be installed in various vehicle configurations without significant effort, without compromising the structural integrity of the vehicle. These size and weight advantages make it universally adaptable for many audio applications.

    In welchem Frequenzbereich arbeitet der Audiocontrol LC1i?

    The Audiocontrol LC1i operates within a frequency range of 20 Hz to 50 kHz with a tolerance of ±1 dB. This allows for a balanced transmission of both deep bass and high frequencies. Especially if you enjoy listening to music at high volumes, this frequency response ensures that your audio system can accurately reproduce all sound nuances. The high precision in frequency reproduction prevents distortion and guarantees an impressive sound experience. Thus, the LC1i is well-suited for all types of music genres, from classical pieces to modern electronic music.
