Hertz HMS 12 B4-LD-W 12" (30cm) Subwoofer

Name: Hertz HMS 12 B4-LD-W 12 inch Subwoofer | Masori
Brand: Hertz
Price: 373.15 EUR
Availability: InStock

CYBER -15%

Max, Mikael and 53k+ customers already with Masori sound upgrade

Hertz HMS 12 B4-LD-W 12" (30cm) Subwoofer

Continuous power handling of 500 W, impedance of 4 ohms, without housing.
Designed for free air, voice coil size of 65.5 mm, 12".
High sound pressure, Xmax of 19 mm, impressive 1000 W peak.
Mehr technische Details

00

€373,15

~~€439,00~~ €373,15

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Bequem in 12 zinsfreien Raten à €31,09 mit Klarna zahlen.

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €34,99 60 Monate Plusgarantie Am beliebtesten €44,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

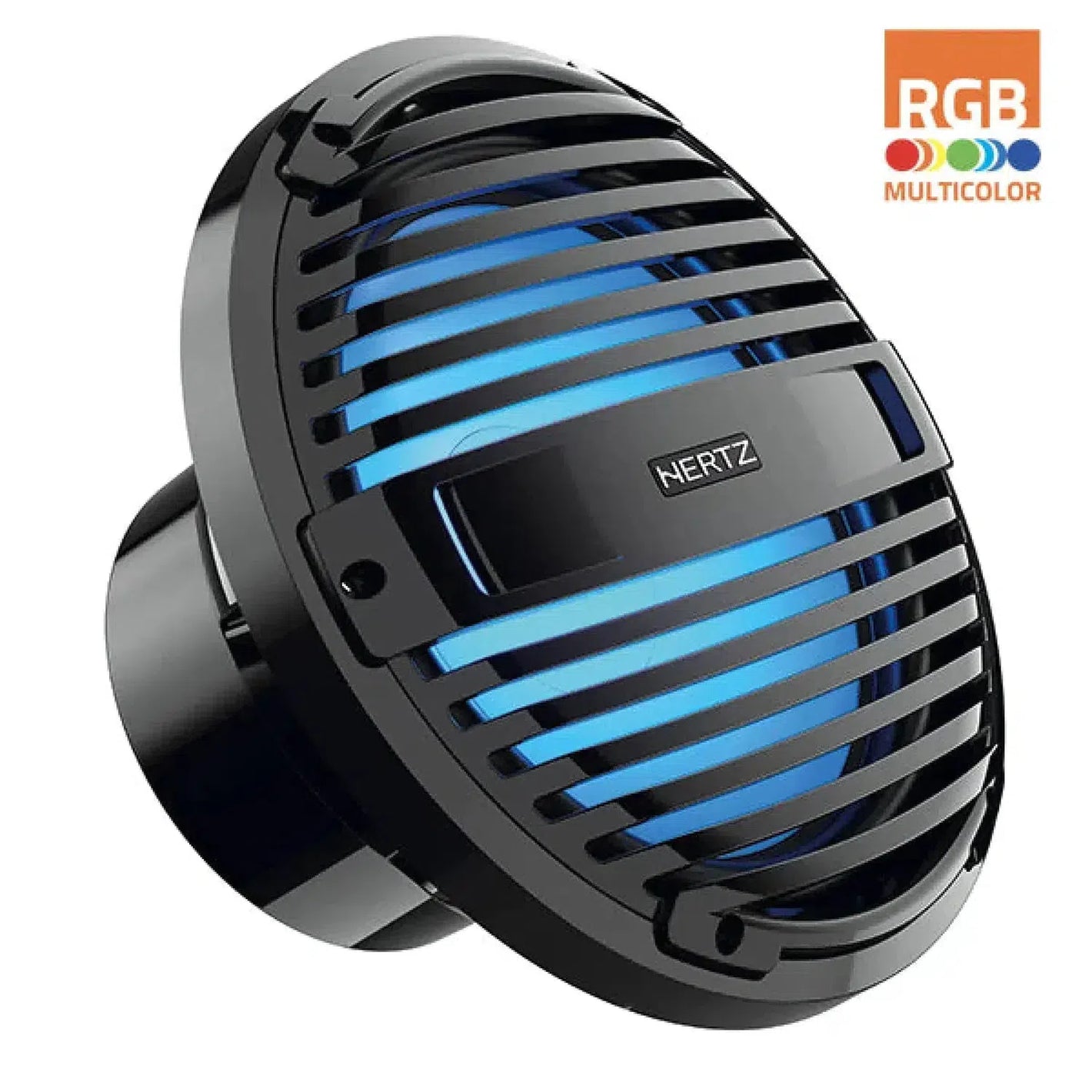

HertzHMS 12 B2-LD-C

HertzHTX 8 M-FL-TC

HMS 12 B4-LD-W by Hertz

Are you looking for a high-performance marine subwoofer? Then the HMS 12 B4-LD-W from Hertz could be just what you need. This 12-inch subwoofer is specially designed for free air applications and delivers deep, powerful bass without the need for a special enclosure. With its classic grille, which can be color-adjusted thanks to built-in LEDs, and an impressive continuous power handling of 500 W, it offers an outstanding package both visually and technically. Features such as long linear excursion and the ability to relieve the main speakers from low-frequency reproduction maximize overall system performance and provide unlimited sound pressure and emotion.

Technical Data

Size mm 300
Power Handling - RMS W 500
Power Handling - Peak W 1000
Impedance Ohm 4
Depth mm 191
Single voice coil
Voice coil Ø 65.5
Magnet size W x D x H mm 156 x 80 x 40
Weight per component kg 7.6
High-density flux ferrite magnet
Polypropylene cone with UV inhibitors

Electro-Acoustic Specifications

D mm 300
Xmax mm 19
Re Ohm 1.8
Fs Hz 30
Le mH 0.41
Vas I 95.4
Mms g 114
Cms mm/N 0.225
BL T*m 8
Qts 1
Qes 1.1
Qms 11.1
Spl dB 89.5

Physical Specifications

A 342.9 mm
B 279.4 mm
C 192.8 mm
D 140.6 mm
F 52.2 mm

Frequency Response

Accessories

HM RGB 1 BK

HMS 12 B4-LD-W

The HM RGB 1 BK enhances your experience with multi-color LED lighting that can be adjusted to your mood or environment. Consists of an RGB CONTROLLER, specially developed for HMX LD option models, including a wireless remote control.

Frequent questions about HMS 12 B4-LD-W

Wie hoch ist die RMS-Belastbarkeit des Hertz HMS 12 B4-LD-W Marine-Subwoofers?

The RMS power handling of the Hertz HMS 12 B4-LD-W marine subwoofer is 500 watts. This specification describes the maximum continuous power that the subwoofer can handle without sustaining damage. For applications where high and constant power is required, such as extensive audio setups on boats, this is an essential specification. The RMS power handling is a critical parameter to ensure the reliability and efficiency of the audio device. Combined with a peak power handling of 1000 watts, it results in a robust performance profile for demanding applications.

Welche Größe hat der Hertz HMS 12 B4-LD-W Subwoofer?

The Hertz HMS 12 B4-LD-W subwoofer has a size of 12 inches or 30 cm. This dimension is typical for subwoofers that are supposed to produce high sound pressure levels and deep bass frequencies. Such a size allows the subwoofer to efficiently reproduce low-frequency sounds, which is particularly important for applications in open or semi-open environments like on a boat. The large diaphragm area is crucial for air displacement and thus the depth and volume of the produced bass.

Welchen Frequenzbereich deckt der Hertz HMS 12 B4-LD-W ab?

The frequency range of the Hertz HMS 12 B4-LD-W, according to the manufacturer, extends from extremely low frequencies, which is optimal for reproducing deep, powerful bass sounds. A precisely defined frequency range specification is generally needed information to understand the overall performance and sound image in conjunction with other speakers. Its design for free air applications also eliminates the need for a bulky enclosure, increasing installation flexibility. An ideal subwoofer for use in maritime conditions to achieve an impressive soundscape.

Welche Besonderheiten bieten die Lineare Hubfähigkeit des HMS 12 B4-LD-W?

The linear excursion capability of the HMS 12 B4-LD-W subwoofer from Hertz allows the diaphragm to move evenly over a long range, minimizing the risk of distortion. This property ensures that the sound pressure remains clear and precise even at high volumes. This capability is essential for ensuring accurate low-frequency reproduction and relieving the main speakers from low frequencies, contributing to the overall improvement of the system. It provides a deep, uncolored bass experience, ideal for audiophile use at sea.

Ist der HMS 12 B4-LD-W mit vielen Automarken kompatibel?

The Hertz HMS 12 B4-LD-W subwoofer is a marine subwoofer primarily designed for use on boats. Therefore, there is no standard compatibility specification for car brands. Instead, it is optimized for free air applications and does not require a conventional enclosure; simple installation in existing cutouts with matching dimensions is possible with a diameter of 300mm. In this context, the correct physical specifications of the installation location are important to fully utilize the subwoofer's performance capabilities. Its specialization for marine applications allows it to be universally used for other open-air installations.

Welche Art von Membran wird in dem HMS 12 B4-LD-W verwendet?

The Hertz HMS 12 B4-LD-W subwoofer uses a polypropylene diaphragm that features UV inhibitors. This material choice is specifically designed for outdoor use and in humid environments, as it is resistant to environmental influences while still providing the desired flexibility and stiffness for effective bass reproduction. The UV inhibitors prevent fading or brittleness of the material due to long-term sun exposure, which is particularly important for marine applications. This ensures long-term, high-performance bass performance.

Welche Funktion hat das integrierte LED-Beleuchtungssystem des HMS 12 B4-LD-W?

The Hertz HMS 12 B4-LD-W subwoofer is equipped with an integrated LED lighting system, the color of which can be customized. This is achieved through the included accessory, the HM RGB 1 BK, which features a multicolored RGB LED control. With a remote control, it is possible to adjust the light color and intensity to match your preferences or the environment. Especially in a maritime setting, this can be used to enhance the mood and create a unique appearance. A feature that combines both function and form.

Wie schwer ist der Hertz HMS 12 B4-LD-W Subwoofer?

The Hertz HMS 12 B4-LD-W subwoofer weighs 7.6 kg. This specific weight results from its robust construction and high-quality materials such as the strong flux ferrite magnet. The weight is an indicator of stability and a sustainable design that guarantees high performance under demanding conditions while also providing protection against mechanical shocks. This is an important aspect for installation in outdoor environments such as on a boat, where wind and weather play a role. This gives it impressive stability and durability in operation.

Welche Vorteile bietet die Einzelschwingspule des HMS 12 B4-LD-W?

The Hertz HMS 12 B4-LD-W is equipped with a single voice coil that has a diameter of 65.5 mm. This voice coil contributes to reducing power losses and optimizing sound quality. By specifically dissipating heat under high power demands, thermal stress is lowered, which increases overall reliability during prolonged operation. Additionally, the single voice coil allows for easier integration into existing audio systems compared to dual coil configurations, specifically tuned for free installations. A clear advantage for applications that require consistent performance.

Was sind die Montageabmessungen des Hertz HMS 12 B4-LD-W?

The mounting dimensions of the Hertz HMS 12 B4-LD-W subwoofer are precisely specified to ensure a perfect installation: The overall dimension is 342.9 mm in outer diameter, with a mounting depth of 191 mm. This data ensures a precise fit into the intended setup, which is particularly important to ensure stability and performance at the installation site. Even though this is a subwoofer designed for free air applications, accurate measurements of the installation environment are required to minimize potential vibrations and avoid sound losses.
