Hertz HCP 2MX 2-channel amplifier

Name: Hertz HCP 2MX 2-Channel Amplifier | Masori
Brand: Hertz
Price: 160.65 EUR
Availability: OutOfStock
Rating: 5.0 (1 reviews)

1 Review

Max, Mikael and 53k+ customers already with Masori sound upgrade

Hertz HCP 2MX 2-channel amplifier

1 Review

2 channels at 160W (2Ω), 1 channel at 320W (4Ω), 800W total.
Distortion 0.03% at 4Ω, S/N ratio 105 dB, damping factor 300.
Adjustable crossovers, Hi-Pass 50-3200 Hz, weight 2.57 kg.
Mehr technische Details

00

€160,65

~~€189,00~~ €160,65

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Bequem in 12 zinsfreien Raten à €13,38 mit Klarna zahlen.

Jetzt mit kostenlosem Versand ab 50€!

Dieses Produkt ist derzeit nicht verfügbar. Lass Dich benachrichtigen oder klicke hier, um ähnliche Produkte zu entdecken.

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €14,99 60 Monate Plusgarantie Am beliebtesten €19,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

HertzHCP 1MDK

HertzHEX 6.5 M-TW

HCP 2MX by Hertz

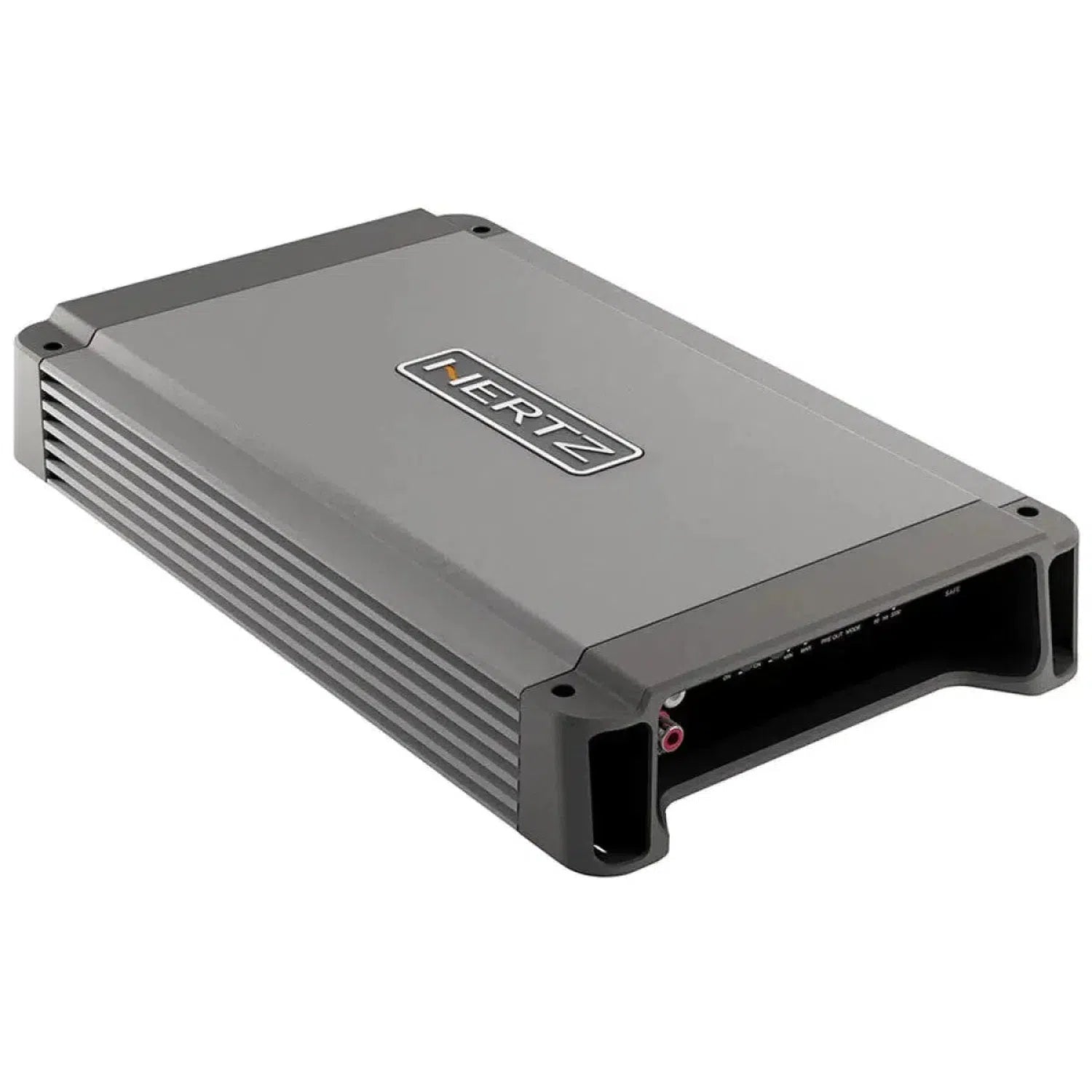

Discover the 2-channel marine amplifier HCP 2MX from the renowned manufacturer Hertz. This elegantly designed yet robust amplifier is ready for any adventure on the open waters. With a compact design and impressive performance, the HCP 2MX is a master of its class. Its extruded aluminum heat sink offers unparalleled lightness and heat dissipation. Beneficial features such as a specially balanced circuit for suppressing electromagnetic interference and a fully adjustable crossover contribute to refining the sound image. Additionally, the HCP 2MX offers hi-pass pre-amp outputs for greater flexibility in audio output. A product that deserves its place in marine audio equipment.

Main features

Channels 2

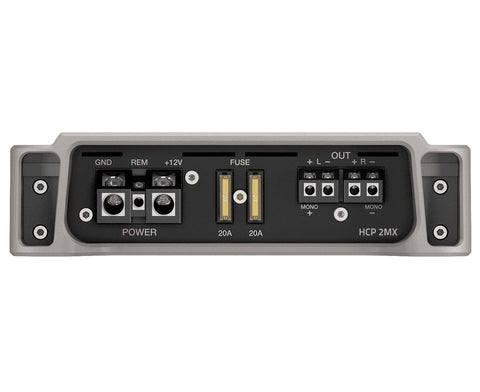

Power supply

Supply voltage / fuse: 11 - 15 VDC / 2 x 20 A
Power (On/Off): 0.6 A / 0.4 mA
Remote input: 7 - 15 VDC - 1 mA

Amplifier

Distortion - TliD (100Hz @ 4Ω): 0.03%
Bandwidth: 10 - 65 kHz
S/N Ratio (A weighted @ 1 V): 105 dB
Damping factor (100Hz @ 4Ω) 300
Sensitivity Low-In: 0.2 - 5 VRMS
Sensitivity High-In: 0.8 - 20 VRMS
Last impedance (MIN) @2Ch: @1Ch: 2 Ohm 4 Ohm
Size (mm): 315 x 190 x 50
Weight (kg): 2.57
Adjustable crossovers yes

output power

Output power (RMS) @ 14.4 VDC, THD 1%

2 Channels 100W x 2 (4Ω)
2 Channels 160W x 2 (2Ω)
1 Channel 320W x 1 (4Ω)

Output power (RMS) @ 14.4 VDC, THD 10%

2 Channels 120W x 2 (4Ω)
2 Channels 200W x 2 (2Ω)
1 Channel 400W x 1 (4Ω)

Total output RMS 800 watts

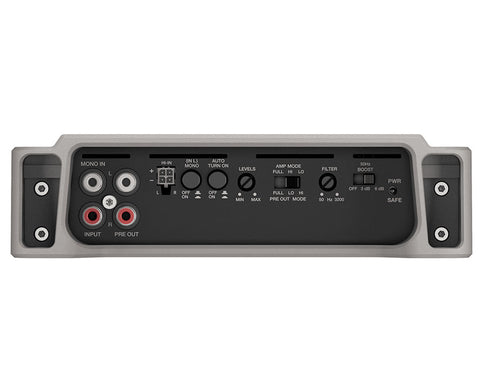

Input / Filter

Inputs: PRE IN/ SPEAKER INPUT
Pre-out FULL Yes

Hi-Pass: 50 - 3200 Hz @ 12 dB/Oct
Lo-Pass 50 - 3200 Hz @ 12 dB/Oct

Filter FULL Yes

Hi-Pass: 50 - 3200 Hz @ 12 dB/Oct
Lo-Pass 50 - 3200 Hz @ 12 dB/Oct

Mono (On/Off) Yes
Reinforcement 50 Hz (Selection) (0 / 3 / 6) dB

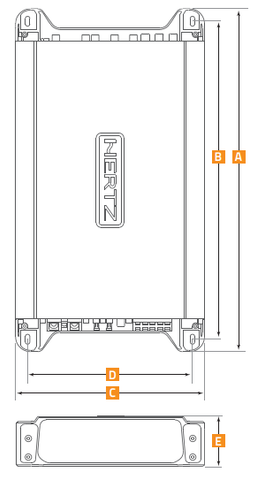

Physical Specifications

HCP 2MX

A 315
B 291
C 190
D 166
E 50

Entrance / Exit

HCP 2MX

Hertz HCP 2MX Datenblatt

Datenblatt öffnen

Frequent questions about HCP 2MX

Welche Leistung bietet der HCP 2MX bei unterschiedlichen Impedanzen?

The HCP 2MX amplifier from Hertz delivers a power of 100 Watts RMS per channel at an impedance of 4 Ohms. At 2 Ohms, this power increases to 160 Watts RMS per channel. If you operate the amplifier in bridge mode at 4 Ohms, you achieve an impressive power of 320 Watts RMS on one channel. These values apply at a supply voltage of 14.4 VDC and a maximum total harmonic distortion (THD) of 1%. With a higher distortion of 10%, you can expect 120 Watts at 4 Ohms, 200 Watts at 2 Ohms, and 400 Watts in bridged mode at 4 Ohms.

Wie effizient ist der HCP 2MX bei der Spannungsversorgung?

The Hertz HCP 2MX amplifier operates in a voltage range of 11 to 15 VDC. The consumption in operating mode is 0.6 amperes, while only 0.4 milliamperes are required in standby. A voltage of 7 to 15 VDC at 1 milliampere is required for the remote input. These technical features ensure optimal power delivery, even in marine environments where stable voltage conditions are necessary. The amplifier is equipped with two 20-ampere fuses that provide additional protection against overload and ensure reliable operation under high power demands.

Welche Frequenzweichenoptionen unterstützt der HCP 2MX?

The HCP 2MX Marine amplifier is equipped with fully adjustable crossovers that offer enormous flexibility in audio customization. The Hi-Pass and Lo-Pass filters are adjustable from 50 Hz to 3200 Hz with a slope of 12 dB/Oct. These filter options allow you to precisely tailor the sound profile to your needs, whether for better frequency separation in a two-way or multi-way system or for operating a subwoofer in Lo-Pass mode. The technical specifications of the crossovers make the HCP 2MX particularly versatile in audio setups.

Wie ist das Klangbild des HCP 2MX optimiert?

The sound profile of the HCP 2MX is optimized by a specially balanced circuit for suppressing electromagnetic interference. This technology reduces noise and improves signal integrity, ensuring a clear and detailed sound. Additionally, the extruded aluminum heat sink contributes to efficient heat dissipation, which reduces distortion at high volumes. This allows the amplifier to maintain its performance even under adverse conditions, as can often occur in marine environments. This way, you get a powerful and distortion-free sound that meets even audiophile demands.

Welche Eingangsempfindlichkeit unterstützt der HCP 2MX?

The Hertz HCP 2MX offers variable input sensitivities for Low-In and High-In configurations. The Low-In sensitivity ranges from 0.2 to 5 volts RMS, while the High-In sensitivity supports from 0.8 to 20 volts RMS. This wide range of sensitivity settings allows for high flexibility when using the amplifier with various audio sources, whether it's a direct signal from a radio or an amplified signal from a speaker output. This promises seamless integration into various car and marine audio systems without the need for additional adjustments.

Welche Abmessungen hat der HCP 2MX und wie beeinflussen sie die Installation?

The dimensions of the HCP 2MX are 315 x 190 x 50 mm. This slim and compact design simplifies the installation of the amplifier in tight spaces, as is often the case in a boat or automotive environment. With a low height of only 50 mm, the HCP 2MX can be easily integrated under seats or in tailgates without taking up valuable space. The weight of 2.57 kg also ensures easy handling during installation. The dimensions allow the user to place the amplifier discreetly without compromising accessibility.

Wie effektiv ist die Kühlung des HCP 2MX Verstärkers?

The HCP 2MX is equipped with a heat sink made of extruded aluminum, which guarantees excellent heat dissipation. This heat sink is not only durable but also provides optimal heat release, allowing the amplifier to operate efficiently and reliably even under high power demands. This effective cooling helps maintain the thermal stability of the device and extends its lifespan by preventing overheating. Especially in maritime environments, where constant performance is required under changing climatic conditions, the importance of intelligent cooling technology becomes evident.

Welche Eigenschaften machen den HCP 2MX für Marineumgebungen geeignet?

The HCP 2MX amplifier from Hertz is specifically designed for use in marine environments. With its robust design and an extruded aluminum heat sink, it not only offers outstanding heat dissipation but also resistance to the harsh conditions on the water. The fully adjustable hi-pass and lo-pass filters also allow for flexible sound shaping. Electronic protection mechanisms reduce electromagnetic interference that can occur during installation in marine environments. These technical features make the amplifier ideal for use on boats and yachts, where durability and performance are crucial.

Wie wird die Klangqualität des HCP 2MX verbessert?

The sound quality of the HCP 2MX is optimized by the extremely low Total Harmonic Distortion (THD) of only 0.03% at 100Hz and 4Ω, resulting in a clear and pure sound. Another important aspect is the signal-to-noise ratio of 105 dB, which minimizes disturbing background noise and enhances music playback. These specifications ensure that even at high volumes or in demanding environments such as at sea, the sound remains clean and detailed. For audiophiles who value sound precision, this is an outstanding feature of the amplifier.

Ist der HCP 2MX mit gängigen Auto- oder Bootsmarken kompatibel?

The HCP 2MX is universally applicable and can be adapted to a variety of audio applications, whether in cars, boats, or other vehicles. Due to its dimensions of 315 x 190 x 50 mm, it can be easily installed in different types of vehicles. It is only important that the available space corresponds to the dimensions of the amplifier and that the power supply is in the range of 11 to 15 VDC. This marine amplifier is ideal for environments that require flexibility and powerful audio solutions without being limited to a specific brand or model.
