Hertz Compact-Power HCP 5D 5-channel amplifier

Name: Hertz Compact-Power HCP 5D 5-Channel Amplifier | Masori
Brand: Hertz
Price: 296.65 EUR
Availability: InStock
Rating: 4.96 (23 reviews)

23 Reviews

CYBER -15%

Max, Mikael and 53k+ customers already with Masori sound upgrade

Hertz Compact-Power HCP 5D 5-channel amplifier

23 Reviews

950 W total power, impedance min. 2 ohms, 5-channel output.
Bandwidth front/rear: 10-50k Hz, Sub: 10-500 Hz.
Damping factor sub 250, front/rear 100, strong filters.
Mehr technische Details

00

€296,65

~~€349,00~~ €296,65

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Bequem in 12 zinsfreien Raten à €24,72 mit Klarna zahlen.

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €24,99 60 Monate Plusgarantie Am beliebtesten €34,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

HertzHMC U1

HertzHCP 1MDK

Compact-Power HCP 5D by Hertz

Dive into the powerful and versatile world of audio amplifiers with the Hertz Compact-Power HCP 5D. This 5-channel amplifier sets new standards in digital sound amplification. With the ability to deliver up to 950 W total power and equipped with comprehensive crossover functions, the HCP 5D offers high flexibility for various installation options. The advanced technology enables interaction with any OEM and aftermarket source. Additionally, it features an efficient dual power supply for continuous energy flow and a dual-strand heat sink for optimal operation even under demanding conditions.

Key Features

Channels 5 - 3

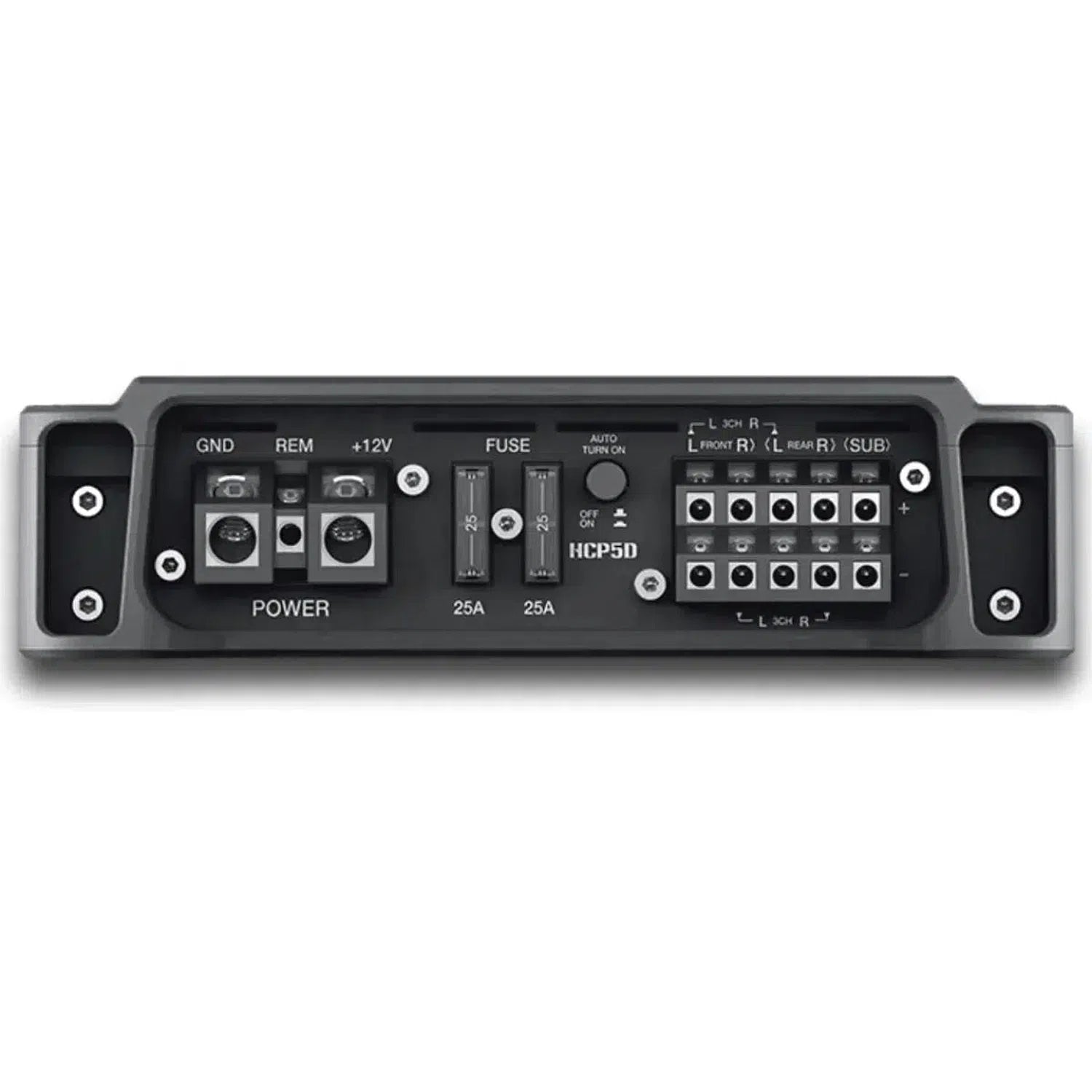

POWER SUPPLY
- Supply Voltage / Fuse: 11 - 15 VDC / 2 x 25 A
- Idle Current (On/Off) 2 A / 0.04 mA
- Consumption @ 2 Ω, 14.4 VDC (Maximum musical power): 30 A
- Remote Input: 7 - 15 VDC - 1 mA
- ART Automatic remote on/off with Speaker-In
AMPLIFIER STAGE
- Distortion - Total Harmonic Distortion (100 Hz @ 4 Ω) 0.02 %
- Bandwidth FRONT/REAR: 10 - 50k Hz
- Bandwidth SUB: 10 - 500 Hz
- Signal-to-Noise Ratio (A weighted @ 1 V): 100 dB
- Damping Factor (100 Hz @ 4 Ω) FRONT/REAR: 100
- Damping Factor (100 Hz @ 4 Ω) SUB: 250
- Pre-In Sensitivity: 0.2 - 5 VRMS
- Speaker Input Sensitivity: 0.8 - 20 VRMS
- Load Impedance (MIN)
  - @ 5 Ch: 2 Ohm
  - @ 3 Ch: 4 Ohm + 4 Ohm + 2 Ohm
- Maximum Size (mm): 345 x 190 x 50
- Weight (kg): 2.61
- Adjustable Crossovers yes

Output Power

Output Power (RMS) @ 14.4 VDC, Distortion 1%:
- 5 Ch: 55 W x 4 + 160 W x 1 (4 Ω)
- 5 Ch: 90 W x 4 + 280 W x 1 (2 Ω)
- 3 Ch: 180 W x 2 (4 Ohm) + 160 W x 1 (4 Ohm)
- 3 Ch: 180 W x 2 (4 Ohm) + 280 W x 1 (2 Ohm)
Output Power (RMS) @ 14.4 VDC, Distortion 10%:
- 5 Ch: 65 W x 4 + 200 W x 1 (4 Ω)
- 5 Ch: 105 W x 4 + 330 W x 1 (2 Ω)
- 3 Ch: 210 W x 2 (4 Ohm) + 200 W x 1 (4 Ohm)
- 3 Ch: 210 W x 2 (4 Ohm) + 330 W x 1 (2 Ohm)
CEA 2006-A Ratings:
- RMS Power (4 Ω, ≤ 1 % THD + N, 14.4 V): 50 W x 4 channels + 150 W x 1 channel
- Signal-to-Noise Ratio (ref. 1 W power): (50 inch) 83 dBA (150 inch) 85 dBA
Total RMS Power 1500 Watts

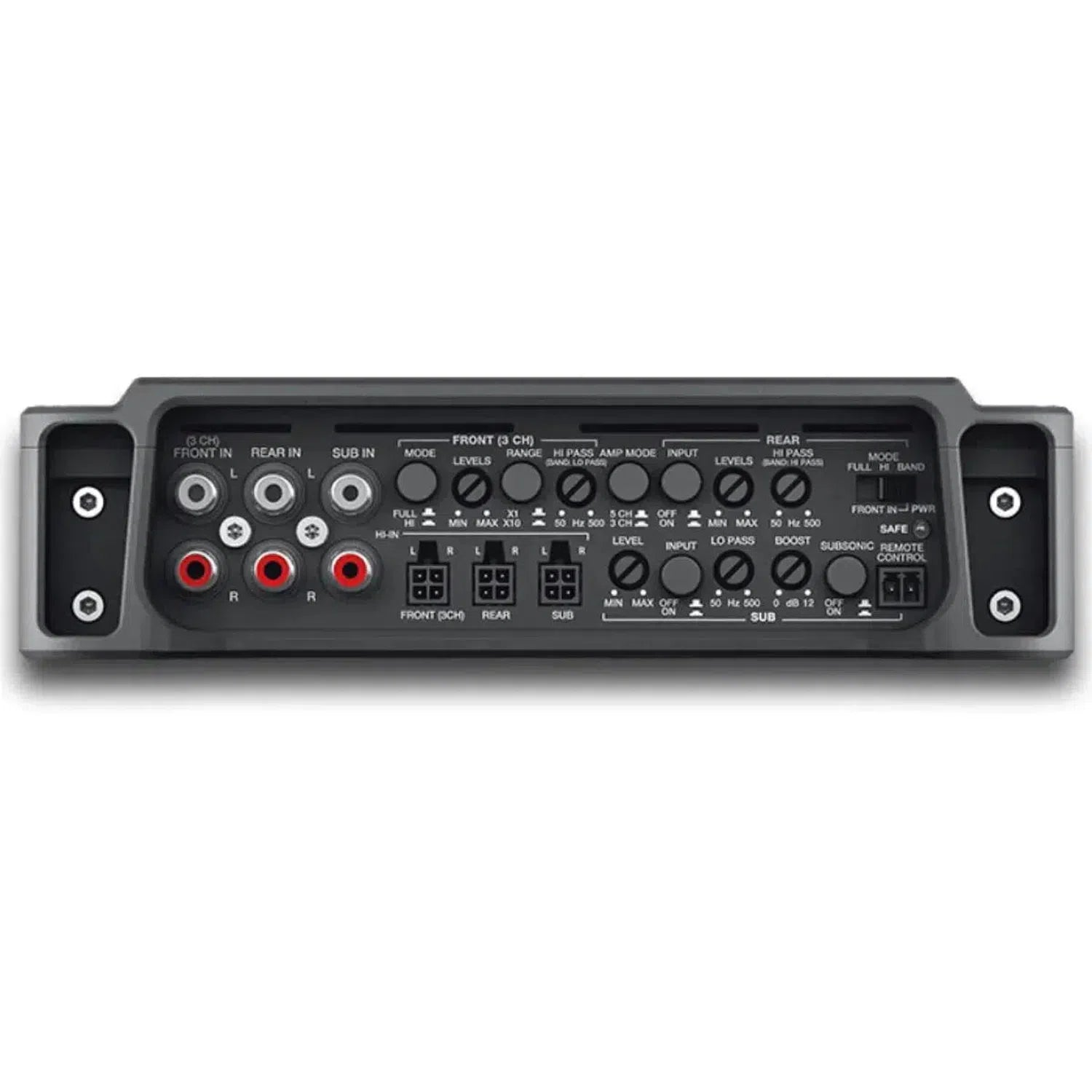

Input / Filter

INPUTS: PRE IN / SPEAKER IN
FRONT Ch. Filter FULL: Yes
- Hi-Pass: 50 - 5k Hz @ 12 dB/oct.
REAR Channel Filter FULL: Yes
- Hi-Pass: 50 - 5k Hz @ 12 dB/oct.
- Band-Pass: 50 - 500 Hz (Hi) @ 12 dB/oct. 50 - 5 kHz (lo) @ 12 dB/oct.
SUB Ch. Filter LO-PASS: 50 - 500 Hz @ 24 dB/oct.
SUBSONIC (on/off): 25 Hz @ 24 dB/oct.
BOOST 50 Hz (adjustable): (0 -12) dB
Remote Volume Control: -50 - 6) dB

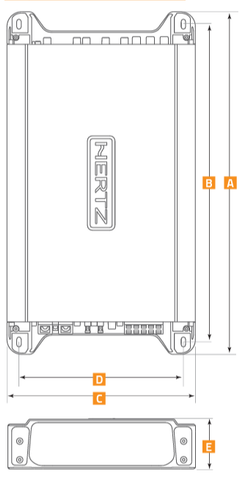

Physical Specifications

Compact-Power HCP 5D

Hertz Compact-Power HCP 5D Datenblatt

Datenblatt öffnen

Frequent questions about Compact-Power HCP 5D

Welche Gesamtleistung bietet der Compact-Power HCP 5D?

The Hertz Compact-Power HCP 5D offers an impressive total power of up to 950 watts. This power is divided into several channels: at a load of 4 ohms, it delivers 55 W x 4 plus 160 W x 1, while at 2 ohms, 90 W x 4 plus 280 W x 1 is available. The amplifier can deliver 180 W x 2 plus 160 W x 1 in a 3-channel configuration at 4 ohms and 180 W x 2 plus 280 W x 1 at 2 ohms. These specified powers provide enormous flexibility for various application scenarios and allow for customization according to needs.

Welche Frequenzweichenfunktionen hat der Hertz HCP 5D?

The Hertz Compact-Power HCP 5D is equipped with a variety of crossover functions that allow for precise sound control. The front and rear channels feature full-pass and hi-pass filters that can be set between 50 Hz and 5 kHz with a slope of 12 dB/oct. Additionally, a band-pass filter is available for the rear channel, which operates from 50 to 500 Hz in hi-pass and from 50 to 5 kHz in lo-pass, also with 12 dB/oct. For the sub channel, the HCP 5D offers a lo-pass filter from 50 to 500 Hz with a slope of 24 dB/oct., including a switchable subsonic filter at 25 Hz.

Welche Stromversorgung benötigt der HCP 5D Verstärker?

The Hertz Compact-Power HCP 5D amplifier operates in the voltage range of 11 to 15 VDC and is equipped with two 25 A fuses to ensure its operational safety. In idle mode, it consumes only about 2 A of current, while the consumption in standby mode drops to 0.04 mA. At maximum musical power and a load of 2 Ω, the amplifier requires about 30 A. Another feature to note is the remote input with a voltage spectrum between 7 and 15 VDC. These specifications ensure that the amplifier operates efficiently without overloading the vehicle's electrical circuit.

Wie hoch ist der Klirrfaktor des Verstärkers HCP 5D?

The Compact-Power HCP 5D from Hertz offers a remarkably low distortion factor of only 0.02% at 100 Hz and 4 Ω. Thanks to these low distortion values, the amplifier ensures that the audio quality remains pure and unadulterated. This is particularly important for audiophiles who value the highest sound purity. The reduced distortion factor demonstrates the advanced technology and refined circuitry of this amplifier, which is known for its ability to reproduce music in all its nuances and dynamics without sacrificing clarity, regardless of whether high or low volumes are chosen.

Welche Abmessungen hat der Hertz HCP 5D und wie wird er installiert?

The Compact-Power HCP 5D amplifier from Hertz has compact dimensions of 345 mm x 190 mm x 50 mm, allowing for flexible installation in most vehicles. When placing it, care should be taken to ensure there is sufficient space for ventilation to avoid overheating during operation. The installation should be done near the vehicle battery to minimize cable lengths, which can reduce losses. Due to its small size, the amplifier is particularly suitable for mounting in a vehicle trunk or under a seat. Attention to the vehicle's mass is required to correctly lay grounding signals.

Wie effizient ist das Netzteil des Compact-Power HCP 5D?

The Hertz Compact-Power HCP 5D is equipped with an efficient dual power supply. This ensures continuous power supply and supports high-performance materials under demanding operating conditions. Especially with dynamic music pieces, it guarantees a stable power supply, which is essential for consistently high sound quality. This technical sophistication not only gives the amplifier increased resistance to voltage fluctuations but also contributes to the longevity of the internal components. Particularly in situations where high power is demanded, this dual power supply demonstrates excellent performance in terms of current flow and stability.

Welche Signal-Rausch-Verhältnisse bietet der HCP 5D?

The Hertz Compact-Power HCP 5D offers an excellent signal-to-noise ratio: it is an impressive 100 dB at the A-weighted ratio at 1 V. This high number illustrates that the amplifier is capable of keeping the inevitable noise level so low that it is hardly perceptible to the human ear. This feature is important for minimizing interference noise in the audio range and maintaining audio integrity. Especially in quiet passages, such a signal-to-noise ratio can make the difference between conventional and excellent audio representation, which is an important characteristic for detail enthusiasts.

Ist der HCP 5D Verstärker mit OEM-Systemen kompatibel?

Yes, the Compact-Power HCP 5D from Hertz is designed to be compatible with a variety of OEM systems. Thanks to its flexible connection options via Pre-In and Speaker-In inputs, the amplifier can be used in both standard and retrofitted audio installations. This versatility allows users to integrate the amplifier into different vehicle models without encountering compatibility issues that could affect sound quality. In particular, the automatic function for turning on and off via the speaker input demonstrates that the HCP 5D was developed for seamless integration into existing audio systems.

Wie wirkt der Dämpfungsfaktor beim HCP 5D auf die Klangqualität?

The damping factor of the Compact-Power HCP 5D is 100 for the front/rear channel and 250 for the sub channel at 100 Hz and 4 Ω. A high damping factor, as seen in the HCP 5D especially in the sub range, improves control over the speaker membranes, resulting in more precise bass reproduction and lower distortion. This strength is particularly relevant at lower frequencies, as it gives the woofers the ability to deliver dynamic and sharp bass even at high volumes. The damping factor is a crucial feature for achieving clear and authentic sound quality, especially in complex musical passages.

Wie beeinflusst der Hertz Verstärker HCP 5D die Soundqualität?

The Hertz Compact-Power HCP 5D amplifier significantly influences sound quality through its performance-oriented architecture and advanced sound filtering. With a bandwidth of 10 to 50 kHz front/rear and 10 to 500 Hz at the sub, it can effortlessly handle a wide range of frequencies. Distortion is minimal, while the signal-to-noise ratio is at 100 dB, resulting in nearly uncolored sound fidelity. Additionally, the HCP 5D allows for an individual boost setting of up to 12 dB at 50 Hz, enhancing bass performance. For tech enthusiasts who value quality and precision, this amplifier is a powerful addition to the audio system.
