GS Audio Competition Series GS-14000.1 1-Channel Amplifier
SKU:  GS-14000.1

1 Review

14200 Watt

Competition Series GS-14000.1

SKU:  GS-14000.1

1 Review

Technical Highlights

  • 14200W RMS power at 1 Ohm, frequency range 20-10000Hz.
  • Minimum impedance of 1 ohm, power connections 4x 100mm².
  • Efficiency over 84% at 1 Ohm, current consumption 1300A max.
  • More technical details
00 d
00 h
00 m
00 s
€1.043,72
-25% €1.399,00 €1.043,72
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 7, - Jun 8,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €86,97 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
GS AudioHuracan 15000 21"
GS Audio-Huracan 15000 21"-21" (53cm) Subwoofer-masori-kaufen
GS Audio-CompactT SQ GS-550.1CMP-1-Kanal Verstärker-masori-kaufen
GS AudioCompactT SQ GS-550.1CMP
GS Audio-Competition Series GS-14000.1-1-Kanal Verstärker-masori-kaufen
€1.043,72
€1.399,00 €1.043,72

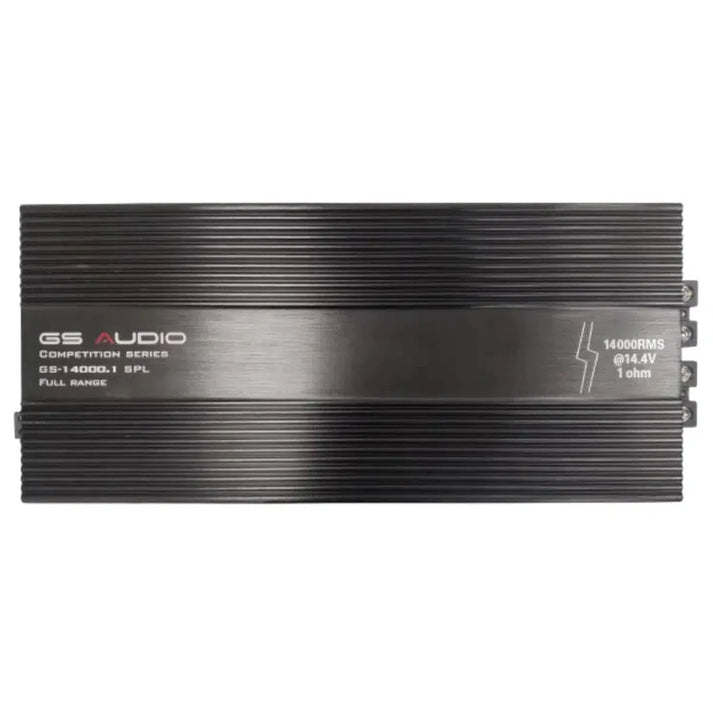

Competition Series GS-14000.1 by GS Audio

The Competition Series GS-14000.1 from GS Audio is a 1-Channel Amplifier with Class D topology. The RMS power ratings are 14200 Watts at 1 Ohm and 14.4 V, 9000 Watts at 2 Ohm and 14.4 V, and 6000 Watts at 4 Ohm and 14.4 V. At 12.6 V, the RMS values are 12700 Watts (1 Ohm), 8100 Watts (2 Ohm), and 5400 Watts (4 Ohm). The frequency range is 20–10000 Hz, and the minimum impedance is 1 Ohm. A high-resistance aluminum cast heat sink and a T.D.O.S. protection circuit are integrated. The efficiency values are >91 % (4 Ohm), >87 % (2 Ohm), and >84 % (1 Ohm). The operating voltage is 9.3–15.9 V, and the input sensitivity is 0.2–6 V. Filter functions include HPF 15–80 Hz / 12 dB, LPF 40–10000 Hz / 12 dB, and Bass Boost 0–12 dB with 35–70 Hz. The dimensions are 520 mm x 225 mm x 70 mm (W x D x H), and the weight is 7.7 kg.

Features
  • 1-Channel Amplifier
  • Class D Competition Amplifier
  • High-Resistance Aluminum Cast Heat Sink
  • T.D.O.S. Protection Circuit
  • Power Connections 4x 100 mm²
  • RMS Power @ 1 Ohm 14.4 V: 14200 Watts
  • Frequency Range 20–10000 Hz
  • Dimensions W 520 mm x D 225 mm x H 70 mm
  • Weight 7.7 kg
Technical Specifications
  • Topology Class D
  • Frequency Range 20–10000 Hz
  • Minimum Impedance 1 Ohm
  • RMS Power @ 1 Ohm 12.6 V: 12700 Watts
  • RMS Power @ 2 Ohm 12.6 V: 8100 Watts
  • RMS Power @ 4 Ohm 12.6 V: 5400 Watts
  • RMS Power @ 1 Ohm 14.4 V: 14200 Watts
  • RMS Power @ 2 Ohm 14.4 V: 9000 Watts
  • RMS Power @ 4 Ohm 14.4 V: 6000 Watts
  • Power Connections 4x 100 mm²
  • Recommended Fuse 2x 600 A
  • Maximum Current Draw 1300 A
  • Average Current Draw 500–700 A
  • Internal Operating Voltage 165/185 V
  • Efficiency @ 4 Ohm >91 %
  • Efficiency @ 2 Ohm >87 %
  • Efficiency @ 1 Ohm >84 %
  • Operating Voltage 9.3–15.9 V
  • Input Sensitivity 0.2–6 V
  • Signal-to-Noise Ratio >86 dB
  • HPF 15–80 Hz / 12 dB
  • LPF 40–10000 Hz / 12 dB
  • Bass Boost 0–12 dB
  • Bass Boost Frequency 35–70 Hz
  • Dimensions W 520 mm x D 225 mm x H 70 mm
  • Weight 7.7 kg

Your benefits at Masori

GS Audio Competition Series GS-14000.1 Datasheet

Open datasheet

Frequently Asked Questions about Competition Series GS-14000.1

What is the maximum RMS power of the Competition Series GS-14000.1 at 1 Ohm and 14.4V?

The Competition Series GS-14000.1 Amplifier from GS Audio delivers an impressive RMS power of 14200 Watts at a load impedance of 1 Ohm and an operating voltage of 14.4V. This high power output makes the amplifier ideal for demanding audio applications where maximum volume and clarity are required. The Class D topology of the amplifier ensures high efficiency, supported by the highly durable aluminum die-cast heat sink to ensure effective heat dissipation. Thus, the GS-14000.1 offers a combination of enormous power and reliable thermal management that sets it apart in the audio industry.

What safety features does the T.D.O.S. protection circuit of the GS-14000.1 offer?

The T.D.O.S. protection circuit (Thermal, DC, Overcurrent, Short) of the Competition Series GS-14000.1 ensures comprehensive protection against a variety of potential hazards. In the event of overheating of the internal components, the thermal shutdown activates the protection mechanisms to prevent damage to the amplifier. Similarly, the DC shutdown protects against DC voltage spikes, while the overcurrent shutdown temporarily disables the amplifier during extreme current flow events. Short circuit protection is also integrated to safeguard both the device and the connected speakers from irreversible damage. These protection features ensure that the GS-14000.1 operates reliably even under extreme operating conditions.

How effective is the aluminum die-cast heat sink in the heat dissipation of the GS-14000.1?

The Competition Series GS-14000.1 Amplifier is equipped with a highly durable aluminum die-cast heat sink that ensures excellent heat dissipation. By using aluminum die-cast, a material with high thermal conductivity, the heat sink can effectively dissipate the heat generated during Class D amplification. This allows for a stable operating temperature even at maximum power of 14200W RMS, thereby extending the lifespan of the amplifier and improving reliability. The robust construction of the cooling system also prevents thermal bottlenecks and ensures consistent power output under various operating conditions.

What are the power connection specifications of the Competition Series GS-14000.1?

The GS Audio Competition Series GS-14000.1 features 4x100mm² power connections that ensure a stable and powerful power supply. These large cable cross-sections are crucial for reliably handling the high current draw of up to 1300A and an average current draw between 500-700A. Additionally, the manufacturer recommends using 2x600A fuses, which further enhance the safety and efficiency of the system. The robust power connections are specifically designed to meet the high performance demands of the 1-channel Class D Amplifier without power losses or overheating, ensuring consistent and interference-free audio performance.

How does the RMS power of the GS-14000.1 vary with different impedances?

The Competition Series GS-14000.1 offers variable RMS power depending on the connected load impedance and operating voltage. At an operating voltage of 12.6V, the amplifier delivers 12700 Watts RMS at 1 Ohm, 8100 Watts RMS at 2 Ohm, and 5400 Watts RMS at 4 Ohm. With an increased operating voltage of 14.4V, the power rises to 14200 Watts RMS at 1 Ohm, 9000 Watts RMS at 2 Ohm, and 6000 Watts RMS at 4 Ohm. These flexible power options allow for optimal adjustment of the amplifier to different speaker impedances, creating a tailored audio experience suitable for both high-power applications and stable operation.

What frequency filter settings does the GS-14000.1 offer for sound tuning?

The GS Audio Competition Series GS-14000.1 amplifier is equipped with comprehensive frequency filter settings that enable precise sound tuning. The high-pass filter (HPF) covers a frequency range of 15-80Hz with a slope of 12dB, effectively attenuating unwanted low frequencies to ensure clear sound reproduction. The low-pass filter (LPF) extends from 40Hz to 10kHz, also with a slope of 12dB, allowing for precise limiting of the upper frequencies. Additionally, the bass boost offers an adjustment of 0-12dB in the range of 35Hz to 70Hz, which is particularly beneficial for bass-heavy applications and fine-tuning low frequencies.

What is the signal-to-noise ratio of the Competition Series GS-14000.1?

The Competition Series GS-14000.1 from GS Audio has a signal-to-noise ratio (S/N Ratio) of over 86dB. This high ratio ensures that the output signal of the amplifier remains clear and uncolored by minimizing noise and unwanted background sounds. An S/N Ratio of over 86dB means that the audio playback exhibits high precision and clarity, which is especially important for discerning audiophiles and professional applications. This feature significantly contributes to the overall sound quality and makes the GS-14000.1 an excellent choice for high-quality audio applications.

What efficiency values does the GS-14000.1 achieve at different load impedances?

The GS Audio Competition Series GS-14000.1 Amplifier offers impressive efficiency values that vary depending on the load impedance. At a load of 4 ohms, the amplifier achieves an efficiency of over 91%, meaning that most of the energy consumed is converted into usable audio power. At 2 ohms, the efficiency is over 87%, and at 1 ohm, it is still above 84%. These high efficiency values are characteristic of Class D amplifiers and help minimize heat dissipation while ensuring stable performance output, even under high power demands. The efficient energy use also allows for longer operating times and greater reliability of the amplifier.

What are the dimensions and weight of the GS-14000.1, and how does this affect installation?

The Competition Series GS-14000.1 measures 520 mm in width, 225 mm in depth, and 70 mm in height, and weighs a total of 7.7 kg. This compact design allows for flexible installation in various vehicle or audio setups without taking up much space. The lightweight also makes it easier to install and handle the amplifier, allowing you to easily integrate it into your existing system. The dimensions are designed to ensure that the GS-14000.1 fits into most installation spaces, while the robust housing and high-quality construction ensure secure and stable mounting, which is particularly advantageous for mobile applications.

What are the power supply and fuse requirements for the GS-14000.1?

For the high-performance Competition Series GS-14000.1 Amplifier, specific requirements for the power supply and fuses are recommended. The amplifier requires 4x100mm² power connections to handle the maximum current draw of 1300A and an average current draw of 500-700A. To protect the power supply, GS Audio recommends using 2x600A fuses, which provide optimal protection against power surges and short circuits. Additionally, the amplifier operates with internal working voltages of 165/185V and supports an input voltage of 9.3V to 15.9V. Careful adherence to these specifications is essential to ensure a stable and safe power supply for the GS-14000.1 and to utilize the amplifier's maximum performance.
