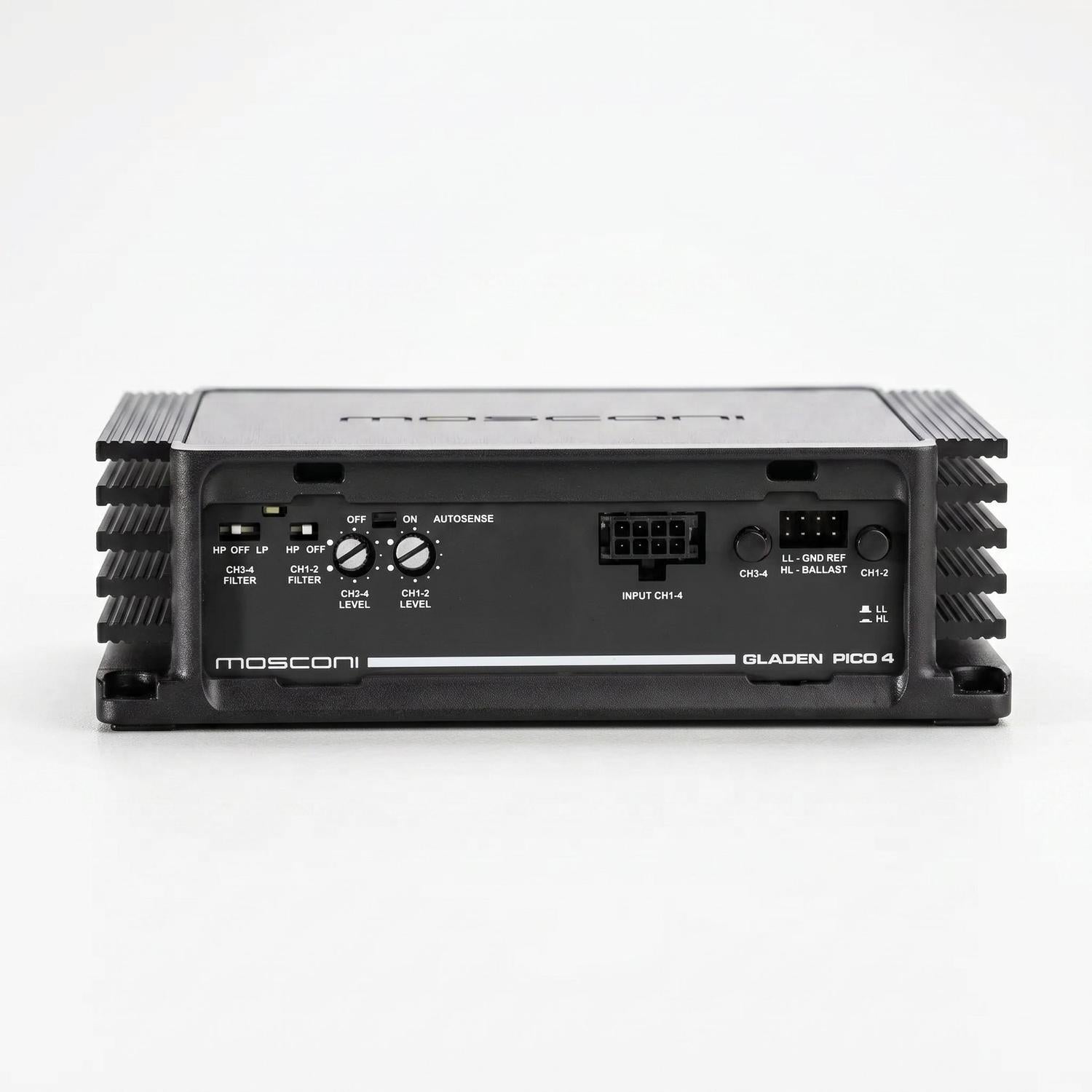

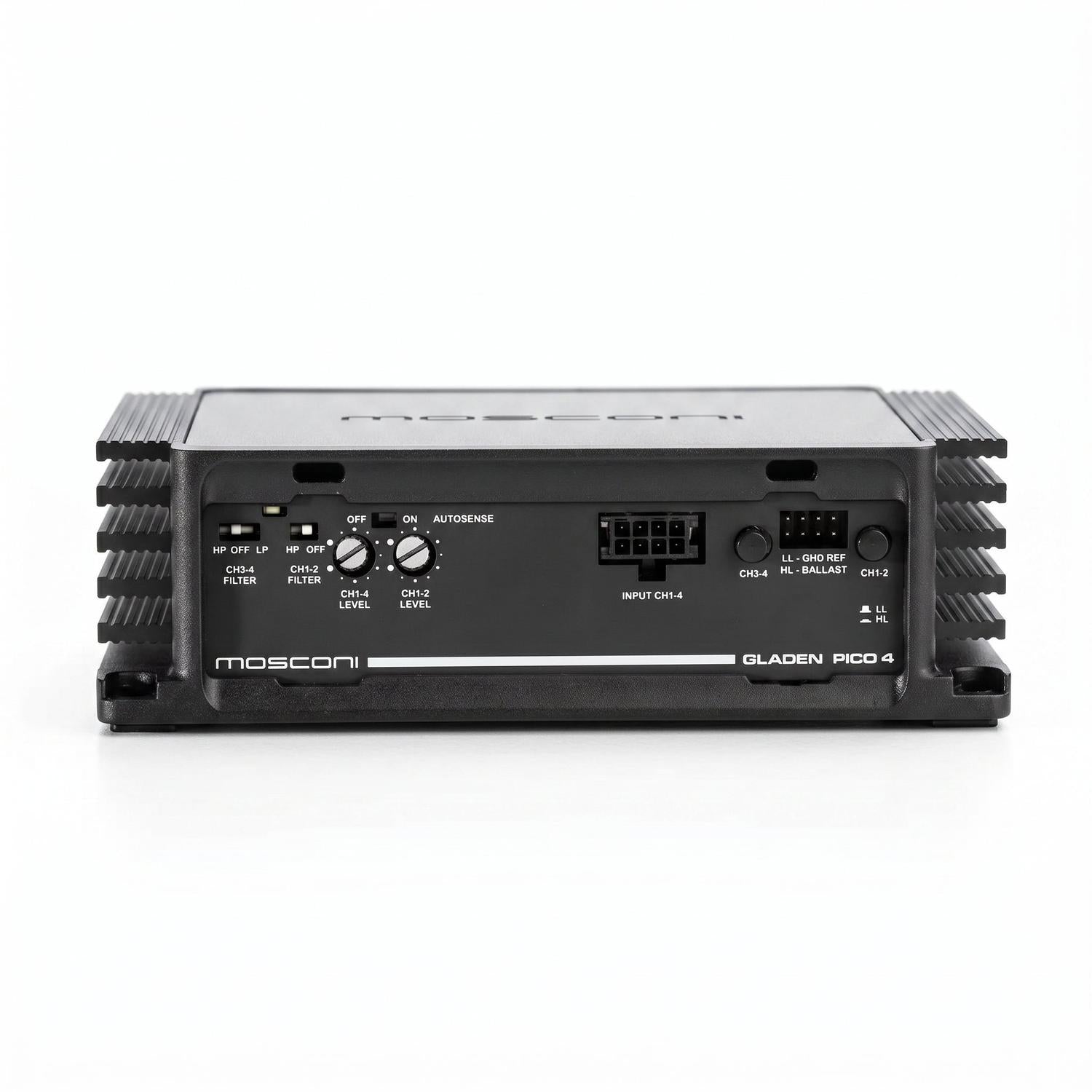

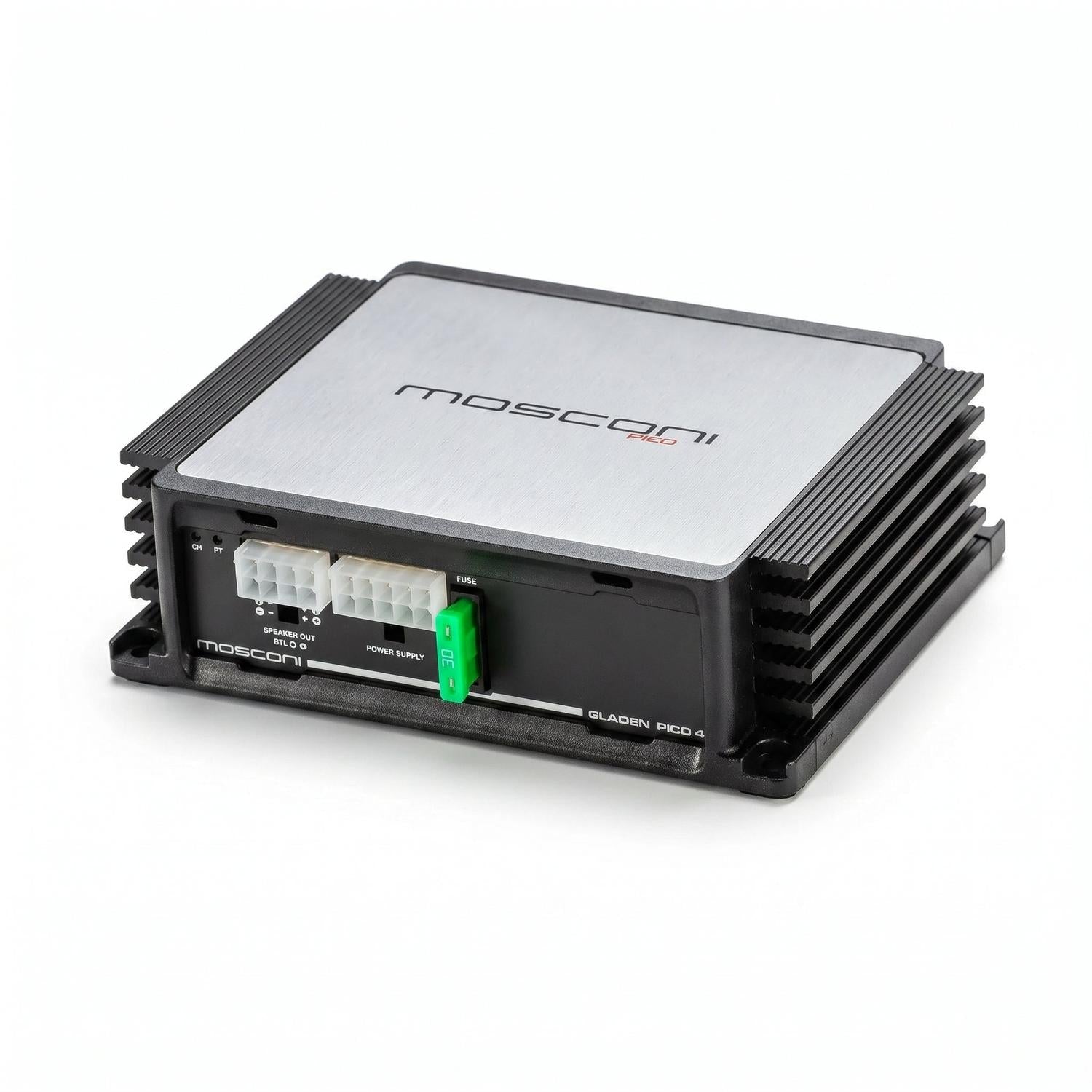

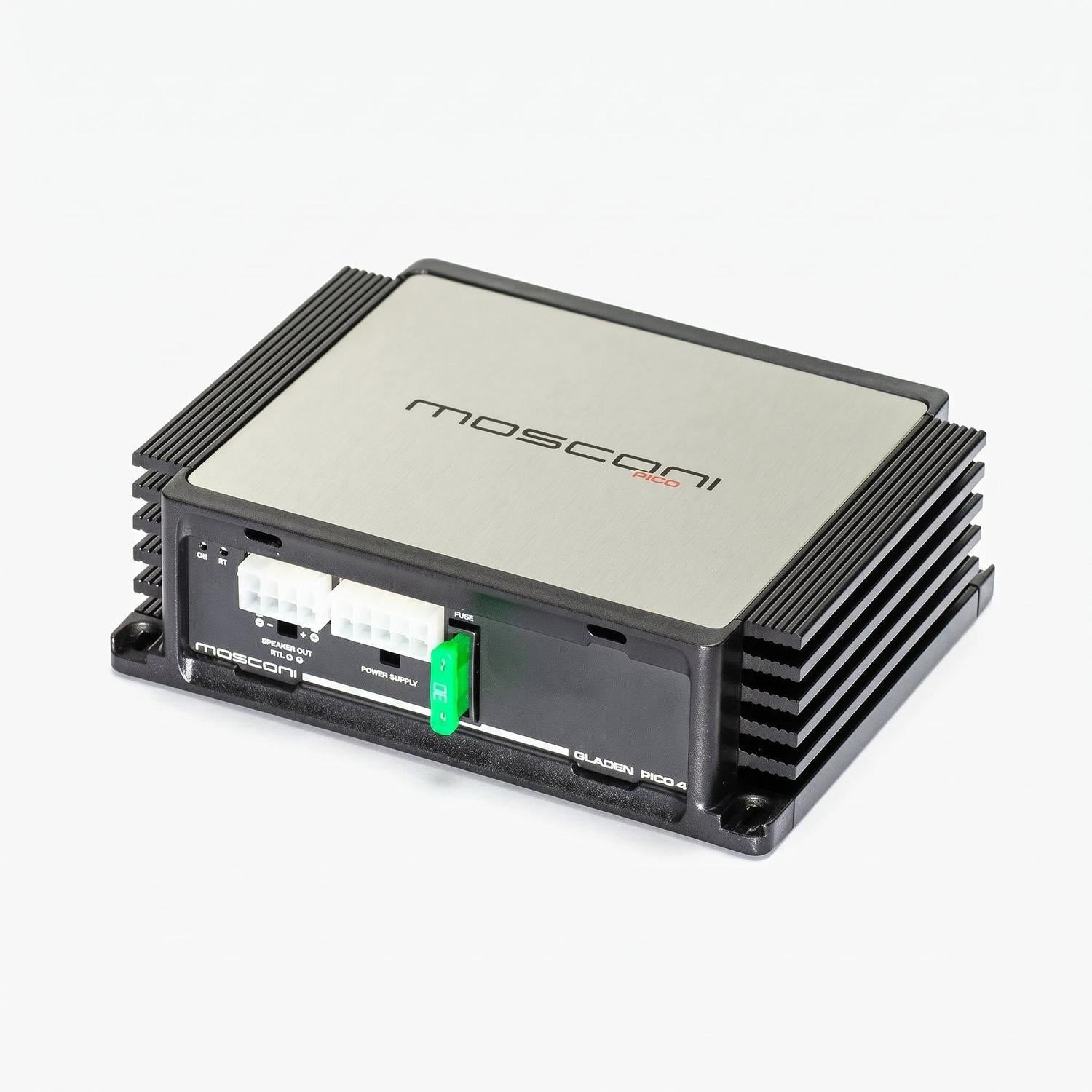

Gladen Mosconi PICO 4 sa 4-Channel Amplifier

120 Watt

Gladen Mosconi PICO 4 sa 4-Channel Amplifier

Technical Highlights

  • Total power 480 Wrms, 2-ohm stable, bridgeable, efficient.
  • 4x120 watts at 2 ohms, 4x90 watts at 4 ohms, ideal for subwoofers.
  • Compact dimensions 150x115x46 mm, Molex connectors, active crossover.
  • More technical details
€399,00
€399,00 €399,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
Mar 24, - Mar 27,
x Piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €33,25 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
GladenMosconi ONE 250.2
Gladen-Mosconi ONE 250.2-2-Kanal Verstärker-masori-kaufen
Gladen-GA ZEROPRO25-Kalotten-Hochtöner-masori-kaufen
GladenGA ZEROPRO25
Gladen-Mosconi PICO 4 s.a.-4-Kanal Verstärker-masori-kaufen
€399,00
€399,00 €399,00

Mosconi PICO 4 sa by Gladen

With the Mosconi PICO 4 s.a. from Gladen, you get a versatile 4-channel amplifier. This full-range PWM amplifier offers a total of up to 480 Wrms power and is bridgeable as well as 2-ohm stable. It is not only a master in classic front-sub / front-rear concepts but also ideal for doorboards, two subwoofers, or subwoofers with dual voice coils. In addition to high current efficiency and compact design, the amplifier impresses with its active crossover and Molex connections. It is an excellent complement to a PICO DSP power amplifier, but can also be used universally thanks to high-level and low-level inputs as well as its own filters.

features

  • active switch
  • Molex connectors
  • Compact design
  • High Power Efficiency
  • Crossover for Semi Active Operation (Pico 4 SA)
  • Available in 24 Volt version (only Pico 4)

Technical Data

Services

  • Output power at 4 Ohms: 4 x 90 Watts
  • Output power at 2 Ohms: 4 x 120 Watts
  • Output power at 4 Ohms: 2 x 85 Watts + 1 x 230 Watts (bridged)
  • Output power at 4 Ohms: 2 x 230 Watts (bridged)

Data

  • Input voltage: 0.3 - 20 V
  • Efficiency above all: > 75 %
  • Auto-On (only High Level): Off - BTL
  • Channel 1+2 Filter (HP): Off – 80 Hz (12 dB/Oct)
  • Channel 3+4 Filter (HP/LP): Off – 80 Hz (12 dB/Oct)
  • Channel 1+2 Filter (HP): Off - 280 Hz (12 dB/Oct) - Pico 4 SA
  • Channel 3+4 Filter (HP/LP): Off - 220 Hz (12 dB/Oct) - Pico 4 SA
  • Dimensions: 150 x 115 x 46 mm
  • Weight: 1050 grams

Your benefits at Masori

Gladen Mosconi PICO 4 sa Datasheet

Open datasheet

Frequently Asked Questions about Mosconi PICO 4 sa

How much power does the Mosconi PICO 4 s.a. from Gladen provide?

The Mosconi PICO 4 s.a. Amplifier from Gladen delivers an impressive power of up to 480 Wrms. At a connection impedance of 4 Ohms, it offers 4 x 90 Watts, while this increases to 4 x 120 Watts at 2 Ohms. In bridged mode at 4 Ohms, the combination configuration reaches 2 x 85 Watts and 1 x 230 Watts. Alternatively, in a fully bridged form, the amplifier delivers 2 x 230 Watts. This flexibility allows you to optimally adjust the amplification system to your individual needs and the existing audio setup.

Is the Mosconi PICO 4 s.a. Amplifier suitable for semi-active operation?

Yes, the Mosconi PICO 4 s.a. from Gladen is well-suited for semi-active operation. It is equipped with a built-in active crossover that allows for flexible adjustment to various system requirements. The crossover is configurable, so you can operate channel 1+2 with a high-pass filter from off to 280 Hz and channel 3+4 in both high-pass and low-pass from off to 220 Hz. These settings allow you to precisely adapt the sound to the specific requirements of your setup, whether for front subwoofers or more.

Can I use the Mosconi PICO 4 s.a. in a 24-volt system?

The Mosconi PICO 4 s.a. is available in a special version for 24-volt systems; however, this only applies to the PICO 4 model and not specifically to the s.a. variant. This can be particularly important if you are operating a system with a higher voltage, as is often the case in commercial vehicles. It thus offers more flexible integration into different electrical system requirements and makes it easier for you to use the amplifier under a variety of conditions without worrying about compatibility issues.

What are the dimensions of the Mosconi PICO 4 s.a. from Gladen?

The Mosconi PICO 4 s.a. from Gladen is designed to fit into compact installation spaces, measuring 150 x 115 x 46 mm. These dimensions make it particularly suitable for applications where space is limited, such as in certain vehicles or specific audio installations. Thanks to its small size, the Amplifier offers various installation options without compromising on performance. Its weight of only 1050 grams also significantly eases handling during installation.

What connections does the Mosconi PICO 4 s.a. offer for installation?

The Mosconi PICO 4 s.a. from Gladen is equipped with Molex connectors that provide a secure and efficient connection. This is especially useful for facilitating installation and integration with existing systems. Additionally, the Amplifier features high-level and low-level inputs, allowing for flexible integration into both factory and custom audio systems. This versatility ensures that you can easily and seamlessly integrate the Amplifier into a variety of audio systems without compatibility issues.

How efficiently does the Mosconi PICO 4 s.a. Amplifier operate?

The Mosconi PICO 4 s.a. from Gladen impresses with a high efficiency of over 75%. This high efficiency means that the Amplifier dissipates less energy as heat and channels more into sound quality. This feature not only contributes to performance but is also environmentally beneficial, as it reduces power consumption. This is particularly useful for users who value high performance with minimal energy consumption, whether in private or professional audio setups.

Can the Mosconi PICO 4 s.a. be operated in bridged mode?

Yes, the Mosconi PICO 4 s.a. from Gladen can be used in bridged operation, allowing for altered power output. In bridged mode, it offers either a power combination of 2 x 85 watts plus 1 x 230 watts at 4 ohms or a full bridge of 2 x 230 watts. This bridging capability allows you to flexibly configure the Amplifier's power output, which is ideal for specific applications such as high-power subwoofer configurations. This way, you can optimally and precisely enhance the audio performance of your system.

What input voltage does the Mosconi PICO 4 s.a. require?

The Mosconi PICO 4 s.a. Amplifier from Gladen operates within a wide range of input voltage, specifically from 0.3 to 20 volts. This high flexibility allows it to be used in almost any audio system, regardless of the output voltage of the sources. Whether you use a high-level input from your factory radio or a low-level signal from a high-quality aftermarket unit, the amplifier is prepared for both scenarios, providing you with versatile options in your vehicle or audio setup.

Can the Mosconi PICO 4 s.a. turn on automatically?

Yes, the Mosconi PICO 4 s.a. features an auto-on function, which is particularly evident with the high-level input. This function automatically activates the amplifier when an audio signal is detected, ensuring convenient and seamless use. The auto-on option can be configured in BTL style, meaning your system is more efficient and user-friendly, as you don't have to manually turn it on or off. Such features contribute to an optimized user experience and make the system appear smarter and more modern.

How does the Mosconi PICO 4 s.a. differ with its filter settings?

The Mosconi PICO 4 s.a. Amplifier stands out with individually adjustable filter settings that allow for precise sound control. For channels 1+2, high-pass filters are available from off to 80 Hz, or up to 280 Hz in the SA version. In contrast, channels 3+4 can be configured with both high-pass and low-pass filters from off to 80 Hz, or up to 220 Hz. These flexible filter settings enable you to fine-tune the sound and optimally adjust it to your preferred audio playback and the physical characteristics of your speakers.
