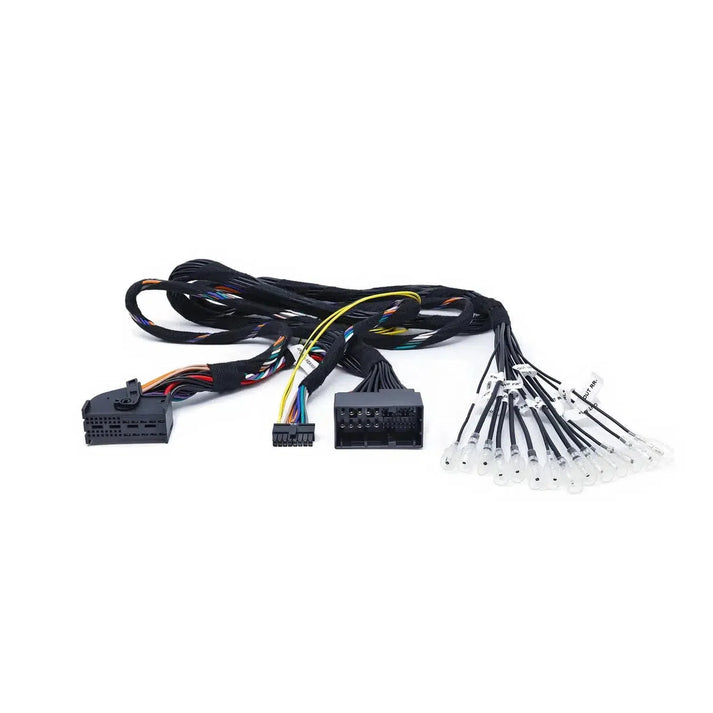

Prima AFBMW ReAMP 3 by Audison

The Prima AFBMW ReAMP 3 from Audison is an excellent DSP accessory. It is particularly distinguished by its compatibility with the 676 HiFi audio package and the Audison AF amplifier. Please note that using it with other products may require adjustments and additional connections in the vehicle. The 676 HiFi systems use 2Ω woofers, so you must not bridge two channels with a 2Ω load. For a bridged channel, the OEM 2Ω woofers must be replaced with Audison APBMW S8-4.2 4Ω woofers. And remember to confirm the proper application.

PROPERTIES

Compatibility with the 676 HiFi audio package equipped with a RAM module and the Audison AF amplifier.
The use of other products may require modifications and additional connections to the vehicle.
676 HiFi systems use 2Ω woofers. Do not bridge two channels with a 2Ω load, as this may lead to a protection shutdown or damage to the amplifier. To use a bridged channel, the user must replace the OEM 2Ω woofers with Audison APBMW S8-4.2 4Ω woofers. Please ensure that you confirm the correct bridging wiring.
Use the Hi-Level input configuration #11 (2-way front + rear + center) during the configuration process of the Bit Drive Wizard. This is important to properly route the input signal to the bit processor.
Confirm the proper application
APBMW ReAMP 1, APBMW ReAMP 2, and AFBMW ReAMP 3 use identical connectors, but with different pin assignments. They are not interchangeable.

Audison Prima AFBMW ReAMP 3 Datenblatt

Datenblatt öffnen

Frequent questions about Prima AFBMW ReAMP 3

Welche technischen Merkmale hat das Prima AFBMW ReAMP 3 von Audison?

The Prima AFBMW ReAMP 3 from Audison is a DSP accessory specifically designed for compatibility with the 676 HiFi audio package and the Audison AF amplifier. It is important to note that this product operates with built-in RAM modules and using it with other systems may require adjustments. The recommended hi-level input configuration #11 (2-way front + rear + center) is essential to correctly route the input signal to the bit processor. The unique connectors of the ReAMP series, although visually identical, have different pin assignments and are not interchangeable, which requires careful application.

Wie gehe ich vor, um das Prima AFBMW ReAMP 3 korrekt einzurichten?

For the correct setup of the Prima AFBMW ReAMP 3, it is necessary to adhere to the specifications of the 676 HiFi audio package and the Audison AF amplifier. An important component is the use of the Hi-Level input configuration #11 to ensure that the input signal is properly routed to the bit processor. During the installation process, care must be taken to ensure that the PIN configurations of the cables and connectors meet the specific standards to guarantee compatibility and operational safety. In case of a mismatch, there is a possibility of signal interruptions or device damage.

Kann ich mit dem Prima AFBMW ReAMP 3 zwei 2Ω-Kanäle brücken?

No, with the Prima AFBMW ReAMP 3, no two 2Ω channels may be bridged. The use of 2Ω woofers requires special attention, as an incorrect bridging configuration can lead to a protection shutdown or even damage to the amplifier. To efficiently use a bridged channel, the OEM 2Ω woofers must be replaced with the Audison APBMW S8-4.2 4Ω woofers. The correct bridging wiring must always be checked to ensure that the system operates without malfunctions.

Welche Lautsprecher sind mit dem Prima AFBMW ReAMP 3 kompatibel?

The Prima AFBMW ReAMP 3 is optimized for use with 4Ω speakers, especially when bridged channels are to be used. OEM 2Ω woofers must be replaced with Audison APBMW S8-4.2 4Ω woofers to ensure optimal sound quality and system stability. This product modification is essential for the efficient use of the Audison AF-Bit amplifier. When selecting speakers, the impedance must be taken into account to avoid protection shutdowns or potential damage to the amplifier.

Warum ist die Pinbelegung beim Prima AFBMW ReAMP 3 so wichtig?

The pin assignment for the Prima AFBMW ReAMP 3 is crucial because, despite identical connectors within the ReAMP series, different assignments exist. These nuances in wiring directly affect compatibility with different systems and overall functionality. If the pins are incorrectly assigned, it can lead to signal loss or short circuits. During installation, it must be carefully checked that each connection is linked to its correct counterpart to maintain the integrity of the audio signal and ensure the efficient operation of the Audison DSP accessories.

Wie beeinflusst das Prima AFBMW ReAMP 3 den Sound in meinem BMW?

The Prima AFBMW ReAMP 3 from Audison has been developed to significantly improve the audio quality in vehicles equipped with the 676 HiFi audio package. With compatibility with the Audison AF amplifier, you will experience a more precise and powerful sound, especially when you replace the OEM 2Ω woofers with Audison APBMW S8-4.2 4Ω woofers. This adjustment allows the amplifier to fully utilize its performance, resulting in clearer and more dynamic music playback. Music lovers in particular will appreciate the enhanced audio quality at high volumes.

Stellt das Prima AFBMW ReAMP 3 spezielle Anforderungen an die Installation?

Yes, some specific preparations are necessary for the installation of the Prima AFBMW ReAMP 3. In addition to using the Hi-Level input configuration #11 for proper signal processing, special attention should be paid to ensuring that the correct bridging wiring is set up. Replacing the OEM 2Ω woofers with Audison 4Ω woofers is required for bridged channels. All connections must be carefully checked to guarantee system compatibility. A messy or faulty installation could disrupt the audio processor and impair overall performance.

Kann das Prima AFBMW ReAMP 3 mit Audison APBMW S8-4.2 Lautsprechern verwendet werden?

Yes, the Prima AFBMW ReAMP 3 is specifically optimized for use with Audison APBMW S8-4.2 4Ω woofers. When using these speakers, the DSP accessory unleashes its maximum sound optimization capability. Especially with bridged channels, replacing them with these Audison speakers is necessary to minimize the risk of protection shutdowns. This adjustment ensures that the system is optimally tuned and the audio performance in the vehicle is significantly improved. Considering the correct wiring, these speakers can significantly enhance the sound experience.

Welche Signalkonfiguration empfiehlt sich für das Prima AFBMW ReAMP 3?

For the Prima AFBMW ReAMP 3, the use of Hi-Level input configuration #11 is recommended, which consists of a 2-way setup in the front, rear, and a center channel signal. This configuration ensures that the bit processor correctly receives and processes the input signals. In the configuration, all signal paths must be adjusted to ensure accurate reproduction. Since different systems have different signal needs, the specific installation situation in the vehicle must always be taken into account when using it. A correct configuration is crucial for system performance.

Ist das Prima AFBMW ReAMP 3 einfach in ein BMW-System zu integrieren?

The integration of the Prima AFBMW ReAMP 3 into a BMW system with the 676 HiFi audio package is relatively straightforward when the specific requirements are taken into account. In addition to the previously mentioned necessity of replacing 2Ω woofers with 4Ω components, the specific pin assignments of the ReAMP 3 are particularly critical. A correct implementation requires care in wiring and signal processing. Once properly installed, the Audison DSP accessory will enable significantly optimized sound reproduction. The right configuration ensures a seamless listening experience and long-term functionality.
