Crunch DSX6.2E 6.5" (16.5cm) speaker set

Name: Crunch DSX6.2E 6.5 inch speaker set | Masori
Brand: Crunch
Price: 84.15 EUR
Availability: InStock

CYBER -15%

Max, Mikael and 53k+ customers already with Masori sound upgrade

Crunch DSX6.2E 6.5" (16.5cm) speaker set

Power 100 Watts RMS, MAX 200 Watts, impedance at 4 Ω.
Frequency range from 65 22000 Hz, swiveling tweeters.
Installation opening 145 mm, installation depth 45 mm, sturdy steel baskets.
Mehr technische Details

00

€84,15

~~€99,00~~ €84,15

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Bequem in 12 zinsfreien Raten à €7,01 mit Klarna zahlen.

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €14,99 60 Monate Plusgarantie Am beliebtesten €19,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

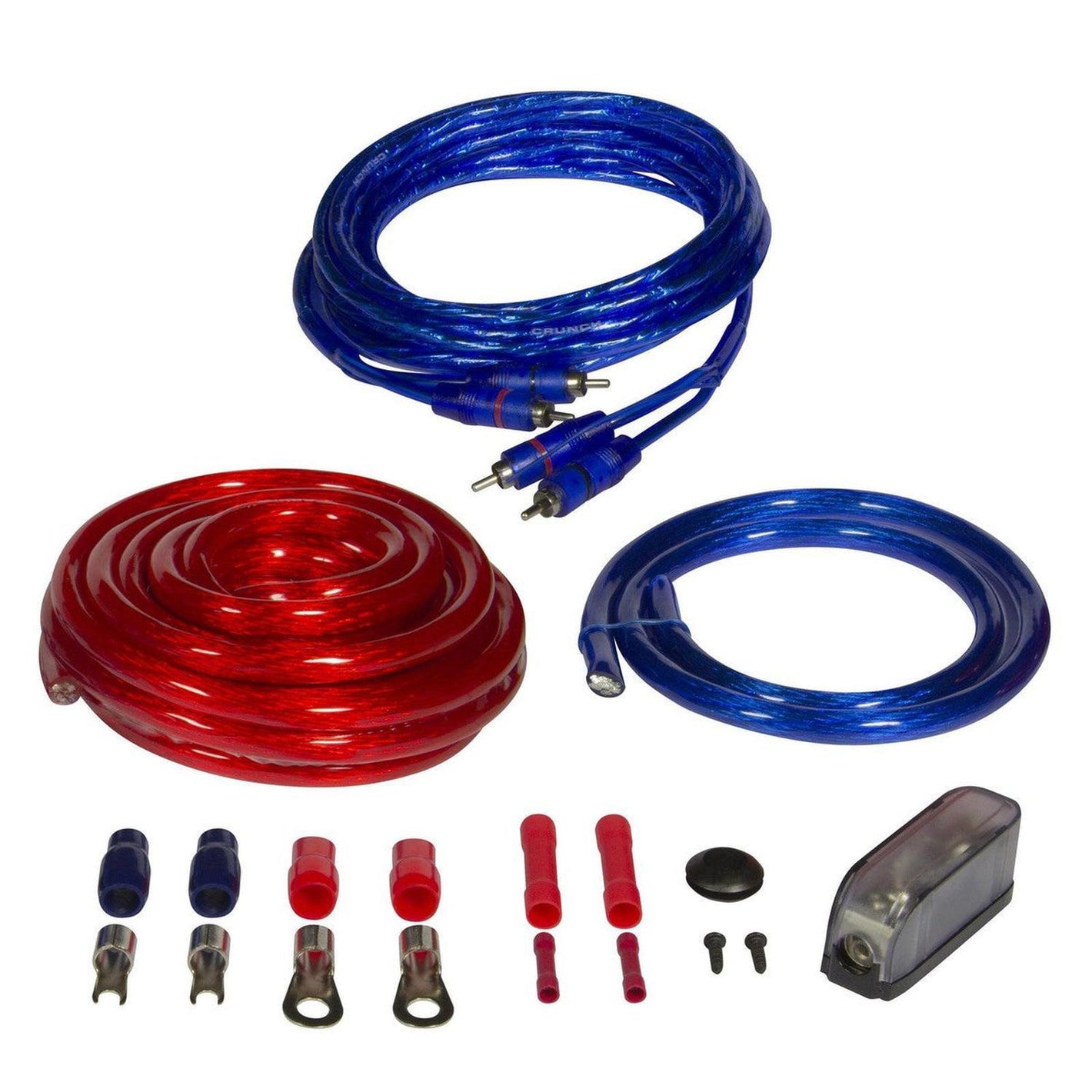

CrunchCRK10

CrunchGTI693

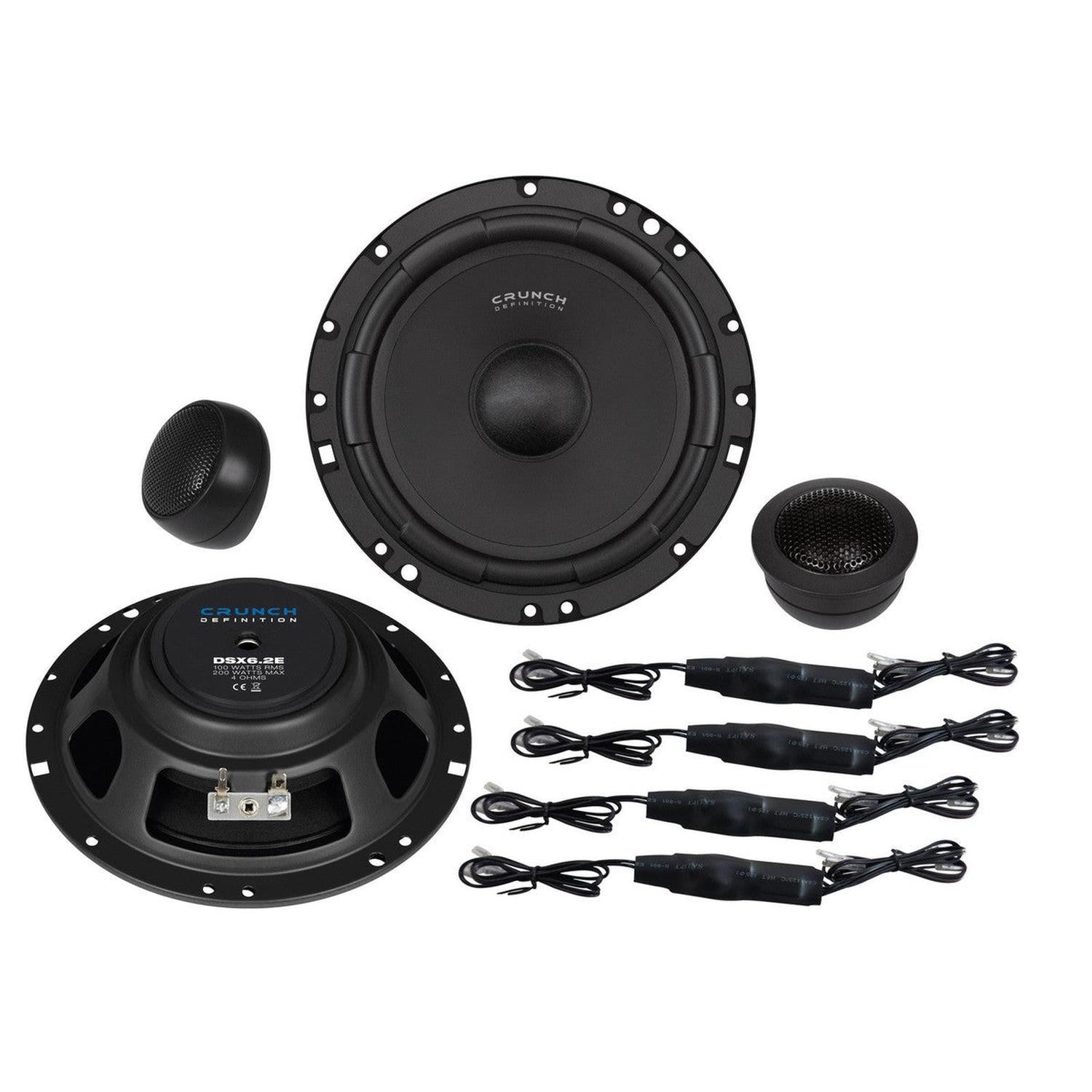

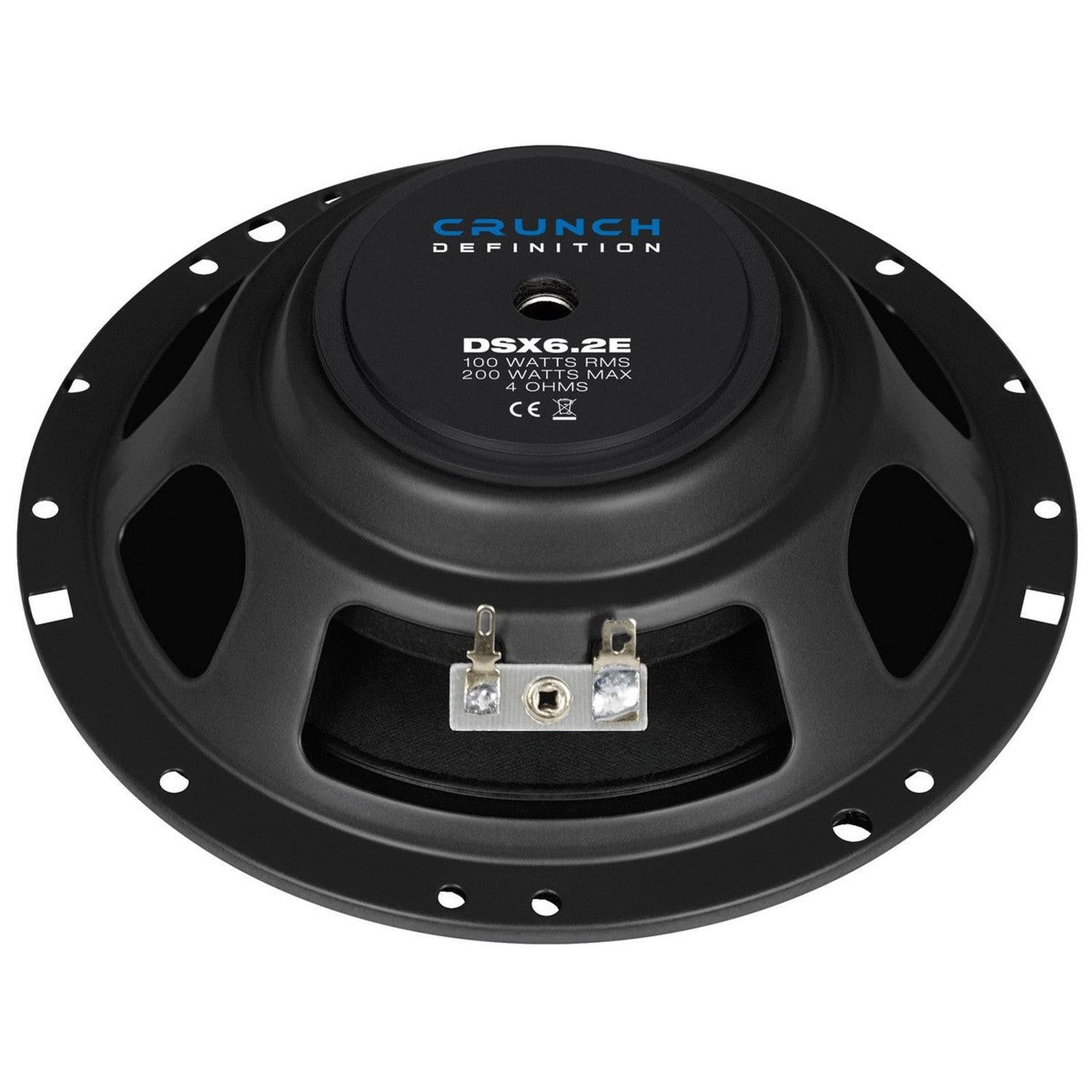

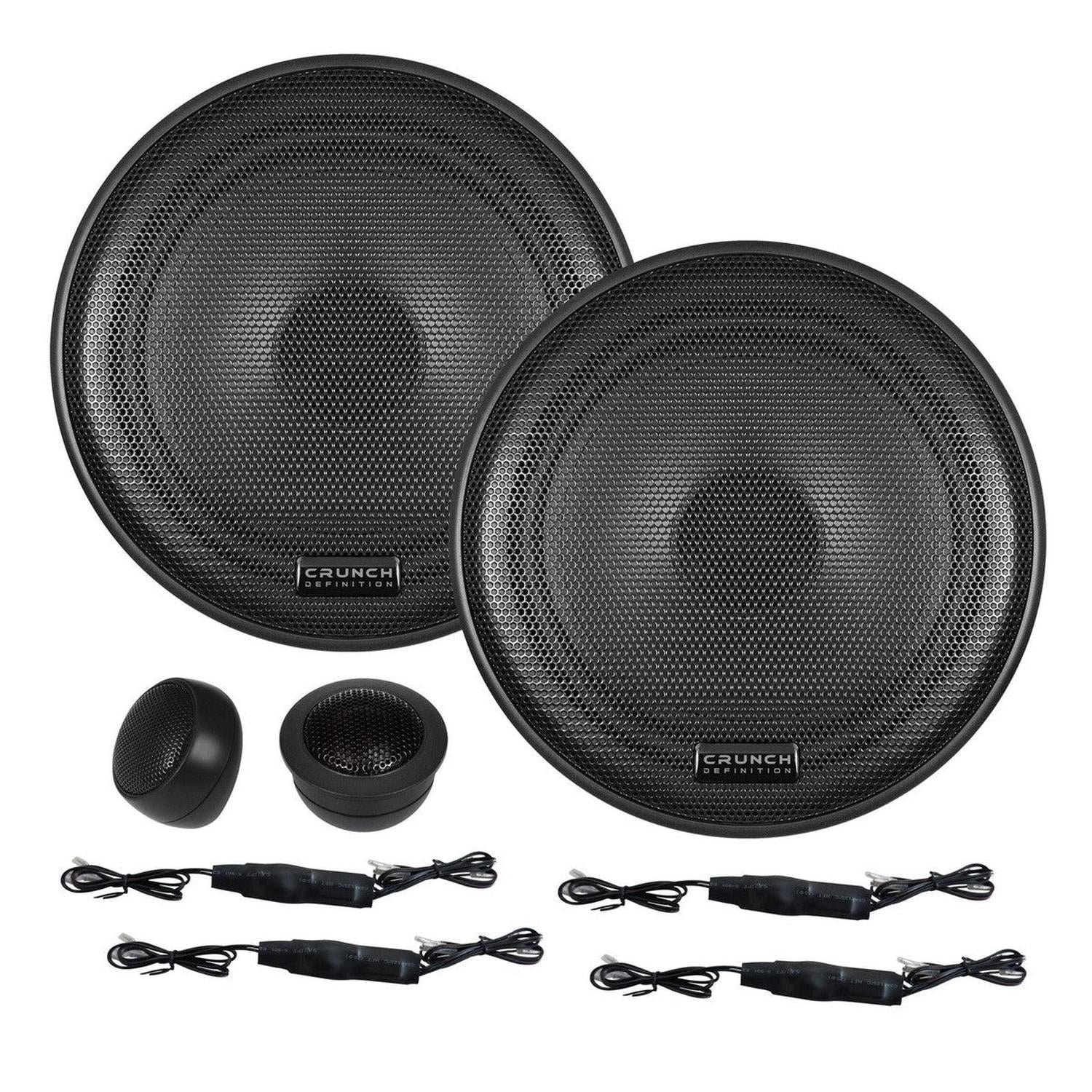

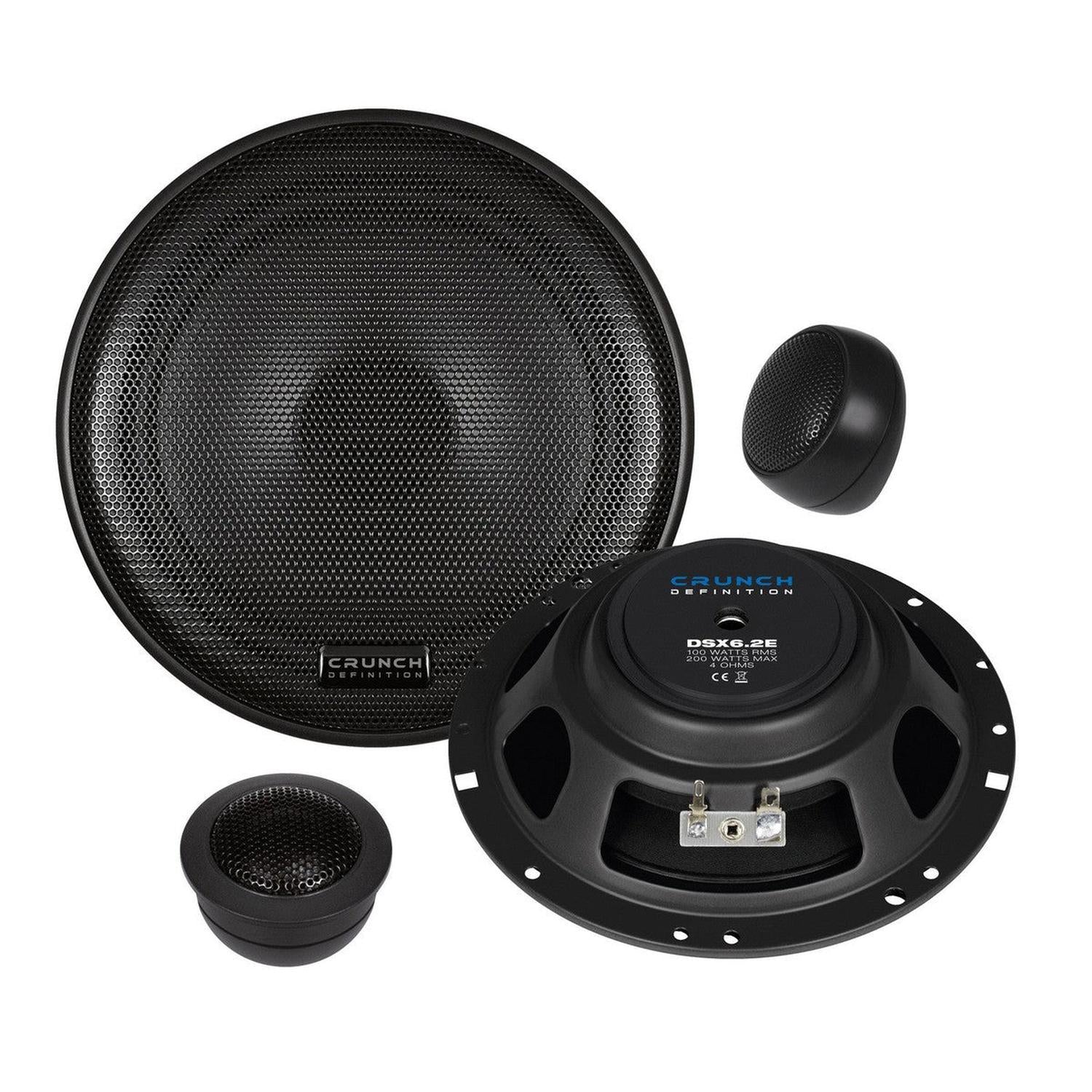

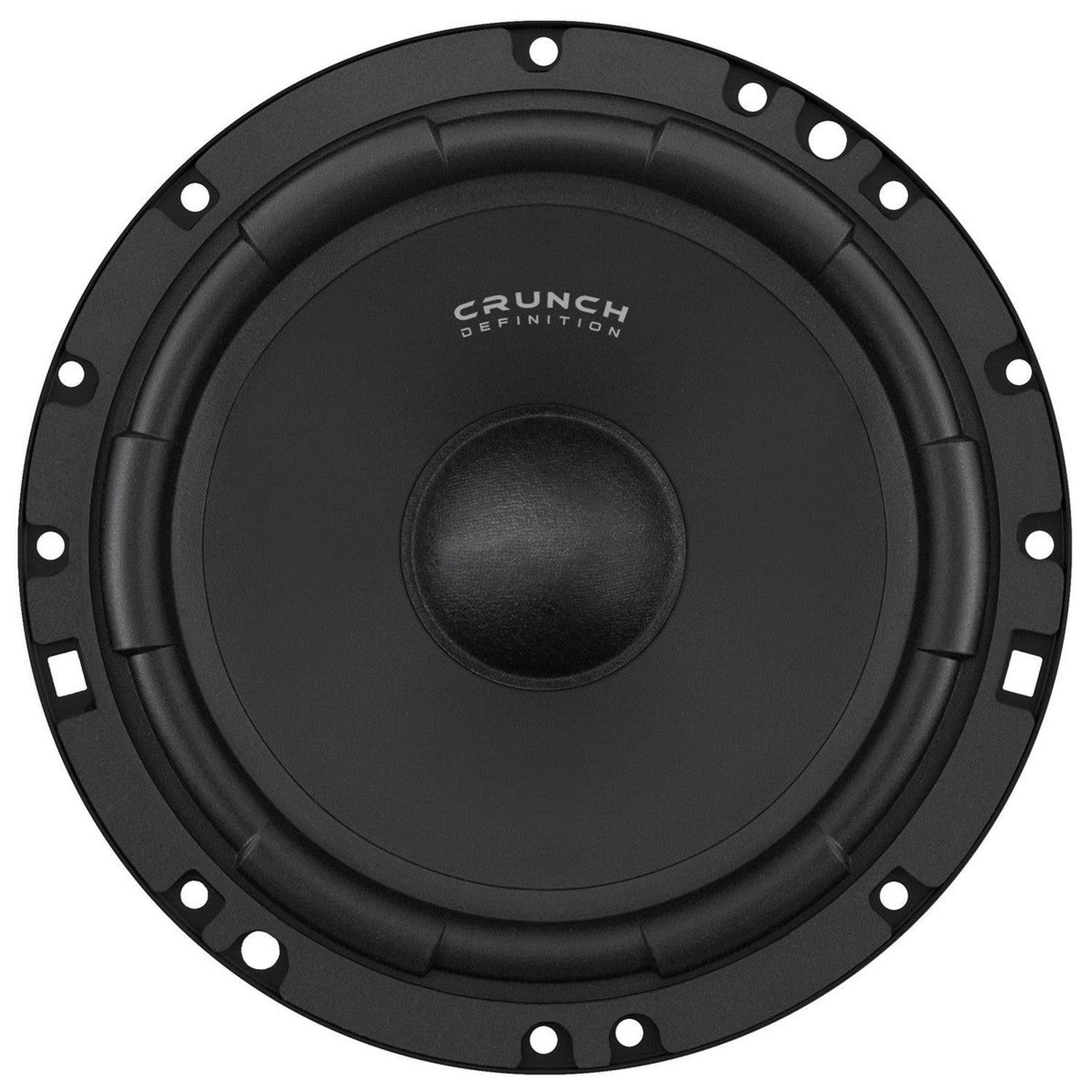

DSX6.2E by Crunch

Discover the DSX6.2E from Crunch, a 6.5 inch speaker set that impresses with sturdy flat-design steel baskets and an internal magnetic drive. The polypropylene cones and 25 mm voice coils deliver clear tones, while robust speaker grilles provide protection. With swiveling tweeters, you can customize the sound to your preference. The power handling of 100 watts RMS and 200 watts MAX offers flexibility, supported by compact cable crossovers. Thanks to the 4 Ω impedance and a frequency range of 65 - 22000 Hz, the set is highly versatile. The 145 mm mounting hole and 45 mm installation depth make installation easy in various environments.

Features

Sturdy flat-design steel baskets
Internal magnetic drive
Polypropylene cones
25 mm voice coils

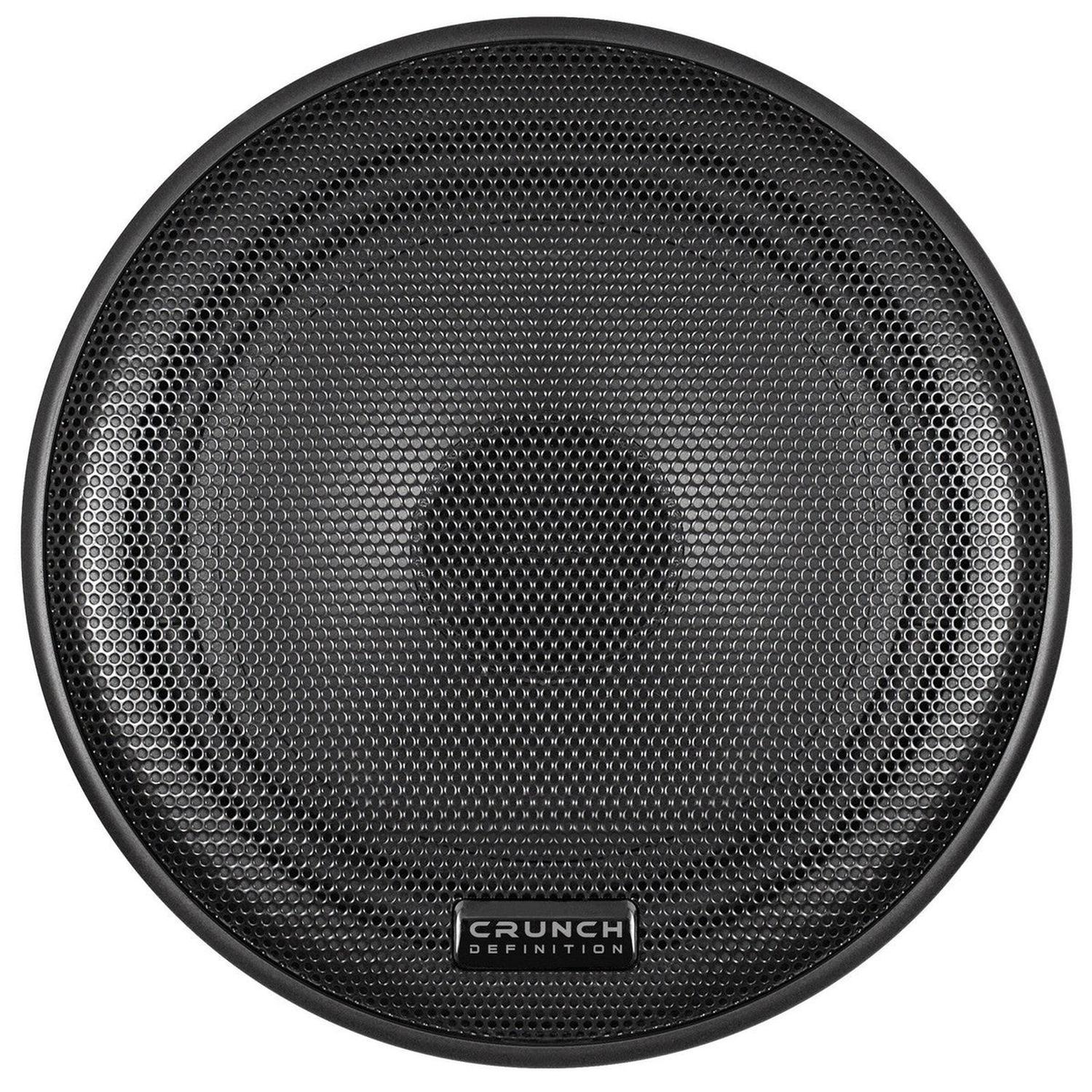

Robust speaker grilles
Swiveling tweeters
Compact cable crossovers

Technical Data

2 x 165 mm mid-bass drivers
4 x 12 dB cable crossovers
2 x 25 mm fabric neodymium tweeters
Power handling 100 watts RMS
Power handling 200 watts MAX
Impedance 4 Ω
Frequency range 65 - 22000 Hz
Mounting hole 145 mm
Installation depth 45 mm

Crunch DSX6.2E Datenblatt

Datenblatt öffnen

Frequent questions about DSX6.2E

Welche technischen Merkmale bietet das DSX6.2E Lautsprecherset von Crunch?

The Crunch DSX6.2E features stable steel baskets in a flat design, combined with an internal magnetic drive. The polypropylene membranes, along with the 25 mm voice coils, deliver clear tones. Other technical highlights include swivel tweeters and 4 x 12 dB cable crossovers. The power handling is rated at 100 Watts RMS and 200 Watts MAX. With an impedance of 4 Ω, it covers a frequency range of 65 - 22000 Hz. The robust construction is complemented by protective speaker grilles. The installation parameters show an opening of 145 mm and a depth of 45 mm.

Wie beeinflusst der innenliegende Magnetantrieb die Leistung des DSX6.2E?

The internal magnetic drive of the DSX6.2E from Crunch improves efficiency and enables even vibrations for clear sound. This design not only reduces space requirements but also weight, which minimizes vibrations and ensures precise, distortion-free sound. The polypropylene membranes work harmoniously with the magnetic drive to create a balance between high and low resonances. This optimizes the overall sound performance, especially at variable frequencies from 65 to 22000 Hz that the system covers. This is particularly advantageous in vehicles with limited installation space.

Welche Einbauparameter hat das DSX6.2E Lautsprecherset?

The DSX6.2E speaker set from Crunch offers practical installation parameters with a cutout diameter of 145 mm and a mounting depth of 45 mm. This makes it ideal for vehicles and environments with limited space. The compact flat design of the steel baskets facilitates installation, while the internal magnetic drive minimizes space requirements. These technical details are particularly important when retrofitting vehicles where standard speakers need to be replaced. The flexible installation allows for targeted positioning of the sound characteristics to achieve the best possible listening experience.

Welche Vorteile bieten schwenkbare Hochtöner im DSX6.2E?

The swiveling tweeters of the DSX6.2E from Crunch allow for personalized sound radiation. This technology enables the user to individually adjust the tweeters, thereby controlling the acoustic stage. Especially in vehicles where the seating position varies, swiveling tweeters guarantee optimal sound experiences. By adjusting the sound angle, reflections can be avoided, and the sound is reproduced more precisely. Especially if you enjoy listening to music loudly, the neodymium tweeters provide clear highs, while the polypropylene membranes optimally enhance the mids and lows.

Wie unterscheiden sich die Leistungsspezifikationen RMS und MAX beim DSX6.2E von Crunch?

The DSX6.2E from Crunch offers an RMS power handling of 100 watts and a MAX power handling of 200 watts. These specifications describe the continuous load and the maximum power consumption without damaging the components. The RMS power reflects continuous, stable music playback and is crucial for consistent sound quality. The MAX power refers to short-term power bursts that can handle peak volumes. This distinction is important to optimally use the speaker set and avoid overloading it. Both power ratings ensure efficiency and operational safety in versatile applications.

Wie ist das Impedanzverhalten des DSX6.2E Lautsprechersets?

The Crunch DSX6.2E speaker set has an impedance of 4 Ω. This resistive load offers versatile application possibilities in various audio setups. The 4-ohm impedance is specifically optimized for use in vehicles but also allows connection to numerous amplifiers that operate in audio systems with similar impedance requirements. This impedance makes it easier to integrate the speaker set with compatible devices without adjustment or power loss, leading to more efficient operation. The 4-ohm values also provide a high level of control over the sound and ensure excellent frequency response.

Welche Frequenzbereiche deckt das DSX6.2E Lautsprecherset ab?

The DSX6.2E from Crunch covers a frequency range of 65 to 22000 Hz. This extensive range allows for the reproduction of both deep bass and very high frequencies with excellent precision. This is particularly important for music genres that utilize a wide frequency spectrum. The polypropylene membranes provide full mids and clean bass, while the 25 mm voice coils efficiently convert the power. The swivel tweeters complement this range with clear highs, creating an impressive soundstage that is further intensified by the adjustments of the tweeters.

Welche Rolle spielen Polypropylenmembranen im DSX6.2E?

Polypropylene membranes in the DSX6.2E speaker set from Crunch play a crucial role in sound quality. These lightweight yet robust membranes offer high resistance to moisture and thermal influences, ensuring clean reproduction of midrange and bass sounds. Their stiffness promotes precise response time, while the lightness contributes to energetic sound reproduction. This enhances the dynamics of the speaker set, which is particularly advantageous at high volumes. The polypropylene membranes are a technical feature that supports the balance between power and sound purity.

Wie wird der Klang durch kompakte Kabel-Frequenzweichen im DSX6.2E beeinflusst?

The compact cable crossovers of the DSX6.2E from Crunch significantly influence the sound by optimally distributing frequencies to the mid-bass and tweeters. Their 4 x 12 dB design efficiently separates frequency ranges and ensures clarity and punch in sound output. These crossovers provide targeted adjustment of the acoustic design and work perfectly with the swivel tweeters and polypropylene membranes to reliably reach the listener in the mid and high frequency range. This technology ensures that frequencies safely reach their specific driver, avoiding distortion and maximizing sound purity.

Wie einfach gestaltet sich die Installation des DSX6.2E Lautsprechersets im Fahrzeug?

The installation of the DSX6.2E speaker set from Crunch is easy thanks to its thoughtful design and installation parameters. With a cutout diameter of 145 mm and a mounting depth of 45 mm, the speaker set is suitable for a variety of vehicles and limited space conditions. The flat steel baskets adapt to tight environments, while the cable crossovers allow for flexible placement. The installation does not require any special modifications and is ideal for DIY enthusiasts looking to upgrade without extensive modifications. To avoid complications, the available space in the vehicle should be checked in advance.
