Crunch DSX4.2E 4" (10cm) speaker set

Name: Crunch DSX4.2E 4 inch speaker set | Masori
Brand: Crunch
Price: 67.74 EUR
Availability: InStock

CYBER -24%

Max, Mikael and 53k+ customers already with Masori sound upgrade

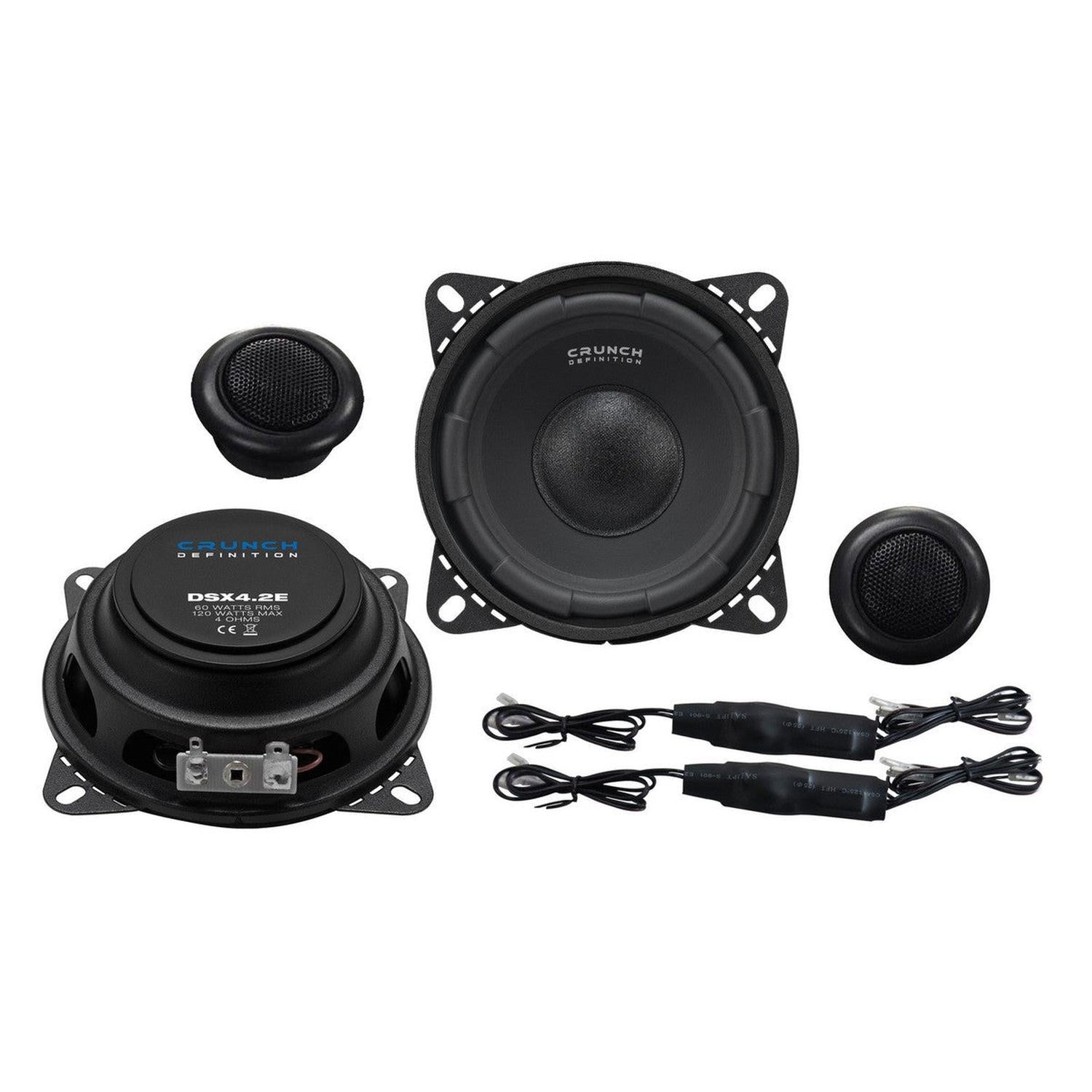

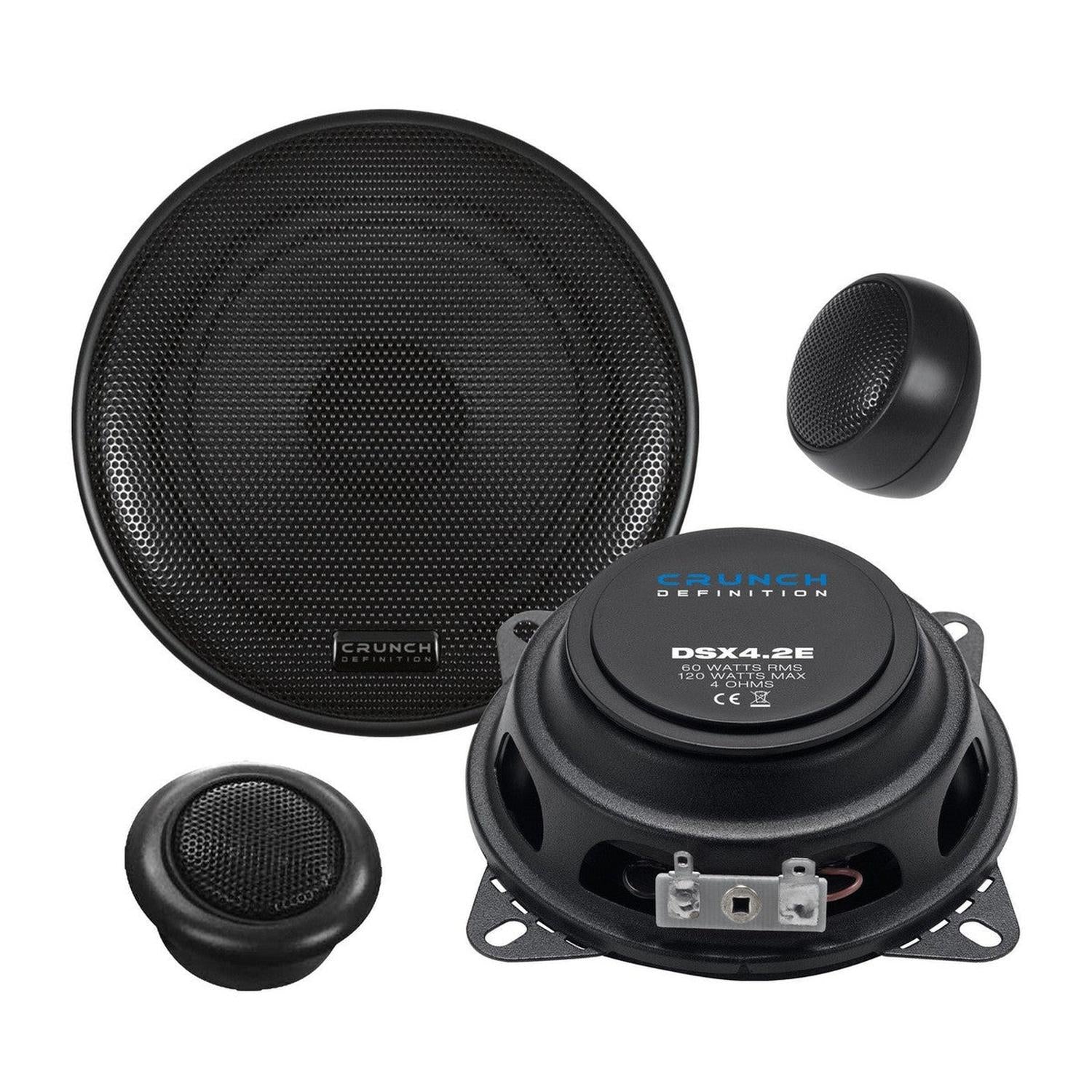

Crunch DSX4.2E 4" (10cm) speaker set

Power 70 watts RMS, 120 watts MAX, impedance 4 Ω.
Frequency range 69 22000 Hz, installation depth 36 mm, 25 mm voice coils.
Internal magnetic drive, 2 x 100 mm midrange drivers, pivoting tweeters.
Mehr technische Details

00

€67,74

~~€89,00~~ €67,74

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Bequem in 12 zinsfreien Raten à €5,64 mit Klarna zahlen.

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €14,99 60 Monate Plusgarantie Am beliebtesten €19,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

CrunchGravity GTX1200.2D

CrunchCRK25

DSX4.2E by Crunch

The DSX4.2E speaker set from Crunch offers a high-quality solution for audio enthusiasts with its 4-inch size. Equipped with sturdy flat-design steel baskets and an internal magnet drive, it impresses with its performance. The combination of polypropylene cones and 25 mm voice coils ensures reliable sound reproduction. Thanks to robust speaker grilles and swiveling tweeters, flexible application options are provided. With a power handling of 70 watts RMS and 120 watts MAX as well as a frequency range of 69 - 22000 Hz, it adapts to your requirements in a variety of ways. The compact design with an installation depth of 36 mm allows for easy installations.

Features

Sturdy flat-design steel baskets

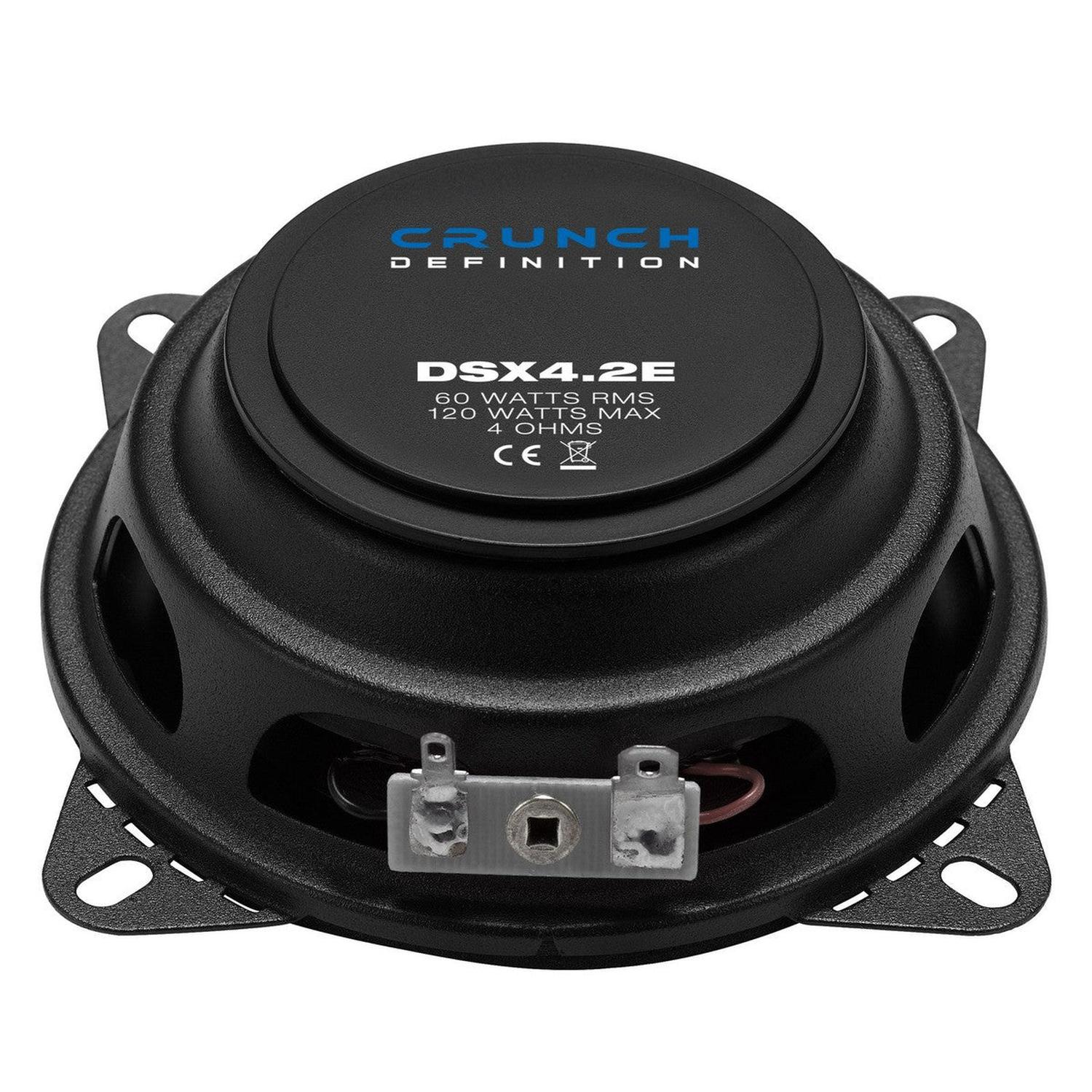

Internal magnet drive
Polypropylene cones
25 mm voice coils

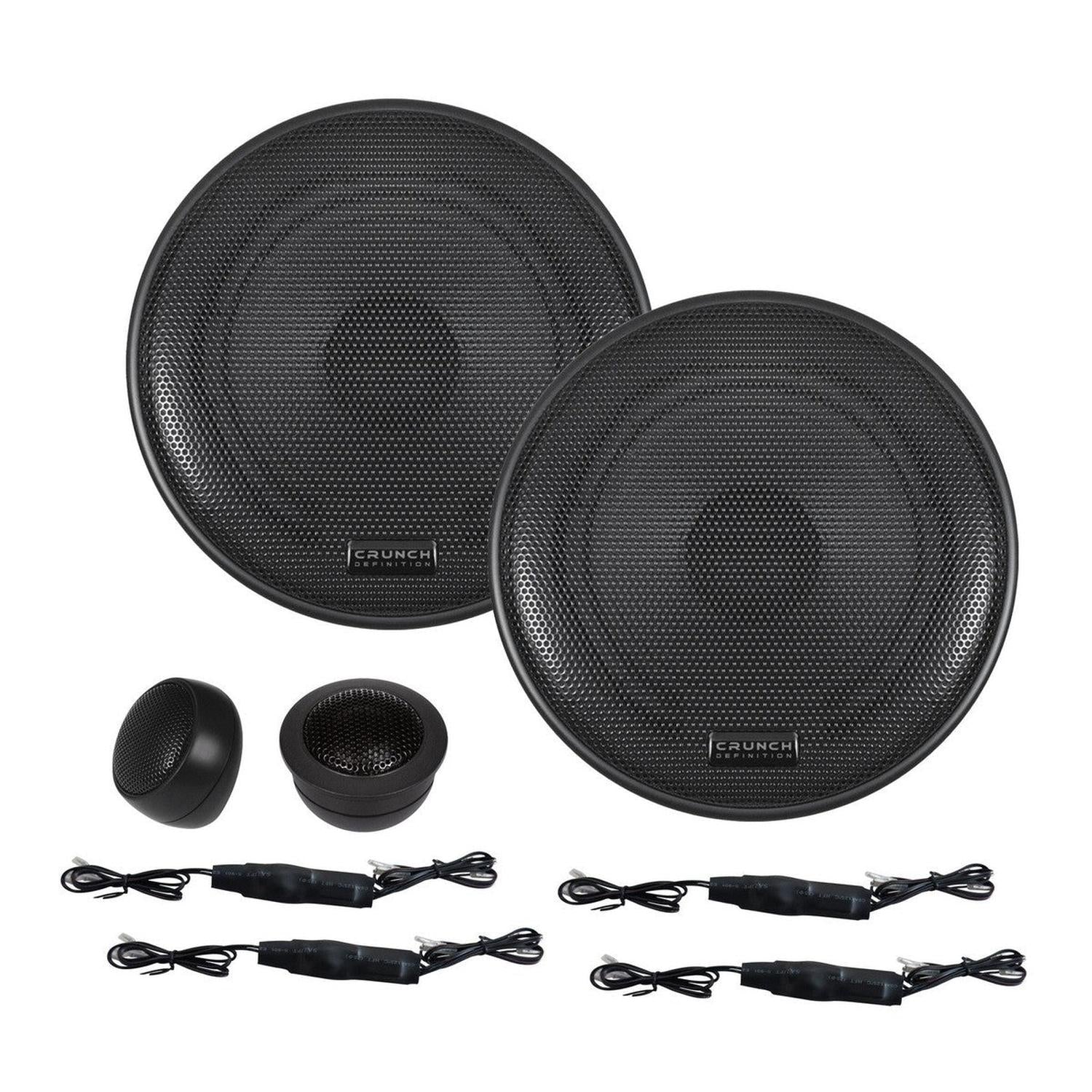

Robust speaker grilles
Swiveling tweeters
Compact cable crossovers

Technical Data

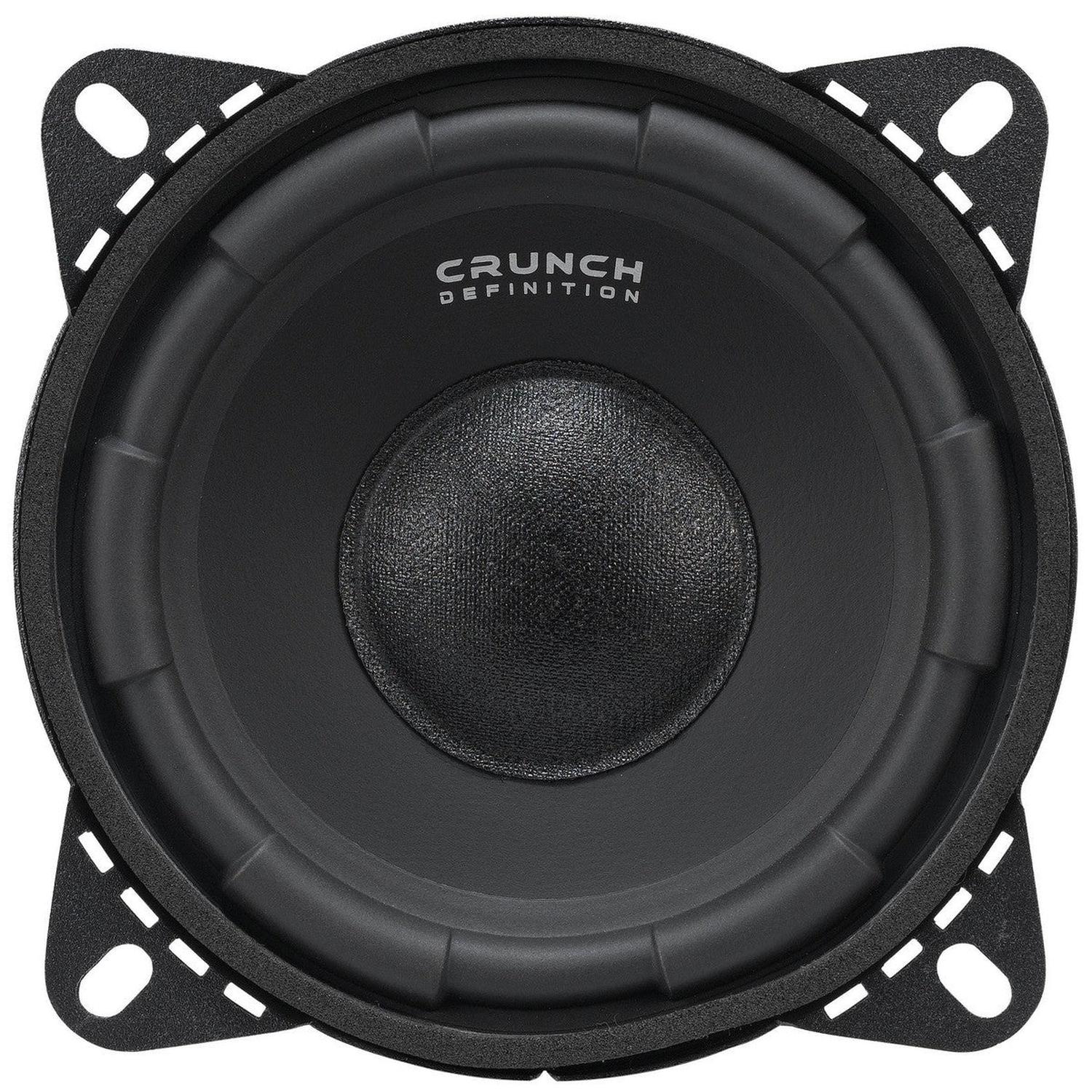

2 x 100 mm midrange drivers
4 x 12 dB cable crossovers
2 x 25 mm fabric neodymium tweeters
Power handling 70 watts RMS
Power handling 120 watts MAX
Impedance 4 Ω
Frequency range 69 - 22000 Hz
Mounting hole 96 mm
Installation depth 36 mm

Crunch DSX4.2E Datenblatt

Datenblatt öffnen

Frequent questions about DSX4.2E

Welche technischen Merkmale bietet das DSX4.2E Lautsprecherset von Crunch?

The DSX4.2E speaker set from Crunch features stable steel baskets in a flat design, combined with an internal magnetic drive. The polypropylene membranes and 25 mm voice coils ensure reliable sound quality. The speakers have a power handling of 70 Watts RMS and 120 Watts MAX, while the frequency range is between 69 to 22000 Hz. The installation depth is a compact 36 mm, allowing for versatile installation. Additionally, there are swivel tweeters and robust speaker grilles that allow for a flexible sound profile. Compact cable crossovers contribute to efficient signal processing. Overall, an essential package for audio enthusiasts.

Wie ist die Klangwiedergabe des Crunch DSX4.2E Lautsprechersets?

The sound reproduction of the Crunch DSX4.2E speaker set is extremely reliable, thanks to the polypropylene membranes and the 25 mm voice coils. The set offers a balanced sound quality in combination with 2 x 100 mm midrange drivers and 2 x 25 mm fabric neodymium tweeters. The crossovers with 4 x 12 dB contribute to the precise separation of frequencies, allowing for a harmonious soundscape. The frequency range of 69 - 22000 Hz covers all relevant musical areas, from deep bass to clear highs. Thus, the set is ideal for discerning music lovers.

Wie hoch ist die Belastbarkeit des DSX4.2E Lautsprechersets?

The DSX4.2E speaker set from Crunch offers remarkable power handling, rated at 70 Watts RMS and 120 Watts MAX. This allows for dynamic playback without loss of quality, even at high volumes. This is particularly advantageous for audio enthusiasts who value intense music reproduction. The high power handling combined with an impedance of 4 Ω means that these speakers are capable of efficiently processing even complex audio signals. Thus, even subtle nuances in the music are reproduced in detail and with power.

Was sind die Abmessungen und die Installationstipps für das DSX4.2E Lautsprecherset?

The compact dimensions of the DSX4.2E speaker set from Crunch provide versatile installation options. With a cutout diameter of 96 mm and a mounting depth of 36 mm, the set can be discreetly integrated into many vehicles. Due to the flat design of the steel baskets, these speakers are ideal for tight spaces, making installation easier and requiring no additional modifications. The flexible speaker cables and the compact cable crossovers also contribute to easy assembly. This way, even inexperienced tech enthusiasts can install the set without much effort.

Welche Frequenzbereiche unterstützt das DSX4.2E Lautsprecherset?

The DSX4.2E speaker set from Crunch covers a wide frequency range from 69 Hz to 22,000 Hz. This allows for a comprehensive musical variety, from deep basses to clear mids and brilliant highs. The precision in the lows is ensured by the stable polypropylene membranes, while the 25 mm fabric neodymium tweeters reproduce high frequencies with great detail. Thus, the speaker set is ideal for various music genres, whether it's powerful electronic music or intricate classical pieces.

Wie funktioniert der Magnetantrieb des Crunch DSX4.2E?

The internal magnetic drive of the Crunch DSX4.2E is compact in design yet powerful. This leads to a more efficient drive transmission and thus significantly improved sound dynamics. The magnetic structure is optimized to create an ideal magnetic field in combination with the 25 mm voice coils. This concept ensures that the membranes vibrate more evenly and achieve more precise audio outputs. This is particularly advantageous for acoustically demanding applications, as it guarantees a natural and authentic reproduction of the original sound.

Warum sind schwenkbare Hochtöner im DSX4.2E Lautsprecherset wichtig?

Swiveling tweeters in the DSX4.2E speaker set from Crunch offer the advantage of targeted sound image alignment. This allows for individual adjustment of sound radiation to the respective listening environment. Especially in vehicles, where the placement of speakers is often limited, the swiveling capability can compensate for spatial sound differences. This results in a spatially balanced and natural reproduction. The flexibility also means that the speakers can be optimally tuned to the preferred listening position in the car, significantly enhancing the listening experience.

Welche Rolle spielen die Polypropylenmembranen im DSX4.2E Lautsprecherset?

Polypropylene membranes in the DSX4.2E speaker set from Crunch are crucial for the durability and sound quality of the system. Due to their robust yet flexible nature, they enable clear and distortion-free playback, even at high levels. In conjunction with the magnetic drive and voice coils, they ensure precise reproduction of sound frequencies. Especially at higher power peaks, the membranes demonstrate high load capacity, which ensures consistent sound quality. These technical features significantly optimize the overall sound profile of the speaker set.

Wie wirken sich die Kabel-Frequenzweichen auf die Klangqualität des DSX4.2E Lautsprechersets aus?

The integrated cable crossovers of the DSX4.2E speaker set significantly contribute to precise sound distribution. With 4 x 12 dB, they facilitate the optimal transfer of frequencies between the midrange drivers and the tweeters. This results in a coherent and seamless sound image, where each speaker in the system reproduces its frequency ranges accurately and without overlap. This advantage is particularly evident in the fine-tuning of the sound, as distortions are minimized and sound fidelity is maximized. The crossovers are therefore crucial for the audiophile character of the set.

Welche Vorteile bietet die Flachbauweise der Stahlkörbe im DSX4.2E Lautsprecherset?

The flat design of the steel baskets in the DSX4.2E speaker set from Crunch offers several advantages. On the one hand, it allows for easier installation integration in various types of vehicles, especially in limited space conditions. Additionally, the flat construction supports structural stability and minimizes vibration resonances, leading to clearer sound reproduction. The compact design also ensures that no additional adjustments or modifications to the vehicle are necessary. Furthermore, the robust steel baskets contribute to durability and resilient use by optimally protecting the speaker components.
