Audison Voce II AVK 6A P II 6.5" (16,5cm) Speaker Set
SKU:  AVK-6-AP-II
EAN:  8018823143325

1 Review

150 Watt

Voce II AVK 6A P II

SKU:  AVK-6-AP-II
EAN:  8018823143325

1 Review

Technical Highlights

  • Impedance 4 ohms, power 300 W peak, 150 W continuous.
  • Frequency response 45-7500 Hz, voice coil 40 mm, magnet size 100x45x18.
  • Tweeter: Hi-Res Audio, power 180 W, voice coil 28 mm.
  • More technical details
€749,00
€749,00 €749,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Only a few left in stock (1 pieces available)
In stock
Jun 5, - Jun 6,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €62,41 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
AudisonForza DRC AC
Audison-Forza DRC AC-DSP-Zubehör-masori-kaufen
Audison-Prima AP 6.5 Ohm2-6.5" (16,5cm) Tiefmitteltöner-masori-kaufen
AudisonPrima AP 6.5 Ohm2
Audison-Voce II AVK 6A P II-6.5" (16,5cm) Lautsprecherset-masori-kaufen
€749,00
€749,00 €749,00

Voce II AVK 6A P II by Audison

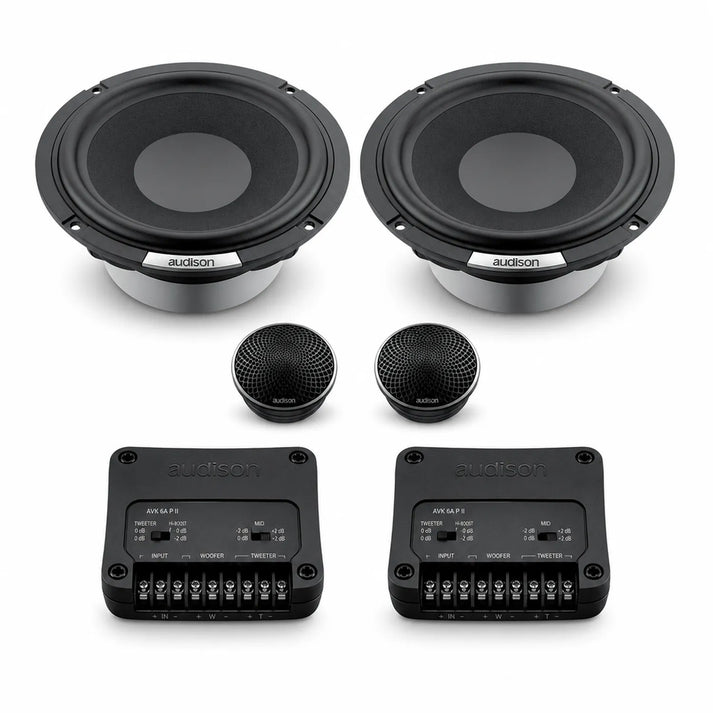

The Audison Voce II AVK 6A P II is a 6.5 inch Speaker Set, consisting of woofers, tweeters, and passive two-way crossovers. The woofers feature a Semi-Pressed Paper cone and a magnet made of High Density Flux Ferrite, while the tweeters use Teloton Fibre as the diaphragm material. The peak power handling is 300 W for the woofers and 180 W for the tweeters. The frequency response of the woofers ranges from 45 to 7500 Hz and that of the tweeters from 1000 to 40000 Hz. The passive crossovers allow for various level adjustments for high and mid frequencies as well as bi-amping options. The woofers operate with an impedance of 4 Ohms and have a 40 mm voice coil.

Features
  • 6.5 inch (16.5 cm) Speaker Set
  • Diaphragm material for woofers: Semi-Pressed Paper
  • Diaphragm material for tweeters: Teloton Fibre
  • Magnet material for woofers: High Density Flux Ferrite
  • Two-way, passive crossover
  • Crossover settings: High frequency contour, Mid frequency contour, Bi-amping, Hi Boost, Tweeter level
  • Complies with HiRes Audio JAS
Technical Specifications
  • Power handling for woofers: 300 W peak
  • Power handling for woofers: 150 W continuous
  • Power handling for tweeters: 180 W peak
  • Impedance: 4 Ohms
  • Frequency response for woofers: 45 - 7500 Hz
  • Frequency response for tweeters: 1000 - 40000 Hz
  • Voice coil diameter for woofers: 40 mm
  • Voice coil diameter for tweeters: 28 mm
  • Magnet size for woofers: 100 x 45 x 18 mm
  • Fs: 66 Hz
  • Vas: 9.09 l
  • Mms: 15.3 g
  • Xmax: 4.95 mm
  • Spl: 91 dB
  • Weight of woofers: 1.6 kg
  • Weight of tweeters: 0.1 kg
  • Weight of crossover: 0.35 kg
  • Mounting diameter (B): 140.8 mm
  • Mounting depth (C): 74.2 mm
  • Total diameter (A): 165 mm

Your benefits at Masori

Frequently Asked Questions about Voce II AVK 6A P II

What are the main technical features of the Woofer of the Voce II AVK 6A P II?

The Woofer of the Voce II AVK 6A P II has a woofer size of 165 mm and an impedance of 4 Ohms. The peak power handling is 300 W, while the continuous power is 150 W. The frequency response ranges from 45 to 7500 Hz at -6dB. The voice coil diameter is 40 mm and the magnet is made of High Density Flux Ferrite with dimensions of 100 x 45 x 18 mm. The cone material is semi-pressed paper, which ensures a balanced sound. These features are ideal for demanding acoustic applications in the automotive sector.

What electrical specifications does the Woofer of the Voce II AVK 6A P II have?

The electrical and acoustic specifications of the Woofer include a Re value of 2.9 Ohms and a resonance frequency (Fs) of 66 Hz. The moving mass (Mms) is 15.3 g and the compliance of the suspension (Cms) is 0.28 mm/N. The BL factor is 5.5 Tm and the mechanical quality factor (Qms) is 9. The electrical quality factor (Qes) is 0.61 and the total quality factor (Qts) is 0.57. The equivalent air volume (Vas) is 9.09 l and the inductance (Le) is 0.3 mH. These parameters indicate high performance.

How does the Tweeter of the Voce II AVK 6A P II differ from others?

The Tweeter of the Voce II AVK 6A P II has a size of 1.1 mm and offers an extended frequency response of 1000 to 40000 Hz. The performance is highlighted by the peak power handling of 180 W at a high-pass filter of 1.8 kHz with 12 dB/oct. The voice coil diameter is 28 mm and the diaphragm material is Teloton Fibre, which provides crystal-clear highs and low weight. This makes it very effective for Hi-Res audio applications and optimizes sound at both low and high volumes.

What Crossover options does the Voce II AVK 6A P II offer?

The Voce II AVK 6A P II is equipped with a two-way passive Crossover that offers various adjustment options. There are settings for woofer filtering with full-range or 6 dB/octave options as well as a 12 dB/octave filtering for the Tweeter. The Crossover allows for high-frequency contours, mid-frequency contours, and bi-amping. Additionally, a hi-boost and adjustments for the Tweeter level are available. This provides flexibility and customization for different listening environments and sound preferences.

What tips are there for installing the Voce II AVK 6A P II in a vehicle?

When installing the Voce II AVK 6A P II, it should be ensured that the dimensions are compatible with the installation situations in vehicles. The woofer, with its dimensions of 165 mm and a depth of 74.2 mm, requires adequate space in the vehicle's interior. The tweeter, due to its compact size of 1.1 mm, takes up little room. Make sure that the crossovers, weighing 0.35 kg, are well mounted and do not cause vibrations that could affect the sound. Proper adjustment of the crossover settings is essential for optimal sound in the car.

How do the performance specifications of the Voce II AVK 6A P II compare to other speakers?

The Voce II AVK 6A P II features impressive performance specifications: The woofer offers a peak power handling of 300 W and a continuous power of 150 W with a frequency response of 45 to 7500 Hz. The tweeter reaches a peak power handling of 180 W and covers a frequency range of 1000 to 40000 Hz. With a sound pressure level (SPL) of 91 dB, the woofer ensures high sensitivity. The use of high-quality materials such as High Density Flux Ferrite and Teloton Fibre ensures excellent sound quality that competes with many premium speakers.

What materials are used for the Voce II AVK 6A P II?

Carefully selected materials have been used for the Voce II AVK 6A P II. The woofer has a cone made of semi-pressed paper, which provides excellent acoustic properties. The magnet is made of High Density Flux Ferrite, known for its high magnetic density and increased efficiency. The tweeter has a diaphragm made of Teloton Fibre, which combines lightness and high stiffness. This choice of materials significantly contributes to the sound fidelity and durability of the speakers. Additionally, precisely manufactured voice coils with diameters of 40 mm for the woofer and 28 mm for the tweeter are used to maximize thermal resilience and sound quality.

How do the Thiele-Small parameters affect the performance of the Voce II AVK 6A P II?

The Thiele-Small parameters of the Voce II AVK 6A P II are crucial for its performance. A Re of 2.9 Ohms and a resonance frequency (Fs) of 66 Hz determine the deep bass capability. With a Qts of 0.57, the speaker shows a good balance between bass control and extension. The Qms value of 9 indicates a high mechanical quality, while the Qes value of 0.61 highlights the electrical efficiency. With a VAS of 9.09 l, the size of the ideal enclosure is described. These parameters are essential for correctly tuning the speakers and optimally integrating them into various enclosure designs.

What are the requirements for the power supply of the Voce II AVK 6A P II?

The Voce II AVK 6A P II requires a stable power supply to ensure peak performances of 300 W for the woofer and 180 W for the tweeter. An amplifier with sufficient power and appropriate impedance is advisable to ensure optimal signal transmission. The voice coils, with diameters of 40 mm for the woofer and 28 mm for the tweeter, are sized to withstand thermal stress. The use of bi-amping could offer additional benefits by providing separate power for highs and lows, leading to improved sound clarity.

How does the frequency response affect the sound experience of the Voce II AVK 6A P II?

The frequency response of the Voce II AVK 6A P II has a decisive influence on the sound experience. The woofer covers a range from 45 to 7500 Hz, allowing for a wide reproduction of low and mid tones. The tweeter extends the frequency response up to 40000 Hz, which particularly highlights the nuances and details of the music. This combination ensures a harmonious and complete sound image. Especially if you enjoy listening to music loudly, you can benefit from the clear and detailed reproduction of the highs and the strong presence of the basses that the speaker unit can produce.
