Audison Voce II AVK 6 S II 6.5" (16,5cm) Speaker Set

150 Watt

Audison Voce II AVK 6 S II 6.5" (16,5cm) Speaker Set

Technical Highlights

  • Woofer power: continuous 125 W, peak 250 W, impedance 4 Ohm.
  • Tweeter: 150 W (Hi-Pass 1.5 kHz), voice coil 25 mm.
  • Frequency response woofer: 50 5500 Hz; tweeter: 1k2 40k Hz.
  • More technical details
€499,00
€499,00 €499,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
Mar 22, - Mar 25,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €41,58 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

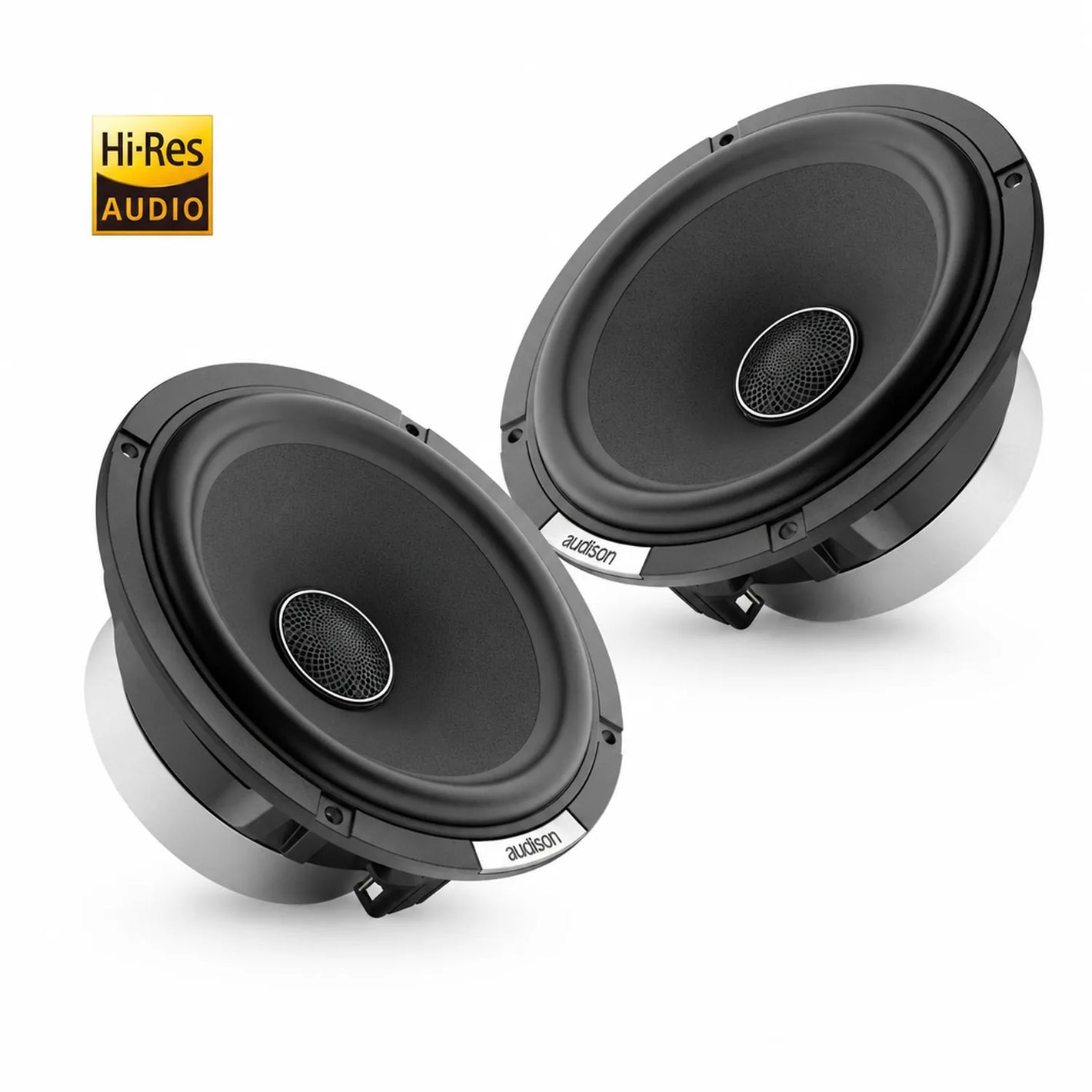

AudisonVoce II AVX 6.5 II
Audison-Voce II AVX 6.5 II-6.5" (16,5cm) Koaxial-Lautsprecher-masori-kaufen
Audison-APX 5-5" (13cm) Koaxial-Lautsprecher-masori-kaufen
AudisonAPX 5
Audison-Voce II AVK 6 S II-6.5" (16,5cm) Lautsprecherset-masori-kaufen
€499,00
€499,00 €499,00

Voce II AVK 6 S II by Audison

The Voce II AVK 6 S II from Audison is a 6.5-inch speaker set distinguished by its outstanding technical features. The woofer measures 165 mm and has an impedance of 4 Ohms with a peak power handling of 250 W. It is made with a pressed paper cone and uses a High Density Flux Ferrite magnet material. The two-way crossovers ensure optimal sound quality and customization options. The tweeter with a Teloton Fibre diaphragm offers a frequency response up to 40,000 Hz and meets the HiRes Audio JAS standards. The system is complemented by a balanced acoustic design that provides you with an intense listening experience.

Technical Data Woofer

  • Woofer Size: 165 mm
  • Impedance: 4 Ohms
  • Power Handling - Peak: 250 W
  • Power Handling - Continuous: 125 W
  • Frequency Response: 50 - 5500 Hz (-6 dB)
  • Voice Coil Diameter: 36 mm
  • Magnet Material: High Density Flux Ferrite
  • Magnet Size: 92 x 42 x 15 mm
  • Cone Material: Pressed Paper
  • Crossover Type: Two-way, separate housing for Woofer (AVCX 2 W - Full/6 dB Oct.) & Tweeter (AVCX 2 T - 12 dB/Oct.)
  • Crossover Level Adjustment: AVCX 2 T: Tweeter Level: 0 / -1.5 dB; AVCX 2 W: Woofer Mid-Contour On / Off

Technical Data Tweeter

  • Tweeter Size: 1 mm
  • Frequency Response: 1200 - 40000 Hz
  • Complies with HiRes Audio JAS, Test Conditions IEC 60268-5
  • Power Handling - Peak: 150 W (Hi-Pass filtered @ 1.5 kHz - 12 dB Oct.)
  • Voice Coil Diameter: 25 mm
  • Diaphragm Material: Teloton Fibre

Electro-acoustic Specifications (TSP) Woofer

  • Re: 2.9 Ohms
  • Fs: 67 Hz
  • Mms: 13.2 g
  • Cms: 0.43
  • BL: 4.9
  • Qms: 6.76
  • Qes: 0.67
  • Qts: 0.61
  • Vas: 10.28 l
  • Le: 0.3 mH
  • SPL: 91 dB
  • Xmax: 4.2 mm

Weight

  • Weight Woofer: 1.3 kg
  • Weight Tweeter: 0.14 kg
  • Weight Crossover: 0.1 kg

Dimensions

  • A: 165 mm
  • B: 140.8 mm
  • C: 65.6 mm
  • D: 61 mm
  • A1: 143.8 mm
  • B1: 140.8 mm
  • C1: 125.5 mm
  • D1: 116.1 mm

Frequency Response

  • Tweeter
  • Woofer

Your benefits at Masori

Frequently Asked Questions about Voce II AVK 6 S II

What are the technical specifications of the Audison Voce II AVK 6 S II woofer?

The Audison Voce II AVK 6 S II woofer has a size of 165 mm and an impedance of 4 Ohms. The power handling is 250 W peak and 125 W continuous. The frequency response ranges from 50 to 5500 Hz (-6 dB), while the voice coil diameter is 36 mm. The magnet material consists of High-Density-Flux-Ferrite with dimensions of 92 x 42 x 15 mm. The cone is made of pressed paper. The electrical inductance is 0.3 mH.

What is the frequency response of the tweeter in the Voce II AVK 6 S II?

The tweeter of the Voce II AVK 6 S II has a frequency response of 1200 to 40000 Hz. The data meets the HiRes Audio JAS standards and has been tested according to the IEC 60268-5 testing conditions. The tweeter uses a 25 mm voice coil and is made of Teloton Fibre material. This material is particularly known for its acoustic properties in the high-frequency range, ideal for detailed and clear reproduction. Additionally, the power handling of the tweeter is filtered after High-Pass at 150 W.

What Thiele Small parameters does the Voce II AVK 6 S II woofer have?

The Thiele Small parameters of the Voce II AVK 6 S II woofer include Re: 2.9 Ohm, Fs: 67 Hz, Mms: 13.2 g, Cms: 0.43, BL: 4.9, Qms: 6.76, Qes: 0.67, Qts: 0.61, Vas: 10.28 l, and Le: 0.3 mH. These parameters are crucial for the simulation and calculation of speaker enclosures. With an SPL value of 91 dB and a maximum linear excursion (Xmax) of 4.2 mm, the woofer provides excellent reproduction, especially at low frequencies, ensuring powerful and balanced bass representation.

What material is used for the cone of the woofer in the Voce II AVK 6 S II?

The Voce II AVK 6 S II woofer uses pressed paper as the cone material. This material is known for its excellent acoustic properties, including high stiffness at low weight, which improves the speed and precision of the diaphragm movement. The choice of material contributes to a clear and precise sound image, especially at low frequencies. In combination with the High-Density-Flux-Ferrite magnet, the cone allows for efficient and powerful transmission of audio signals, ideal for impressive bass performance.

What type of crossover does the Audison Voce II AVK 6 S II system use?

The Audison Voce II AVK 6 S II uses a two-way crossover type, with both the woofer and the tweeter having separate enclosures. The crossover for the woofer, designated as AVCX 2 W, offers a Full/6 dB Oct. circuit, while the one for the tweeter is designed as AVCX 2 T, with a 12 dB/Oct. circuit. The level adjustment for the tweeter can be set to 0 dB or -1.5 dB, while the woofer features a mid-contour switch that can be turned on or off. This flexibility allows for precise tuning to individual listening preferences.

What are the dimensions for installing the Voce II AVK 6 S II?

The Voce II AVK 6 S II has specific dimensions that are crucial for an ideal installation. The woofer diameter is 165 mm, with installation depths of 65.6 mm and additional dimensions such as A: 165 mm, B: 140.8 mm, C: 65.6 mm, and D: 61 mm. The placement requires precise adjustment, especially in limited installation space. For example, the diameter of 143.8 mm and the depth of 125.5 mm should be considered. These dimensions are essential to ensure seamless integration into various vehicle models.

What is the impedance of the Voce II AVK 6 S II speaker system?

The Voce II AVK 6 S II speaker system has an impedance of 4 ohms for the woofer. This impedance is typical for operation with conventional car hi-fi amplifiers and allows for efficient power transfer. Along with a peak power handling of 250 W and a continuous power handling of 125 W, this configuration is suitable for drivers who desire a powerful and efficient entertainment system in their vehicle. Proper impedance matching ensures optimal sound system performance and avoids unnecessary strain on the amplifier components.

What materials are used in the Voce II AVK 6 S II system besides the cone?

In the Voce II AVK 6 S II system, in addition to the pressed paper cone, other high-quality materials are also used. The tweeter utilizes a membrane made of Teloton Fibre, known for its lightness and high resonance strength, which leads to excellent high-frequency reproduction. The magnet is made of high-density flux ferrite, which has excellent magnetic properties and contributes to the efficiency of the woofer. The choice of these materials is crucial to ensure high-quality sound fidelity and long-lasting performance, which is essential for a top product in the car Hi-Fi sector.

How heavy is the Audison Voce II AVK 6 S II and its components?

The Voce II AVK 6 S II and its components have a specific weight. The woofer weighs 1.3 kg, with a tweeter weight of 0.14 kg. The associated crossover weighs 0.1 kg. This weight distribution is ideal for installation in the vehicle, as it not only minimizes the load on the vehicle but also provides a stable and vibration-free mounting option. When integrating into vehicles, it is crucial to consider the total weight to optimally balance both handling and sound resonance.

What crossover adjustments does the Audison Voce II AVK 6 S II offer?

The Audison Voce II AVK 6 S II offers versatile crossover adjustment options. The crossover for the woofer (AVCX 2 W) allows for an adjustment of the mid-contour switch, which can be turned on or off to shape the midrange reproduction according to personal preferences. For the tweeter (AVCX 2 T), level adjustments of 0 dB or -1.5 dB are available, allowing for fine-tuning of the high-frequency levels. This flexibility allows for individual sound adjustment, ensuring a perfectly balanced sound image that matches the listening experience.
