Audison SR 5,600 5-Channel Amplifier

3 Reviews

115 Watt

Audison SR 5,600 5-Channel Amplifier

3 Reviews

Technical Highlights

  • Total power RMS is 1010 W, minimum impedance 2Ω.
  • Output power 5Ch: 115W x 4, 550W x 1 (2Ω) at 14.4V
  • D-Class technology, distortion only 0.02% at 100Hz, 70% power.
  • More technical details
€499,00
€499,00 €499,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
Mar 23, - Mar 26,
x Piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €41,58 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
AudisonPrima AP 8
Audison-Prima AP 8-8" (20cm) Tiefmitteltöner-masori-kaufen
Audison-Voce AV 6.5-6.5" (16,5cm) Tiefmitteltöner-masori-kaufen
AudisonVoce AV 6.5
Audison-SR 5.600-5-Kanal Verstärker-masori-kaufen
€499,00
€499,00 €499,00

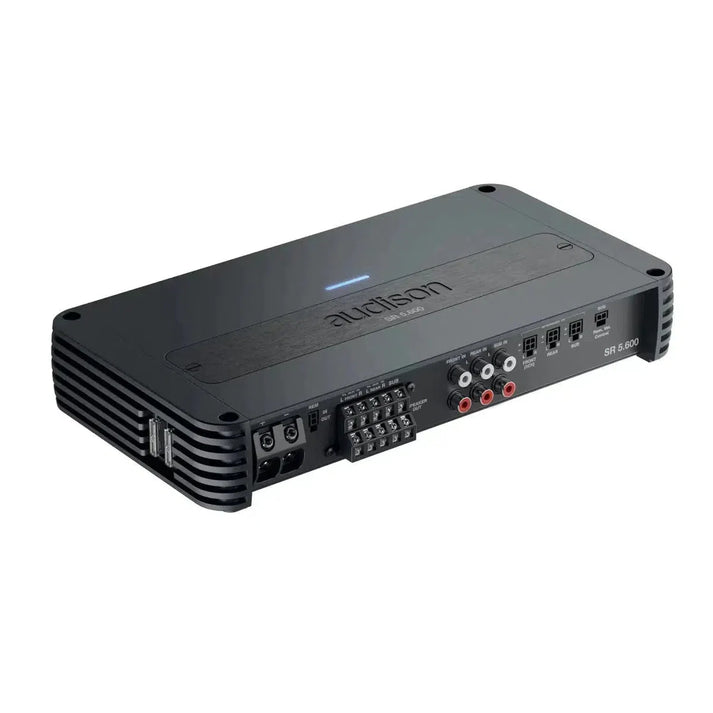

SR 5,600 by Audison

Discover the Audison SR 5.600, a high-quality 5-channel amplifier that offers you high power in ultra-compact dimensions. By applying the latest amplifier technology and targeted listening tests, this amplifier impresses with its high-quality Class D technology called ADT (Audison D-Class Technology). Equipped with comprehensive connection options and an appealing design, the Audison SR 5.600 provides a versatile and user-friendly audio experience. Special features include the integration of Audison USS (Universal Speakers Simulator) technology, the ability to control multiple amplifiers in cascade, and the use of extruded aluminum for a compact exterior.

TECHNICAL DATA

  • Channels 5
  • Amplifier Class D-Class
  • Hi Level Input Ja
  • Low Level Input Yes
  • Digital Entry No
  • Supply voltage / fuse 11 - 15 VDC / 2 x 25A
  • Operating voltage of the power supply 6.5 - 17 VDC
  • Idle current 2.2 A
  • Idle current in the off state 0.04 mA
  • Current consumption @ 14.4 VDC, 2Ω, Max music power 44 A
  • Remote OUT 6.5 - 15 VDC (150 mA)
  • Remote IN 6.5 - 15 VDC (1 mA)
  • ART - Automatic On and Off with OUTPUT BTL Speaker (selectable) 1.5 - 7 VDC

AMPLIFIER SECTION

  • Distortion - THD @ 100 Hz, 4Ω, 70% rated power 0.02 %
  • Bandwidth A 10 Hz - 35 kHz; 10Hz ÷ 500Hz
  • S/N ratio A 105 dBA
  • Damping factor A 100
  • Input Sensitivity Pre-In 0.2 - 5 VRMS
  • Input sensitivity Speaker-In 0.8 - 20 VRMS
  • Total power RMS 1010 W
  • Minimal Impedance
    • 5Ch: 2Ω
    • 3Ch: 4Ω + 4Ω + 2Ω
  • Output power (RMS) @14.4 VDC, 1% THD
    • 5Ch 75 W x 4 + 330 W x 1 (4Ω)
    • 5Ch 115 W x 4 + 550 W x 1 (2Ω)
    • 3Ch 230 W x 2 (4Ω) + 310 W x 1 (4Ω)
    • 3Ch 230 W x 2 (4Ω) + 550 W x 1 (2Ω)
  • Adjustable crossover Yes

CEA-SPECIFICATIONS

  • Output power @ 4Ω, 1% THD+N, 14.4 V: 75 W x 4 Ch + 300 W x 1 Ch
  • SN ratio (ref. 1W output): 75 W: 84 dBA – 300 W: 75 dBA

ENTRANCES

  • Input Type Pre-In / Speaker-In
  • Filters Outputs -
  • Filter Pass Through A Front Ch Filters: Full Hi-pass: 50 - 5k Hz @ 12 dB/Oct.
  • Filter Pass B Rear Ch Filters: Full Hi-pass: 50 - 5k Hz @ 12 dB/Oct
  • Filter Pass C Rear Ch Filters: Full Band-pass: 50 - 500 Hz (Hi) @ 12 dB/Oct.
  • Channel Mono Rear Ch Filters: Full 50 - 5 kHz (Lo) @ 12 dB/Oct.
  • Inputs/Outputs Sub CH Lo-pass: 50 - 500 Hz @ 24 dB/Oct
  • Input/Output Phase -
  • Input/Output Bass Boost (0 -12) dB
  • Inputs/Outputs Subsonic 25 Hz @ 24 dB/Oct
  • Remote Sub-Volume (-20 - 6) dB

FURTHER

  • Weight 2.42 kg

DIMENSIONS

SR 5,600

  • Dimension A294 mm
  • Size B264 mm
  • Size C155 mm
  • Dimension D135 mm
  • Measurement E47.5 mm

PROPERTIES

  • Elegant and functional design with rounded corners to minimize space requirements and facilitate installation.
  • Built-in USS (Universal Speakers Simulator).
  • Fully integrated crossover.
  • The optional VCR-S1 remote control offers the ability to adjust the subwoofer level (-20 / + 6 dB) to your musical preferences.
  • Symmetrical high-level inputs for connection to the OEM speaker output of the radio.
  • Low-Level-RCA for retrofit radios.
  • ART (Automatic Remote On/Off) function.
  • Remote IN / OUT socket for controlling multiple amplifiers.
  • PRE-OUT allows for the expansion of the system.

Your benefits at Masori

Audison SR 5,600 Datasheet

Open datasheet

Frequently Asked Questions about SR 5,600

What are the power specifications of the Audison SR 5.600 Amplifier?

The Audison SR 5.600 is a 5-channel amplifier that boasts an impressive total power of 1010 Watts RMS. It delivers 75 W x 4 channels at 4 Ohms plus 330 W x 1 channel, and 115 W x 4 channels at 2 Ohms plus 550 W x 1 channel. In 3-channel configuration, it provides 230 W x 2 at 4 Ohms and 550 W at 2 Ohms. These power specifications allow the amplifier to efficiently drive a variety of speaker systems, with Class D technology ensuring a high level of energy efficiency. Additionally, it offers excellent sound reproduction with a low distortion of only 0.02% THD at 100 Hz and 4 Ohms.

What type of amplifier technology is used in the Audison SR 5.600?

The Audison SR 5.600 utilizes the innovative ADT (Audison D-Class Technology), which impresses with the fusion of Class D efficiency and precise sound. This technology optimizes the electronic signal path, reduces energy losses, and minimizes sound distortion. The low distortion of only 0.02% THD at 70% rated power and an exceptional frequency bandwidth of 10 Hz to 35 kHz are typical features of this amplifier class. Furthermore, the technology is highly controlled with a damping factor of 100, leading to precise bass reproduction. It is ideal for discerning audiophiles seeking a dynamic sound experience in a compact format.

How flexible are the filter options in the Audison SR 5.600?

The Audison SR 5.600 offers a fully integrated Crossover with extensive filter options. There are high-pass and full-pass filters for front and rear channels, each in the range of 50 Hz to 5 kHz at 12 dB/octave. A band-pass filter for rear channels with 50 - 500 Hz (high) at 12 dB/octave and a low-pass filter for sub channels from 50 to 500 Hz at 24 dB/octave are available. This adaptability allows for fine-tuning of the sound to the specific requirements of the speaker system and musical preferences, providing the user with optimal audio output.

Is the Audison SR 5.600 also suitable for OEM audio solutions?

Yes, the Audison SR 5.600 is ideally suited for OEM audio solutions thanks to its symmetrical high-level inputs. These are directly compatible with the OEM speaker output of radios and allow for seamless integration without loss of quality. The device also features low-level RCA inputs for the aftermarket radio, highlighting its versatility. The ART (Automatic Remote Turn-On/Off) function significantly simplifies installation by directly controlling automatic on/off capabilities. This offers a high degree of flexibility during setup, especially when existing systems are to be upgraded or supplemented.

What advantages does the Universal Speakers Simulator technology in the SR 5.600 offer?

The integrated Universal Speakers Simulator (USS) technology in the Audison SR 5.600 is a groundbreaking feature that supports self-installation as well as combination with OEM audio systems. This technology simulates the load of a speaker, allowing the amplifier to operate smoothly in modern vehicles with complex monitoring systems. This prevents error messages and increases the reliability of the system during vehicle operation. Additionally, USS allows for the integration of multiple amplifiers in a cascading system without affecting the onboard network. This is particularly beneficial in modern cars with advanced audio architecture.

How compact are the dimensions of the Audison SR 5.600 and how do they affect installation?

The Audison SR 5.600 is extremely space-saving with its ultra-compact dimensions of 294 mm x 264 mm x 47.5 mm. These small dimensions, combined with a weight of only 2.42 kg, allow for versatile and discreet installation even in vehicles with limited space. The extruded aluminum housing also ensures excellent heat dissipation, which contributes not only to the compact design but also to operational safety. These features make installation particularly easier and more comfortable in modern vehicles that offer little space for retrofit devices.

What is the voltage compatibility of the Audison SR 5.600?

The Audison SR 5.600 is designed for operating voltages of 11 to 15 VDC and features two 25A fuses. This makes it ideal for use in vehicles with standard onboard electronics. The power supply for Remote-OUT ranges from 6.5 to 15 VDC and consumes a maximum of 150 mA, while Remote-IN requires 6.5 to 15 VDC and only 1 mA of voltage. The idle current is just 2.2 A and in the off state even only 0.04 mA, which keeps the Audison SR 5.600 extremely energy-efficient under low load and protects the car battery.

What recommendations are there for subwoofer control in the SR 5.600?

The Audison SR 5.600 offers a considerable amount of control over the subwoofer level. The optional VCR-S1 remote control allows for precise subwoofer volume control in the range of -20 to +6 dB. Additionally, the integrated 24 dB/octave subsonic filter function at 25 Hz provides the ability to filter out unwanted, deep frequencies that could otherwise impair the system's performance. This makes it easier to customize the bass reproduction and tailor it to personal listening habits, especially if you enjoy rich yet controlled bass in your sound profile.

Which car brands is the Audison SR 5.600 compatible with?

The Audison SR 5.600 is aimed at universality and is therefore fundamentally compatible with a wide range of car brands. Since no specific car brands are mentioned in the product description, vehicle compatibility is primarily based on the compact dimensions and robust voltage tolerance of the device. This means it can be installed in many different car models, including those with tighter space conditions or specific power consumption requirements. The wrap-around design and efficient construction allow flexibility in almost any type of vehicle, making the SR 5.600 versatile.

What input options does the Audison SR 5.600 offer?

The Audison SR 5.600 is equipped with a variety of inputs, including preamplifier inputs (Pre-In) with a sensitivity of 0.2 to 5 VRMS and speaker inputs (Speaker-In) with 0.8 to 20 VRMS. This versatility in signal acceptance allows for compatible connections with both OEM systems and aftermarket solutions. The crossovers are available with flexible adjustment options that ensure fine-tuning of the audio signal for specific setup requirements. An additional remote in and out allows for convenient control of multiple amplifiers, making the audio system even more versatile and customizable.
