Morel Virtus Nano Carbon Integra 62 6.5" (16,5cm) Coaxial Speaker
SKU:  VIRTUS-INTEGRA62
EAN:  4251950317878
100 Watt

Virtus Nano Carbon Integra 62

SKU:  VIRTUS-INTEGRA62
EAN:  4251950317878

Technical Highlights

  • Power 100 watts RMS, maximum 3000 watts, impedance 4 ohms.
  • Frequency range 50-22000 Hz, sensitivity 87 dB, carbon cone.
  • 28 mm Acuflex silk tweeter, 17 mm installation depth, 2-way system.
  • More technical details
€750,00
€750,00 €750,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 6, - Jun 9,
x pair
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €62,50 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
HifonicsVulcan VX62
Hifonics-Vulcan VX62-6.5" (16,5cm) Koaxial-Lautsprecher-masori-kaufen
JBL-Stadium 62F-6.5" (16,5cm) Koaxial-Lautsprecher-masori-kaufen
JBLStage 62F

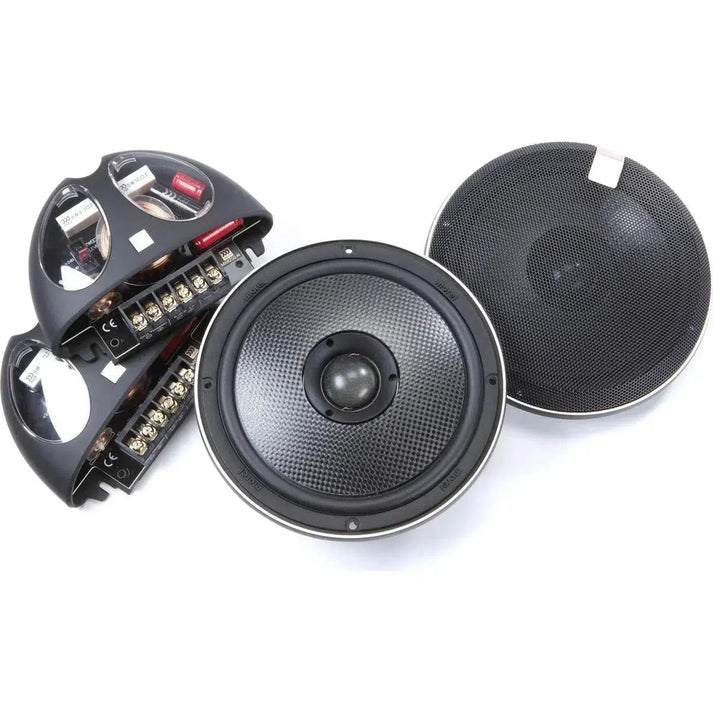

The Morel Virtus Nano Carbon Integra 62 includes a 6.5 black coaxial speaker, matching grill, and two black electronic crossovers with visible circuitry.
€750,00
€750,00 €750,00

Virtus Nano Carbon Integra 62 by Morel

Morel Virtus Nano Carbon Integra 62 is a 6.5 inch 2-way coaxial speaker. With a mounting depth of 17 mm, the Virtus Nano Carbon Integra is considered the thinnest car audio coaxial speaker in the world. The Midbass uses a dome-shaped carbon fiber diaphragm, EVC drive technology, a neodymium magnet, a 2.1 inch voice coil, and a CAR-Filter. The high frequencies are handled by a 28 mm ACUFLEX MT120N Tweeter, centrally located in the Midbass. Power 100 Watts RMS and 3000 W Max. Sensitivity 87 dB SPL (2.83V/1m), impedance 4 Ω, frequency range 50 - 22000 Hz. Options for frequency adjustment with Tweeter +/-2 dB and including frequency switch. Including grille. Price per set.

Features
  • 6.5 inch 2-way coaxial speaker
  • 100 Watts RMS
  • 3000 W Max
  • 4 Ω impedance
  • 87 dB sensitivity SPL 2.83V/1m
  • Frequency range 50 - 22000 Hz
  • Mounting depth of the Midbass 17 mm
  • Diameter of the Midbass 100 mm
  • Dome-shaped carbon fiber diaphragm
  • EVC drive technology
  • Neodymium Magnet
  • 2.1 inch voice coil
  • 28 mm ACUFLEX MT120N Tweeter
  • Tweeter centrally located in the Midbass
  • CAR-Filter
  • Including frequency switch
  • Frequency adjustment Tweeter +/-2 dB
  • Including grille
  • Price per set
Technical specifications
  • Nominal diameter 165 mm
  • Voice coil 53.34 mm diameter
  • Mounting depth 17 mm
  • Diameter Midbass 100 mm
  • Diaphragm diameter Tweeter 28 mm
  • Sensitivity 87 dB SPL 2.83V/1m
  • Impedance 4 Ω
  • Frequency range 50 - 22000 Hz
  • Crossover MXR 250.4i included
  • ACUFLEX MT120N Tweeter
  • EVC drive technology
  • Neodymium Magnet
  • CAR-Filter

Your benefits at Masori

Frequently Asked Questions about Virtus Nano Carbon Integra 62

What is the installation depth of the Virtus Nano Carbon Integra 62 speaker?

The Virtus Nano Carbon Integra 62 from Morel has an astonishingly shallow installation depth of 17 mm. This allows for flexible installation even in very limited spaces that other speaker systems may not accommodate. Thanks to its ultra-thin design, installation is particularly straightforward in modern vehicles with tight space constraints. This unique feature makes it the thinnest car audio coaxial speaker in the world, making it ideal for use in vehicles with limited installation options. The low installation depth is a crucial advantage during installation.

What materials are used in the Virtus Nano Carbon Integra 62?

The Virtus Nano Carbon Integra 62 uses high-quality materials specifically selected for excellent sound quality and durability. The mid-bass driver is equipped with a dome-shaped carbon fiber diaphragm known for its stiffness and light weight. This allows for optimal sound reproduction with minimal weight. At the heart of the mid-bass driver is a powerful neodymium magnet that works in conjunction with Morel's EVC drive technology to provide powerful and precise sound reproduction.

What frequency range does the Virtus Nano Carbon Integra 62 cover?

The Virtus Nano Carbon Integra 62 offers an impressively wide frequency coverage from 50 Hz to 22000 Hz. This immense bandwidth allows it to reproduce deep bass as precisely as crystal-clear highs. The specially developed 28 mm ACUFLEX tweeter is designed for the higher frequency ranges and integrates seamlessly with the mid-bass driver. This creates a coherent sound image across the entire spectrum. The bandwidth of the frequency response guarantees a full listening experience across all audio ranges.

What features does the coaxial system of the Virtus Nano Carbon Integra 62 offer?

The coaxial system of the Virtus Nano Carbon Integra 62 is characterized by the fundamental integration of the mid-bass driver and tweeter. The 28 mm ACUFLEX tweeter is positioned centrally in the mid-bass driver, ensuring phase-accurate and point-source sound reproduction. This design unifies the sound image and allows for a seamless transfer of frequencies between the individual components. Furthermore, the Frequency Shift Tweeter Adjustment allows for individual tuning of the high frequencies with the integrated crossover for +2dB and -2dB adjustments.

What is the maximum power consumption of the Virtus Nano Carbon Integra 62?

The Virtus Nano Carbon Integra 62 can handle a maximum power consumption of 3000 watts. This immense maximum power is paired with a very strong load capacity at a continuous power of 100 watts RMS. Such high power parameters ensure that the speaker shows no sound distortion even at high volumes and delivers absolutely clear sound experiences. Especially if you enjoy listening to music loudly, this power capability ensures that the speakers always operate reliably and dynamically, even under intense use.

What sensitivity does the Virtus Nano Carbon Integra 62 offer?

The Virtus Nano Carbon Integra 62 from Morel shows a sensitivity of 87 dB (2.83V/1m). This sensitivity indicates how efficiently the speaker is able to convert electrical drive into acoustic energy. A high sensitivity value means that less electrical power is needed to achieve a high volume, which is particularly useful when you operate a power-resistant audio system, as found in many modern cars, without external amplifiers. This allows for excellent sound dynamics even with low-power sources.

What technical specifications does the tweeter of the Virtus Nano Carbon Integra 62 offer?

The tweeter integrated in the Virtus Nano Carbon Integra 62 is an ultra-compact model with a diameter of 28 mm. It is based on ACUFLEX technology with a coated silk diaphragm, which ensures particularly precise sound reproduction. These tweeters are designed to handle the upper frequency ranges up to 22000 Hz and are centrally located in the mid-bass driver. The design supports excellent spatial reproduction and pinpoint sounds, which is especially advantageous in vehicles as it optimizes the listening experience and enhances the illusion of a centralized sound source.

What components are included with the Virtus Nano Carbon Integra 62?

The package of the Virtus Nano Carbon Integra 62 is extensive and includes all necessary components for installation. This includes two 2-way coaxial speakers, two MXR 250.4i Crossovers for optimal frequency separation, and two included Grilles. Additionally, six 3/4-inch screws and eight 1-1/4-inch screws for mounting are included, as well as eight quick connectors, four 0.25-inch crimp-on socket quick connectors, and four 0.110-inch crimp-on quick connectors. A mounting kit for the Grille, an installation manual, and a warranty card complete the package.

How does the Crossover work in the Virtus Nano Carbon Integra 62?

The Crossover in the Virtus Nano Carbon Integra 62, the MXR 250.4i, plays a crucial role in optimal sound distribution. It ensures that audio signals are efficiently divided between the Tweeters and mid-bass drivers. This Crossover is specifically designed to minimize phase shifts and ensure seamless transitions between the speakers. With its help, the Tweeters and mid-bass drivers can be tuned to their specific frequency ranges to accurately and losslessly reproduce both pitch and timbre of the sound.

What installation tips are there for the Virtus Nano Carbon Integra 62 in vehicles?

The Virtus Nano Carbon Integra 62 can be installed in a variety of vehicles with a mounting depth of only 17 mm, especially where space is limited. Ensure that the installation allows for proper ventilation and that the speakers are mounted behind a stable surface. Using the mounting kit, including quick connectors and screws, facilitates secure attachment. Proper alignment of the Tweeters can further enhance high-frequency reproduction. Correct placement of the Crossovers in the interior is also important for optimal sound quality.
