Hertz HMX 6.5-LD-TW 6.5" (16,5cm) Coaxial Speaker
SKU:  HMX-6.5-LD-TW
EAN:  8018823137508
75 Watt

HMX 6.5-LD-TW

SKU:  HMX-6.5-LD-TW
EAN:  8018823137508

Technical Highlights

  • 75W RMS, 4 Ohm impedance, 50-25k Hz frequency response.
  • RGB LED, UV-resistant membrane, neodymium tweeter.
  • High excursion, durable, undistorted sound pressure.
  • More technical details
00 d
00 h
00 m
00 s
€219,00
-8% €239,00 €219,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Only a few left in stock (1 pieces available)
In stock
Jun 5, - Jun 6,
x pair
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €18,25 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Rainbow AudioEL-X165S
Rainbow Audio-EL-X165S-6.5" (16,5cm) Koaxial-Lautsprecher-masori-kaufen
Audio System-XC 165 Evo-6.5" (16,5cm) Koaxial-Lautsprecher-masori-kaufen
Audio SystemXC 165 Evo
Hertz-HMX 6.5-LD-TW-6.5" (16,5cm) Koaxial-Lautsprecher-masori-kaufen
€219,00
€239,00 €219,00

HMX 6.5-LD-TW by Hertz

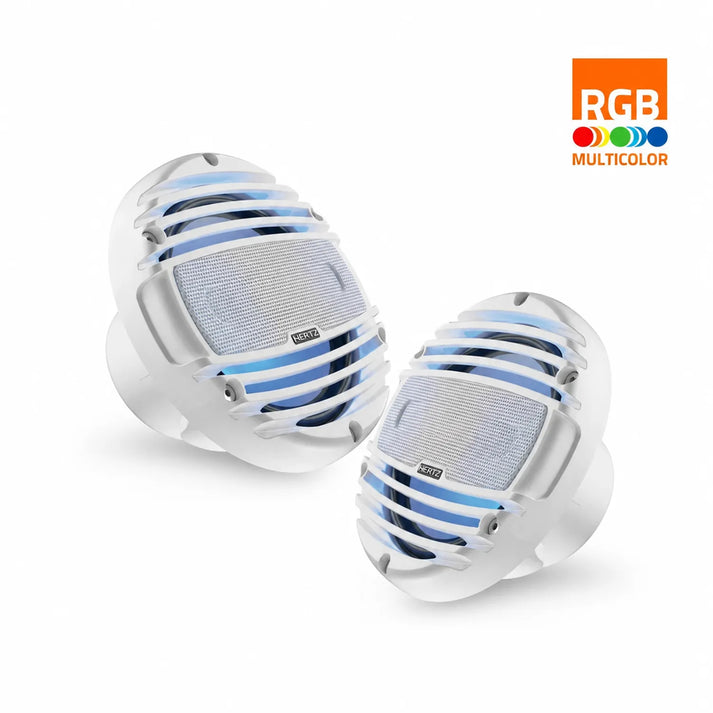

HMX 6.5-LD-TW is a 6.5-inch Marine Coaxial Speaker from Hertz with an integrated RGB LED lighting option and acoustically optimized design for off-axis operation. The power handling is 75 W RMS and 150 W Peak at 4 Ohm impedance, with a frequency response ranging from 50 to 25,000 Hz. The diaphragm is made of polypropylene with UV inhibitors, combined with co-molded Santoprene surround and aramid fiber spider with silicone-insulated connection wires. The woofer uses a 25 mm voice coil and a high-density ferrite magnet, while the tweeter features a 36 mm PEI dome, 20 mm voice coil, and neodymium magnet. A sealed, built-in Crossover with resettable solid-state tweeter protection circuit is integrated. The sound-transparent tone-on-tone tweeter grille is made of stainless steel, and the massive magnetic group is encapsulated in an injection-molded marine-grade polymer basket. The system is designed and tested for UV, salt mist, vibrations, splash water, temperature shock, and dust. The depth is 95.6 mm, Xmech is ±6.65 mm, and the weight per speaker is 1 kg.

Features
  • 6.5-inch coaxial speaker
  • Marine version
  • Integrated RGB LED lighting, compatible with HM RGB 1 BK
  • Acoustically optimized front plate with acoustic lens for off-axis radiation
  • 36 mm PEI tweeter diaphragm with neodymium magnet
  • 25 mm long-stroke voice coil on the woofer, high-density ferrite magnet
  • Polypropylene diaphragm with UV inhibitors and co-molded Santoprene surround
  • Aramid fiber spider with silicone-insulated connection wires
  • Sealed built-in Crossover with resettable solid-state tweeter protection circuit
  • Sound-transparent tone-on-tone tweeter grille made of stainless steel
  • FEM-optimized mobile devices with high excursion, magnetic group encapsulated in injection-molded marine-grade polymer basket
  • Gold-plated, corrosion-resistant terminals
  • Tested for UV, salt mist, vibrations, splash water, temperature shock, dust
Technical Specifications
  • Size 165 mm
  • Impedance 4 Ohm
  • Power handling RMS 75 W
  • Power handling Peak 150 W
  • Frequency response 50 – 25,000 Hz
  • Depth 95.6 mm
  • Xmech ±6.65 mm
  • Weight per speaker 1 kg
  • Tweeter diaphragm 36 mm
  • Woofer voice coil Ø 25 mm
  • Tweeter voice coil Ø 20 mm
  • Woofer magnet size 78.5 x 32 x 17 mm
  • Tweeter magnet size 19.7 x 3 mm
  • Woofer magnet ferrite with high density
  • Tweeter magnet neodymium
  • Diaphragm polypropylene with UV inhibitors
  • D 125 mm
  • Re 3.5 Ohm
  • Fs 65 Hz
  • Le 0.53 mH
  • Vas 8.8 l
  • Mms 14 g
  • Cms 0.4 mm/N
  • Bl 5.2 Tm
  • Qts 0.7
  • Qes 0.75
  • Qms 11.5
  • Sound pressure 89 dB
  • Dimensions A 172.2 mm
  • Dimensions B 128 mm
  • Dimensions C 95.6 mm
  • Dimensions D 69 mm
  • Dimensions F 26.6 mm

Your benefits at Masori

Hertz HMX 6.5-LD-TW Datasheet

Open datasheet

Frequently Asked Questions about HMX 6.5-LD-TW

What are the main features of the HMX 6.5-LD-TW speaker?

The HMX 6.5-LD-TW from Hertz is a 6.5-inch marine coaxial speaker with unique features such as integrated RGB LED lighting, which can be controlled via the accessory HM RGB 1 BK. It is designed for extreme marine conditions, thanks to its UV-resistant polypropylene diaphragm and robust construction. The speaker has an acoustically optimized design for off-axis operation and a PEI dome in the tweeter, which, along with an acoustic lens, ensures the highest sound pressure levels. The use of neodymium magnets and an aramid centering significantly enhances performance and durability.

What is the power handling capacity of the HMX 6.5-LD-TW speaker?

The HMX 6.5-LD-TW from Hertz offers an RMS power handling capacity of 75 watts and can withstand peak loads of up to 150 watts. This high performance allows it to be used in demanding sound environments without distorting the sound. The use of materials such as polypropylene for the diaphragm and the robust aramid centering ensures that the speaker operates consistently and reliably even at high volumes and under marine conditions.

What technical specifications characterize the HMX 6.5-LD-TW?

The HMX 6.5-LD-TW from Hertz is distinguished by numerous technical details: it has an impedance of 4 ohms and a frequency range of 50 Hz to 25 kHz. The woofer voice coil has a diameter of 25 mm, while the tweeter has a 20 mm voice coil. The base material used is a high-density flux ferrite, and the construction includes a neodymium tweeter magnet. Other specifications include a sound pressure level of 89 dB and a mechanical excursion of ±6.65 mm, which significantly improves audio quality.

How is the RGB LED lighting in the HMX 6.5-LD-TW controlled?

The RGB LED lighting of the HMX 6.5-LD-TW speaker can be controlled via the HM RGB 1 BK accessory, which functions as a radio frequency remote control. This not only allows you to select a color that matches your boat particularly well, but also offers the option to create a light show that responds to the tempo of the music. This feature adds a visual dimension to the audiophile experience, making it even more captivating and creating a unique atmosphere on your boat.

What materials are used in the Hertz HMX 6.5-LD-TW?

The Hertz HMX 6.5-LD-TW speaker uses selected materials specifically developed for the demands of marine environments. The diaphragm is made of polypropylene with UV inhibitors, ensuring a long lifespan under sunlight. The tweeter utilizes a PEI material dome, combined with a stainless steel front plate for optimal off-axis radiation. The woofer magnet is made of high-density ferrite, while the tweeter magnet is made of powerful neodymium. These materials enable high endurance and powerful audio output.

What are the specific dimensions of the HMX 6.5-LD-TW speaker?

The Hertz HMX 6.5-LD-TW speaker has specific dimensions that highlight its adaptability and performance. The speaker diameter is 165 mm, the installation depth measures 95.6 mm, and the total width including the basket is 172.2 mm. The woofer magnetic area is 78.5 mm wide, 32 mm deep, and 17 mm high, while the tweeter magnet size includes 19.7 mm width and 3 mm depth. These dimensions emphasize its excellent suitability for use in various types of vessels and ensure the high sound quality expected from Hertz products.

What is the acoustic design goal of the HMX 6.5-LD-TW from Hertz?

The acoustic design goal of the HMX 6.5-LD-TW from Hertz is to achieve a high sound pressure level even off-axis. This goal is met by the 1.4-inch neodymium magnet tweeter, which is equipped with an acoustic lens to ensure optimal sound distribution. This is complemented by a sound-transparent tweeter grille that maximizes the sound pressure level and delivers an uncolored sound image. The speaker takes into account the challenges of mobile applications and optimizes the audio experience even in open and prominent environments on boats or yachts.

Which accessories are compatible with the Hertz HMX 6.5-LD-TW?

The Hertz HMX 6.5-LD-TW is compatible with the radio frequency remote control accessory HM RGB 1 BK. This remote allows comprehensive control of the integrated RGB LED lighting by offering a variety of functions such as color selection or creating a light show synchronized to the music. The combination of the speaker and accessory greatly enhances the flexibility and adaptability of your audio system at sea, providing a tailored experience that is impressive both acoustically and visually.

What audio technologies are integrated into the HMX 6.5-LD-TW?

The Hertz HMX 6.5-LD-TW incorporates numerous advanced audio technologies to ensure a precise sound experience. This includes a 25 mm long-stroke woofer for infinite soundboard applications, powered by a FEM-optimized mobile device with high excursion. The aramid fiber spider ensures durability and consistency, while the built-in Crossover features a resettable tweeter protection circuit. These technologies, combined with neodymium and ferrite magnets, guarantee crystal-clear audio quality even under the most demanding conditions.

How is the durable construction of the Hertz HMX 6.5-LD-TW ensured?

The durability of the Hertz HMX 6.5-LD-TW is ensured by a number of specific design features. This includes its UV-resistant polypropylene diaphragm and a high-quality aramid centering that are resilient to marine conditions. Additionally, components such as the gold-plated, corrosion-resistant terminals and the injected polymer housing are optimized for use in harsh environments. The protective mechanisms of the solid-state tweeter protection circuit and the robust materials ensure consistent performance during long-term use on the water.
